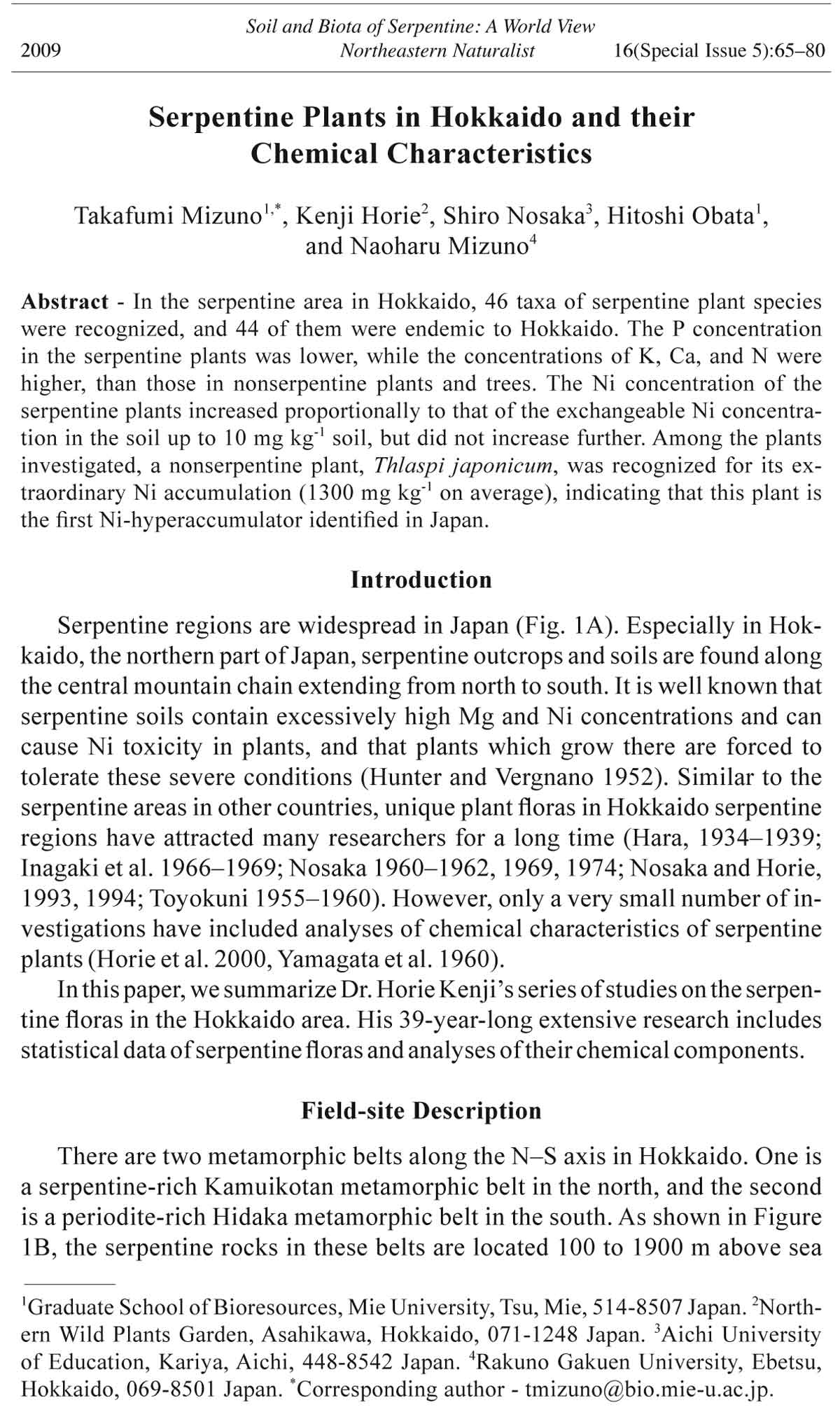

Soil and Biota of Serpentine: A World View
2009 Northeastern Naturalist 16(Special Issue 5):65–80
Serpentine Plants in Hokkaido and their
Chemical Characteristics
Takafumi Mizuno1,*, Kenji Horie2, Shiro Nosaka3, Hitoshi Obata1,
and Naoharu Mizuno4
Abstract - In the serpentine area in Hokkaido, 46 taxa of serpentine plant species
were recognized, and 44 of them were endemic to Hokkaido. The P concentration
in the serpentine plants was lower, while the concentrations of K, Ca, and N were
higher, than those in nonserpentine plants and trees. The Ni concentration of the
serpentine plants increased proportionally to that of the exchangeable Ni concentration
in the soil up to 10 mg kg-1 soil, but did not increase further. Among the plants
investigated, a nonserpentine plant, Thlaspi japonicum, was recognized for its extraordinary
Ni accumulation (1300 mg kg-1 on average), indicating that this plant is
the first Ni-hyperaccumulator identified in Japan.
Introduction
Serpentine regions are widespread in Japan (Fig. 1A). Especially in Hokkaido,
the northern part of Japan, serpentine outcrops and soils are found along
the central mountain chain extending from north to south. It is well known that
serpentine soils contain excessively high Mg and Ni concentrations and can
cause Ni toxicity in plants, and that plants which grow there are forced to
tolerate these severe conditions (Hunter and Vergnano 1952). Similar to the
serpentine areas in other countries, unique plant floras in Hokkaido serpentine
regions have attracted many researchers for a long time (Hara, 1934–1939;
Inagaki et al. 1966–1969; Nosaka 1960–1962, 1969, 1974; Nosaka and Horie,
1993, 1994; Toyokuni 1955–1960). However, only a very small number of investigations
have included analyses of chemical characteristics of serpentine
plants (Horie et al. 2000, Yamagata et al. 1960).
In this paper, we summarize Dr. Horie Kenji’s series of studies on the serpentine
floras in the Hokkaido area. His 39-year-long extensive research includes
statistical data of serpentine floras and analyses of their chemical components.
Field-site Description
There are two metamorphic belts along the N–S axis in Hokkaido. One is
a serpentine-rich Kamuikotan metamorphic belt in the north, and the second
is a periodite-rich Hidaka metamorphic belt in the south. As shown in Figure
1B, the serpentine rocks in these belts are located 100 to 1900 m above sea
1Graduate School of Bioresources, Mie University, Tsu, Mie, 514-8507 Japan. 2Northern
Wild Plants Garden, Asahikawa, Hokkaido, 071-1248 Japan. 3Aichi University
of Education, Kariya, Aichi, 448-8542 Japan. 4Rakuno Gakuen University, Ebetsu,
Hokkaido, 069-8501 Japan. *Corresponding author - tmizuno@bio.mie-u.ac.jp.
66 Northeastern Naturalist Vol. 16, Special Issue 5
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 67
level from 42 to 45ºN latitude, 142 to 143ºE longitude. For the purpose of
clarifying the distribution of serpentine plants, we divided the serpentine
areas on Kamuikotan belt into five districts: northern areas (Toikanbetsu, Mt.
Shirikoma, Nakatonbetsu, Otoineppu), central areas (Horokanai, Mt. Shiratori,
Shibetsu, Wassamu, Asahikawa-Kamuikotan, Furano), southern areas
(Hobetsu, Mt. Bouzu, Shimekappu, Hidaka), Mt. Yupari areas (Mt. Yupari,
Mt. Furanonishi), and Mt. Tottabetsu areas (Mt. Tottabetsu, Mt. Chiroro);
and the Hidaka belt into two: Mt. Apoi areas (Mt. Apoi), and Shizunai areas
(Shizunai and Mitsuishi). We examined these regions for their serpentine
vegetation (Horie et al. 2000). From October to April, these areas are covered
with snow, and snow remains until June in high mountain areas.
Methods
For the floristic survey and taxonomy, works by Kitamura (1993), Nosaka
(1960–1962, 1969, 1974), and Nosaka and Horie (1993, 1994) were cited.
Plant samples were collected at their blooming time, and only their leaves
were used for chemical analysis. Dried samples were digested with a mixture
of sulfuric acid and hydrogen peroxide, then five methods were applied to
determine the concentration of sixteen atoms or ions in the sample solution:
atomic absorption spectrometry (Hitachi 180-50 spectrometer, Hitach, Japan)
(Na, K, Mg, Ca, Fe, Mn, Zn, Cu, Ni, Cr, Al, and Ti); Kjeldahl method (N); molybdenum
blue method (P); AAS with methylisobutylketone-abstraction of
dimethyldithiocarbamic acid-complex (Co); and isopropyl ether extraction-
475nm absorption measurement of thiocyanic acid-treated sample (Mo).
Samples of serpentine rocks from 30 locations and soils from 75 locations
of serpentine areas in Hokkaido were collected at a point within 10 cm
from the sampled plants (Horie 2002). Soil samples were collected from the
land surface (upper 15 cm) or around the plant roots on the rocks, then passed
through 2-mm mesh and pounded in a mortar, and passed again through 1.2-
mm mesh. Rock samples were fractured and passed through 0.05-mm mesh.
These samples were decomposed using either the hydrogen fluoride-perchloric
acid or alkali-fusion method (Purvis and Peterson 1956). Exchangeable
Figure 1 (opposite page). Distribution of serpentine areas in Japan (A) and Map of
sampling locations of serpentine plants in Hokkaido (B). (A) Localities—1: Toikanbetsu,
2: Mt. Bouzu, 3: Asahikawa-Kamuikotan, 4: Mt. Yupari, 5: Tomamu, 6: Mt.
Apoi, 7: Hayachine, 8: Sawame, 9:Miyamori, 10: Mt. Shibutsu, 11: Mt. Tanikawa,
12: Mt. Hakuba, 13: Ooshika, 14: Shibukawa,15: Yana, 16: Is. Suga, 17: Mt. Asama,
18: Mt. Ooe,19: Sekinomiya, 20: Mt. Ryuumon, 21: Mt. Kurosawa, 22: Jinryou, 23:
Hukuhara, 24: Miyahama, 25: Engyouji, 26: Mt. Higashiakashi, 27: Mt. Nishiki,
28: Mt. Rakan, and 29: Tanoura. (B) The 7 sampling areas, containing 19 sampling
locations, are as follows. Northern areas (1: Toikanbetsu, 2: Mt. Shirikoma, 3: Nakatonbetsu,
4: Otoineppu), central areas (5: Horokanai, 6: Mt. Shiratori, 7: Shibetsu, 8:
Wassamu, 9: Asahikawa-Kamuikotan, 10: Furano), southern areas (11: Hobetsu, 12:
Mt. Bouzu, 13: Shimekappu, 14: Hidaka), Mt. Yupari areas (15: Mt. Yupari, 16: Mt.
Furanonishi), Mt. Tottabetsu areas (17: Mt. Tottabetsu, 18: Mt. Chiroro), Mt. Apoi
areas (19: Mt. Apoi), and Shizunai areas (20: Shizunai, Mitsuishi).
68 Northeastern Naturalist Vol. 16, Special Issue 5
Na, K, Mg, Ca, and Ni were extracted following the Shollenberger method.
Chemical components were analyzed with an atomic absorption spectrometer.
Results and Discussion
Distribution of serpentine plants
The serpentine vascular plants in Hokkaido comprised 46 taxa, including
17 families, 32 genera, 40 species, 5 varieties, and 1 form (Appendix 1). The
Hokkaido serpentine flora contained 70.8% of the serpentine species found
in Japan (65 taxa of 22 families). The majority of the 46 taxa in Hokkaido
belong to Compositae (13 taxa), Primulaceae (4 taxa), Ranunculaceae (3
taxa), Rosaceae (3 taxa), Violaceae (3 taxa), or Scrophulariaceae (3 taxa).
Several photos of typical serpentine plants are shown in Figure 2.
The nonserpentine plant families that we observed frequently on the
serpentine soils were Rosaceae, Violaceae, Umbelliferae, Ericaceae, and
Compositae. Alpine plants such as Pinus pumila Regel (Dwarf Pine), Geum
pentapetalum (L.) Makino (Aleutian Avens), and Vaccinium vitis-idaea
L.var. minus Loddiges (Bilberry) were growing on serpentine soils in the low
altitudes of mountains in the northern and central parts of Hokkaido, but not
in the southern parts.
The distribution and genetic variations of the serpentine floras in Hokkaido
are unique. In these floras are several rare endemic plants and alpine
plants. It is speculated that the cold climate in Hokkkaido preserved these
plants since the last glacial epoch. Nakata and Kojima (1987) also suggested
that the cool and humid climate, as well as undulating relief of northern Hokkaido,
are important factors for the development of the unique phytogeocoenosis.
Kitamura (1993) pointed out that many kinds of serpentine plants
inhabiting Mt. Yupari and Mt. Apoi were also found in Mt. Hayachine, Iwate
Prefecture, Japan (Fig. 1A, point 7), but only three taxa (Leontopodium
hayachinense Hara & Kitam., Polygonum hayachinensis Makino, Primula
macrocarpa Maxim.) were endemic to this mountain.
Chemical characteristics of serpentine soil
Table 1 shows the average concentrations of the chemical components
and heavy metals , Table 2 gives the total element average concentrations
of the total elements, and Table 3 gives the average concentrations of the
exchangeable elements in serpentine rocks in each sampled area in Hokkaido.
The serpentine soils were distinctively very low in K, Ca, and Al;
however, they were very high in Mg, Ni, and Cr. A highly significant positive
correlation (r = 0.903, P < 0.001) was observed between the Ca and Al
concentrations in serpentine rocks, and there was a significant negative correlation
(r = -0.527, P < 0.01) between Ni and Mg concentrations. The pH of
the serpentine soil samples ranged from 5.7 to 9.4, and the mean value was
6.9. Less than 10% of the soil samples showed a pH higher than 8.0.
The concentration of exchangeable K in the serpentine soil samples
ranged from an undetectable amount to 4.7 mmol+ kg-1. Even compared with
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 69
the lowest level of K in agricultural fields, the average exchangeable K was
very low (1.2 mmol+ kg-1), especially in the southern areas (0.05–0.54 mmol+
Figure 2. Typical serpentine plants endemic to the serpentine areas in Hokkaido. Plant
names and their localities are as follows (clockwise from top left): Japonolirion osense
var. saitoi (northern-area endemic), Aconitum ito-seiyanum (northern-area endemic),
Adenophora pereskiifolia var. uryuensis (central-area endemic), Taraxacum yuparense
var. grandisquamatum (southern-area endemic), Viola yubariana (Mt. Yupari-area
endemic) Primula yuparensis (Mt. Yupari area endemic), Callianthemum miyabeanum
(Mt. Apoi-area endemic), and Hypochoeris crepidioides (Mt. Apoi-area endemic).
70 Northeastern Naturalist Vol. 16, Special Issue 5
Table 1. The average concentrations of the chemical components and heavy metals in serpentine rocks in each sampled area in Hokkaido, Japan. N.D. = not
detected; tr. = trace.
Average of chemical components (%)
No. of
Locality samples H2O SiO2 MgO FeO Na2O K2O Al2O3 CaO NiO Cr2O3 TiO2 Total
Northern areas 7 12.49 41.53 38.46 5.91 0.35 tr. 0.16 0.07 0.34 0.22 0.02 99.58
Central areas 8 13.96 41.71 35.03 7.55 0.30 tr. 0.48 0.21 0.45 0.15 0.02 99.86
Southern areas 4 14.81 39.25 37.93 6.03 0.24 0.01 0.46 0.18 0.29 0.52 0.02 99.71
Mt. Yupari areas 3 11.23 42.90 37.67 6.49 0.37 0.01 0.5 0.08 0.39 0.21 0.01 99.86
Mt. Tottabetsu areas 1 6.21 41.40 43.10 6.81 0.32 N.D. 0.65 0.87 0.34 0.11 tr. 99.81
Mt. Apoi areas 4 3.94 43.08 39.55 7.38 0.40 0.02 2.35 1.88 0.29 0.26 0.05 99.20
Shizunai areas 2 13.12 40.85 38.60 5.12 0.39 0.05 0.83 0.26 0.36 0.25 0.01 99.76
Total average 11.81 41.60 37.60 6.65 0.33 0.01 0.68 0.41 0.37 0.24 0.02 99.69
Standard deviation 4.00 1.70 3.00 1.02 0.07 0.01 0.76 0.65 0.09 0.18 0.01 0.51
Average of heavy metal concentrations (mg kg-1)
No. of
Locality samples Ni Cr Ti Mn Zn Cu Co
Northern areas 7 2720 1795 94.0 723 33.6 8.5 13.1
Central areas 8 3551 1051 115.8 1006 46.8 9.5 43.9
Southern areas 4 2279 3555 74.0 782 51.3 11.1 55.4
Mt. Yupari areas 3 3048 1485 54.3 860 45.3 8.9 101.4
Mt. Tottabetsu areas 1 2689 672 2.0 893 38.0 10.1 116.1
Mt. Apoi areas 4 2323 1802 246.0 1116 63.3 25.9 100.0
Shizunai areas 2 2954 1758 47.5 906 51.0 12.4 95.5
Total average 2905 1737 109.0 900 46.0 11.8 57.3
Standard deviation 672 1455 96.0 280 14.0 6.0 42.3
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 71
kg-1). Similarly, exchangeable Ca was also very low (0.7–126.5 mmol+ kg-1;
average 18.0 mmol+ kg-1), especially in the southern areas and Mt. Tottabetu
areas (or under 5.0 mmol+ kg-1, average).
In contrast, the average exchangeable Mg in the serpentine soils was high
(73.7 mmol+ kg-1), about twice that in agricultural fields. The concentration
of exchangeable Ni was also high (0.02–0.65 mmol+ kg-1; 0.24 mmol+ kg-1
average), although little of the Ni in the soil was exchangeable. One-fourth
of the soil samples contained more than 0.3 mmol+ kg-1 exchangeable Ni,
the level which causes Ni-excess symptoms in plants (Mizuno 1968). None
Table 2. Average concentration of the total elements in serpentine soil in each sampled area in
Hokkaido, Japan.
Ni Mg Ca Fe Al Na K
Locality (mg kg-1) (g kg-1) (g kg-1) (g kg-1) (g kg-1) (g kg-1) (g kg-1)
Northern areas 1965.0 186.2 1.7 38.2 4.8 3.1 0.5
Central areas 1944.3 137.8 4.0 40.8 14.7 3.9 2.4
Southern areas 2051.0 190.2 3.7 23.8 9.4 14.0 0.3
Mt. Yupari areas 1534.0 160.5 6.7 44.5 13.9 6.0 1.1
Mt. Tottabetsu areas 2589.0 260.0 6.9 64.9 8.1 1.4 0.2
Mt. Apoi areas 1889.7 174.5 9.8 46.0 17.6 4.0 1.2
Shizunai areas 1333.7 119.3 21.2 35.9 21.0 20.9 1.9
Total average 1844.0 161.0 6.1 40.6 13.1 6.7 1.3
Standard deviation 598.0 52.0 6.1 16.1 10.2 8.8 1.8
P2O5 Mn Zn Ti SiO2 Mo
Locality (g kg-1) (mg kg-1) (mg kg-1) (g kg-1) (g kg-1) (g kg-1)
Northern areas 0.2 478.1 39.0 0.3 391.6 1.6
Central areas 0.6 847.1 58.9 9.7 469.6 1.0
Southern areas 0.1 487.4 39.9 1.4 426.2 0.9
Mt.Yupari areas 0.3 850.6 61.0 2.7 488.3 0.7
Mt.Tottabetsu areas 0.2 886.0 55.0 0.5 429.5 0.6
Mt.Apoi areas 0.2 845.5 63.5 2.5 560 0.7
Shizunai areas 0.0 874.7 75.0 10.5 475.8 0.6
Total average 0.3 757.0 54.0 3.0 464.5 1.0
Standard deviation 0.5 351.0 21.0 7.8 77.4 0.5
Table 3. Average concentration of exchangeable elements in serpentine soil in each sampled
area in Hokkaido, Japan.
No. of pH Na K Mg Ca Ni
Locality samples (H2O) (mg kg-1) (mg kg-1) (mg kg-1) (mg kg-1) (mg kg-1)
Northern areas 14 7.4 25.1 40.9 815 260.2 11.5
Central areas 22 6.7 19.4 79.2 1051.7 354.7 7.3
Southern areas 9 7.3 5.6 10.6 412.3 104 3.8
Mt. Yupari areas 15 6.6 6.5 34.8 697.2 231 7.7
Mt. Tottabetsu areas 1 6.1 4.1 13.3 343.4 121.4 3.4
Mt. Apoi areas 11 6.6 18.5 36.7 776.5 298.7 3.4
Shizunai areas 3 7.6 12.2 15 385.5 1347.6 2.8
Total average 75 6.9 16.0 47.0 895.8 360.7 7.0
Standard deviation 0.7 21.8 50.1 690.4 441.2 5.0
72 Northeastern Naturalist Vol. 16, Special Issue 5
of the samples contained more than 0.7 mmol+ kg-1 exchangeable Ni, which
would cause strong Ni toxicity (Mizuno 1968). This upper limit is the result
of Ni in serpentine soil being hardly soluble due to the high Mg concentration
and high pH (Mizuno 1979).
We also analyzed the chemical components of soils in several serpentine
areas in Yana (Fig. 1A, point 14), Suga island (16), and Mt. Asama (17) in
the central Japan areas. Their pH ranged from 6.86–7.23, the total Ni content
in the soil samples ranged from 1500–3670 mg kg-1, and other chemical
components were not extremely different from those of the Hokkaido area
(data not shown). So the general pattern of the metal concentrations—low K
and Ca, and high Mg and Ni—is one of the characteristics of the serpentine
soil in Hokkaido, but also in other serpentine areas in Japan.
Chemical characteristics of serpentine plants
Horie (2002) analyzed chemical components in the serpentine plants
(37 taxa), nonserpentine plants (33 taxa), and trees (5 taxa) growing on the
serpentine soil in Hokkaido. As a result, the average of five macroelements
and five microelements of serpentine plants, nonserpentine plants, and trees
growing on serpentine soils were obtained (Table 4). The P concentration
in the serpentine plants (1.4 g kg-1) was lower than those of the nonserpentine
plants (1.7 g kg-1) and trees (3.1 g kg-1), while the concentrations of
K, Ca, and N were higher. The serpentine plants were found to contain N,
K, Ca, and Mg concentrations that were two times as high as non-serpentine
plants, and four-times as high as trees. The concentration of P in the serpentine
plants was at a minimum level within the range that does not cause P
deficiency. Such physiological characteristics enabled them to grow on the
nutrient-poor serpentine soil.
The Fe concentration of the serpentine plants ranged from 62–1210 mg
kg-1, (mean = 290 mg kg-1), which is 1.3 times higher than the average concentration
of Fe in nonserpentine plants (219 mg kg-1) and 4.9 times higher
than that of trees growing on serpentine soils (59 mg kg-1). Likewise, Mn,
Zn, and Cu concentrations in the serpentine plants were all higher than those
of nonserpentine plants and trees. The Mn, Zn, and Cu concentration ratios
of serpentine plants were 1.7, 1.3, and 1.1 times those of nonserpentine
plants, and 1.5, 2.8, and 2.0 times those of trees.
On the contrary, the Ni concentration in serpentine plants (53 mg kg-1 on average)
was lower than that of nonserpentine plants (67 mg kg-1 on average). The
Ni concentrations of the serpentine plants increased proportionally to that of
the exchangeable Ni concentrations in the soils up to a level of 15 mg kg-1 in the
soil, but did not increase further (Fig. 3a–d). On the other hand, Ni concentration
in the nonserpentine plants increased linearly in proportion to the amount
of the exchangeable Ni in the soil (Fig. 3e,f). Hence, the serpentine plants in
Hokkaido are estimated to have a mechanism to control the uptake and accumulation
of Ni in their aerial tissue, in order to avoid the damage associated
with excessive Ni. The mechanisms of xylem loading of Ni and/or Ni-transport
mechanisms to upper parts of plants have not been clearly identified, but some
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 73
Table 4. Concentration of macro- and microelements of native plants found growing on serpentine
soil in Hokkaido, Japan.
Macroelements Microelements
(g kg-1 D.W.) (mg kg-1 D.W.)
Plant name N P K Mg Ca Fe Mn Zn Cu Ni
Deschampsia caespitosa 23.0 1.4 7.3 1.2 1.1 104 86 21 6.7 7
Hierochloe pluriflora 21.9 1.2 11.1 0.9 0.7 62 14 17 5.2 23
Japonolirion osense 21.2 1.6 23.3 2.5 8.3 93 21 35 7.0 9
Betula apoiensis 18.8 1.1 7.3 2.1 3.1 85 68 114 6.9 7
Quercus mongolica var. grosseserrata 20.9 1.4 6.0 3.6 4.1 130 190 13 6.0 14
Arenaria katoana var. katoana 26.6 1.4 12.1 4.5 3.6 221 65 31 5.0 21
Silene repens var. apoiensis 30.2 1.5 31.3 4.4 4.7 294 86 21 5.2 19
Aconitum ito-seiyanum 22.0 1.2 14.6 12.1 9.6 155 86 20 6.4 62
Callianthemum miyabeanum 22.7 1.6 20.7 2.8 10.8 121 52 85 6.8 24
Ranunculus acris var. nipponicus 21.2 1.2 18.8 5.0 3.2 214 86 128 12.4 126
Draba japonica 29.1 1.8 13.8 12.0 4.1 910 54 32 6.4 131
Aruncus dioicus var. subrotundatus 24.9 1.3 12.2 4.0 4.8 205 57 31 8.9 18
Potentilla apoiensis 22.4 1.4 12.8 2.3 9.2 1080 76 72 20.0 24
Potentilla matsumurae var. yuparensis 21.4 1.2 11.4 6.2 4.4 130 89 38 5.4 90
Geranium erianthum f. glabriusculum 25.9 1.8 10.2 1.2 5.9 103 31 17 6.8 4
Euonymus alatus f. kakurensis 12.6 1.5 9.5 4.2 6.5 116 108 15 4.4 6
Hypericum tatewakii 22.1 1.1 6.2 3.0 2.7 82 29 22 5.7 58
var. nigro-punctatum
Viola sacchalinensis var. alpina 24.9 1.5 11.5 6.5 3.3 766 64 33 6.0 123
Viola yubariana 32.2 1.5 21.9 6.6 2.9 256 44 30 4.6 248
Angelica acutiloba var. lanceolata 28.6 1.5 22.6 3.2 9.4 205 97 30 6.2 19
Peucedanum multivittatum 39.5 1.8 31.0 6.2 8.7 194 93 45 10.1 43
var. linearilobum
Primula hidakana 15.8 1.0 11.3 3.4 3.5 170 18 22 11.4 8
Primula modesta var. samanimontana 19.3 1.4 25.7 4.9 3.7 1210 57 40 15.6 23
Primula takedana 39.0 1.7 24.6 3.3 1.7 336 38 35 9.7 34
Primula yuparensis 14.8 1.0 15.1 9.3 1.5 126 35 36 6.7 108
Lagotis takedana 19.1 1.3 18.7 5.1 2.4 299 36 21 8.2 172
Veronica schmidtiana var. yezoalpina 18.2 1.5 12.1 4.0 2.9 310 31 18 5.8 24
Adenophora pereskiifoliar 16.8 1.3 21.7 5.7 9.9 141 56 28 5.6 32
var. uryuensis
Achillea ptarmica var. yezoensis 15.6 1.6 19.1 3.9 7.9 223 117 54 7.4 12
Cirsium apoense 33.7 1.4 25.0 8.6 9.3 412 40 16 10.0 75
Crepis gymnopus 19.8 1.7 30.3 6.3 5.0 108 25 31 6.3 11
Erigeron thunbergii var. angustifolius 22.2 1.8 24.4 2.8 6.2 212 38 24 10.8 22
Hypochoeris crepidioides 23.7 1.6 31.3 5.3 5.6 298 34 48 8.3 54
Picris hieracioides var. jessoensis 22.1 1.3 26.2 4.8 3.1 314 29 30 6.8 27
Saussurea chionophylla 24.6 1.5 21.1 6.6 5.6 506 38 19 9.0 118
Saussurea kudoana var. uryuensis 15.7 1.1 23.2 5.8 5.3 175 22 16 7.9 53
Taraxacum yuparense var. yuparense 39.8 1.9 29.0 6.3 3.4 361 30 28 7.9 74
Total average 23.6 1.4 18.3 4.9 5.1 290 58 36 7.8 53
Standard deviation 6.7 0.2 7.8 2.6 2.7 273 35 26 3.1 54
recent reports showed the roles of nicotianamine for Ni tolerance and accumulation
(Callahan et al. 2007, Kim et al. 2005). It is possible that the level of
production of metal chelators in roots may be related to the difference of Ni accumulation
level between serpentine and nonserpentine plants.
74 Northeastern Naturalist Vol. 16, Special Issue 5
Figure 3. Relationships between exchangeable nickel in soils and nickel concentrations
in dried leaves of serpentine and nonserpentine plants.
According to the criteria established by Brooks et al. (1977), a
plant containing 100 to 1000 mg kg-1 Ni in dry matter is a “strong
Ni accumulator” and one containing more than 1000 mg kg-1 Ni is a “Ni
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 75
Figure 4. Ranges of Ni concentrations in native plants growing on serpentine areas
in Hokkaido.
76 Northeastern Naturalist Vol. 16, Special Issue 5
hyperaccumulator.” Among the 75 taxa inhabiting the serpentine soils in
Hokkaido, 8 qualify as strong Ni accumulators and only Thlaspi japonicum
H. Boiss qualifies as a Ni hyperaccumulator (Fig. 4). Both strong Ni
accumulators and the Ni hyperaccumulator were found growing on Mt.
Yupari. Among the 8 strong Ni accumulators, 7 taxa (Ranunculus acris
var. nipponicus Hara f. yuparensis (Miyabe) Toyokuni, Viola yubariana
Nakai, Lagotis takedana Miyabe & Tatewaki, Draba japonica Maximowicz,
Viola sacchalinensis var alpine Hara, Saussurea chionophylla
Takeda, and Primula yubariensis Takeda) were the serpentine plants, and
one taxon (Allium shoenoprasum var. shibutuense Kitamura) was a nonserpentine
plant inhabiting serpentine soil. These plants were reported for
the first time as strong Ni accumulators in Japan.
Thlaspi japonicum was reported for its Ni hyperaccumulation ability
(Reeves 1988) and for its Ni accumulation in the epidermal cells in crystal
form and Ni elimination in guttation fluid (Mizuno et al. 2003). Horie
(2002) showed the Ni concentration in T. japonicum ranged from 820 to
1955 mg kg-1 (mean = 1299 mg kg-1). This result confirms T. japonicum as a
hyperaccumulator. T. japonicum is the sole Ni-hyperaccumulator identified
in Japan at present, and our further research on T. japonicum is under way.
In addition to physiological research on Ni tolerance and accumulation in T.
japonicum (Mizuno et al. 2003, 2005a), we have isolated several candidate
transporters (TjZNT1 and 2) that are responsible for Ni tolerance (Mizuno
et al. 2005b). Several genes related to Ni tolerance in plants have been reported
(Kim et al. 2005, Schaaf et al. 2006). However, no other study investigating
the participation of ZIP family metal transporters for Ni tolerance
has been reported, and their Ni tolerance mechanism has not been identified.
Detailed investigations of these genes are now in progress (Mizuno et al.
2007, Nishida et al. 2008).
Summary Conclusion
Soils of Hokkaido serpentine areas showed high Ni, Cr, and Mg and low
Ca, and their chemical components are almost in the same range of those of
other serpentine areas in Japan. Serpentine plants showed low Ni content in
their shoots compared to non-serpentine plants, and no Ni hyperaccumulator
was found among them. Only a non-serpentine plant, T. japonicum, was
considered to be a hyperaccumulator.
Acknowledgments
We wish to thank Dr. Horie Kenji for generously providing us with the extensive
data which he collected over the thirty-nine years since 1969, including his doctoral
thesis. We hope this paper introduces readers to the serpentine flora in Hokkaido.
The full work of Dr. Horie is available (currently only in Japanese ) in the Journal of
Rakuno Gakuen University (see citation listing below).
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 77
Literature Cited
Brooks R.R., J. Lee, and R.D. Reeves. 1977. Detection of nickliferous rocks by
analysis of herbarium species of indicator plants, Journal of Geochemical Exploration
7:49–77.
Callahan D.L., S.D. Kolev, R.A.J. O’Hair, D.E. Salt, and A.J.M. Baker. 2007. Relationships
of nicotianamine and other amino acids with nickel, zinc, and iron in
Thlaspi hyperaccumulators. New Phytologist 176:836–848.
Hara, H. 1934– 1939. Preliminary report on the flora of southern Hidaka, Hokkaido
(Yezo). I–XXXVI. Botanical Magazine Tokyo 48: 685–707, 53:17–22.
Horie, K. 2002. Studies on the chemical characteristics of the ultramafic plants in
Hokkaido. Journal of Rakuno Gakuen University, Natural Science 26:155–264
(in Japanese with English summary).
Horie, K., N. Mizuno, and S. Nosaka. 2000. Characteristics of nickel accumulation
in native plants growing in ultramafic rock areas in Hokkaido. Soil Science and
Plant Nutrition 46:853–862.
Hunter, J.G., and O. Vergnano. 1952. Nickel toxicity in plants. Annals of Applied
Biology 39:279–284.
Inagaki, K., H. Toyokuni, K. Matsunaga, S. Horochi, M. Chida, M. Yamaguchi, T.
Kobayashi, M. Hanzawa, S. Kita, and T. Odajima. 1966–1969. On the flora of
ultrabasic rock areas in central and northern Hokkaido, Japan. Part 1. Journal of
Hokkaido University of Education Section B, 16: 99–13. 1966; Part 2. Ibidem
18:16–23. 1967; Part 3. Ibidem 19:20–26. 1968; Part 4. Ibidem 19:79–81. 1969;
Part 5. Ibidem 20:16–19. 1969.
Kim, S., T. Takahashi, K. Higuchi, K. Tsunoda, H. Nakanishi, E. Yoshimura, S.
Mori, and N.K. Nishizawa. 2005. Increased nicotianamine biosynthesis confers
enhanced tolerance of high levels of metals, in particular nickel, to plants. Plant
and Cell Physiology 46:1809–1818.
Kitamura, S. 1993. Studies on serpentine flora of Japan. Pp.146–22, In S. Kitamura
(Ed.). Distribution and Differentiation of Plants. Hoikusha Publishing, Osaka,
Japan (in Japanese).
Mizuno, N. 1968. Interaction between iron and nickel and copper and nickel in various
plant species. Nature 219:1271–1272.
Mizuno, N. 1979. Studies on chemical characteristics of serpentine soils and mineral
deficiencies and toxicities of crops. Report of Hokkaido Prefecture Agricultural
Experimental Stations 29:1–79 (in Japanese with English summary).
Mizuno, N., S. Nosaka, T. Mizuno, K. Horie, and H. Obata. 2003. Distribution of Ni
and Zn in the leaves of Thlaspi japonicum growing on ultramafic soil. Soil Science
and Plant Nutrition 49:93–97.
Mizuno, T., H. Obata, K. Horie, S. Nosaka, and N. Mizuno. 2005a. Comparison of
Ni/Zn metal accumulation ability of Thlaspi japonicum from three different areas
in Hokkaido. Soil Science and Plant Nutrition 51:589–594.
Mizuno, T., K. Usui, K. Horie, S. Nosaka, N. Mizuno, and H. Obata. 2005b. Cloning
of three ZIP/Nramp transporter genes from a Ni hyperaccumulator plant Thlaspi
japonicum and their Ni(II)-transport abilities. Plant Physiology and Biochemistry
43:793801.
Mizuno, T., K. Usui, S. Nishida, T. Unno, and H. Obata. 2007. Investigation of the
basis for Ni tolerance conferred by the expression of TjZnt1 and TjZnt2 in yeast
strains. Plant Physiology and Biochemistry 45:3713–78.
Nakata, M., and S. Kojima. 1987. Effects of serpentine substrate on vegetation and
soil development with special reference to Picea glehnii forest in Teshio District,
Hokkaido, Japan. Forest Ecology and Management 20:265–290.
78 Northeastern Naturalist Vol. 16, Special Issue 5
Nishida, S, T. Mizuno, and H. Obata. 2008. Involvement of histidine-rich domain
of ZIP family transporter TjZNT1 in metal ion specificity. Plant Physiology and
Biochemistry 46:601–606.
Nosaka, S. 1960–1962. A preliminary report on the phanerogam flora of Mt. Yupari
Prov. Ishikari, Hokkaido. Journal of Geobotany 8:102–105; ibidem 9:14–17,
42–45, 88–94; ibidem 10:2325, 5961, 111–112.
Nosaka, S. 1969. A supplementary note on the phanerogam flora of Mt. Yupari Prov.
Ishikari, Hokkaido. Journal of Geobotany 17:513.
Nosaka, S. 1974. The phanerogam flora of Mt. Yupari, Prov. Ishikari, Hokkaido, Japan.
Journal of the Faculty of Science, Hokkaido University. Series V. 9:55–300.
Nosaka, S., and K. Horie. 1993. Synoptic sketch of the serpentine flora of lowland
areas in Hokkaido, Japan. Bulletin of Aichi University of Education 42:13–25.
Nosaka, S., and K. Horie. 1994. Synoptic sketch of the serpentine flora of lowland
areas in Hokkaido, Japan (II). Bulletin of Aichi University of Education
43:37–49.
Purvis, E.R., and N.K. Peterson. 1956. Methods of soil and plant analyses for molybdenum.
Soil Science 81:223–228.
Reeves, R.D. 1988. Nickel and Zine accumulation by species of Thlaspi L., Cochlearia
L., and other genera of the Brassicaceae. Taxon 37:309–318.
Schaaf, G., A. Honsbein, A.R. Meda, S. Kirchner, D. Wipf, and N. von Wirén. 2006.
AtIREG2 encodes a tonoplast transport protein involved in iron-dependent nickel
detoxification in Arabidopsis thaliana roots. Journal of Biological Chemistry
281:25532–25540.
Toyokuni, H. 19551960. On the ultrabasicosaxicolous flora of Hokkaido, Japan. Journal
Of Geobotany 4:97–101. 1955; ibidem 5:12–15, 81–84, 115–116. 1956; ibidem
6:17–20, 63–67. 1957; ibidem 7:37–38. 1958; ibidem 9:10–13, 38–41. 1960.
Yamagata, N., Y. Murakami, and T. Torii. 1960. Biogeochemical investigations in
serpentine-chromite ore district. Geochimica et Cosmochimica Acta 18:23–35.
2009 T. Mizuno, K. Horie, S. Nosaka, H. Obata, and N. Mizuno 79
Appendix 1. Distribution of serpentine plants by region in Hokkaido, Japan. Type = distribution type (A = northern areas endemic, B = Central
areas endemic, C = northern and central areas endemic, D = southern areas endemic. E = Mt. Yupari endemic, F = Mt. Apoi endemic, G1 = widely
distributed in low mountain areas, G2 = widely distributed in low to high mountain areas, G3 = widely distributed in high and partial low mountain
areas, G4 = widely distributed in partial high mountain areas, and H = plants found in Hokkaido and Honshu areas). N = northern area, C = central
area, S = southern area, MY = Mt. Yupari area, MT = Mt. Tottabetsu area, MA = Mt. Apoi area, and S = Shizunai area. + = present; – = not found.
Locality
Type Species N C S MY MT MA S
A Japonolirion osense var. saitoi (Makino & Tatewaki) Ohwi + – – – – – –
A Aconitum ito-seiyanum Miyabe & Tatewaki + – – – – – –
A Primula takedana Tatewaki + – – – – – –
B Adenophora pereskiifoliar var. uryuensis (Miyabe &Tatewaki) Toyokuni & Nosaka – + – – – – –
C Quercus mongolica var. grosseserrata Rehder et Wilson f. integerrima Inagaki + + – – – – –
C Geranium erianthum f. glabriusculum Inagaki + + – – – – –
C Euonymus alatus f. kakurensis Inagaki + + – – – – –
C Achillea ptarmica var. yezoensis Kitamura + + – – – – –
C Picris hieracioides var. jessoensis (Tatewaki) Ohwi + + – – – – –
D Taraxacum yuparense var. grandisquamatum H. Koidzumi – – + – – – –
E Deschampsia caespitosa var. levis (Takeda) Ohwi – – – + – – –
E Hierochloe pluriflora Koidzumi – – – + – – –
E Potentilla matsumurae var. yuparensis Kudo ex Miyabe & Tatewaki – – – + – – –
E Viola yubariana Nakai – – – + – – –
E Primula yuparensis Takeda – – – + – – –
E Lagotis takedana Miyabe & Tatewaki – – – + – – –
E Erigeron thunbergii var. glabratus (A. Gray) A. Gray f. haruoi – – – + – – –
E Saussurea riederi var. yuparensis Kitamura – – – + – – –
E Taraxacum yuparense var. yuparense H. Koidzumi – – – + – – –
F Betula apoiensis Nakai – – – – – + –
F Arenaria katoana var. lanceolata Tatewaki – – – – – + –
80 Northeastern Naturalist Vol. 16, Special Issue 5
Locality
Type Species N C S MY MT MA S
F Silene repens var. apoiensis (Hara) Hara – – – – – + –
F Callianthemum miyabeanum Tatewaki – – – – – – + –
F Aruncus dioicus var. subrotundatus (Tatewaki) Hara – – – – – + –
F Peucedanum multivittatum var. linearilobum Tatewaki – – – – – + –
F Tilingia ajanensis var. angustissima (Nakai) Kitagawa – – – – – + –
F Primula modesta var. samanimontana Tatewaki – – – – – + –
F Veronica schmidtiana var. yezoalpina (Koidzumi) Yamazaki f. exigua – – – – – + –
F Cirsium apoense Nakai – – – – – + –
F Hypochoeris crepidioides (Miyabe & Kudo) Tatewaki & Kitamura – – – – – + –
F Saussurea kudoana var. kudoana Tatewaki & Kitamura – – – – – + –
G1 Hypericum tatewakiivar. tatewakii S.Watanabe + + – – – – –
G1 Hypericum tatewakii var. nigro-punctatum S. Watanabe + + + – – – –
G1 Saussurea kudoana var. uryuensisTatewaki & Kitamura + + + – – – –
G2 Viola sacchalinensis var. alpina Hara + + + + + + –
G2 Primula hidakana Miyabe & Kudo ex Tatewaki – – – – + + +
G2 Veronica schmidtiana var. yezoalpina (Koidzumi) Yamazaki f. yezoalpina + + + + + – –
G2 Crepis gymnopus Koidzumi + + + + + + –
G3 Ranunculus acris var. nipponicus Hara f. yuparensis (Miyabe) Toyokuni – + – + – – –
G3 Viola brevistipulata var. hidakana (Nakai) S. Watanabe – + – – – + –
G3 Angelica acutiloba var. lanceolata (Tatewaki) Ohwi f. lineariloba (Koidzumi) – – + + + + –
S. Watanabe & Kawano ex Ohwi
G3 Erigeron thunbergii var. angustifolius (Tatewaki) Hara – – – – – + –
G4 Potentilla apoiensis Nakai – – – – + + –
G4 Saussurea chionophylla Takeda – – – + + – –
H Arenaria katoana var. katoana Makino – – + + + – –
H Draba japonica Maximowicz – – – + + – –
Total 14 14 8 17 9 19 1
