Northeastern Naturalist
154
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
22001144 NORTHEASTERN NATURALIST 2V1(o2l). :2115,4 N–1o6. 32

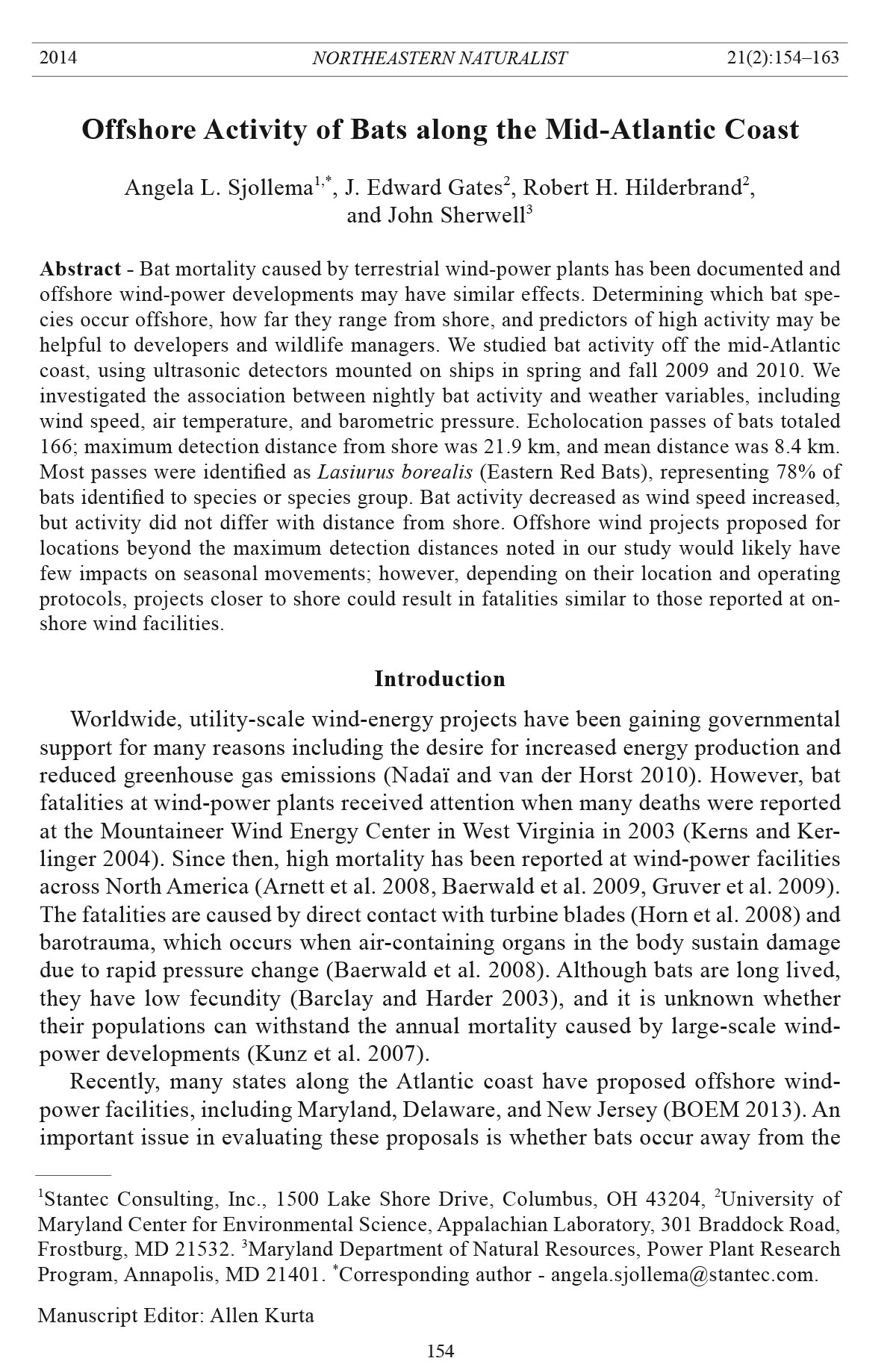

Offshore Activity of Bats along the Mid-Atlantic Coast
Angela L. Sjollema1,*, J. Edward Gates2, Robert H. Hilderbrand2,
and John Sherwell3
Abstract - Bat mortality caused by terrestrial wind-power plants has been documented and
offshore wind-power developments may have similar effects. Determining which bat species
occur offshore, how far they range from shore, and predictors of high activity may be
helpful to developers and wildlife managers. We studied bat activity off the mid-Atlantic
coast, using ultrasonic detectors mounted on ships in spring and fall 2009 and 2010. We
investigated the association between nightly bat activity and weather variables, including
wind speed, air temperature, and barometric pressure. Echolocation passes of bats totaled
166; maximum detection distance from shore was 21.9 km, and mean distance was 8.4 km.
Most passes were identified as Lasiurus borealis (Eastern Red Bats), representing 78% of
bats identified to species or species group. Bat activity decreased as wind speed increased,
but activity did not differ with distance from shore. Offshore wind projects proposed for
locations beyond the maximum detection distances noted in our study would likely have
few impacts on seasonal movements; however, depending on their location and operating
protocols, projects closer to shore could result in fatalities similar to those reported at onshore
wind facilities.
Introduction
Worldwide, utility-scale wind-energy projects have been gaining governmental
support for many reasons including the desire for increased energy production and
reduced greenhouse gas emissions (Nadaï and van der Horst 2010). However, bat
fatalities at wind-power plants received attention when many deaths were reported
at the Mountaineer Wind Energy Center in West Virginia in 2003 (Kerns and Kerlinger
2004). Since then, high mortality has been reported at wind-power facilities
across North America (Arnett et al. 2008, Baerwald et al. 2009, Gruver et al. 2009).
The fatalities are caused by direct contact with turbine blades (Horn et al. 2008) and
barotrauma, which occurs when air-containing organs in the body sustain damage
due to rapid pressure change (Baerwald et al. 2008). Although bats are long lived,
they have low fecundity (Barclay and Harder 2003), and it is unknown whether
their populations can withstand the annual mortality caused by large-scale windpower
developments (Kunz et al. 2007).
Recently, many states along the Atlantic coast have proposed offshore windpower
facilities, including Maryland, Delaware, and New Jersey (BOEM 2013). An
important issue in evaluating these proposals is whether bats occur away from the
1Stantec Consulting, Inc., 1500 Lake Shore Drive, Columbus, OH 43204, 2University of
Maryland Center for Environmental Science, Appalachian Laboratory, 301 Braddock Road,
Frostburg, MD 21532. 3Maryland Department of Natural Resources, Power Plant Research
Program, Annapolis, MD 21401. *Corresponding author - angela.sjollema@stantec.com.
Manuscript Editor: Allen Kurta
Northeastern Naturalist Vol. 21, No. 2
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014
155
coast in areas where these developments may occur. Bats have been observed many
kilometers offshore for over a century (Peterson et al. 2014), and in North America,
these records generally involve migratory tree bats, such as Lasiurus borealis (Müller)
(Eastern Red Bat), Lasiurus cinereus (Palisot de Beauvois) (Hoary Bat), and
Lasionycteris noctivagans (Le Conte) (Silver-haired Bat). For example, Cryan and
Brown (2007) reported lasiurine bats consistently using Southeast Farallon Island,
30 km west of San Francisco, CA, as a stopover site during fall migration. Investigators
on Long Point, ON, Canada, found activity of Hoary Bats and Silver-haired
Bats to be higher in August than June and demonstrated the importance of the peninsula
as a migratory stopover site before the 38-km flight over Lake Erie (Dzal et
al. 2009, McGuire et al. 2012). In addition, Eastern Red Bats have been found occasionally
roosting on or flying by ships in the northern Atlantic Ocean (Allen 1923,
Brown 1953, Czenze et al. 2011, Norton 1930, Peterson 1970).
Our objectives were to assess which species of bats or groups of species were
active off the Atlantic coast, to document whether activity was greater near shore
than farther from it, and to determine if certain weather conditions affected activity.
We used acoustic monitoring to identify the species or species groups of bats most
active off the Atlantic coast, between Massachusetts and northern North Carolina, in
an area of the Atlantic Ocean that has not been explored previously for bat activity.
Determining levels of activity and factors influencing it is important for evaluating
sites proposed for offshore wind developments.
Materials and Methods
Field studies
Acoustic-monitoring equipment was attached to 5 ships: research vessel (R/V)
Hugh R. Sharp, fishing vessel (F/V) Darana R, R/V Integrity, ocean survey vessel
(OSV) Bold, and Lewestown Lady (Tables 1, 2). The primary duties of 3 vessels, the
R/V Hugh R. Sharp, F/V Darana R, and the OSV Bold, were to perform research
projects unrelated to the acoustic monitoring. The Darana R was mostly anchored
during night hours, but occasionally trawled for fish in the early evening or traveled
between study sites. The crew of the R/V Hugh R. Sharp collected their data on
transects during day and night hours, which kept the vessel moving, and the OSV
Bold had similar tasks and often traveled during night hours. The R/V Integrity,
however, was specifically contracted to perform acoustic monitoring and moved
Table 1. Name and length of vessel, distance traveled from shore, and height of microphone above
the ocean during offshore acoustic surveys.
Distance from shore (km)
Name of vessel Mean Maximum Height of microphone (m)
R/V Hugh R. Sharp 20 73 12.2
F/V Darana R 12 26 4.6
OSV Bold 18 24 10.0
R/V Integrity 6 16 1.8
Lewestown Lady 85 166 4.0
Northeastern Naturalist
156
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014 Vol. 21, No. 2
slowly during all night hours, completing transects of about 6 km in length, 6–8
times per night. Unlike the other vessels, the Lewestown Lady was used for pelagicbird
tours and deep-sea fishing. It traveled very quickly throughout the night toward
deep waters far offshore and returned the next evening. We monitored bat activity
in spring and fall of 2009 and 2010, but the duration of monitoring was dependent
upon availability of the ships.
We used Anabat II detectors with zero-crossings analysis interface modules
(ZCAIMs; Titley Scientific, Ballina, NSW, Australia), and Anabat Storage Detectors
(SD1) interchangeably for acoustic monitoring. These units are broadband,
frequency-division detectors sensitive to sound from 10–200 kHz. The ZCAIM is
a recording unit, which records ultrasonic detections and saves them to a compact
flash (CF) card, along with the date and time. The SD1 combines a detector and
ZCAIM in 1 unit. The 2 detector models have no significant differences in detection
ability (Steve Duren, Titley Scientific, Columbia, MO, pers. comm.).
We attached 2 recording units to each ship to minimize loss of data due to malfunctions
and to provide data from both the starboard and port sides of the ship.
Specific positioning was dependent on individual characteristics of each vessel. We
used a waterproof fiberglass box (28 x 22 x 13 cm) to house the monitors, ZCAIMs,
and batteries, and we enclosed the microphone in a piece of pipe made from polyvinylchloride
and attached it to the top of the box. The microphone was directed
down toward a 20 x 20-cm sheet of acrylic plastic, which was angled at 45° to the
horizontal. This arrangement shielded the microphone from the elements, while the
acrylic plastic reflected ultrasonic sounds toward the microphone. We calibrated
each detector to a maximum detection distance of approximately 30 m, using a
high-frequency, short-wave ultrasonic pest-repeller before placement. The units
Table 2. Starting and ending date for 15 acoustic-monitoring cruises along the mid-Atlantic coast in
2009 and 2010. Monitoring occurred from 1800 to 0800 hours or 1900 to 0700 hours depending on
time of sunset/sunrise and availability of the vessel to perform the survey.
Acoustic monitoring cruise
Vessel Start End
R/V Hugh R. Sharp 11 March 2009 17 March 2009
R/V Hugh R. Sharp 7 April 2009 10 April 2009
R/V Hugh R. Sharp 1 May 2009 6 May 2009
R/V Hugh R. Sharp 2 June 2009 6 June 2009
R/V Hugh R. Sharp 31 July 2009 5 August 2009
R/V Integrity 6 August 2009 8 August 2009
R/V Integrity 17 August 2009 18 August 2009
R/V Integrity 25 August 2009 27 August 2009
R/V Hugh R. Sharp 29 August 2009 3 September 2009
R/V Hugh R. Sharp 28 September 2009 3 October 2009
F/V Darana R 24 September 2009 31 October 2009
F/V Darana R 21 April 2010 7 May 2010
R/V Integrity 7 May 2010 8 May 2010
Lewestown Lady 19 August 2010 20 August 2010
OSV Bold 21 August 2010 26 August 2010
Northeastern Naturalist Vol. 21, No. 2
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014
157
were set to record from approximately dusk to dawn. The time and date associated
with each pass (via the ZCAIM) allowed us later to match the recordings with the
vessel track-log or approximate global positioning system (GPS) locations.
When acoustic units were retrieved from the ships, we downloaded the data from
CF cards using the program CFCread, and the files were viewed using Analook,
version 3.7w (Corben 2009). We qualitatively assigned bat passes to species or
groups, using a library of passes and an acoustic identification key for bats of the
region (Amelon 2005). We required ≥3 individual pulses within a pass to identify
it to species or species group. We combined Eptesicus fuscus (Palisot de Beauvois)
(Big Brown Bat) and Silver-haired Bats into 1 species group because the pulses are
very similar (Betts 1998). Likewise, the different species of Myotis are difficult to
distinguish, and we identified these calls only to genus following standard practice
(e.g., Brooks 2009). Passes identified as Myotis may have been from any of the
species that occur on the nearby mainland (Harvey et al. 1999), including Myotis
leibii (Audubon and Bachman) (Eastern Small-footed Bat), M. lucifugus (LeConte)
(Little Brown Bat), M. septentrionalis (Trouessart) (Northern Long-eared Bat), or
M. sodalis (Miller and Allen) (Indiana Bat). We classified passes with ≤3 pulses as
unidentified bats; however, we used all passes in our statistical analysis.
Weather data
We examined air temperature (°C), barometric pressure (kPa), and wind speed
(m/s) because these weather variables can influence nightly bat activity (Ahlén
1997, Ahlén et al. 2007, Ciechanowski et al. 2007, Fiedler 2004, Johnson et al.
2011, Kerns et al. 2005, Reynolds 2006). The R/V Hugh R. Sharp was equipped
with an onboard weather station, but for the other vessels, we obtained data from a
weather station nearest each vessel at a given time. Data on weather were recorded
by 13 stations and downloaded from 2 online sources: the New Jersey Weather and
Climate Network (http://climate.rutgers.edu/njwxnet/; accessed 1 February 2011)
and the National Data Buoy Center of the National Oceanic and Atmospheric Administration
(http://www.ndbc.noaa.gov/; accessed 3 February 2011). Weather data
on the R/V Hugh R. Sharp were automatically recorded every 10 sec, but the stations
took observations on an hourly basis.
We averaged each weather variable per monitoring-hour occurring each night,
with a monitoring-hour defined as each hour the ship was away from land. The
number of monitoring-hours/night ranged from 2–14, depending on the amount of
time each ship was offshore. Consequently, bat activity was standardized for time
by dividing total number of passes recorded by total number of hours that the boat
was offshore (bat activity/hours of offshore effort).
Statistical analysis
To test if there was a gradient of declining activity with increasing distance from
shore, we divided the offshore area into 5-km intervals and calculated bat passes/
monitoring-hour for the distance intervals of each cruise. Because there was variation
in time offshore, speed of boat, and height of microphone among the vessels,
we used an incomplete block design for our analyses (Federer and Nguyen 2002),
Northeastern Naturalist
158
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014 Vol. 21, No. 2
in which the ship was the block, the distances were treatments, and the response
variable was bat passes (Federer and Nguyen 2002). We analyzed only the first 5
distance intervals because passes were not recorded beyond 22 km. The non-normal
characteristics of the acoustic data required that we rank-transform them before
applying the blocked analysis of variance (Hilderbrand and Kershner 2000, SAS
2004). We used the non-parametric Spearman’s rank correlation (SAS 2004, Zar
1999) to examine relationships between activity and weather. We set α = 0.05 for
all statistical tests; all means are presented as ± SE.
Results
We conducted offshore acoustic monitoring for 86 nights (partial and full
nights) from March 2009 to August 2010 in spring (March–beginning of June)
and fall (August–October). The total number of monitoring hours was 898. We
recorded 166 total passes by bats, with the Eastern Red Bat identified most often
(44.0%), followed by Big Brown/Silver-haired Bat (6.6%), Myotis (4.2%), and
Hoary Bat (1.8%). Many passes (43.4%) did not meet the minimum criterion of 3
pulses or were otherwise difficult to distinguish and we considered those passes
to be unidentifiable.
The mean distance that bats were recorded off the mid-Atlantic coast was 8.7 ±
0.4 km, (n = 166). The species recorded farthest from shore were Eastern Red Bat
(21.9 km) and Big Brown/Silver-haired Bat (19.2 km) (Table 3). The number of
passes detected in each distance category varied greatly for each species or group
of species (Fig. 1). After accounting for ship-to-ship differences in monitoring
times, we found no difference in nightly bat activity among the intervals (F4,69 =
0.61; P = 0.66).
We found a negative association between bat activity and mean nightly wind
speed (rs = -0.23, P = 0.04, n = 85). However, mean nightly air temperature (rs =
0.17, P = 0.12, n = 86) and barometric pressure (rs = 0.07, P = 0.52, n = 86) were
not significantly associated with activity.
Discussion
Prior studies of bats observed or detected over open water typically involved
bats crossing a barrier between seasonal habitats (Ahlén et al. 2009, Cryan and
Brown 2007, Czenze et al. 2011, Dzal et al. 2009, McGuire et al. 2012), but this
Table 3. Distances from shore that species or species groups of bats were detected along the mid-
Atlantic coast during 2009–2010.
Distances from shore (km)
Species/species group Minimum Maximum Mean Median
Eastern Red Bat 1.2 21.9 8.4 8.8
Big Brown/Silver-haired Bat 2.8 19.2 8.7 8.0
Myotis 2.8 11.5 10.1 11.5
Hoary Bat 5.4 11.5 8.4 8.4
Northeastern Naturalist Vol. 21, No. 2
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014
159
explanation is unlikely for our study. Because bats are terrestrial mammals that fly,
we expected their detections would be greater near shore and decrease with distance
from shore over the Atlantic Ocean. However, we found no differences in bat activity
among our 5 distance categories. Our small sample size could make it difficult to
identify patterns in bat activity versus distance from shore. Because bats can use the
position of the sun at sunset to determine west as well as to calibrate the magnetic
field of the Earth for use as a compass, it seems that they could easily navigate over
open water (Holland et al. 2006, 2008, 2010; Moser 2011). Why some bats occur
over the open ocean many kilometers from shore rather than over land where they
can easily find a roost will require further study .
The species composition of identified passes suggests that migration by some bats
may be occurring off the Atlantic coast. As defined by Fleming and Eby (2003), longdistance
migrants are bats that travel >1000 km between summer and winter roosts.
Two long-distance migrants, Eastern Red Bat and Hoary Bat, accounted for 81% of
the identified passes, with individual contributions of 78 and 3%, respectively. Silver-
haired Bats also are long-distance migrants, but Big Brown Bats are considered
sedentary, traveling <50 km between seasonal roosts (Fleming and Eby 2003). Furthermore,
Big Brown Bats were captured more often during summer months on the
Atlantic Coastal Plain, whereas Silver-haired Bats were recorded using acoustic detectors
primarily during spring and fall (Johnson and Gates 2008, Johnson et al. 2011,
Limpert et al. 2007). Although we cannot rule out offshore foraging by Big Brown
Bats (Ahlén et al. 2009), passes labeled as Big Brown/Silver-haired Bat, were most
likely made by Silver-haired Bats, and if so, the percentage of long-distance migrants
among identified passes could be as high as 93%.
Figure 1. Number of passes of each species, group of species, and unidentified bats (NOID)
found in each distance category off the Mid-Atlantic Coast in 2009–2010.
Northeastern Naturalist
160
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014 Vol. 21, No. 2
Regional migrants may also use open water for either migration or feeding. Myotis,
specifically Little Brown Bats, are categorized as regional migrants that typically
travel 100–500 km between summer and winter roosts (Fleming and Eby 2003), although
a recent long-term study on Little Brown Bats found that distance of travel
between seasonal roosts could be over 560 km (Norquay et al. 2013). Myotis represented
about 7% of identified passes in our study, and the occurrence of Myotis
offshore was unexpected, especially because they exhibited low abundance in the
coastal region (Johnson and Gates 2008, Limpert et al. 2007, Menzel et al. 2003).
The only weather variable associated with bat activity off the mid-Atlantic coast
was a negative correlation with wind velocity, indicating that activity decreased as
wind speed increased. A similar relationship was found offshore in Europe and on
barrier islands in Maryland and Virginia (Ahlén 1997, Ahlén et al. 2007, Johnson
et al. 2011). Nevertheless, on some nights we detected bats at wind speeds greater
than those reported in terrestrial studies (e.g., Fiedler 2004, Kerns et al. 2005,
Reynolds 2006). For example, 37 bat passes occurred at a mean wind speed of
6.1 m/s on 24 September 2009, and 12 bat passes were recorded at a mean wind
speed of 6.8 m/s on 25 August 2010. Reynolds (2006), in contrast, reported greatly
reduced activity on nights with wind speeds >5.4 m/s in New York, and Fiedler
(2004) found few fatalities at wind-power plants, indicating less activity, after
nights with wind speeds >4 m/s in Tennessee. We suggest that the dearth of roosting
sites available offshore requires the bats to remain volant until they can reach
shore, even if wind speeds increase above optimum levels. Although raising the
nightly cut-in speed for turbines (i.e., the wind velocity at which a turbine starts to
rotate) to 5.0–6.5 m/s reduces fatalities at terrestrial wind-power plants by 44–93%
(Arnett et al. 2011, Baerwald et al. 2009), higher cut-in speeds at offshore sites may
be necessary because of the frequent bat activity observed at greater wind speeds.
Predicting how offshore wind-power plants may affect populations of bats active
off the mid-Atlantic coast is difficult. Because bats migrating over land often
appear concentrated in certain areas, rather than distributed evenly across the
landscape, measuring migratory activity on transects near the proposed sites of
wind-energy facilities could provide much needed data for directing development
(Baerwald and Barclay 2009, McGuire et al. 2012). Attaching acoustic monitoring
equipment to meteorological towers during the pre-construction phase of windpower
development onshore has been an effective tool for collecting data on bats
(Baerwald and Barclay 2009), and perhaps this method could be employed offshore.
In addition, monitoring throughout the months of activity could be done at
offshore sites to provide information on seasonal fluctuations in activity.
Most developers of offshore wind projects have proposed locations at or beyond
the maximum distance at which we recorded bats. For example, 1 wind facility
in New Jersey may be located at least 26 km from shore, and a proposal from
Delaware plans to site turbines 21 km from shore (BOEM 2013). We postulate that
wind-power projects at these distances may have minimal effects on bats, although
we caution that our acoustic surveys only detected bats flying near the surface and
not at the height of the rotor-swept zone of typical turbines. Overall, relatively few
Northeastern Naturalist Vol. 21, No. 2
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014
161
passes of bats were recorded during our study, compared to onshore coastal studies
that typically record hundreds of passes of bats nightly (Johnson and Gates 2008,
Sjollema 2011), suggesting that mortality of bats at offshore wind turbines may not
be as great a problem as it is onshore.
Acknowledgments
Thanks are extended to the crews of the OSV Bold, F/V Darana R, R/V Hugh R. Sharp,
R/V Integrity, and the Lewestown Lady. We are grateful to J. Gartland; F. Kelley; N.
Primrose; R. Searfoss; GeoMarine, Inc.; Versar, Inc.; the New Jersey Department of Environmental
Protection; See-Life Paulagics; and the US Environmental Protection Agency
for facilitating data collection. For help in the field, we thank K. Duren, J. Saville, and J.
Smith. This study was funded by the Maryland Department of Natural Resources, Power
Plant Research Program. This article is Scientific Contribution No. 4867 of the University
of Maryland Center for Environmental Science, Appalachian Laboratory.
Literature Cited
Ahlén, I. 1997. Migratory behavior of bats at south Swedish coasts. Zeitschrift für Säugetierkunde
62:375–380.
Ahlén, I., L. Bach, H.J. Baagøe, and J. Pettersson. 2007. Bats and offshore wind turbines
studied in southern Scandinavia. Report 5571. Naturvårdsverket. Swedish Environmental
Protection Agency, Stockholm, Sweden.
Ahlén, I., H.J. Baagøe, and L. Bach. 2009. Behavior of Scandinavian bats during migration
and foraging at sea. Journal of Mammalogy 90:1318–1323.
Allen, G.M. 1923. The Red Bat in Bermuda. Journal of Mammalogy 4:61.
Amelon, S. 2005. Preliminary key to the qualitative identification of calls with the Anabat
system. August 2005, North Central Research Station, University of Missouri, Columbia,
MO. 2 pp.
Arnett, E.B., W.K. Brown, W.P. Erickson, J.K. Fiedler, B.L. Hamilton, T.H. Henry, A. Jain,
G.D. Johnson, J. Kerns, R.R. Koford, C.P. Nicholson, T.J. O’Connell, M.D. Piorkowski,
and R.D. Tankersley, Jr. 2008. Patterns of bat fatalities at wind energy facilities in North
America. Journal of Wildlife Management 72:61–78.
Arnett, E.B., M.M.P. Huso, M. Shirmacher, and J.P. Hayes. 2011. Altering turbine speed
reduces bat mortality at wind-energy facilities. Frontiers in Ecology 9:209–214.
Baerwald, E.F., and R.M.R. Barclay. 2009. Geographic variation in activity and fatality of
migratory bats at wind energy facilities. Journal of Mammalogy 90:1341–1349.
Baerwald, E.F., G.H. D’Amours, B.J. Klug, and R.M.R. Barclay. 2008. Barotrauma is a
significant cause of bat fatalities at wind turbines. Current Bi ology 18:695–696.
Baerwald, E.F., J. Edworthy, M. Holder, and R.M.R. Barclay. 2009. A large-scale mitigation
experiment to reduce bat fatalities at wind energy facilities. Journal of Wildlife Management
73:1077–1081.
Barclay, R.M.R., and L.B. Harder. 2003. Life histories of bats: Life in the slow lane. Pp.
209–253, In T.H. Kunz and M.B. Fenton (Eds.). Bat Ecology. University of Chicago
Press, Chicago, IL. 798 pp.
Betts, B.J. 1998. Effects of inter-individual variation in echolocation calls on identification
of Big Brown and Silver-haired Bats. Journal of Wildlife Management 62:1003–1010.
Brooks, R.T. 2009. Habitat-associated and temporal patterns of bat activity in a diverse
forest landscape of southern New England, USA. Biodiversity and Conservation
18:529–545.
Northeastern Naturalist
162
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014 Vol. 21, No. 2
Brown, D.E.1953. Hoary Bat taken at Westport, Washington. Murrelet 16:72.
Bureau of Ocean Energy Management (BOEM). 2013. Current projects. Available online
at http://www.boem.gov/Renewable-Energy-Program/Current-Projects/Index.aspx. Accessed
29 October 2013.
Ciechanowski, M., T. Zajac, A. Bilas, and R. Dunajski. 2007. Spatiotemporal variation in
activity of bat species differing in hunting tactics: Effects of weather, moonlight, food
abundance, and structural clutter. Canadian Journal of Zoology 85:1249–1263.
Corben, C. 2009. Analook 3.7W Software. Available online at http://users.lmi.net/corben/
anabat.htm#Anabat%20Contents. Accessed 10 October 2009.
Cryan, P.M., and A.C. Brown. 2007. Migration of bats past a remote island offers clues
toward the problem of bat fatalities at wind turbines. Biological Conservation 139:1–11.
Czenze, Z., S.N.P Wong, and C.K.R. Willis. 2011. Observations of Eastern Red Bats (Lasiurus
borealis) 160 km from the coast of Nova Scotia. Bat Research News 52:28–30.
Dzal, Y., L.A. Hooton, E.L. Clare, and M.B. Fenton. 2009. Bat activity and genetic diversity
at Long Point, Ontario, an important bird stopover site. Acta Chiropterologica
11:307–315.
Federer, W.T., and N.K. Nguyen. 2002. Incomplete block designs. Pp. 1039–1042, In A.H.
El-Shaarawi and W.W. Piegorsch (Eds.). Encyclopedia of Environmetrics. Vol. 2. John
Wiley and Sons, Ltd, Chichester, West Sussex, UK. 2672 pp.
Fiedler, J.K. 2004. Assessment of bat mortality and activity at Buffalo Mountain Windfarm,
eastern Tennessee. M.Sc. Thesis. University of Tennessee, Knoxville, TN.
Fleming, T.H., and P. Eby. 2003. Ecology of bat migration. Pp. 156–208, In T.H. Kunz and
M.B. Fenton (Eds.). Bat Ecology. University of Chicago Press, Chicago, IL. 798 pp.
Gruver, J.C., M. Sonnenberg, K. Bay, and W.P. Erickson. 2009. Results of a post-construction
bat and bird fatality study at Blue Sky Green Field Wind-Energy Center, Fond du
Lac County, Wisconsin, July 2008–May 2009. Final Report, Western EcoSystems Technology,
Inc., Cheyenne, WY.
Harvey, M.J., J.S. Altenbach, and T.L. Best. 1999. Bats of the United States. Arkansas Game
and Fish Commission, Little Rock, AR. 64 pp.
Hilderbrand, R.H., and J.L. Kershner. 2000. Movement patterns of stream-resident Cutthroat
Trout in Beaver Creek, Idaho–Utah. Transactions of the American Fisheries Society
129:1160–1170.
Holland, R.A., K. Thorup, M.J. Vonhof, W.W. Cochran, and M. Wikelski. 2006. Navigation:
Bat orientation using Earth’s magnetic field. Nature 444:702.
Holland, R.A., J.L. Kirschvink, T.G. Doak, and M. Wikelski. 2008. Bats use magnetite to
detect the Earth’s magnetic field. PLoS ONE 3:e1676.
Holland, R.A., I. Borissov, and B.M. Siemers. 2010. A nocturnal mammal, the Greater
Mouse-eared Bat, calibrates a magnetic compass by the sun. Proceedings of the National
Academy of Sciences 107:6941–6945.
Horn, J.W., E.B. Arnett, and T.H. Kunz. 2008. Behavioral responses of bats to operating
wind turbines. Journal of Wildlife Management 72:123–132.
Johnson, J.B., and J.E. Gates. 2008. Bats of Assateague Island National Seashore, Maryland.
American Midland Naturalist 160:160–170.
Johnson, J.B., J.E. Gates, and N.P. Zegre. 2011. Monitoring seasonal bat activity on a
coastal barrier island in Maryland, USA. Environmental Monitoring and Assessment
173:685–699.
Kerns, J., and P. Kerlinger. 2004. A study of bird and bat collision fatalities at the Mountaineer
Wind Energy Center, Tucker County, West Virginia: Annual report for 2003.
Technical Report, Curry and Kerlinger, LLC, McLean, VA.
Northeastern Naturalist Vol. 21, No. 2
A.L. Sjollema, J.E. Gates, R.H. Hilderbrand, and J. Sherwell
2014
163
Kerns, J, W.P. Erickson, and E.B. Arnett. 2005. Bat and bird fatality at wind energy facilities
in Pennsylvania and West Virginia. Pp. 24–95, In E.B. Arnett (Ed.). Relationships
between bats and wind turbines in Pennsylvania and West Virginia: An assessment of
bat fatality search protocols, patterns of fatality, and behavioral interactions with wind
turbines. Final Report, Bats and Wind Energy Cooperative. Bat Conservation International,
Austin, TX.
Kunz, T.H., E.B. Arnett, W.P. Erickson, A.R. Hoar, G.D. Johnson, R.P. Larkin, M.D. Strickland,
R.W. Thresher, and M.D. Tuttle. 2007. Ecological impacts of wind energy development
on bats: Questions, research needs, and hypotheses. Frontiers in Ecology and the
Environment 5:315–324.
Limpert, D.L., D.L. Birch, M.S. Scott, M. Andre, and E. Gillam. 2007. Tree selection
and landscape analysis of Eastern Red Bat day roosts. Journal of Wildlife Management71:
478–486.
McGuire, L.P., C.G. Guglielmo, S.A. Mackenzie, and P.D. Taylor. 2012. Migratory stopover
in the long-distance migrant Silver-haired Bat, Lasionycteris noctivagans. Journal of
Animal Ecology 81:377–385.
Menzel, J.M., M.A. Menzel, W.M. Ford, J.W. Edwards, S.R. Sheffield, J.C. Kilgo, and M.S.
Bunch. 2003. The distribution of the bats of South Carolina. Southeastern Naturalist
2:121–152.
Moser, E.I. 2011. A bat’s perspective on navigation. Proceedings of the National Academy
of Sciences 108:15,665–15,666.
Nadaï, A., and D. van der Horst. 2010. Wind-power planning, landscapes, and publics. Land
Use Policy 27:181–184.
Norquay, K.J.O., F. Martinez-Nuñez, J.E. Dubois, K.M. Monson, and C.K.R. Willis. 2013.
Long-distance movements of Little Brown Bats (Myotis lucifugus). Journal of Mammalogy
94:506–515.
Norton, A.H. 1930. A Red Bat at sea. Journal of Mammalogy 11:225–226.
Peterson, R.L. 1970. Another Red Bat, Lasiurus borealis, taken aboard ship off the coast of
Nova Scotia. Canadian Field-Naturalist 84:401.
Peterson, T.S., S.K. Pelletier, S.A. Boyden, and K.S. Watrous. 2014. Offshore acoustic
monitoring of bats in the Gulf of Maine. Northeastern Naturalist 21:86–107.
Reynolds, D.S. 2006. Monitoring the potential impact of a wind-development site on bats
in the Northeast. Journal of Wildlife Management 70:1219–1227.
SAS Institute. 2004. Version 9.1. SAS/STAT 9.1 Users Guide. SAS Institute, Inc., Cary, NC.
Sjollema, A.L. 2011. Bat activity in the vicinity of proposed wind power facilities along the
mid-Atlantic coast. M.Sc. Thesis, Frostburg State University, Frostburg, MD.
Zar, J.H. 1999. Biostatistical Analysis. 4th edition. Prentice Hall, Upper Saddle River, NJ.
929 pp.
