Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
399

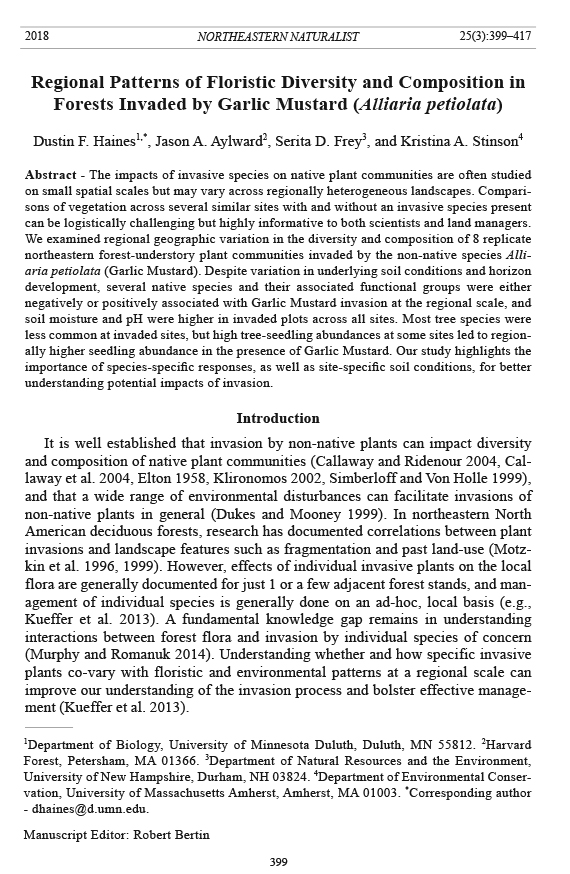

2018 NORTHEASTERN NATURALIST 25(3):399–417
Regional Patterns of Floristic Diversity and Composition in
Forests Invaded by Garlic Mustard (Alliaria petiolata)
Dustin F. Haines1,*, Jason A. Aylward2, Serita D. Frey3, and Kristina A. Stinson4
Abstract - The impacts of invasive species on native plant communities are often studied
on small spatial scales but may vary across regionally heterogeneous landscapes. Comparisons
of vegetation across several similar sites with and without an invasive species present
can be logistically challenging but highly informative to both scientists and land managers.
We examined regional geographic variation in the diversity and composition of 8 replicate
northeastern forest-understory plant communities invaded by the non-native species Alliaria
petiolata (Garlic Mustard). Despite variation in underlying soil conditions and horizon
development, several native species and their associated functional groups were either
negatively or positively associated with Garlic Mustard invasion at the regional scale, and
soil moisture and pH were higher in invaded plots across all sites. Most tree species were
less common at invaded sites, but high tree-seedling abundances at some sites led to regionally
higher seedling abundance in the presence of Garlic Mustard. Our study highlights the
importance of species-specific responses, as well as site-specific soil conditions, for better
understanding potential impacts of invasion.
Introduction
It is well established that invasion by non-native plants can impact diversity
and composition of native plant communities (Callaway and Ridenour 2004, Callaway
et al. 2004, Elton 1958, Klironomos 2002, Simberloff and Von Holle 1999),
and that a wide range of environmental disturbances can facilitate invasions of
non-native plants in general (Dukes and Mooney 1999). In northeastern North
American deciduous forests, research has documented correlations between plant
invasions and landscape features such as fragmentation and past land-use (Motzkin
et al. 1996, 1999). However, effects of individual invasive plants on the local
flora are generally documented for just 1 or a few adjacent forest stands, and management
of individual species is generally done on an ad-hoc, local basis (e.g.,
Kueffer et al. 2013). A fundamental knowledge gap remains in understanding
interactions between forest flora and invasion by individual species of concern
(Murphy and Romanuk 2014). Understanding whether and how specific invasive
plants co-vary with floristic and environmental patterns at a regional scale can
improve our understanding of the invasion process and bolster effective management
(Kueffer et al. 2013).
1Department of Biology, University of Minnesota Duluth, Duluth, MN 55812. 2Harvard
Forest, Petersham, MA 01366. 3Department of Natural Resources and the Environment,
University of New Hampshire, Durham, NH 03824. 4Department of Environmental Conservation,
University of Massachusetts Amherst, Amherst, MA 01003. *Corresponding author
- dhaines@d.umn.edu.
Manuscript Editor: Robert Bertin
Northeastern Naturalist
400
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
The invasive plant Alliaria petiolata (M.Bieb.) Cavara & Grande (Garlic
Mustard; Brassicaceae) is widely known to invade intact forest-understory plant
communities. A number of mechanisms including escape from natural enemies,
phenotypic plasticity, and early phenology have been postulated for its success
in North American forest habitats (Rodgers et al. 2008a). Several studies have
found that it suppresses native plant growth in temperate deciduous forests of
North America via phytochemical disruption of mutualisms with mycorrhizal
fungi (Burke 2008, Cantor et al. 2011, Castellano and Gorchov 2012, Hale et al.
2016, Koch et al. 2011, Stinson et al. 2006, Wolfe et al. 2008). Garlic Mustard
may also alter the native flora through direct competition and/or asynchronous
capture of light, water, and nutrients (Myers and Anderson 2003, Whigham 2004),
and through effects on nutrient cycling (Rodgers et al. 2008b), suppression of
germination (Prati and Bossdorf 2004), and interactions with insect and mammalian
herbivores (Dávalos et al. 2015a, 2015b; Kalisz et al. 2014). However, many
local studies showing a direct displacement or inhibition of native plants in the
field (Nuzzo 1999, Rodgers et al. 2008a, Stinson et al. 2007, Waller et al. 2016)
are confounded by others showing little difference in the community composition
of invaded and non-invaded sites (Davis et al. 2014, Nuzzo et al. 2009, Rodgers
et al. 2008a, Rooney and Rogers 2011), a decrease in impact over time (Lankau et
al. 2009), and co-occurrence with other invasions, soil and canopy disturbance,
and herbivory—all of which also impact forest flora (Dávalos et al. 2015a 2015b;
Eschtruth and Battles 2009; Kalisz et al. 2014; Knight et al. 2009; Nuzzo, et al.
2009). Studies that consider plant community assemblages of invaded forests in
the context of geographic variation, particularly in soil variation at a regional
scale, are missing from a vast literature on local ecology of Garlic Mustard. Land
managers currently working to control Garlic Mustard at a local-stand scale
would also benefit from a better understanding of plant community associations
with Garlic Mustard invasion and their geographical variation.
We conducted comparative community-level analyses in 8 northern hardwood
forests to test whether forest patches invaded by Garlic Mustard are floristically
distinct from nearby non-invaded patches in diversity, density, and species composition.
Based on prior studies, we predicted that Garlic Mustard presence would
be associated with reduced plant diversity and that plant community composition
would differ between invaded and non-invaded areas. We also predicted that Garlic
Mustard invasion would be associated with an increase in other non-native plants
and plants associated with disturbance, and with a decline in species dependent on
mycorrhizae. We were interested in whether the floristic composition and diversity
of invaded/non-invaded forest habitats is consistent across similar forests within a
broader regional landscape, and, if not, which environmental and abiotic variables
best predict differences in plant community composition.
Field-site Description
We surveyed and compared the forest understory vegetation in 8 distinct northern
hardwood ecosystems of the northeastern US, where Garlic Mustard is a known
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
401
management concern. Study forests were dominated by Acer saccharum (Sugar
Maple), Fraxinus americana (White Ash), Quercus rubra L. (Red Oak), and Pinus
strobus L. (White Pine), the presence of which suggest secondary regrowth following
agricultural abandonment (Hall et al. 2002, Thompson et al. 2013). The
study sites were located in an area from eastern and central Massachusetts to the
Berkshire and Taconic Mountains, spanning 251 km and elevations of 40 m to 404
m (Table 1). In addition to choosing a similar canopy composition for each site,
we controlled for site history by (a) verifying with landowners/stakeholders that
Garlic Mustard has been present for at least 2 decades, (b) excluding sites with
clear evidence of past agricultural use (i.e., confirming that plots were situated on
soils with a shallow and disorganized Ap horizon indicative of use as unimproved
pasture and/or woodlot; Motzkin et al. 1996), and (c) mapping spatial coordinates
of the sites to available historical forest-cover maps (Motzkin and Foster 2009)
and aerial photography (Army Map Service aerial photography courtesy of the US
Geological Survey) to verify approximate forest age (Motzkin and Foster 2009).
Table 1. Physical descriptions of the 8 study sites, listed from southwest to northeast. Lat. = latitutde,
long. = longitude, moist. = moisture, and elev. = elevation.
Mean
soil Dominant
Land Lat. (°N), Soil order, moist. Elev. Slope, canopy
Site stewardship long. (°W) texture (%) (m) aspect species
West Point Department 41.3793, Inceptisol, 35.6 343.2 20.5% Sugar Maple
(WP) of Defense 74.0192 Clay loam 116.5° –Red Oak
Black Rock Black Rock 41.4207, Inceptisol, 33.3 212.7 24.8%, Sugar Maple
(BR) Forest 74.0104 Sand clay 321.5° –Red Oak
Consortium loam –Green Ash
Pittsfield State Massachusetts 42.4868, Spodosol, 35.2 360.5 4.6%, Sugar Maple
Forest (PF) State 73.2998 Silt clay 102.2° –Black Cherry
loam –Beech
Questing Trustees of 42.1211, Spodosol, 34.3 404.4 18.7%, Sugar Maple
Forest (QF) Reservations 73.2542 Sand clay 297.0° –White Ash
loam
McLennan Trustees of 42.2215, Spodosol, 22.8 340.7 28.5%, Sugar Maple
Forest (MC) Reservations 73.1732 Clay loam 218.9°
River Road Private 42.5365, Inceptisol, 19.1 40 12.2%, Sugar Maple
(RR) 72.5691 Clay loam 109.4° –White Ash
–Silver Maple
Harvard Forest Harvard 42.5294, Inceptisol, 26.9 315.7 17.2%, Sugar Maple
(HF) University 72.1904 Clay loam 253.2° –White Ash
–Black Cherry
Drumlin Farm Mass 42.4094, Entisol, 24.2 74.3 13.3%, White Pine
(DF) Audubon 71.3272 Clay loam 80.1° –Sugar Maple
Northeastern Naturalist
402
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
Methods
Understory-community sampling
At each site, we established six 2 m × 2 m plots within patches of forest where
Garlic Mustard has had a known presence for at least 2 decades. Garlic Mustard
mean densities were 65 ± 12.6 SE plants per m2 across all sites, including first- and
second-year plants. We located the plots at random points along a transect spanning
the length of the invaded patch with a minimum interval of 5 m. We chose invaded
sites with a minimum density of 20 adult Garlic Mustard plants per m2, a cut-off
value used in prior work (Stinson et al. 2007). Given that the phytochemical effect
of Garlic Mustard is known to decline at distances of ≥20 m from a patch (Wolfe et
al. 2008), we selected non-invaded plots within 20–200 m of invaded plots along
transects of a corresponding length and with a similar slope and aspect. In July
2013, May 2014, and August 2014, we identified to species and counted all vascular
plants less than 1 m in height in each plot, following the species nomenclature in Flora Novae
Angliae (Haines 2011). We also obtained estimates of Garlic Mustard seedling
and adult densities in each plot. Although non-native taxa were sometimes present
in both types of plots, we did not select our plots with regard to the presence of other
non-native species, but rather considered their presence as a response variable to be
generated from our floristic survey.
Environmental data
At each site we measured slope, aspect, percent slope, and canopy closure as
well as soil texture (% sand, silt, and clay), moisture, and pH during the peak growing
season for Garlic Mustard (June). We used a magnetic compass to determine
aspect, a clinometer to measure slope, and a spherical densiometer to calculate
canopy closure. We averaged 4 canopy-closure measurements at each plot (Strickler
1959). We employed a Theta Probe ML3 soil moisture sensor (Delta T Devices,
LTD., Cambridege, UK) to quantify bulk soil moisture at 3 random points per plot
and averaged those values to generate a seasonal estimate and then quantified moisture
of the organic soil layer using the gravimetric water-content method (Jarrell et
al. 1999). We determined the texture of mineral soil using the hydrometer method
(Elliott et al. 1999) and measured pH of soil suspensions using a digital pH meter
(Robertson et al. 1999).
Based on known linkages between soil geological history and vegetation (De-
Gasperis and Motzkin 2007, Motzkin et al. 1996, Schimel and Chadwick 2013,
Soil Survey Staff 2017), we also mapped the spatial coordinates of our sites on
local soil-surveys to identify soil-order classification. Soils at our sites included
entisols with little to no horizon development in the relatively urban eastern-most
site, inceptisols with moderate horizon development and weathering dominating
the central portion of the study area in central Massachusetts and the Taconic
Mountains, and spodosols with an accumulation of humus and several horizons
dominating the western Berkshire Mountains (Soil Survey Staff 2017).
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
403
Analysis
Multivariate analyses. We utilized PC-ORD v. 5.10 (MjM Software, Gleneden
Beach, OR) to conduct non-metric multidimensional scaling analysis (NMDS) of
the full compositional data-set using averaged species densities for each of the
48 plots and Bray-Curtis dissimilarities. To reduce the effect of rare species, we
removed species with an occurrence of ≤2 individuals (McCune and Grace 2002),
resulting in a count of 61 species for analysis out of the 112 total observed. We
found no major difference in species composition across sample dates, and thus
created a single (averaged) compositional vector of community composition from
our 3 census dates for each site. We considered Garlic Mustard invasion status as
part of the sampling design and thus did not include Garlic Mustard density or
occurrence as dependent variables. To reduce variation in species densities and
to analyze plant communities in terms of relative abundance, we applied general
relativization by species prior to analysis (McCune and Grace 2002). We employed
the autopilot mode in PC-ORD for the NMDS analysis (medium thoroughness,
100 runs with real data, 0.000001 stability criterion, 10 iterations to evaluate
stability, 500 maximum iterations). We visually inspected plot locations on a 2-dimensional
plot of NMDS scores for grouping by site and invasion status, and by
environmental variables (soil-texture category, soil order; Table 1) to determine if
plant-community composition was ordered by these variables. We assigned each of
the 61 species in the NMDS ordination a soil-order association based on occurrence
within, or closest distance to, convex hulls around plot groupings by soil order. We
calculated the proportions of plants within various disturbance and mycorrhizal
categories, as described below, within each soil order.
To test for the relative effects of Garlic Mustard presence and soil order on plant
community composition, we used multi-response permutation procedures (MRPP)
on a Bray-Curtis dissimilarity matrix weighted by groups, which was performed in
PC-ORD.
Univariate analyses. We used generalized linear mixed models (GLMMs) to test
for effects of Garlic Mustard invasion, soil order, and their interaction on (1) density
and species diversity (total species richness, Shannon diversity, and Pielou’s
evenness) of the total plant community, (2) density and diversity of plant functional
groups, (3) proportional density and species richness of plants according to their
associations with mycorrhizal fungi, and (4) soil moisture. We also used GLMMs
to test for soil-order effects on Garlic Mustard density, and for the effects of Garlic
Mustard densities on mycorrhizal plant density in invaded plots only.
The plant functional groups were forbs, tree seedlings, shrubs (including woody
vines and ground cover), ferns and fern allies, graminoids (including sedges and
rushes), and non-natives (all non-native plants). We assigned species’ tolerance to
disturbance according to descriptions in Haines (2011); those identified as occurring
in disturbed/anthropogenic habitats were designated “disturbance-tolerant”,
and those without this identification were designated “disturban ce-intolerant” (see
Supplementary Table 1, available online at http://www.eaglehill.us/NENAonline/
suppl-files/n25-3-N1636-Haines-s1, and, for BioOne subscribers, at https://dx.doi.
Northeastern Naturalist
404
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
org/10.1656/N1636.s1). We categorized species as mycorrhizal or non-mycorrhizal
(hereafter, mycorrhizal status), and further classified mycorrhizal plants by mycorrhizal
type (endomycorrhizal or ectomycorrhizal), which we determined from
published accounts (see Supplementary Analysis Methods and Supplementary
Table 2 for additional information, available online at http://www.eaglehill.us/
NENAonline/suppl-files/n25-3-N1636-Haines-s1 and, for BioOne subscribers, at
https://dx.doi.org/10.1656/N1636.s1). Only species for which we could find published
information on mycorrhizal associations were included in these analyses.
We analyzed proportions of plant density and species richness. Density and
diversity were much higher for mycorrhizal than non-mycorrhizal plants, and proportions
varied widely among mycorrhizal types; thus, all analyses were performed
on each mycorrhizal category separately. In all GLMMs, we set site as the random
effect. We conducted these analyses in the GLIMMIX procedure in SAS/STAT®
software, Version 14.1 of the SAS System for Windows (© 2002–2012 by SAS
Institute Inc., Cary, NC).
To test for species-specific differences by Garlic Mustard invasion status, we
analyzed species densities using a zero-inflated Poisson (ZIP) model and the GENMOD
procedure in SAS/STAT software. We deemed P-values ≤0.05 significant for
all analyses and adjusted P-values for multiple comparisons using Bonferroni corrections
in the MRPP and Tukey’s HSD in the GLMMs.
Results
Community composition
The 3-dimensional NMDS solution had a stress of 19.7, with 15.9%, 14.7%,
and 17.3% of variation explained by axes 1, 2, and 3, respectively. Plant communities
in non-invaded and invaded plots were separated in the ordination but varied
by soil order in degree of separation (Fig. 1A). Plots on entisol soils were distinct
from plots on all other soil orders, and communities on inceptisol and spodosol
soils overlapped only slightly (Fig. 1A). Of the included environmental variables,
soil pH had the strongest correlation with community composition in the ordination;
pH was positively associated with axis 2 and was higher for inceptisols and
spodosols compared to entisols (Pearson’s r2 = 0.21 for axis 2). Entisols, inceptisols,
and spodosols were associated with progressively decreasing proportions of
disturbance-tolerant and non-native plant species (Fig. 1B, C; also see Supplementary
Table 3 and Supplementary Fig. 1, available online at http://www.eaglehill.us/
NENAonline/suppl-files/n25-3-N1636-Haines-s1 and, for BioOne subscribers, at
https://dx.doi.org/10.1656/N1636.s1), but the proportion of mycorrhizal species
did not vary with soil order (0.90, 0.94, and 0.93 mycorrhizal for entisol, inceptisol,
and spodosol, respectively). Plant community composition, as determined by
MRPP, varied significantly among soil orders, but not with Garlic Mustard invasion
status (see Supplementary Table 4, available online at http://www.eaglehill.us/
NENAonline/suppl-files/n25-3-N1636-Haines-s1 and, for BioOne subscribers, at
https://dx.doi.org/10.1656/N1636.s1).
Based on these findings, we included soil order as a factor in the remainder
of the analyses, but we excluded data from the single entisol site, due to a lack of
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
405
replication. However, we provide supplementary figures that include the entisolsite
data for qualitative comparison (see Supplementary Figs. 2–6, available online
at http://www.eaglehill.us/NENAonline/suppl-files/n25-3-N1636-Haines-s1 and,
for BioOne subscribers, at https://dx.doi.org/10.1656/N1636.s1).
Total plant density and diversity, and soil characteristics
There were no significant effects of Garlic Mustard presence on total plant community
density or species diversity (See Supplementary Table 2, available online
at http://www.eaglehill.us/NENAonline/suppl-files/n25-3-N1636-Haines-s1), and
soil order did not significantly affect Garlic Mustard density (F1,35 = 1.66, P =
0.206). However, bulk soil moisture (F1,34 = 5.36, P = 0.0267) and organic soil pH
(F1,34 = 17.37, P = 0.0002) were higher on average in invaded than non-invaded
plots (Fig. 2A, B). Garlic Mustard density had a positive correlation with organic
soil moisture in invaded plots (F1,13 = 4.92, P = 0.045; Fig. 2 C), but it was not correlated
with organic soil pH (F1,13 = 0.82, P = 0.381)
Figure 1. (A) Nonmetric multidimensional scaling (NMDS) ordination of plant species
densities, separated by soil order; (B) proportions of species by disturbance tolerance; and
(C) nativity associated with each soil order in the NMDS. In (A), convex hulls are shown
for each soil order, and the arrow represents soil pH correlation with axis 2 (r2 = 0.21; all
other environmental variables had r2 < 0.2 for both axes). Garlic Mustard was not included
in these analyses. Different symbols in (A) represent plots in the following soils and invasion
treatments: circles = entisol, triangles = inceptisol, squares = spodosol, open symbols
= non-invaded, and closed symbols = invaded.
Northeastern Naturalist
406
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
Density and diversity of functional groups
Proportional densities and proportional species richness of functional groups
varied by Garlic Mustard invasion status and soil order (Fig. 3). For all sites together,
ferns, non-natives, and shrubs tended to have higher total proportional
densities in non-invaded plots, but tree seedlings showed the opposite pattern,
with higher proportional densities in invaded plots at all sites and overall. Total
proportional density of forbs was also higher in non-invaded plots, apparently
driven by a relationship with spodosol sites. Regarding species richness, ferns and
trees trended toward higher richness in non-invaded than invaded plots, but forb
richness was lower in non-invaded than in invaded plots. There was higher Shannon
diversity (F1,33 = 8.42, P = 0.007), Pielou’s evenness (F1,31 = 14.2, P = 0.001),
and forb richness (F1,33 = 6.05, P = 0.019), in invaded than non-invaded plots, but
forb density did not vary significantly by invasion status (F1,33 = 0.03, P = 0.853)
(Fig. 4). No other functional group was significantly affected by Garlic Mustard
invasion (See Supplementary Table 2, available online at http://www.eaglehill.us/
NENAonline/suppl-files/nX25-3-N1636-Haines-s1 and, for BioOne subscribers, at
https://dx.doi.org/10.1656/N1636.s1).
Figure 2. Effects
of Garlic Mustard
presence on (A) soil
moisture and (B) organic
soil pH, and
(C) Garlic Mustard
density effects on
organic soil moisture.
Soil moisture
and organic soil pH
were significantly
higher in invaded
than non-invaded
plots (P = 0.0267
and 0.0002, respectively).
The dashed
line in (C) represents
the positive,
significant effect of
Garlic Mustard density
on organic soil
moisture (P = 0.045;
analysis based on
a GLMM, which
has no r2 equivalent
such as that supplied
by linear regression
analysis).
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
407
Among the 40 most abundant species in our study, some native species were
clearly affiliated with Garlic Mustard presence or absence, while others were not
(Table 2). The forbs Maianthemum canadense (Canada Mayflower) and Erythronium
americanum (Trout Lily) were significantly less abundant in invaded than
non-invaded plots. Seedlings of the native trees Acer rubrum L. (Red Maple) and
White Ash were also negatively associated with Garlic Mustard. Native species
that were positively associated with Garlic Mustard included the forbs Tiarella
cordifolia (Foamflower) and Impatiens capensis (Jewelweed), and Sugar Maple and
Prunus serotina (Black Cherry) seedlings.
Density and diversity of disturbance-tolerant and mycorrhizal dependent
species
There was a disturbance × soil × Garlic Mustard invasion effect on the density
of species with regard to disturbance tolerance (Table 3); invaded inceptisols and
Figure 3. Proportions of
functional-group density
and species richness in
non-invaded and invaded
plots for all data combined
(Total) and by soil
order. Plant functional
groups occur in descending
alphabetic order (ferns,
forbs, graminoids, nonnatives,
shrubs, trees) in
each stacked bar. Garlic
Mustard was not included
in these analyses.
Northeastern Naturalist
408
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
Table 2. The 40 species with highest density in the study by invasion association. Species negatively associated with Garlic Mustard have higher densities
in non-invaded (N-inv.) than in invaded (Inv.) plots, positively associated species have the opposite association, and species that do not differ in densities
by invasion status are neutral. Species in each category are sorted from highest to lowest maximum density. P-values and density estimates are from
zero-inflated Poisson tests of density differences between invaded and non-invaded plots; P-values with an asterisk (*) are significant using the Bonferroni
correction for multiple comparisons. Additional columns indicate number of sites and soil orders (I = inceptisol, S = spodosol) each species occurred in,
and whether or not the species is considered disturbance tolerant. [Table continued on following page.]
Functional Density No. of Soils Disturbance
Species group N-Inv. Inv. P sites I S tolerant?
Negative Garlic Mustard association
Maianthemum canadense Desf. (Canda Mayflower) Forb 20.400 2.300 less than 0.001* 4 X X Yes
Erythronium americanum Ker-Gawl. (Trout Lily) Forb 19.500 12.900 less than 0.001* 3 X X No
Osmundastrum cinnamomea (L.) C. Presl (Cinnamon Fern) Fern 3.810 1.720 0.002* 1 X No
Lysimachia borealis (Raf.) U. Manns & A. Anderb. (Starflower) Forb 2.960 0.608 0.003 2 X No
Microstegium vimineum (Trin.) A. Camus (Japanese Stiltgrass) Non-native 2.290 1.020 0.048 1 X Yes
Fraxinus americana L. (White Ash) Tree 2.120 0.600 less than 0.001* 7 X X No
Euonymus alatus (Thunb.) Sieb. (Burning-Bush) Non-native 1.830 0.370 less than 0.001* 6 X X Yes
Rubus hispidus L. (Bristly Blackberry) Shrub 1.330 0.083 0.030 2 X Yes
Acer rubrum L. (Red Maple) Tree 1.180 0.097 0.004* 3 X X No
Carex appalachica J. Webber & P.W. Ball (Appalachian Sedge) Graminoid 1.120 0.471 0.016 5 X X No
Tussilago farfara L. (Coltsfoot) Non-native 0.936 0.028 0.009 3 X X Yes
Dryopteris sp. (Wood Fern) Fern 0.875 0.279 0.012 4 X X No
Parthenocissus quinquefolia (L.) Planch. (Virginia-Creeper) Shrub 0.726 0.341 0.041 5 X X Yes
Positive Garlic Mustard association
Tiarella cordifolia L. (Foam-Flower) Forb 16.900 59.900 less than 0.001* 1 X No
Acer saccharum Marsh. (Sugar Maple) Tree 7.120 9.530 less than 0.001* 7 X X No
Impatiens capensis Meerb. (Jewelweed) Forb 0.028 4.210 less than 0.001* 5 X X Yes
Persicaria sp. (smartweed) Forb 0.028 2.750 less than 0.001* 1 X No
Prunus serotina Herh. (Black Cherry) Tree 0.689 1.670 less than 0.001* 6 X X Yes
Rubus sp. (blackberry) Shrub 0.009 1.380 0.002 3 X X Yes
Circaea canadensis (L.) Hill (Broad-Leaved Enchanter’s-Nightshade) Forb 0.341 1.170 0.036 3 X X No
Sanguinaria canadensis L. (Blood-Root) Forb 0.028 0.750 0.014 1 X X No
Symphyotrichum sp. (American-Aster) Forb 0.028 0.608 0.030 2 X No
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
409
Table 2, continued.
Functional Density No. of Soils Disturbance
Species group N-Inv. Inv. P sites I S tolerant?
Neutral Garlic Mustard association
Mitchella repens L. (Partridge-Berry) Shrub 7.250 0.000 1.000 1 X No
Arisaema triphyllum (L.) Schott (Jack-In-The-Pulpit) Forb 3.030 2.590 0.156 6 X X No
Onoclea sensibilis L. (Sensitive Fern) Fern 1.690 2.330 0.406 3 X X No
Carex pensylvanica Lam. (Pennsylvania Sedge) Graminoid 1.580 2.120 0.352 3 X X No
Carpinus caroliniana Walt. (American Hornbeam) Tree 1.370 1.640 0.633 1 X Yes
Viburnum acerifolium L. (Maple-Leaved Viburnum) Shrub 1.240 0.000 1.000 1 X X No
Eurybia divaricata (L.) Nesom (White Wood-Aster) Forb 0.583 1.210 0.091 3 X No
Fagus grandifolia Ehrh. (American Beech) Tree 1.070 0.000 1.000 1 X No
Viola pubescens Ait. (Yellow Forest Violet) Forb 0.000 1.070 1.000 1 X No
Dryopteris carthusiana (Vill.) H.P. Fuchs (Spinulose Wood Fern) Fern 0.891 0.466 0.226 3 X X No
Polygonatum biflorum (Walt.) Ell. (King Solomon’s-Seal) Forb 0.409 0.740 0.185 4 X X Yes
Celastrus orbiculatus Thunb. (Asian Bittersweet) Non-native 0.734 0.516 0.349 4 X X Yes
Lactuca canadensis L. (Tall Lettuce) Forb 0.000 0.705 1.000 1 X Yes
Trillium sp. (wakerobin) Forb 0.517 0.687 0.433 4 X X No
Vitis riparia Michx. (River Grape) Shrub 0.608 0.083 0.081 2 X X Yes
Geum fragarioides (Michx.) Smedmark (Appalachian Barren-Strawberry) Forb 0.000 0.608 1.000 1 X Yes
Toxicodendron radicans (L.) Kuntze (Poison-Ivy) Shrub 0.534 0.216 0.073 4 X Yes
Maianthemum racemosum (L.) Link (Feathery False Solomon’s-Seal) Forb 0.479 0.440 0.864 4 X X No
Northeastern Naturalist
410
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
non-invaded spodosols had lower densities than species that are not disturbance
tolerant compared to disturbance-tolerant species in either soil order (Fig. 5). However,
there were no correlations between Garlic Mustard densities and disturbancetolerant
plant-density (F1,13 = 1.75, P = 0.209) or species richness (F1,13 = 0.89, P =
0.363), or non-disturbance tolerant plant density (F1,13 = 1.15, P = 0.303) or species
richness (F1,13 = 0.04, P = 0.849). Total mycorrhizal plant proportional density and
species richness did not vary significantly with Garlic Mustard invasion status or
soil order (Table 3), nor were there correlations between Garlic Mustard densities
and mycorrhizal plant density (F1,13 = 0.52, P = 0.484) or species richness (F1,13 =
0.52, P = 0.484).
Discussion
Few studies have examined regional variation in associations between Garlic
Mustard invasion and forest understory plant communities, with prior research
largely restricted to individual or a few adjacent local sites (e.g., Dávalos et al.
2015a, 2015b; Rodgers et al. 2008a; Stinson et al. 2007). Here, we demonstrate few
direct effects of invasion on overall plant community patterns but some species-
Figure 4. Effects of Garlic Mustard invasion and soil order on diversity, density, evenness,
and richness of forbs. Different letters represent significantly different (P < 0.05) findings
between invaded and non-invaded plots, and among invasion/soil order combinations;
upper-case letters represent invasion effects, and lower-case letters represent soil order effects.
Garlic Mustard was not included in these analyses.
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
411
Table 3. Generalized linear mixed models output for effects of invasion on density and species richness
of disturbance-tolerant and mycorrhizal plants (not including Garlic Mustard) with respect to soil
order and disturbance.
Characteristic Effect Density Species richness
Disturbance tolerance
Invasion F1,71 = 2.06, P = 0.155 F1,71 = 5.33, P = 0.024
Disturbance F1,71 = 77.30, P < 0.001 F1,71 = 30.50, P < 0.001
Soil F1,5 = 0.04, P = 0.855 F1,5 = 6.48, P = 0.052
Invasion × Disturbance F1,71 = 1.48, P = 0.227 F1,71 = 1.77, P = 0.187
Invasion × Soil F1,71 = 2.45, P = 0.122 F1,71 = 0.00, P = 0.962
Disturbance × Soil F1,71 = 1.68, P = 0.199 F1,71 = 12.40, P = 0.001
Invasion × Disturbance × Soil F1,71 = 5.27, P = 0.025 F1,71 = 1.72, P = 0.193
Mycorrhizal
Invasion F1,33 = 0.10, P = 0.753 F1,32 = 1.74, P = 0.197
Soil F1,5 = 1.17, P = 0.330 F1,32 = 3.05, P = 0.090
Invasion × Soil F1,33 = 1.03, P = 0.316 F1,32 = 0.15, P = 0.703
Figure 5. Effects of Garlic
Mustard presence and soil
order on plant density and
species richness of disturbance-
tolerant and non-tolerant
plants. Different letters
represent significantly different
(P < 0.05) invasion/
disturbance combinations, as
determined by Tukey’s HSD
tests. Garlic Mustard was not
included in these analyses.
Northeastern Naturalist
412
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
specific trends in negative or positive associations with Garlic Mustard across
several temperate deciduous forests of the northeastern US. We also show that siteto-
site variation in soil order exists regarding interactions between Garlic Mustard
and native vegetation, and that local variation in soil moisture and pH may also
affect densities of both Garlic Mustard and other species in the community.
Species-specific responses to Garlic Mustard
Our work provides a regional context to prior studies showing reduced abundances
of spring ephemerals, forbs, and some tree seedlings with Garlic Mustard
invasion at the local level (Nuzzo 1999, Rodgers et al. 2008a, Stinson et al. 2007,
Waller et al. 2016). Of the individual taxa that were scarce under Garlic Mustard
invasion, Canada Mayflower, Trout Lily, and Lysimachia borealis (Starflower), are
known to be mycorrhizal (Brundrett and Kendrick 1990), as are Osmundastrum
cinnamomea (Cinnamon Fern) (Berch and Kendrick 1982) and seedlings of Red
maple and White Ash. The affiliation of the tree-seedling functional group with
Garlic Mustard invasion appears to be driven largely by high abundances of Sugar
Maple, and in spite of lower species-level abundances of White Ash and Red Maple
within invaded patches in our study. The Sugar Maple seedlings were largely in the
0–2-y age group, and occurred in mesic sites with canopy Sugar Maples; thus, the
co-occurrence of Sugar Maple seedlings may be an incidental consequence of local
canopy structure or timing of seedling emergence, and of Garlic Mustard and Sugar
Maple’s shared affinity for mesic sites (Rodgers et al. 2008a). All 3 tree-seedling
species mentioned above are mycorrhizal obligates known to decline in growth
in the presence of Garlic Mustard (Stinson et al. 2006), so it is unclear whether
mycorrhizal suppression by Garlic Mustard is a major driver of all tree seedling
abundances at our sites. Other mechanisms may interact with Garlic Mustard invasion
to influence densities of other taxa, including higher soil moisture and pH in
the invaded patches in our study. Elsewhere, soil moisture and pH have both been
important at the local scale (Anderson and Kelley 1995, Meekins and McCarthy
2001), as have other factors not measured here, such as direct competition for nutrients
(Poon and Maherali 2015), interactions with deer, which prefer native species
to Garlic Mustard (Kalisz et al. 2014) and other exotic taxa (Boyce 2015).
Regionally consistent effects of Garlic Mustard invasion on native plant
assemblages
Despite variation across soil orders and a general lack of Garlic Mustard effects
on many of the measured community variables, 2 lines of evidence suggest that
forest patches invaded by Garlic Mustard have different patterns of functionalgroup
assemblages compared to uninvaded patches across the region. First, despite
higher soil moisture at sites with Garlic Mustard, proportional densities and total
densities of key fern-species that tend to prefer moist sites were lower at invaded
sites. Lower fern densities could be due to competition or potential mycorrhizal
suppression by Garlic Mustard (West et al. 2009), although allelopathy and/or high
monospecific densities common among ferns themselves may have suppressive
effects on Garlic Mustard itself (Stewart 1975). Second, and somewhat surprising,
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
413
was a regionally consistent dip in non-native functional-group densities at sites
with Garlic Mustard, which counters established theories of “invasional meltdown”
and invasion “hotspots” which predict co-invasions in areas with recent disturbance
and/or high resource availability (Stohlgren et al. 1999) and create feedbacks between
disturbance and degradation of the native flora (Simberloff and Von Holle
1999). One explanation for reduced exotics in invaded plots in our study is our intentional
sampling of intact forested sites, as opposed to forest edges or fragments
where exotics are generally more common (Goldblum and Beatty 1999, Yates et al.
2004). Overall, our community-level data suggest that it is possible to categorize
these functional groups as affiliates or non-affiliates with Garlic Mustard invasion
at the regional scale. However, regional variability in environmental and vegetation
patterns may counter predictions arising from smaller-scale experiments showing
local effects of Garlic Mustard on native plants, or from broader geographic studies
suggesting co-occurrences of exotics during the invasion process.
Management implications
Taken together, our results highlight the need to consider species-specific
responses, landscape-level heterogeneity in soil conditions, and general plant
community associations when evaluating ecological impacts and management priorities
related to invasive plants.
For certain individual species, a regional pattern of negative association with
Garlic Mustard invasion suggests the need for coordinated management. These
taxa include the mycorrhizal fungi-dependent herbaceous plants Trout Lily and
Canada Mayflower, as well as White Ash and Red Maple seedlings. However,
our data generally suggest against the practice of managing for high diversity
(Roberts and Gilliam 1995), especially if abundances of native forest understory
species are a priority, given higher overall diversity in sites with Garlic Mustard.
While Garlic Mustard did not tend to occur with other non-natives at a regional
scale, the 3-way interaction between disturbance tolerance, invasion status, and
soil order indicates frequent co-occurrences and thus the need for co-management
of disturbance-tolerant species with Garlic Mustard invasion, particularly on inceptisols.
Finally, given Garlic Mustard’s affiliation with higher soil moisture,
mesic sites may pose a greater management problem than drier sites. Ours is one
of the first to capture landscape-level variation in vegetation patterns pertaining
to Garlic Mustard invasion, and additional studies at this spatial scale could be
highly informative for understanding broader geographic patterns of impact and
management issues for Garlic Mustard.
Acknowledgments
The authors thank Billy DeVore and Mark Anthony for assistance with fieldwork; Dave
Orwig, Julie Richburg, Bethany Bradley, and Christine Urbanowicz for comments on
experimental design and earlier versions of the manuscript; and the following landowners
for permission to conduct the research: The Trustees of Reservations, West Point Military
Academy, Black Rock Forest, Audubon Society, MA State Forest, and M.A. Swedlund. This
work was funded by a US Department of Defense Strategic Environmental Research and
Northeastern Naturalist
414
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
Development Program (SERDP) grant (NRC2326) to K.A. Stinson and S.D. Frey. Views,
opinions, and/or findings contained in this report are those of the authors and should not be
construed as an official Department of Defense position or decision unless designated by
other official documentation.
Literature Cited
Anderson, R.C., and T.M. Kelley. 1995. Growth of Garlic Mustard (Alliaria petiolata) in
native soils of different acidity. Transactions of the Illinois State Academy of Science
88:91–96.
Berch, S.M., and B. Kendrick. 1982. Vesicular-arbuscular mycorrhizae of southern Ontario
ferns and fern-allies. Mycologia 74:769–776.
Boyce, R.L. 2015. Recovery of native plant communities in southwest Ohio after Lonicera
maackii removal. The Journal of the Torrey Botanical Society 142:193–204.
Brundrett, M., and B. Kendrick. 1990. The roots and mycorrhizas of herbaceous woodland
plants. I. Quantitative aspects of morphology. New Phytologist 114:457–468.
Burke, D.J. 2008. Effects of Alliaria petiolata (Garlic Mustard; Brassicaceae) on mycorrhizal
colonization and community structure in 3 herbaceous plants in a mixed deciduous
forest. American Journal of Botany 95:1416–1425.
Callaway, R.M., and W.M. Ridenour. 2004. Novel weapons: Invasive success and the
evolution of increased competitive ability. Frontiers in Ecology and the Environment
2:436–443.
Callaway, R.M., G.C. Thelen, A. Rodriguez, and W.E. Holben. 2004. Soil biota and exotic
plant invasion. Nature 427:731–733.
Cantor, A., A. Hale, J. Aaron, M. Traw, and S. Kalisz. 2011. Low allelochemical concentrations
detected in Garlic Mustard-invaded forest soils inhibit fungal growth and AMF
spore germination. Biological Invasions 13:3015–3025.
Castellano, S.M., and D.L. Gorchov. 2012. Reduced ectomycorrhizae on oak near invasive
Garlic Mustard. Northeastern Naturalist 19:1–24.
Dávalos, A., V. Nuzzo, and B. Blossey. 2015a. Interactive effects of deer, earthworms, and
non-native plants on rare forest-plant recruitment. Biological Conservation 187:173–181.
Dávalos, A., V. Nuzzo, and B. Blossey. 2015b. Single and interactive effects of deer and
earthworms on non-native plants. Forest Ecology and Management 351:28–35.
Davis, M.A., C. MacMillen, M. LeFevre-Levy, C. Dallavalle, N. Kriegel, S. Tyndel, Y.
Martinez, M.D. Anderson, and J.J. Dosch. 2014. Population and plant community dynamics
involving Garlic Mustard (Alliaria petiolata) in a Minnesota Oak Woodland: A
four-year study. The Journal of the Torrey Botanical Society 141:205–216.
Dukes, J.S., and H.A. Mooney. 1999. Does global change increase the success of biological
invaders? Trends in Ecology and Evolution 14:135–139.
Elliott, E.T., J.W. Heil, E.F. Kelly, and H.C. Monger. 1999. Soil structural and other physical
properties. Pp. 74–85, In G.P. Robertson, D.C. Coleman, C.S. Bledsoe, and P. Sollins
(Eds.). Standard Soil Methods for Long-term Ecological Research. Oxford University
Press New York, NY. 462 pp.
Elton, C.S. 1958. The Ecology of Invasions by Animals and Plants. Chapman and Hall,
New York, NY. 181 pp.
Eschtruth, A.K., and J.J. Battles. 2009. Acceleration of exotic plant invasion in a forested
ecosystem by a generalist herbivore. Conservation Biology 23:388–399.
Goldblum, D., and S.W. Beatty. 1999. Influence of an old field/forest edge on a northeastern
United States deciduous forest understory community. The Journal of the Torrey Botanical
Society 126:335–343.
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
415
Haines, A. 2011. New England Wild Flower Society’s Flora Novae Angliae: A Manual for
the Identification of Native and Naturalized Higher Vascular Plants of New England.
Yale University Press, New Haven, CT. 973 pp.
Hale, A.N., L. Lapointe, and S. Kalisz. 2016. Invader disruption of belowground plant mutualisms
reduces carbon acquisition and alters allocation patterns in a native forest herb.
New Phytologist 209:542–549.
Hall, B., G. Motzkin, D.R. Foster, M. Syfert, and J. Burk. 2002. Three hundred years
of forest and land-use change in Massachusetts, USA. Journal of Biogeography
29:1319–1335.
Jarrell, W.M., D.E. Armstrong, D.F. Grigal, E.F. Kelly, H.C. Monger, and D.A. Wedin.
1999. Soil water and temperature status. Pp. 55–73, In G.P. Robertson, D.C. Coleman,
C.S. Bledsoe, and P. Sollins (Eds.). Standard Soil Methods for Long-term Ecological
Research. Oxford University Press New York, NY. 480 pp.
Kalisz, S., R.B. Spigler, and C.C. Horvitz. 2014. In a long-term experimental demography
study, excluding ungulates reversed invader’s explosive population growth rate and restored
natives. Proceedings of the National Academy of Sciences 111:4501–4506.
Klironomos, J.N. 2002. Feedback with soil biota contributes to plant rarity and invasiveness
in communities. Nature 6884:67–69.
Knight, T.M., J.L. Dunn, L.A. Smith, J. Davis, and S. Kalisz. 2009. Deer facilitate invasive
plant success in a Pennsylvania forest understory. Natural Areas Journal 29:110–116.
Koch, A., P. Antunes, E. Kathryn Barto, D. Cipollini, D. Mummey, and J. Klironomos. 2011.
The effects of arbuscular mycorrhizal (AM) fungal and Garlic Mustard introductions on
native AM fungal diversity. Biological Invasions 13:1627–1639.
Kueffer, C., P. Pyšek, and D.M. Richardson. 2013. Integrative invasion science: Model
systems, multi-site studies, focused meta-analysis, and invasion syndromes. New Phytologist
200:615–633.
Lankau, R.A., V. Nuzzo, G. Spyreas, and A.S. Davis. 2009. Evolutionary limits ameliorate
the negative impact of an invasive plant. Proceedings of the National Academy of Sciences
106:15,362–15,367.
McCune, B., and J.B. Grace. 2002. Analysis of Ecological Communities. MjM Software
Design, Gleneden Beach, OR. 300 pp.
Meekins, J.F., and B.C. McCarthy. 2001. Effect of environmental variation on the invasive
success of a nonindigenous forest herb. Ecological Applications 11:1336–1348.
Motzkin, G., and D. Foster. 2009. 1830 map of landcover and cultural features in Massachusetts.
Harvard Forest Data Archive: HF122. Available online at http://harvardforest.
fas.harvard.edu:8080/exist/apps/datasets/showData.html?id=hf122. Accessed 1
October 2017.
Motzkin, G., D. Foster, A. Allen, J. Harrod, and R. Boone. 1996. Controlling site to evaluate
history: Vegetation patterns of a New England sand plain. Ecological Monographs
66:345–365.
Motzkin, G., P. Wilson, D.R. Foster, and A. Allen. 1999. Vegetation patterns in heterogeneous
landscapes: The importance of history and environment. Journal of Vegetation
Science 10:903–920.
Murphy, G.E.P., and T.N. Romanuk. 2014. A meta-analysis of declines in local species richness
from human disturbances. Ecology and Evolution 4:91–103.
Myers, C.V., and R.C. Anderson. 2003. Seasonal variation in photosynthetic rates influences
success of an invasive plant, Garlic Mustard (Alliaria petiolata). American Midland
Naturalist 150:231–245.
Northeastern Naturalist
416
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018 Vol. 25, No. 3
Nuzzo, V. 1999. Invasion pattern of herb Garlic Mustard (Alliaria petiolata) in high quality
forests. Biological Invasions 1:169–179.
Nuzzo, V.A., J.C. Maerz, and B. Blossey. 2009. Earthworm invasion as the driving force
behind plant invasion and community change in northeastern North American forests.
Conservation Biology 23:966–974.
Poon, G.T., and H. Maherali. 2015. Competitive interactions between a nonmycorrhizal
invasive plant, Alliaria petiolata, and a suite of mycorrhizal grassland, old field, and
forest species. Peerj 3 e1090. doi: 10.7717/peerj.1090.
Prati, D., and O. Bossdorf. 2004. Allelopathic inhibition of germination by Alliaria petiolata
(Brassicaceae). American Journal of Botany 91:285–288.
Roberts, M.R., and F.S. Gilliam. 1995. Patterns and mechanisms of plant diversity in
forested ecosystems: Implications for forest management. Ecological Applications
5:969–977.
Robertson, G.P., P. Sollins, B.G. Ellis, and K. Lajtha. 1999. Exchangeable ions, pH, and
cation-exchange capacity. Pp. 106–114, In G.P. Robertson, D.C. Coleman, C.S. Bledsoe,
and P. Sollins (Eds.). Standard Soil Methods for Long-term Ecological Research.
Oxford University Press, New York, NY. 480 pp.
Rodgers, V.L., K.A. Stinson, and A.C. Finzi. 2008a. Ready or not, Garlic Mustard is moving
in: Alliaria petiolata as a member of eastern North American forests. Bioscience
58:426–436.
Rodgers, V.L., B.E. Wolfe, L.K. Werden, and A.C. Finzi. 2008b. The invasive species Alliaria
petiolata (Garlic Mustard) increases soil-nutrient availability in northern hardwood–
conifer forests. Oecologia 157:459–471.
Rooney, T.P., and D.A. Rogers. 2011. Colonization and effects of Garlic Mustard (Alliaria
petiolata), European Buckthorn (Rhamnus cathartica), and Bell’s Honeysuckle
(Lonicera × bella) on understory plants after five decades in southern Wisconsin forests.
Invasive Plant Science and Management 4:317–325.
Simberloff, D., and B. Von Holle. 1999. Positive interactions of nonindigenous species:
Invasional meltdown? Biological Invasions 1:21–32.
Soil Survey Staff. 2017. US General Soil Map (STATSGO2). Natural Resources Conservation
Service, US Department of Agriculture. Available online at https://sdmdataaccess.
sc.egov.usda.gov. Accessed 15 February 2017.
Stewart, R.E. 1975. Allelopathic potential of Western Bracken. Journal of Chemical Ecology
1:161–169.
Stinson, K.A., S.A. Campbell, J.R. Powell, B.E. Wolfe, R.M. Callaway, G.C. Thelen, S.G.
Hallett, D. Prati, and J.N. Klironomos. 2006. Invasive plant suppresses the growth of
native tree seedlings by disrupting belowground mutualisms. PLoS Biology 4:e140.
Stinson, K., S. Kaufman, L. Durbin, and F. Lowenstein. 2007. Impacts of Garlic Mustard
invasion on a forest understory community. Northeastern Naturalist 14:73–88.
Stohlgren, T.J., D. Binkley, G.W. Chong, M.A. Kalkhan, L.D. Schell, K.A. Bull, Y. Otsuki,
G. Newman, M. Bashkin, and Y. Son. 1999. Exotic plant species invade hot spots of
native plant diversity. Ecological Monographs 69:25-46.
Strickler, G.S. 1959. Use of the densiometer to estimate density of forest canopy on permanent
sample plots. USDA Forest Service Research Note No. 180. USDA Forest Service,
Pacific Northwest Research Station, Portland, OR. 5 pp.
Thompson, J.R., D.N. Carpenter, C.V. Cogbill, and D.R. Foster. 2013. Four centuries of
change in northeastern United States forests. Plos One 8:15.
Northeastern Naturalist Vol. 25, No. 3
D.F. Haines, J.A. Aylward, S.D. Frey, and K.A. Stinson
2018
417
Waller, D.M., E.L. Mudrak, K.L. Amatangelo, S.M. Klionsky, and D.A. Rogers. 2016. Do
associations between native and invasive plants provide signals of invasive impacts?
Biological Invasions 18:3465–3480.
West, B., J. Brandt, K. Holstein, A. Hill, and M. Hill. 2009. Fern-associated arbuscular
mycorrhizal fungi are represented by multiple Glomus spp.: Do environmental factors
influence partner identity? Mycorrhiza 19:295–304.
Whigham, D.F. 2004. Ecology of woodland herbs in temperate deciduous forests. Annual
Review of Ecology, Evolution, and Systematics 35:583–621.
Wolfe, B.E., V.L. Rodgers, K.A. Stinson, and A. Pringle. 2008. The invasive plant Alliaria
petiolata (Garlic Mustard) inhibits ectomycorrhizal fungi in its introduced range. Journal
of Ecology 96:777–783.
Yates, E.D., D.F. Levia, and C.L. Williams. 2004. Recruitment of three non-native invasive
plants into a fragmented forest in southern Illinois. Forest Ecology and Management
190:119–130.
