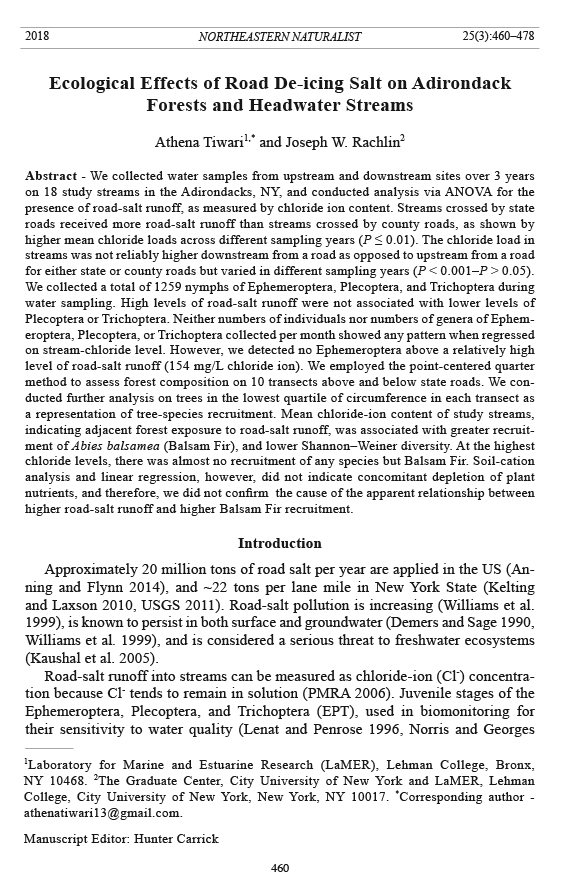

Ecological Effects of Road De-icing Salt on Adirondack
Forests and Headwater Streams
Athena Tiwari1,* and Joseph W. Rachlin2
Abstract - We collected water samples from upstream and downstream sites over 3 years
on 18 study streams in the Adirondacks, NY, and conducted analysis via ANOVA for the
presence of road-salt runoff, as measured by chloride ion content. Streams crossed by state
roads received more road-salt runoff than streams crossed by county roads, as shown by
higher mean chloride loads across different sampling years (P ≤ 0.01). The chloride load in
streams was not reliably higher downstream from a road as opposed to upstream from a road
for either state or county roads but varied in different sampling years (P ˂ 0.001–P ˃ 0.05).
We collected a total of 1259 nymphs of Ephemeroptera, Plecoptera, and Trichoptera during
water sampling. High levels of road-salt runoff were not associated with lower levels of
Plecoptera or Trichoptera. Neither numbers of individuals nor numbers of genera of Ephemeroptera,
Plecoptera, or Trichoptera collected per month showed any pattern when regressed
on stream-chloride level. However, we detected no Ephemeroptera above a relatively high
level of road-salt runoff (154 mg/L chloride ion). We employed the point-centered quarter
method to assess forest composition on 10 transects above and below state roads. We conducted
further analysis on trees in the lowest quartile of circumference in each transect as
a representation of tree-species recruitment. Mean chloride-ion content of study streams,
indicating adjacent forest exposure to road-salt runoff, was associated with greater recruitment
of Abies balsamea (Balsam Fir), and lower Shannon–Weiner diversity. At the highest
chloride levels, there was almost no recruitment of any species but Balsam Fir. Soil-cation
analysis and linear regression, however, did not indicate concomitant depletion of plant
nutrients, and therefore, we did not confirm the cause of the apparent relationship between
higher road-salt runoff and higher Balsam Fir recruitment.
Introduction
Approximately 20 million tons of road salt per year are applied in the US (Anning
and Flynn 2014), and ~22 tons per lane mile in New York State (Kelting
and Laxson 2010, USGS 2011). Road-salt pollution is increasing (Williams et al.
1999), is known to persist in both surface and groundwater (Demers and Sage 1990,
Williams et al. 1999), and is considered a serious threat to freshwater ecosystems
(Kaushal et al. 2005).
Road-salt runoff into streams can be measured as chloride-ion (Cl-) concentration
because Cl- tends to remain in solution (PMRA 2006). Juvenile stages of the
Ephemeroptera, Plecoptera, and Trichoptera (EPT), used in biomonitoring for
their sensitivity to water quality (Lenat and Penrose 1996, Norris and Georges
1Laboratory for Marine and Estuarine Research (LaMER), Lehman College, Bronx,
NY 10468. 2The Graduate Center, City University of New York and LaMER, Lehman
College, City University of New York, New York, NY 10017. *Corresponding author -
athenatiwari13@gmail.com.
Manuscript Editor: Hunter Carrick
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
461
1993, Wallace et al. 1996), may be exposed to residual chloride from road-salting.
Sodium ions tend to bind to soil particles and may displace important plant
macro- and micronutrient cations (Granato et al. 1995, Kelting and Laxson 2010,
PMRA 2006).
The Adirondacks of New York State present an opportunity to compare the
results of very different road-salting regimes. County roads in the Adirondacks
are maintained by county highway departments, which follow the traditional local
practice of allowing a snowpack of a few inches to form on top of the road asphalt.
After plowing, workers apply a mixture of salt (92%) and sand (8%; to keep the
sand pile from freezing) to this snowpack (Craig Donaldson, Harrietstown Highway
Supervisor, Harrietstown, NY, pers. comm.). In at least 1 Adirondack town, no
salt is added to sand piles; thus, county roads receive sand only. In this case, local
residents had expressed concern that sodium might contaminate local wells (Mark
Yandon, Town and Hamlet of Newcomb Superintendent of Highways, Newcomb,
NY, pers. comm.). In contrast, state roads—maintained by the New York State
Highway Department—are plowed down to bare pavement after each snowfall, and
receive only salt, but no sand (Craig Donaldson, Harrietstown Highway Supervisor,
Harrietstown, NY, pers. comm.).
Chloride-ion concentrations far in excess of background levels have been measured
in Adirondack forest streams 100 m below points at which the streams were
crossed by a road, and months after winter road-salt application or spring melt
(Demers and Sage 1990). There remains a need for studies that compare road-salt
impact between streams crossed by roads that receive different winter treatments.
In this study, we examined the effects of road-salt runoff on ecosystem health by
comparing ecosystem parameters at study sites in Adirondack streams and forests
above and below roads that receive different winter treatments.
Field-site Description
We chose for study within the Adirondack Park, NY, eighteen 1st- or 2nd-order
streams (Strahler 1957) that are crossed by roads. We established 2 study sites per
stream—1 each 30 m upstream and downstream from the road. We chose 12 streams
crossed by county roads. Of the 12 study streams crossed by a county road, 8 were
crossed by a road that received the traditional mixture of 92% sand, 8% salt above a
snowpack of a few inches and 4 streams were crossed by a road that did not receive
any salt treatment in winter, only sand on top of the snowpack. We chose 6 streams
crossed by state roads, which were plowed to bare pavement in winter, then salted.
Four of our study streams are in Franklin County, in the Saranac River Watershed—
part of the larger St. Lawrence River Watershed—and are located within 9.5
km (6 mi) of each other (Fig. 1). Two of these streams are crossed by State Route
3 (streams 3-1 and 3-2) and 2 of the study streams in this watershed are crossed by
County Road 45, also called Panther Mountain Road (P-1 and P-2). We collected
water samples from the 8 study sites on these 4 streams monthly throughout 2007
and 2008 and collected macroinvertebrate samples monthly from May through September
(sampling details below)
Northeastern Naturalist
462
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
We redesigned the study in 2009 by eliminating 1 stream, adding 14 streams,
and sampling in April, June, and August only. The impetus for this additional sampling
period was twofold: (1) we had detected fairly low chloride levels during our
previous water sampling at the 2 streams crossed by State Route 3 (see Results),
and we wondered if streams crossed by a different state road might yield water
samples with higher chloride concentrations; (2) one of the 2 streams crossed by a
county road, P-2, had shown anomalous chloride spikes in some months, whereas
P-1 had shown a very stable chloride profile. We wanted to know whether other
Figure 1. Watersheds containing study streams crossed by state and county roads in the
Adirondack Park.
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
463
streams crossed by county roads also showed chloride spikes. The number of study
streams had become unwieldy; thus, we decided not to sample the stable stream
(P-1) in 2009.
Six of the streams added in 2009 are located in St. Lawrence County in the
Raquette River Watershed—also part of the larger St. Lawrence River Watershed—
and are within 4 km (2.5 mi) of each other. The 6 streams are crossed by 2 county
roads: MA-1, at the foot of Mount Arab, is crossed by County Road 62, and streams
MA-2–MA-6 are crossed by Mount Arab Road (Fig. 1).
The other 8 streams added in 2009 are located in the Upper Hudson River Watershed.
Four of the streams are crossed by State Route 28 (streams 28-1–28-4) and
are within 6.4 km (4 mi) of each other (in Hamilton County). The other 4 streams
in this watershed are crossed by Goodnow Flow Road (streams G-1–G-4) and are
within 2 km (1.2 mi) of each other (in Essex County). Goodnow Flow Road is a
county road that receives no salt in winter.
US Geological Survey staff have sampled groundwater in these watersheds for
Cl- and other contaminants. In the St. Lawrence River Watershed, results from 20
test wells showed a median value for Cl- concentration of 6.62 mg/L. Chloride levels
in wells in sand and gravel aquifers varied from 3.72 mg/L to 206 mg/L, while
wells in bedrock varied from 0.36 mg/L to 58.4 mg/L chloride (Nystrom 2012).
Values for the Upper Hudson River Watershed (20 wells) had a median value of
12.4 mg/L chloride and varied from 2.23 mg/L to 105 mg/L Cl- for sand and gravel
wells, and 0.71 mg/L to 1440 mg/L Cl- for wells in bedrock. The latter very high
value was an extreme outlier (in a Hamilton County well ~27.4 km [17 mi] SSW of
the Route 28 study sites) caused by a municipal road salt stockpile that had formerly
been in the area (Scott and Nystrom 2014).
The surficial geology at all the study sites was glacial till, with the exception of
site 28-1, in the Upper Hudson River Watershed, which had alluvial inwash (Cadwell
and Pair 1991). The major bedrock type at all study stream locations is gneiss (metamorphic
rock), with the exception of the Upper Hudson River Watershed at streams
28-1 and 28-2, where the bedrock is undivided metasedimentary rock and related
magmatite (Isachsen and Fisher 1970). The Upper Hudson River Watershed at stream
28-3 is interlayered metasedimentary rock and granitic, charnockitic, mangeritic, or
syenitic gneiss. At streams 28-4 and the Goodnow Flow streams G-1– G-4, the Upper
Hudson River Watershed bedrock is charnockite, mangerite, pryoxene-(hornblende)-
quartz syenitic gneiss. All of the Saranac River Watershed streams are on bedrock
composed of metanorthosite and anorthositic gneiss. The Raquette River Watershed
stream at the foot of Mt. Arab, MA-1, is crossed by County Route 62, and rests on
interlayered amphibolite and granitic, charnockitic, mangeritic, or syenitic gneiss.
The other Raquette River Watershed streams are located in ascending order up the
slope of Mt. Arab. Streams MA-2 and MA-3 rest on biotite and/or hornblende granitic
gneiss, locally pyroxenic; commonly with subordinate leucogranitic gneiss,
biotite-quartz-plagioclase gneiss, other metasemdimentary rocks, amphibolite, migmatite.
Farther up the mountain, streams MA-4–MA-6 rest on bedrock of mangerite,
pyroxene syenitic gneiss, pyroxene-(hornblende) syenitic gneiss; mesoperthite is
common (Isachsen and Fisher 1970).
Northeastern Naturalist
464
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
We also sampled a small human-made wetland for high road-salt input under
conditions of low drainage. “Ampersand Slough” begins at the outflow of a plastic
drainage pipe that is buried beneath Route 3; the wetland is parallel to Route 3 and
~1 m downgradient from the roadway for about 20 m before it becomes an intermittent
stream traveling down to Middle Saranac Lake. This stream only reaches the
lake during high flow; at other times the wetland has no real outflow (A. Tiwari,
pers. observ.).
All study streams were forested, except for the strips next to the road that were
maintained by highway departments. No buildings were visible from 36 of the 38
stream sites. Structures (a house, a driveway) were visible downstream from the
downstream sites on P-1 and P-2.
Methods
Water quality
We collected water samples by the grab method in deionized water-rinsed,
500-ml wide-mouth polyethylene bottles (Wildlife Supply Company, Yulee, FL),
1 bottle per sample. We analyzed the water samples within 15 d at the Laboratory
for Marine and Estuarine Research, Lehman College of the City University of New
York. We divided each sample into 5 subsamples and titrated each subsample for
Cl- concentration by the silver nitrate method, using a Hach digital titrator, model
16900 (Hach Company, Loveland, CO; Yoder 1919). Other studies examining road
salt have also employed this titrator and method (Williams et al. 1999). We report
the mean of these 5 subsamples.
Ephemeroptera, Plecoptera, Trichoptera
We collected a benthic sample at every site each time we took a water sample.
We employed a Surber sampler, a net with a 500-μm mesh size and an attached
frame enclosing ~30 cm2 (~1 ft2) to collect benthic invertebrates. We used the
Surber design with an attached cod bucket (Wildlife Supply Company). We agitated
substrate within the attached frame by hand, and the water current swept disturbed
macroinvertebrates into the net. We collected, placed in a labeled jar at the site,
and preserved in 75% ethanol within a few hours 1 Surber-net’s worth of substrate
at each study site per sampling day. We later separated invertebrates from sand and
pebbles by floatation with saturated calcium chloride and picked out leaf and twig
debris. We identified EPT taxa to genus mainly using keys in Merritt and Cummins
(1978) and Peckarsky et al. 1990, but we consulted additional keys for Plecoptera
(Stewart and Stark 1988), and Trichoptera (Wiggins 1996). We were also aided by
images of Ephemeroptera in Schweibert (2007).
We aggregated and regressed on stream-chloride level EPT data by order and
month (number of individuals collected per month, number of genera collected per
month). We combined all sampling years by month. We compared Shannon–Weiner
diversity across all stream sites for upstream versus downstream numbers of EPT
via the Shannon diversity t-test (Hutcheson 1970) in the Past V3 program (Hammer
et al. 2001). We compared upstream versus downstream numbers separately by
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
465
order (Ephemeroptera, Plecoptera, or Trichoptera) for total individuals and for
total genera, for August, and, separately, for June in streams crossed by state roads
in all sampling years. We conducted data analyses in Microsoft Excel and PAST
Paleontological Statistics (Hammer et al. 2001).
Forest-tree assemblage
To determine the tree species present and tree species recruitment, we selected
forest stands on either side of state roads that cross study streams. To differentiate
the levels of salt exposure for stretches of forest land, we compared
the mean Cl- content of water at stream sites in April, June, and August of 2009.
We employed point-centered–quarter analysis (Cottam and Curtis 1956, Mitchell
2007) to create 10 transects on either side of 2 state roads; transects were 30 m
from the road.
We set up 8 transects on Route 28, which crosses 4 of the study streams. Each
transect was parallel to the road and centered on 1 of the study streams, with 15 randomly
obtained points on either side of the stream. When using the point-centered
quarter method (Cottam and Curtis 1956, Mitchell 2007), at each point a line is
drawn perpendicular to the transect, creating four “quarters”, or areas for sampling,
and the nearest tree in each quarter is measured and identified. We measured the 4
trees found at each sampling point (diameter ≥1 cm) at 130 cm above ground level
rather than at breast height (Brokaw and Thompson 2000, Mitchell 2007). On Route
28, Stream 1295 is 3.06 km (1.9 mi) north of Stream 1313, which is 1.77 km (1.1
mi) north of Stream 1324, which is 1.45 km (0.9 mi) north of Stream 1333. Transects
along Route 28 were ~260–300 m long.
We undertook a slightly different process on Route 3, where the 2 study streams
it crosses lie close enough to each other that it was possible to start a transect 30 m
beyond 1 of these streams, proceed parallel to the road, cross that stream, keep going,
eventually cross the second study stream, and end the transect 30 m beyond the
second stream. We created transects on either side on Route 3 and encompassing
both streams (average of 48 points per transect). We estimated the length of this
transect given the fact that the 2 streams are 1.13 km (0.7 mi) apart, according to
roadside mile markers. Therefore, on the upstream or downstream side, each transect
was ~1186 m long and 30 m from the road.
We followed Cottam and Curtis (1956) and Mitchell (2007) to analyze data
from the point-centered–quarter method (PCQM) sampling. If a tree had multiple
trunks at 130 cm from the ground, as often happens with Alnus incana (L.) Moench
(Speckled Alder), we computed the basal area for each trunk and summed the results
(Mitchell 2007).
We sampled 10 transects: 1 above and 1 below Route 3 and 4 above and 4 below
Route 28 and ran 2 separate analyses on the data from each transect. After the first
analysis of a transect’s data, we created a new database that included the 1st-quartile
circumference (the quartile of smallest trees by circumference) and performed all
PCQM calculations on this quartile to obtain a measure of recruitment. For data
visualization, we multiplied the Shannon–Weiner index of each transect by 100.
Northeastern Naturalist
466
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
Soil cations
We took soil samples at sites along the transects. There were 8 soil sampling
sites on Route 28, where each of the 4 transects was centered on a study stream;
soil-sampling sites were 30 m in from the road, and 30 m from either side of a study
stream. On Route 9, where the transect went from one stream to another, there were
2 soil-sampling sites: 30 m in from the road, and 30 m in from the inside transect
edge of each stream. We collected soil samples and replicates at 2 depths: 0–4 cm
and 15–19 cm. We collected a total of 80 soil samples (10 sampling sites, 4 samples
at 2 depths per site).
We analyzed samples for plant macro- and micronutrients at the Cornell Nutrient
Analysis Laboratory by the 1060 Modified Morgan soil fertility test package
(CNAL 2015). Analyses compared 10 soil cations for concentrations above versus
below the road, or identified correlations with other factors, such as chloride level
in the nearest stream.
We compared soil-cation concentrations between each sample and its replicate,
and between the 0–4-cm depth and the 15–19-cm depth. For each depth, we compared
via 2-factor ANOVA soil-cation concentrations at sites above vs. below the
road for all sites. We also compared the 2 highest-chloride transects to the 2 lowestchloride
transects by single-factor ANOVA and examined cation concentrations for
correlations with soil sodium or with chloride in the stream on either side of which
we had taken the soil samples.
Concentrations were untransformed. For ANOVA, we assumed that any deviations
from normality were acceptable due to a balanced design. For pairwise
comparisons, we tested unsigned differences between pairs for normality and employed
either the t-test or the Wilcoxon test, as appropriate. We defined statistical
significance at the α = 0.05 level.
Results
Water quality
Water testing confirmed 2 expected patterns in chloride concentrations, but
failed to confirm 2 others.
Streams crossed by state roads had higher mean chloride loads than streams
crossed by county roads (Fig. 2). The means of upstream and downstream sample
pairs from streams crossed by state versus county roads in 2008 were significantly
different (state mean = 3.90 ± 0.77, county mean = 3.28 ± 0.19; F1,46 = 4.05, P ˂
0.001), as were those in 2009 (state mean = 28.90 = ± 45.22, county mean = 3.14 ±
0.59; F1,49 = 4.04, P ˂ 0.01).
Chloride loads were higher downstream from a state road as opposed to downstream
from a county road. Downstream sites on streams crossed by a state road in
2008 had a mean chloride concentration of 5.04 mg/L ± 1.56, while downstream
sites on streams crossed by a county road were significantly different at 3.77 mg/L
± 1.75 (F1,46 = 4.05, P = 0.01). In 2009, downstream sites on streams crossed by a
state road had a mean chloride concentration of 34.52 mg/L ± 50.45 (Fig. 3). Downstream
sites on streams crossed by a county road in that year had a significantly
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
467
different mean chloride concentration of 3.32 mg/L ± 1.02 (F1,49 = 4.04, P = 0.001)
(Fig. 4).
Chloride loads in streams were not consistently significantly higher downstream
from a road as opposed to upstream from either a state or county road.
One upstream–downstream comparison was significant, but a test with additional
streams another year was not significant, even though in both cases the streams
had been crossed by state roads. The mean Cl- concentrations from upstream sites
crossed by a state road in 2008 (2.76 mg/L ± 0.24) were significantly different
from those at downstream sites on the same streams (5.04 mg/L ± 1.56; F1,46 = 4.05,
P ˂ 0.001). However, in 2009 the mean Cl- concentrations from upstream sites on
streams crossed by state roads (23.28 mg/L ± 40.25) were not significantly different
from those at downstream sites at the same streams (34.52 mg/L ± 50.46; F1,34
= 4.13, P ˃ 0.05).
Similarly, the mean Cl- concentrations from upstream sites on streams crossed
by a county road in 2007 and 2008 (2.80 mg/L ± 0.34) were significantly different
from those at downstream sites on the same streams (4.39 mg/L ± 3.17; F1,46 = 4.05,
P ˂ 0.001). In 2009, the mean Cl- concentration for the upstream sites of streams
Figure 2. Chloride concentrations in stream sites upstream (_U) and downstream (_D) from
state and county roads, 2008. (A) Stream 3-1 and (B) stream 3-2 crossed by State Route 3.
(C) Stream P-1 and (D) stream P-2 crossed by County Route 45, Panther Mountain Road.
Northeastern Naturalist
468
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
crossed by county roads was 2.96 mg/L ± 0.41. Downstream sections on those same
streams had a mean Cl- concentration of 3.32 mg/L ± 1.02. Upstream sections on
these streams were not significantly different from downstream sections (F1,64 =
3.99, P ˃ 0.05).
The chloride load was not higher in streams crossed by a county road that received
a sand and salt mixture as opposed to a stream crossed by a county road
that received only sand. In 2009 the downstream sites of 4 stream sites receiving
Figure 3. Chloride
concentrations
in streams
crossed by state
roads, 2009.
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
469
no salt had a mean chloride-ion concentration of 3.44 mg/L ± 1.17, whereas the
downstream sites of 6 streams crossed by a county road receiving the traditional
sand/salt mixture had a mean chloride-ion concentration of 2.96 mg/L ± 0.36. There
was no significant difference between these sites (P ˃ 0.05).
Ephemeroptera, Plecoptera, Trichoptera
We collected 1259 EPT specimens at study sites, comprising 292 individual
Ephemeroptera in 14 genera, 495 Plecoptera in 9 genera, and 469 Trichoptera in
28 genera. Linear regression did not reveal any negative relationship between the
Figure 4. Chloride
concentrations in
streams crossed
by county roads,
2009.
Northeastern Naturalist
470
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
number of individual Ephemeroptera, Plecoptera, or Trichoptera collected, or number
of genera collected in any sampling month across all sampling years. When we
employed the Hutcheson diversity t-test to compare Shannon–Weiner diversities for
upstream vs. downstream Ephemeroptera, Plecoptera, or Trichoptera, neither the
number of individuals nor the number of genera differed (P ˃ 0.05).
We did not observe Ephemeroptera if streamwater chloride concentrations
were ≥154 mg/L. We collected 3 individuals of the Ephemeropteran genus Habrophlebiodes
(mayflies) at a stream site on Route 28 in August 2009 where the
chloride level was 153.4 mg/L; no Ephemeroptera were detected at higher chloride
concentrations or at the next 2 lowest chloride concentrations, 115.8 mg/L and 76
mg/L. The next lowest chloride concentration at which Ephemeroptera we detected
was 33.04 mg/L, also on Route 28, at which we collected 4 genera. At Ampersand
Figure 5. Chloride concentrations at Ampersand Slough wetland 2008 and 2009.
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
471
Slough (Fig. 5), chloride concentrations of our samples varied from 215 mg/L to
398 mg/L Cl- on days a collection was made. We did not observe Ephemeroptera at
Ampersand Slough, but we collected 135 Plecoptera individuals in 16 genera and
65 Trichoptera individuals in 22 genera at that site.
Tree-species assemblage
Point–centered–quarter analysis of forest quadrats centered on study streams
yielded importance values for the tree species encountered. The importance values
for the quartile of smallest trees by circumference represents tree-species recruitment.
Trees species showing the highest importance value per transect, either for
the whole database of that transect or for its lowest quartile by circumference,
indicate which species dominate that forest and whether that dominance is in the
process of changing over time.
For both whole databases and lowest quartiles, Fagus grandifolia Ehrh.
(American Beech), Tsuga canadensis (L.) Carrière (Eastern Hemlock), and Picea
rubens Sarg. (Red Spruce) were well-represented in transects centered on streams
with lower chloride content. Abies balsamea (L.) Mill. (Balsam Fir) was also
present in lower-chloride transects, notably in a transect that could be characterized
as wetland. The proportion of Balsam Fir in transects rose along with the Clcontent
of study streams. This effect was most marked in the lowest quartile, as
shown in Figure 6. Stream chloride content is a convenient measure of the roadsalt
runoff along a transect. Figure 6 shows that for the recruiting tree species,
road-salt runoff onto forest soil is associated with increasing importance value of
Balsam Fir and decreasing Shannon–Weiner diversity.
Figure 6. Shannon–Weiner diversity index (multiplied by 100) plus Importance Values of
Abies balsamea (Balsam Fir) among young trees in 10 transects exposed to road-salt runoff
and chloride concentration (mg/l) of local streams.
Northeastern Naturalist
472
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
Soil cations
Plant-nutrient cation concentrations of replicate sample pairs did not differ (n =
160, Wilcoxon test for the 0–4-cm depth: P ˃ 0.05). Cations at the 0–4-cm depth
were present at greater concentrations than at the 15–19-cm depth (n = 360; Wilcoxon
test P ˂ 0.001). Sodium was present at significantly higher concentrations
below the road than above the road at both soil depths (mean above the road at
0–4 cm = 134.70 mg/Kg ± 53.44, mean below the road = 188.81 mg/Kg ± 64.90,
Wilcoxon test: P ˂ 0.01; mean above the road at 15–19 cm = 49.83 mg/Kg ± 23.06,
mean below the road = 90.96 mg/Kg ± 75.99, Wilcoxon test: P ˂ 0.05).
The presence of plant-nutrient cation concentrations at significantly lower levels
below the road as opposed to above the road, would suggest that excess sodium
from road salt has depleted these nutrient cations. However, ANOVAs showed that
nutrient concentrations were not lower at sites below a road at either the 0–4-cm or
15–19-cm depth.
Another indication of road salt affecting cation concentrations would be a
negative correlation with chloride or sodium. There were no negative correlations
between stream chloride or soil sodium and any soil cation when we compared
all samples for any particular cation against local stream chloride or sodium in
that sample. Similarly, when we tested samples from the 0–4-cm depth only for
each cation, there was no negative correlation between any cation and chloride or
sodium. Finally, single-factor ANOVAs to compare cation concentrations at the
2 highest-chloride transects with cations in the 2 lowest-chloride transects (all 4
transects from Route 28) showed no difference for any cation besides sodium (F1,14
= 4.60, P < 0.05).
Discussion
Water quality
Road salt will continue to be of interest in coming decades, as salt-ion inputs to
groundwater are increasingly seen in surface waters. Groundwater initially acts as
a sink for both sodium and Cl-, but then releases these ions as their concentration
in groundwater increases (Howard and Haynes 1993). This process creates a lag
effect, in which Cl- deposited years earlier appears in increasing amounts in springs
and in streams by baseflow recharge (Howard and Haynes 1993, Kelly et al. 2008).
It is important, therefore, to determine whether differences in road de-icing strategy,
such as those employed in the Adirondacks, make a measurable difference in
road-salt runoff.
As we expected, our results showed that the local practice of driving on
snow-packed roads, with sand and a little salt, delivers significantly less salt to
local streams than the bare-roads policy of salting state roads. In general, the
Cl- concentration in streams crossed by county roads was very low, and we found
no statistically significant differences whether the streams were crossed by roads
treated with the traditional sand/salt mixture or sand alone. An August spike in
chloride concentration in one of the unsalted streams occurred when the stream had
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
473
almost dried up, thus concentrating any ions present, which could have come from
groundwater-chloride levels. Salt levels in a stream no longer receiving road salt
inputs would likely reflect past road salting.
One site on a county road receiving the traditional sand/salt mixture had higher
than expected chloride spikes, possibly as a result of a clearing along a powerline
right-of-way that crosses the creek below this downstream site, which may receive
additional salting. Salt that is applied below a test site cannot be assumed to be
carried away in one direction, but rather should be seen as an input to the complex
system of local groundwater.
Similarly, for state roads, the expected pattern of higher levels of chloride downstream
was not reliable—high chloride levels at upstream sites on 2 streams crossed
by State Route 28 produced large standard deviations and lack of a significant
difference in 2009 analyses comparing upstream vs. downstream sites on Route
28. These high upstream levels were likely due to baseflow recharge of chloridecontaminated
groundwater.
On Route 28, streams 1313 and 1333 both had high upstream as well as downstream
chloride concentrations. The streams are not adjacent; stream 1324 is
between them and does not show this pattern. It is likely that the local hydraulic
gradient directs salt-bearing groundwater to the upstream portions of streams 1313
and 1324. Groundwater is known to carry salt contamination from road de-icing
(Rosenberry et al. 1999). Snow plows push salt off the road on both sides all along
the road length. The snow melts in the spring, becomes part of the local groundwater,
and moves along the local hydraulic gradient. It is probable that on most roads,
the higher-gradient side directs groundwater underneath the road to the lower
gradient side, but that in some locations, more compacted soil beneath the road or
another aspect of local hydraulic gradient keeps the water on the upgradient side
long enough to join a stream on the upstream side of the road.
Howard and Hayes (1993) showed that 55% of the chloride input per year in a
metropolitan Toronto basin was being stored in groundwater. Thus, the expectation
that stream chloride concentrations will always be higher downstream from a road
cannot be sustained because it arises from visual bias. Such an assumption is based
on the surface orientation of stream and road, whereas ground water has its own
chloride load and its own flow patterns not perceived from the surface view. When
considering the effect of road salting on streams or lakes, it is important to think of
surface waters as part of a connected system, the major part of which is not seen.
Similarly, the expectation that streams crossed by a county road that receives
only sand as a winter treatment would contain less road salt than streams crossed
by county roads receiving the traditional sand/salt mixture could not be supported.
That hypothesis does not take into account the groundwater burden of Cl-, built up
in past years.
Ephemeroptera, Plecoptera, Trichoptera
Just as stream-chloride levels are not reliably lower upstream from a road as
opposed to downstream, Shannon–Weiner diversity of EPT taxa is not greater
upstream versus downstream. We suggest that the upstream versus downstream
Northeastern Naturalist
474
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
dichotomy is a gross oversimplification of the interconnected above- and belowground
water system of a stream crossed by a road.
Our finding that EPT Shannon–Weiner diversity is the same upstream or downstream
agrees with those of Demers (1992), although in that study EPT collections
in each of 4 streams were analyzed separately. It is unfortunate that Demers stated
that “this was significantly different at P = 0.08” (Demers 1992). The manner of
reporting apparently caused confusion because this study (erroneously referred to
as Demers and Sage 1990) was cited as having “found severe impacts to macroinvertebrate
species attributed to chlorides” (NYSDEC 2015).
We feel that it is preferable not to strain or overstate results, and that results
showing no EPT effect at relatively low chloride levels are useful data, which can
be contrasted with studies on more heavily salt-polluted waterways. First-order
streams (Strahler 1957) crossed by roads can be expected to have lower chloride
loads than higher-order streams which may carry pollutant loads from multiple road
crossings, and EPT numbers in higher-order streams may be significantly affected
at those higher chloride levels. Future research could be discouraged by overstating
results from lower-order streams.
The absence of Ephemeroptera at Cl- concentrations above 154 mg/L suggests
that research should focus on areas of higher Cl- concentration, such as higher-order
streams, or low-drainage areas that parallel roadways, such as Ampersand Slough.
In that human-made wetland, we collected abundant Plecoptera and Trichoptera at
road-salt levels that excluded Ephemeroptera. Wetlands, including human-made
features such as roadside ditches, typically drain slowly, and are considered by
some to be the most sensitive environments to road-salt pollution (Environment
Canada 2001, Tiner 2005). The Maryland Biological Stream Survey found “almost
no” Ephemeroptera at chloride concentrations above 500 mg/L Cl- and concluded
that Ephemeroptera are the most pollution-sensitive macroinvertebrates (Stranko
2013). It may be that Ephemeroptera are being increasingly excluded from areas
where they previously occurred. Ephemeropteran populations provide food sources
for fish and birds (Gray 1993, Weidel et al. 2000), but these taxa may be absent in
road-salt impacted areas.
Forest-tree assemblage
Figure 6 shows that when road salt runoff was low (inferred from stream chloride),
there was high Shannon–Weiner diversity of young trees. One exception is
the first transect, 28-4-U, where there were many young American Beech trees and
low diversity. American Beech thickets are common in the Adirondacks, and often
follow the production of large numbers of suckers from older fungus-infected beech
(Jenkins 1997).
Another exception to the pattern of high diversity in low road-salt runoff areas is
transect 3-1-2-D, which differed from the other 9 transects because it was in a wetland.
The site had moist soil and contained Chamaecyparis thyoides (L.) Britton,
Sterns & Poggenb.) (Atlantic White Cedar), an obligate wetland tree (Tiner 2005).
Shannon–Weiner diversity was low in this transect because it was mostly comprised
of Balsam Fir, a facultative wetland tree known to sometimes dominate wetlands
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
475
(Tiner 2005). In our study, with the exception of these transects, Shannon–Weiner
diversity generally declined as the chloride content of the local streams increased.
As chloride (road salt) increased, there was an increasing importance of Balsam
Fir among recruiting trees (Fig. 6). As noted earlier, the wetland transect 3-1-2-D
stands out as having a high Balsam Fir importance value at low stream-chloride
levels. The last 4 transects in our figures are those that were exposed to considerable
road-salt runoff. Balsam Fir had the highest importance value in both the
whole databases and lowest quartiles for each of these transects. Balsam Fir was
one of very few species that showed recruitment in these high road-salt transects.
This occurrence pattern suggests that Balsam Fir is able to out-compete other tree
species and that a tolerance for road salt might produce this effect. However, there
are other reasons that Balsam Fir may be a superior competitor. In the Adirondacks,
the species quickly colonizes gaps resulting from blow-downs and the deaths of
large trees (Ketchledge 1996), and increases in areas where Red Spruce has declined
(Bedison et al. 2007).
Soil cations
The contention that road salt caused the abundance of Balsam Fir would be better
supported if plant-nutrient cations were depleted in areas with both high levels
of road-salt and high abundance of Balsam Fir. However, this was not the case; we
observed no pattern of soil-nutrient depletion in areas of high levels of chloride or
sodium. It is possible that the high abundance of Balsam Fir at some transects was
related to the regeneration pattern of Balsam Fir. Wave regeneration comes about
when Balsam Fir trees at the edge of a forest gap that are exposed to the prevailing
wind die due to a variety of exposure-related causes (Sprugel 1976). In time, the
Balsam Fir trees behind these trees also die, creating a spreading band (or wave) of
dead trees, and bands of young, regenerating trees as well. While we observed no
bands of dead Balsam Fir in the vicinity of the transects, it is still possible that the
areas with high density of Balsam Fir are artifacts of natural regeneration patterns
of Balsam Fir. Locally high road-salt runoff may be unconnected to their appearance.
Sampling along more transects, especially in areas with very high levels of
road-salt runoff, could resolve this question.
In summary, effects of road-salt runoff were, for the most part, undetectable in
1st-order streams, and road-salt runoff from state roads may not cause detectable
changes in forest composition. Further research should concentrate on the effects
of road-salt runoff on the diversity and abundance of Ephemeroptera nymphs. Forest
research in road-salt runoff areas must be accompanied by soil-cation analysis.
It would be very desirable to see which tree species are recruiting in areas of high
levels of road-salt runoff where there is also soil nutrient depletion.
Acknowledgments
We thank Barabara Warkentine of SUNY Maritime College, Craig Milewski of Paul
Smith’s College in the Adirondacks, Dwight Kincaid, and Amy Berkov of the Graduate
Center of the City University of New York, and Richard Stalter of St. John’s University in
New York City for their guidance and assistance. We also express gratitude to Adirondack
Northeastern Naturalist
476
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
residents who allowed sampling on their private property. This manuscript was submitted
by the senior author in partial fulfillment of the requirements for the degree of Doctor of
Philosophy in the Biological Sciences at the Graduate Center of the City University of New
York. Partial funding for this project was provided by a 2006 Research Grant for Doctoral
Students from the Graduate Center of the City University of New York.
Literature Cited
Anning, D.W., and M.E. Flynn. 2014. Dissolved-solids sources, loads, yields, and concentrations
in streams of the conterminous United States. US Geological Survey Scientific
Investigations Report 2014-5012. 101 pp. Available online at https://pubs.usgs.gov/
sir/2014/5012/. Accessed 28 July 2018.
Bedison, J.E., Johnson, S.A., Willig, S.L., Richter, and A. Moyer. 2007. Two decades of
change in vegetation in Adirondack spruce–fir, northern hardwood, and pine-dominated
forests. Journal of the Torrey Botanical Society 134:238–252.
Brokaw, N., and J. Thompson. 2000. The H for DBH. Forest Ecology and Management
129:89–91.
Cadwell, D.H., and D.L. Pair. 1991. Surficial geologic map of New York: Adirondack sheet,
Map and Chart Series No. 40, scale 1:250,000. New York State Museum-Geological
Survey, Albany, NY.
Cornell Nutrient-analysis Laboratory (CNAL). 2015. Soil sample submission form.
Available online at http://css.cornell.edu/cnal-forms/CNAL_Form_S.pdf. Accessed
28 July 2018.
Cottam, G., and J.T Curtis. 1956. The use of distance measures in phytosociological sampling.
Ecology 37:451–460.
Demers, C.L. 1992. Effects of road-deicing salt on aquatic invertebrates in four Adirondack
streams. Pp. 245–251, In F.M. D’Itri (Ed.). Chemical Deicers and the Environment.
Lewis Publishers, Ann Arbor, MI. 585 pp.
Demers, C.L., and R.W. Sage Jr. 1990. Effects of road-deicing salt on chloride levels in four
Adirondack streams. Water, Air, and Soil Pollution 49:369–373.
Environment Canada. 2001. Canadian Environmental Protection Act, 1999: Priority substance
list assessment report–road salts. Environment Canada, Hull, QC, Canada.
Granato, G.E., P.E. Church, and V.J. Stone. 1995. Mobilization of major and trace constituents
of highway runoff in groundwater potentially caused by deicing chemical migration.
Transportation Research Record 1483:92–104.
Gray, L.J. 1993. Response of insectivorous birds to emerging aquatic insects in riparian
habitats of a tallgrass prairie. American Midland Naturalist 129:288–300.
Hammer, Ø., D.A.T. Harper, and P.D. Ryan. 2001. PAST: Paleontological statistics software
package for education and data analysis. Palaeontologia Electronica 4(1):1–9.
Available online at http://palaeo-electronica.org/2001_1/past/issue1_01.htm. Accessed
17 January 2013.
Howard, K.W.F., and J. Haynes. 1993. Groundwater contamination due to road de-icing
chemicals: Salt-balance implications. Urban Geology 3, Geoscience Canada 20:1–8.
Hutcheson, K. 1970. A test for comparing diversities based on the Shannon formula. Journal
of Theoretical Biology 29:151–154.
Isachsen, Y.W., and D.W. Fisher (Eds.). 1970. Geologic map of New York: Adirondack
Sheet, 1:250,000, geologist James F. Davis. New York State Museum and Science Service
Map and Chart Series, the University of the State of New York, Albany, NY.
Northeastern Naturalist Vol. 25, No. 3
A. Tiwari and J.W. Rachlin
2018
477
Jenkins, J. 1997. Hardwood-regeneration failure in the Adirondacks: Preliminary studies of
incidence and severity. Wildlife Conservation Society Working Paper Number 9, Wildlife
Conservation Society, New York, NY. 60 pp.
Kaushal, S.S., P.M. Groffman, G.E. Likens, K.T. Belt, W.P. Stack, V.R. Kelly, L.E. Band,
and G.T. Fisher. 2005. Increased salinization of fresh water in the northeastern United
States. Proceedings of the National Academy of Sciences 102:13517–13520.
Kelly, V.R., G.M. Lovett, K.C. Weathers, S.E.G. Findlay, D.L. Strayer, D.J. Burns, and G.
Likens. 2008. Long-term sodium-chloride retention in a rural watershed: Legacy effects
of road salt on streamwater concentration. Environmental Science and Technology
42:410–415.
Kelting, D.L., and C.L. Laxson. 2010. Review of effects and costs of road de-icing with
recommendations for winter road management in the Adirondack Park. Adirondack Watershed
Institute Report # AW12010-10, Adirondack Watershed Institute, Paul Smith’s
College, Paul Smiths New York, NY. 40 pp.
Ketchledge, E.H. 1996. Forests and trees of the Adirondack High Peaks Region. Adirondack
Mountain Club, Lake George, NY. 171 pp.
Lenat, D.R., and D.L. Penrose. 1996. History of the EPT taxa richness metric. Bulletin of
the North American Benthological Society 13:305–307.
Merritt, R.W., and K.W. Cummins. 1978. An Introduction to the Aquatic Insects of North
America. Kendall-Hunt Publishing Company, Dubuque, IA. 439 pp.
Mitchell, K. 2007. Quantitative analysis by the point-centered–quarter method. Available
online at http://people.hws.edu/Mitchell/PCQM.pdf people.hws.edu/M. Accessed 17
January 2013.
New York State Department of Environmental Protection (NYSDEC). 2015. Impacts of
new development: Declining water quality. Chapter 2, section 2.1, In New York State
Stormwater Management Design Manual. Available online at http://www.dec.ny.gov/
docs/water_pdf/swdm2015chptr02.pdf. Accessed 1 August 2016.
Norris, R.H., and A. Georges. 1993. Analysis and interpretation of benthic macroinvertebrate
surveys. Pp. 234–286, In D.M. Rosenberg and V.H. Resh (Eds.). Freshwater Biomonitoring
and Benthic Macroinvertebrates. Chapman and Hall, New York, NY. 488 pp.
Nystrom, E.A. 2012. Groundwater quality in the Delaware and St. Lawrence River basins,
New York, 2010. Open-file Report 2011-1320, US Geological Survey, Reston, VA.
Available online at https://pubs.er.usgs.gov/publication/ofr20111320. Accessed 21 February
2018.
Peckarsky, B.L., P.R. Fraissinet, M.A. Penton, and D.J. Conklin Jr. 1990. Freshwater Macroinvertebrates
of Northeastern North America. Cornell University Press, Ithaca, NY.
442 pp.
Pest Management Regulatory Agency (PMRA). 2006. Proposed regulatory-decision
document PRDD2006-01: Sodium chloride. Publications, Health Canada, Ottawa, ON,
Canada. 37 pp. Available online at http://publications.gc.ca/site/archivee-archived.
html?url=http://publications.gc.ca/collections/Collection/H113-9-2006-1E.pdf. Accessed
9 January 2013.
Rosenberry, D.O., P.A. Bukaveckas, D.C. Buso, G.E. Likens, A.M. Shapiro, and T.C. Winter.
1999. Movement of road salt to a small New Hampshire lake. Water, Air, and Soil
Pollution 109:179–206.
Schweibert, E.G. 2007. Nymphs: The Mayflies, Major Species. The Lyons Press, Guilford,
CT. 628 pp.
Northeastern Naturalist
478
A. Tiwari and J.W. Rachlin
2018 Vol. 25, No. 3
Scott, T.M., and E.A. Nystrom. 2014. Groundwater quality in the Upper Hudson River
Basin, New York, 2012. Open-file Report 2014-1084. US Geological Survey, Reston,
VA. Vailable online at https://pubs.er.usgs.gov/publication/ofr20141084. Accessed 21
February 2018.
Sprugel, D.G. 1976. Dynamic structure of wave-regenerated Abies balsamea forests in the
northeastern United States. Journal of Ecology 64:889–911.
Stewart, K.W., and B.P. Stark. 1988. Nymphs of North American Stonefly Genera (Plecoptera).
Entomological Society of America, Lanham, MD. 460 pp.
Strahler, A.N. 1957. Quantitative analysis of watershed geomorphology. Transactions,
American Geophysical Union 35:913–920.
Stranko, S., R. Bourquin, J. Zimmerman, M. Kashiwagi, M. McGinty, and R. Klauda.
2013. Do road salts cause environmental impacts? Maryland Department of Natural
Resources, Monitoring and Non-Tidal Assessment Division. Available online at http://
dnr.maryland.gov/streams/Publications/RoadSalt2013.pdf. Accessed 20 August 2017.
Tiner, R.W. 2005. In Search of Swampland: A Wetland Sourcebook and Field Guide, 2nd
Edition. Rutgers University Press, New Brunswick, NJ. 330 pp.
US Geological Survey (USGS). 2011. USGS Mineral Yearbook 2010: Salt. States Department
of the Interior, Washington DC. 23 pp.
Wallace, J.B, J.W. Grubach, and M.R. Whiles. 1996. Biotic indices and stream ecosystem
processes: Results from an experimental study. Ecological Applications 6:140–151.
Weidel B.C., D.C. Josephson, and C.C. Kruger. 2000. Diet and prey selection of naturalized
Smallmouth Bass in an oligotrophic Adirondack lake. Journal of Freshwater Ecology
15:411–420.
Wiggins, G.B. 1996. Larvae of the North American Caddisfly Genera. University of Toronto
Press, Toronto, ON, Canada. 457 pp.
Williams, D.D., N.E. Williams, and Y. Cao. 1999. Road-salt contamination of groundwater
in a major metropolitan area and development of a biological index to monitor its impact.
Water Research 34:127–138.
Yoder, L. 1919. Adaptation of the Mohr volumetric method to general determinations of
chlorine. Industrial and Engineering Chemistry 11:755.
