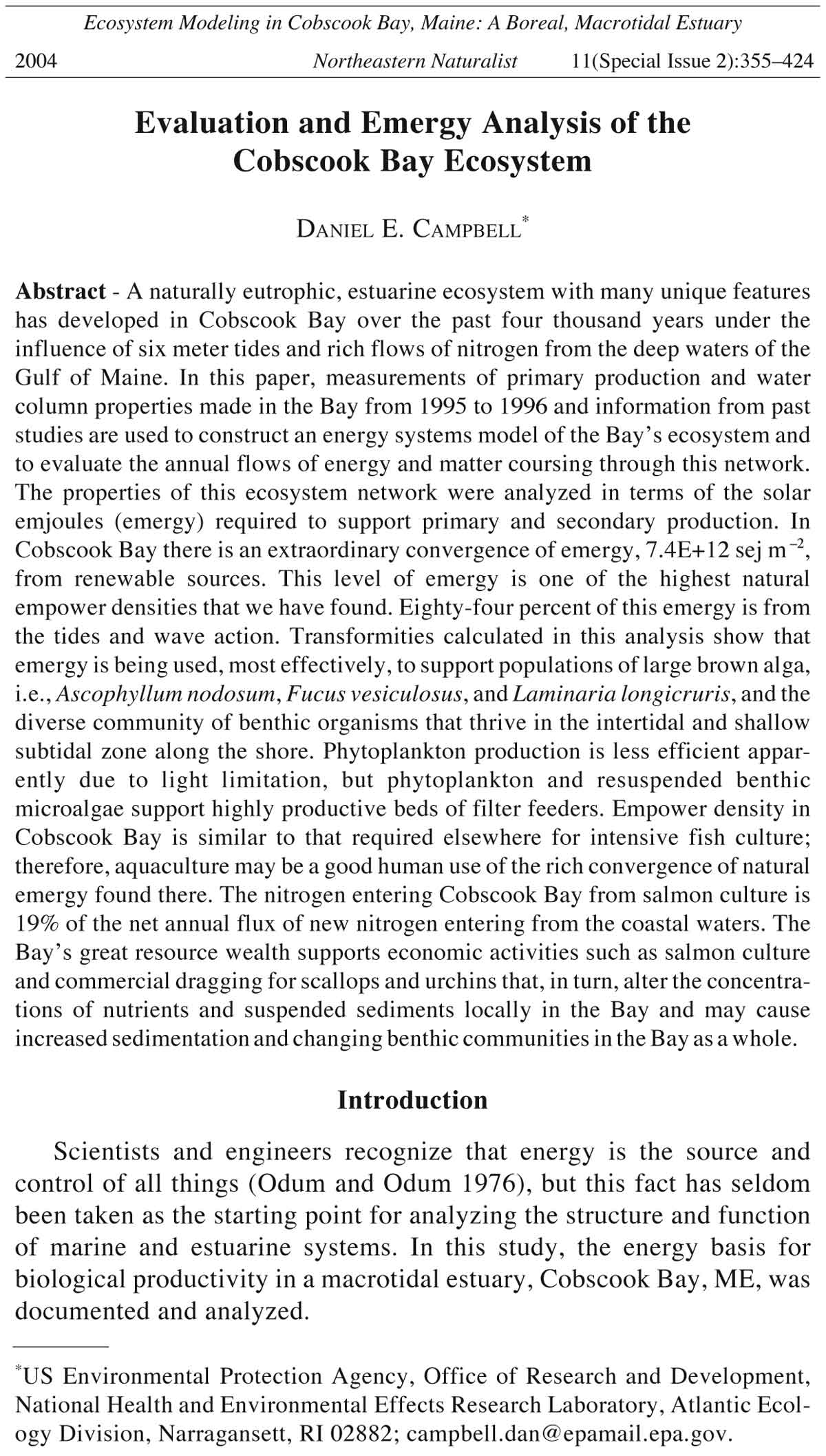

Ecosystem Modeling in Cobscook Bay, Maine: A Boreal, Macrotidal Estuary 2004 Northeastern Naturalist 11(Special Issue 2):355–424 Evaluation and Emergy Analysis of the Cobscook Bay Ecosystem DANIEL E. CAMPBELL* Abstract - A naturally eutrophic, estuarine ecosystem with many unique features has developed in Cobscook Bay over the past four thousand years under the influence of six meter tides and rich flows of nitrogen from the deep waters of the Gulf of Maine. In this paper, measurements of primary production and water column properties made in the Bay from 1995 to 1996 and information from past studies are used to construct an energy systems model of the Bay’s ecosystem and to evaluate the annual flows of energy and matter coursing through this network. The properties of this ecosystem network were analyzed in terms of the solar emjoules (emergy) required to support primary and secondary production. In Cobscook Bay there is an extraordinary convergence of emergy, 7.4E+12 sej m –2, from renewable sources. This level of emergy is one of the highest natural empower densities that we have found. Eighty-four percent of this emergy is from the tides and wave action. Transformities calculated in this analysis show that emergy is being used, most effectively, to support populations of large brown alga, i.e., Ascophyllum nodosum, Fucus vesiculosus, and Laminaria longicruris, and the diverse community of benthic organisms that thrive in the intertidal and shallow subtidal zone along the shore. Phytoplankton production is less efficient apparently due to light limitation, but phytoplankton and resuspended benthic microalgae support highly productive beds of filter feeders. Empower density in Cobscook Bay is similar to that required elsewhere for intensive fish culture; therefore, aquaculture may be a good human use of the rich convergence of natural emergy found there. The nitrogen entering Cobscook Bay from salmon culture is 19% of the net annual flux of new nitrogen entering from the coastal waters. The Bay’s great resource wealth supports economic activities such as salmon culture and commercial dragging for scallops and urchins that, in turn, alter the concentrations of nutrients and suspended sediments locally in the Bay and may cause increased sedimentation and changing benthic communities in the Bay as a whole. Introduction Scientists and engineers recognize that energy is the source and control of all things (Odum and Odum 1976), but this fact has seldom been taken as the starting point for analyzing the structure and function of marine and estuarine systems. In this study, the energy basis for biological productivity in a macrotidal estuary, Cobscook Bay, ME, was documented and analyzed. *US Environmental Protection Agency, Office of Research and Development, National Health and Environmental Effects Research Laboratory, Atlantic Ecology Division, Narragansett, RI 02882; campbell.dan@epamail.epa.gov. 356 Northeastern Naturalist Vol. 11, Special Issue 2 Every place on earth can be thought of as having its own unique biological characteristics and endowment of energies, but the convergence of nature’s energies has been extraordinary in the world’s coastal ecosystems because the energies of land and sea meet there. In addition, Cobscook Bay has received an extraordinary inflow of tidal energy for the last 4 to 7 thousand years, for it was during this time that the Gulf of Maine-Bay of Fundy system gradually took on macrotidal characteristics (Campbell 1986, Grant 1970). The biological result has been the development of numerous, and in some cases abundant, sources of plant production that provide the basis for a diverse web of life within the Bay, as well as a large export of organic matter from the Bay to adjacent coastal waters. The primary producers of this region are known to support ecosystems of high commercial, recreational, and aesthetic value to society. The physical basis for biological production in the Gulf of Maine and its estuaries has been a subject of scientific inquiry since Henry Bigelow first documented the physical circulation and biological productivity of the Gulf through research cruises on vessels of the United States Bureau of Fisheries carried out from 1912 to 1928. In the present study, a multi-disciplinary team of researchers documented the sources of primary production in Cobscook Bay through a series of field studies in 1995 and 1996. The physical basis for biological production in the Cobscook Bay was documented by constructing and evaluating an energy systems model of this estuarine ecosystem and using it to trace the energy supplied by the forcing functions, i.e., solar radiation, fresh water inflow, tide, wind, and nutrients, through the web of ecosystem components to account for the energy flows in primary and secondary production. The methods of environmental accounting (Odum 1996) can be used to sort out the relative contributions of the various energy sources of different kinds to the support of biological productivity and ecological organization in the Bay. To accomplish this, the various energy inflows to the Bay are expressed in the same units (i.e., solar joules), making them directly comparable. Odum (1987, 1996) defined a new quantity, emergy, and an accounting process for its determination to make possible an evaluation of the energy basis for ecological networks. Emergy is the available energy of one kind previously used up directly and indirectly to make a product or service. Its unit is the emjoule. Emergy can use any kind of energy as the common base, for example coal joules, solar joules, etc. However, in evaluating environmental systems, we commonly use solar energy as the base unit. Solar emergy is the available solar energy used up to make a product or service in an ecological or economic system. Its unit is the solar emjoule (sej). Available energy is energy with the capacity to do work 2004 D.E. Campbell 357 sometimes called exergy. Empower is the emergy flow per unit time and empower density is the emergy flux per unit area. In this study, the ecological flows of nutrients and primary production were first documented and then compared in terms of the mass of nitrogen taken up or the quantity of carbon fixed. The fate of this carbon was also examined using data from this study, information from the literature, and convenient but reasonable assumptions about its disposition (e.g., all detritus produced by aquatic macrophytes was assumed to behave in a similar manner even though decomposition rates, palatability, etc. may vary somewhat among species). Next, the mass flows were converted to energy, and the solar energy equivalents or the emergy (Odum 1996) that was used in making a joule of each kind of primary production was determined. Odum (1987, 1988) first defined emergy and transformity as properties of all energy flow networks. Transformity is significant because it is a universal measure of the position of any ecological component or process within the hierarchical structure of its system and within the larger universe of natural processes. Solar transformity is the solar emergy required to make one joule of an item such as an ecological storage or flow. Its units are solar emjoules per joule (sej J-1). Different transformities for the same item are an indicator of the relative efficiency of the production process for that item. The greater the energy flow in the denominator for a given emergy input to the production process (the numerator) the lower the transformity of the item and the higher the efficiency of the production process. For example, the transformity of penaid shrimp produced naturally in the Gulf of Mexico is about 4.0E+6 sej J-1 compared to 1.3E+7 sej J-1 for shrimp produced by mariculture in Ecuador’s coastal ponds (Odum and Arding 1991). The relationship between emergy and available energy is expressed in the fundamental equation of emergy analysis: emergy = transformity x available energy (exergy). For example, the solar emergy in phytoplankton net primary production is calculated by multiplying the available energy in the organic matter increase by its transformity. Conversely, the solar transformity of an item can be determined, if we know the solar emergy required for that item and the flow of available energy associated with it. In general, ecosystem flows that require more emergy for their support are higher quality (higher transformity) and are expected to have a greater amplifying effect than a lower quality flow (lower transformity), when used in the expected manner within an ecosystem network (Campbell 2001, Odum 1994). For example, a joule of work by a top carnivore, such as an eagle, performs a very different function within the ecosystem (does a different kind of work) than a joule of work done in carbon fixation by kelp. Different material flows can be evaluated in the same units (solar emjoules) through converting 358 Northeastern Naturalist Vol. 11, Special Issue 2 estimates of carbon metabolized to energy (joules) and then multiplying these energy values by their solar transformity. The solar emergy of an energy flow is the sum of the solar emergy from all sources required for a given quantity of energy to flow along its ecological pathway. Average values for the transformity of many items have been calculated and are available in the literature (Odum 1996); however, multiple determinations of the transformity of similar items are not common. One contribution of this study is that it allowed an independent estimation of transformities for the major sources of primary and secondary production in a macrotidal estuary through an evaluation of a relatively complete ecosystem network. When the magnitude of energy flowing on a pathway in an ecosystem network is expressed as solar emergy, it is directly comparable to other network flows expressed in the same way, so that the relative contributions of each can be determined directly by inspection. The empower in an ecosystem network is a measure of the complexity of organization and of the expected competitiveness of the ecosystem or an ecosystem component in the evolutionary process (Lotka 1922, Odum 1996). In general, network empower would be expected to increase with increases in species richness, the complexity of interactions among species, and total energy flow through the network. These three factors must be considered together to determine the empower of alternate system designs. Ecological processes are expected to interact and evolve over time toward ecosystem designs that produce higher empower states (Odum 1996), assuming that the suite of forcing functions (emergy signature) supplying the emergy base for the system remains the same. Species and interactions change within ecosystems over time to adjust to the changes in inputs under the imperative to maximize empower under the new conditions. Information Sources There is a considerable amount of information available on Cobscook Bay and the Quoddy Region (Fig. 1) as evidenced by the 110 specific Cobscook references and 196 Passamaquoddy references found in Larsen and Webb (1997). Most of this information was obtained during the course of environmental impact studies conducted from the 1930s to 1980 on the possible environmental consequences of developing tidal power in Passamaquoddy Bay (Shenton and Horton 1973, US Army Corps of Engineers 1980). Later, in the 1980s, more data were generated when the consequences of Fundy tidal power development for the Gulf of Maine-Bay of Fundy region were studied (Gordon and Dadswell 1984). Also, a proposal by the Pittston Company to build an oil refinery at Eastport generated scientific studies of the Quoddy area 2004 D.E. Campbell 359 during the seventies (Trites 1974). The information contained in the literature along with new information gathered in this study was used to construct and evaluate an energy systems model that characterizes the important forcing functions, ecosystem components, processes, and energy flows of the Cobscook Bay ecosystem. The major sources of data used in this analysis range from estimates of zooplankton production determined in the 1950s to the estimates of primary production determined in 1995 and 1996. The underlying assumption is that the older information is still representative of the same ecosystem components in 1995. The ecological network evaluated in this study is not complete because information was not available on all aspects of the Cobscook Bay ecosystem. Figure 1. Map of Cobscook Bay, ME, showing some of the place names mentioned in the text. Washington County 360 Northeastern Naturalist Vol. 11, Special Issue 2 Methods Energy systems theory (Odum 1994) is the study of how ecosystem designs are determined by scientific laws and principles including the conservation of energy and mass, the second law of thermodynamics, and the maximum power principle (Lotka 1922, Odum 1995). This scientific approach to systems analysis is a comprehensive, self-consistent methodology for modeling, evaluating, and understanding ecosystems. In this methodology, energy is used as a common denominator to evaluate systems, because the transformation of energy underlies the organization of components and processes in all systems. When taken as a whole, the energy systems approach provides a set of design principles through which ecosystem organization can be understood and interpreted. A potentially powerful explanatory hypothesis underlying this study is that the suite of forcing functions or the emergy signature, of an estuary determines the kind and amount of ecological organization found there (Campbell 2000a, Odum et al. 1977). This principle guided the evaluation of the Cobscook Bay ecological network. Forcing functions are sources of energy and matter from the next larger system that enter an ecosystem by flowing across its boundaries. Taken together these forcing functions comprise the energy signature of the ecosystem. The emergy signature is calculated by multiplying each member of the spectrum of available energies by the appropriate transformity (sej J-1). These signatures show the magnitude of the energy or emergy inputs to a system on the ordinate plotted against the categories of energy sources shown in order of increasing transformity on the abscissa. The emergy signature for an ecosystem arises from the dynamic interactions of the next larger system. Once an energy flow crosses the system boundary, its emergy is received by the system. The emergy signature tells us how much of the planet’s solar emergy has been concentrated in each of the energy inputs to a particular place. It also shows the relative organizing power of each input when it is used within the system. Quantitative and qualitative differences in the emergy signature of estuaries have been demonstrated to correspond to different ecosystem types (Campbell 2000a, Martin 2000, Odum et al. 1974, Twilly 1995). In this paper, the physical basis for primary and secondary production in the Cobscook Bay ecosystem network was characterized and analyzed by documenting the emergy signature supporting the network. The emergy signature of an estuary is given in tabular and graphic form, and it is documented with a series of notes giving the method of calculation and sources of information. Energy systems diagrams are used to represent and evaluate ecosystem organization. The first step in diagramming an ecosystem is to construct a conceptual model, which represents the network of forcing 2004 D.E. Campbell 361 functions, components, and pathways. The conceptual model in this study was constructed using Energy Systems Language (Odum 1994), a set of mathematically defined symbols that can be used to represent common ecological components and processes (e.g., production, consumption, storage, etc.). Definitions of the energy systems language symbols are generally available in the literature (Odum 1971, 1994, 1996). In this step, expert opinion and general knowledge about the system are used to build the initial model. This model is refined as research uncovers additional information that requires it to be modified. The next step in the modeling process is to numerically evaluate the forcing functions, storages, and flows represented in the model and place these values on the diagram and in an accompanying table. The table gives verbal definitions of each component, process, and forcing function that are keyed to the model diagram through a set of common symbols. This table usually contains a column defining the entry, a column for the value of the storage, flow, or forcing function, a column for the units of the entry, and a column indicating the note where calculations and sources are given in detail. Key unmeasured flows can often be estimated by making reasonable assumptions using the available data. Energy flows associated with undocumented components are aggregated within the appropriate known flow. For example, in this study, the details of the microbial loop were not known or documented, but there is a pathway for the microbial decomposition of organic matter where the microbial loop flows would be included. The process of evaluating a model allows static analyses to be performed and shows the location of data or information gaps and weaknesses that might be filled by further field, laboratory, or literature research. Many properties of the network, e.g., annual production, annual consumption, export, storage, and turnover of energy and materials, can be determined from the completely evaluated model. In addition, an evaluated network model with its emergy signature can be used to calculate values for the transformities of all the flows in the network either by using the emergy algebra rules in Odum (1996) or by constructing sets of equations for each process where the emergy of the outflow is equal to the emergy of the inflows and then solving the set of equations using the eigenvector method given by Collins and Odum (2000). In this study, the web of carbon and nitrogen flows in the Cobscook Bay ecosystem was evaluated using new field measurements (Beal et al. 2004; Phinney et al. 2004; Vadas et al. 2004a, 2004b, 2004c) combined with past measurements of energy sources and higher trophic level components. The flows of carbon and nitrogen through the system were determined by constructing mass balance budgets for the different ecosystem components. In constructing a mass balance budget, one value can always be calculated by difference. This must be true because matter and energy cannot be created or destroyed; therefore, all of the 362 Northeastern Naturalist Vol. 11, Special Issue 2 carbon fixed annually must be consumed, accumulate as storage or passed on to some component or process within or outside the system. The evaluated network of carbon and nitrogen flows was used to determine the energy flow network. The standard conversion factors, e.g., to go from mass to energy flow or from carbon to nitrogen, are reported in the appendices. The hydrodynamic model of Brooks (2004) and Brooks et al. (1997, 1999) was used to evaluate the physical exchange of materials between Cobscook Bay and the adjacent coastal waters. The energy flow network was analyzed with respect to the emergy signature of the Bay to obtain new estimates for the transformities of energy flows within the ecosystem. Transformities were determined using the emergy algebra rules given in Odum (1996). Caveat on the numbers The estimates for primary production are all based on measurements performed during this study, and the standard deviation of the averages reported here can be determined (Beal et al. 2004; Larsen et al. 2004; Phinney et al. 2004; Vadas et al. 2004a,b,c). Estimates used in this paper are based on the same data found in the other papers in this issue, but may be slightly different from the estimates given in them, because different averaging rules were used and/or different assumptions were made about the distribution of values in unsampled areas. Estimates of the fate of primary production rely on literature values of ecosystem components and processes obtained by other investigators in other studies at other times. In addition, the estimates of consumption are predicated on assumptions that often grossly simplify a given problem (Appendix B). Nevertheless, we feel that our numbers provide a first order estimate of the carbon and nitrogen fluxes and the fate of annual primary production in the Cobscook Bay ecosystem. Note that both scientific notation and the computer-based exponential format are used for writing large numbers in this document. The reader should recognize that 106 and E+6 both mean one million. Several different flows have been used by different investigators in this volume as the basis for comparing the magnitude of nitrogen inflows. Nitrogen species in seawater move in and out with the tide. The following flows of all nitrogen species or of nitrate alone might be used as a base for comparison: (1) nitrogen flux in the incoming tide, (2) nitrogen flux in the volume exchanged per tide (Garside and Garside 2004), and (3) net nitrogen flux to the estuary (considers exchange volume and the concentration gradient). In this paper, the net flux of new nitrogen (Dugdale and Goering 1967) to the estuary was considered to be the best quantity to represent the emergy absorbed by the ecosystem. The new nitrogen supplied to the ecosystem is most accurately represented by the net flux of NO3-N from the sea to the estuary. 2004 D.E. Campbell 363 Co-products and splits The designation of an energy flow either as a co-product of a production process or as a split of a single production product makes a difference in the calculation of its transformity (Odum 1996). The entire emergy input to the production process is required to make each co-product, whereas, the emergy input to the production of a product is divided in proportion to the energy on each output pathway of a split. For example, benthic macrofauna feeding on various plant materials assimilate carbon into biomass and produce feces. These two products have different properties and fates in the ecosystem and thus would be classified as co-products. If the benthic biomass produced serves as generic food for several consumers its emergy would be split between those consumers in proportion to the energy in the mass of the food eaten. Sometimes there is not enough biological information to make an accurate determination of whether a particular flow is a split or a co-product. In general, the emergy of a lower trophic level component that is used as food by several higher trophic level components is considered to be split among them in proportion to the energy in the food eaten by each. This convention has been followed here, although in some cases there are reasons to justify both views of a particular pathway. Energy flows through the primary producers are all determined based on a specific area of production, and thus each production area receives its portion of the emergy entering the whole system. Results Energy and emergy signatures Campbell (2000a) published energy and emergy signatures for Cobscook Bay. These signatures were modified for this paper to show the relationship of new nitrogen entering from the Gulf of Maine to the sources in the original signatures. The revised energy and emergy signatures for Cobscook Bay are given in Figure 2a and b, respectively. The relevant patterns in the data are shown in Table 1 and the calculations and data sources are documented in the table notes given in Appendix A. The energy signature of Cobscook Bay (Fig. 2a) is dominated by solar energy, but it also shows two distinct peaks in the middle of the spectrum of transformities. One peak in the range of 24,300 to 30,000 sej J-1 is created by tidal and wave energy (Table 1); a second peak at 50,000 sej J-1 is produced by the chemical potential energy of fresh water in rivers. These two peaks are also present in the emergy signature, but in this case there is a third peak corresponding to the nitrogen received in seawater moving back and forth each day with the tide. The emergy flow received in the new nitrogen contained in seawater is large. However, 364 Northeastern Naturalist Vol. 11, Special Issue 2 only a small fraction (10%) of this emergy is captured by the estuary as a net flux of NO3-N into the system (Fig. 2b). The total new nitrogen entering the estuary each year (2.58E+6 kg-N y-1) was determined by adding the net new nitrogen supplied by tidal exchange to the nitrogen added by freshwater inflow, salmon culture, and wet and dry deposition from the atmosphere. The emergy base for the Cobscook Bay ecosystem is comprised of the emergy inputs in the tides, waves, and the emergy of the cross boundary flows, i.e., chemical potential energy in fresh water Figure 2. Energy sources supporting the development of the Cobscook Bay ecosystem. (a) The energy signature of the Bay. (b) The emergy signature of the Bay. The patterned bar shows the emergy in the net flux of NO3-N into the Bay. Emergy Signature for Cobscook Bay Energy Sources a) b) 2004 D.E. Campbell 365 Table 1. Data needed to construct energy and emergy signatures received by Cobscook Bay, ME. Transformities, except for the tide, are from Odum (1996), and they have been rounded to three significant figures and are multiplied by 0.981 to put them on the 9.26E+24 sej y-1 planetary baseline (Campbell 2000b). The transformity for tide is from Campbell (2000b). Appendix A contains the notes explaining each calculation. Energy Transformity Emergy received Note Energy source (J y-1) (sej J-1) (sej y-1) 1. Sunlight 5.15E+17 1 5.15E+17 2. Wind 1.26E+15 1470 1.85E+18 3. Rain, chemical 4.80E+14 18,100 8.69E+18 4. Tide 1.54E+16 24,300 3.74E+20 5. Estuary waves 7.83E+15 30,000 2.35E+20 6. Geologic uplift 1.21E+14 33,700 4.07E+18 7. Ground water, chemical 8.91E+14 40,200 3.58E+19 8. River, chemical 2.90E+15 50,100 1.45E+20 9. River, organic matter 9.91E+13 72,500 7.19E+18 10. Seawater, N received 1.56E+11 4.77E+8 7.47E+19 11. Seawater, N net influx 1.49E+10 4.77E+8 7.12E+18 12. Salmon culture, N 2.90E+9 4.77E+8 1.38E+18 13. Rivers, N inflow 1.95E+9 4.77E+8 9.31E+17 14. Atmospheric N deposition 5.68E+8 4.77E+8 2.71E+17 15. Total new nitrogen 2.03E+10 4.77E+8 9.70E+19 and the new nitrogen entering the estuary from the sea, salmon culture, rivers, and the atmosphere (Table 1). The Cobscook Bay ecosystem model A preliminary model of the Cobscook Bay ecosystem was constructed in 1993 and used in planning our research. Based on our knowledge of the Cobscook Bay ecosystem, we identified the ecosystem structure including the primary producers that supply two major pathways of consumption in estuaries, the grazing and detritus trophic pathways. Phytoplankton and benthic microalgae are the major sources of suspended material for grazing by either pelagic or sedentary feeders. Brown algae, green algae, red algae, and eelgrass (Zostera marina L.) supply carbon to the detritus pathway (Beal et al. 2004; Vadas et al. 2004a,b,c). This division of producers, according to the manner in which they supply carbon to consumers, is not mutually exclusive because a portion of macrophyte carbon is grazed by benthic macrofauna (e.g., periwinkles, sea urchins, etc.) and a percentage of the suspended phytoplankton and benthic microalgae die and become part of the detritus carbon pool where it is metabolized by bacteria. In addition, some detritus of macrophyte origin with its associated microfauna is suspended in the water column where it is eaten by filterfeeding consumers. The final ecosystem network that we evaluated (Fig. 3) included nitrogen sources from salmon culture and the atmosphere as well as seals and the harvest of fish and shellfish by commercial fisheries. Juvenile fish in the preliminary model were combined with adult fish in the final model because there wasn’t enough information to 366 Northeastern Naturalist Vol. 11, Special Issue 2 Table 2. The values for forcing functions, storages, and flows in the Cobscook Bay Ecosystem model shown in Figure 3. Average values for all samples over the year or sampling season (191 days from May 2 to Nov. 9) are given per m2 of the area in production or utilization. Supporting information and additional details about each measurement, e.g., seasonal variation, conversion factors, etc, are given in Appendix B. Symbol Definition Value Units Note Forcing functions JI Incident solar radiation 3.73E+4 J m-2 d-1 1 JR Albedo 0.0975 nondim 2 JW Runoff from the watershed 0.018 m3m-2 d-1 3 JN Nitrogen from the watershed 0.007 gN m-2 d-1 4 JNA Nitrogen from aquaculture 0.01 gN m-2 d-1 5 JNP Nitrogen added in rainfall 0.002 gN m-2 d-1 6 JT Tidal exchange volume 0.067 m3 m-2 d-1 7 NT NO3 conc. in seawater 0.052 gN m-3 8 PT Phytoplankton conc. in seawater 0.029 gC m-3 9 ZT Zooplankton conc. in seawater 4.3E-4 gC m-3 10 NR NO3 conc. in river water 0.08 gN m-3 11 JBi Shorebird immigration 3.47E-6 gC m-2 d-1 12 JBe Shorebird emigration 3.51E-6 gC m-2 d-1 12 JfiFish immigration 0.065 gC m-2 d-1 13 JFe Fish emigration 0.061 gC m-2 d-1 13 System components or storages P Phytoplankton 0.22 gC m-2 14 BM Benthic microalgae 2.07 gC m-2 15 N Nitrogen, NO3, NO2, NH4 0.78 gN m-2 16 MA Macroalgae (total) 1239 gC m-2 17 MAk Macroalgae, kelp 92 gC m-2 17 MAf Macroalgae, fuciods 1096 gC m-2 17 MAg Macroalgae, greens 21 gC m-2 17 MAr Macroalgae, reds 30 gC m-2 17 EG Eelgrass 15.2 gC m-2 17 Z Zooplankton 0.006 gC m-2 18 D Detritus 5.2 gC m-2 19 M Benthic macrofauna 12.0 gC m-2 20 B Shorebirds 0.002 gC m-2 12 F Fish 8.3 gC m-2 13 E Eagles 6.4E-5 gC m-2 21 S Seals 0.064 gC m-2 22 evaluate them separately. The results for this part of our project are presented as a numerically evaluated energy systems diagram (Fig. 3) and the table of values and definitions that accompanies it (Table 2). Table 2 gives the definitions, values, and units for the forcing functions, storages, and pathway flows shown on the model diagram. Table 2 references a series of numbered notes, given in Appendix B, which contain the calculations, assumptions, references, and data tables needed to show how the values in Table 2 were obtained. The units for the entries in Table 2 reflect the material or energy storages and flows that were most convenient given the nature of the 2004 D.E. Campbell 367 Table 2, continued. Symbol Definition Value Units Note Pathway flows J1 NPP for phytoplankton 0.27 gC m-2 d-1 23 J2k NPP for macroalgae, kelp 1.25 gC m-2 d-1 17 J2f NPP for macroalgae, fucoid 1.7 gC m-2 d-1 17 J2g NPP for macroalgae, greens 0.33 gC m-2 d-1 17 J2r NPP for macroalgae, reds 1.0 gC m-2 d-1 17 J3 NPP for eelgrass 0.35 gC m-2 d-1 17 J4 NPP for benthic microalgae 0.95 gC m-2 d-1 24 J5 N uptake by phytoplankton 0.045 gN m-2 d-1 25 J6k N uptake by macroalgae, kelp 0.066 gN m-2 d-1 26 J6f N uptake by macroalgae, fucoid 0.145 gN m-2 d-1 26 J6g N uptake by macroalgae, greens 0.029 gN m-2 d-1 26 J6r N uptake by macroalgae, reds 0.079 gN m-2 d-1 26 J7 N uptake by eelgrass 0.013 gN m-2 d-1 26 J8 N uptake by benthic microalgae 0.16 gN m-2 d-1 27 J9 Zooplankton grazing 0.0012 gC m-2 d-1 28 J10 Benthic macrofauna grazing 0.16 gC m-2 d-1 29 J11 Phytoplankton settling to bottom 0.18 gC m-2 d-1 29 J12 Macroalgal detritus production 0.35 gC m-2 d-1 30 J13 Eelgrass detritus production 0.32 gC m-2 d-1 30 J14 Benthic microalgae detritus 0.36 gC m-2 d-1 31 J15 Microalgae eaten by macrofauna 0.47 gC m-2 d-1 29 J16 Macrofauna fecal production 0.19 gC m-2 d-1 29 J17 Detritus eaten by macrofauna 0.09 gC m-2 d-1 32 J18 Detritus processed by bacteria 0.35 gC m-2 d-1 33 J19 Detritus buried 0.09 gC m-2 d-1 33 J20 Detritus exported 0.33 gC m-2 d-1 19 J21 Macrofauna consumed by birds 0.0004 gC m-2 d-1 34 J22 Macrofauna eaten by fish 0.17 gC m-2 d-1 35 J23 Zooplankton eaten by fish 0.0005 gC m-2 d-1 36 J24 Fish eaten by seals 0.0035 gC m-2 d-1 42 J25 Fish consumed by eagles 6.4E-7 gC m-2 d-1 37 J26 Nitrogen recycled by bacteria 0.017 gN m-2 d-1 38 J27 Nitrogen recycled by macrofauna 0.031 gN m-2 d-1 38 J28 Nitrogen recycled by zooplankton 1.1E-4 gN m-2 d-1 38 J29 Nitrogen recycled by shorebirds 8.0E-5 gN m-2 d-1 38 J30 Nitrogen recycled by fish 0.017 gN m-2 d-1 38 J32 Nitrogen recycled by seals 7.0E-5 gN m-2 d-1 38 J33 Phytoplankton export or import 0.021 gC m-2 d-1 40 J34 Nitrogen export or import 0.067 gN m-2 d-1 39 J35 Zooplankton export or import -0.0007 gC m-2 d-1 41 J36 Waterfowl consumed by eagles 3.7E-6 gC m-2 d-1 37 J37 Benthic macrofauna harvested 0.0068 gC m-2 d-1 43 J38 Fish harvested 8.5E-5 gC m-2 d-1 43 stored quantity. For example, flows of sunlight are in J m-2 d-1, nitrogen uptake by plants is tracked as gN m-2 d-1, and the metabolic flows of animals are tracked as gC m-2 d-1. Where a material flow must be converted to energy or to the flow of another material, the conversion factor is given in the notes. All storages and flows are shown on the basis of a 368 Northeastern Naturalist Vol. 11, Special Issue 2 meter square of the area over which the component is present. For example, there are, on average, 15.2 gC m-2 of eelgrass biomass in the areas of the Bay where eelgrass is present. Similarly, the annual average phytoplankton production was 0.27 gC m-2 d-1 over the average area occupied by open water. Table 3 gives the area estimates associated with each category of primary and secondary production in Cobscook Bay. To simplify the diagram, macroalgae is shown as an aggregate category in Figure 2. However, the biomass and primary production for all measured primary producers are given in the tables and in the notes (Appendix B). Model description. The flows (Ji’s) of nitrogen and carbon through the network of components in the Cobscook Bay ecosystem are shown in Figure 3. Flows of solar radiation (JI) and nutrients (J5, J6, J7, J8; nitrogen is assumed to be the limiting nutrient) interact to fix carbon (J1, J2, J3, J4) and drive flows of energy and matter through the ecosystem. All major primary producers in the system were evaluated including phytoplankton (P) and benthic microalgae (BM, Phinney et al. 2004), macroalgae (MA; Vadas et al. 2000, 2004a,b,c) and eelgrass (EG, Beal et al. 2004). There is a small area of fringing salt marsh (Larsen et al. Figure 3. An evaluated energy systems model of the Cobscook Bay ecosystem. Ecosystem components are shown as producers (bullet symbols), consumers (hexagons), storage tank, and energy sources (circles). The label, value, and units are given for each symbol. The pathway flows (lines) are labeled as Ji and have units of mass or energy flux m-2 d-1 as determined by the storage or source with which they are associated. MB 2004 D.E. Campbell 369 2004) that contributes organic matter to the Bay, but it was not evaluated in this study. The net carbon fixed in phytoplankton primary production is grazed (J9) by herbivorous zooplankton (Z) and (J10) benthic macrofauna (M). Phytoplankton settling to the bottom (J11) contributes to the detritus pool (D) in the estuary. I assumed that a small fraction (10%) of macroalgal biomass (J2) and eelgrass biomass (J3) was grazed by benthic macrofauna (Cebrian and Duarte 2002). The remaining carbon fixed by each contributed to the detritus pool (J12 and J13). Benthic microalgae (BM) contribute to the detritus pool (J14) and are grazed (J15) by benthic macrofauna. Detritus is fed upon (J17) by benthic macrofauna and utilized (J18) by microbes and bacteria (MB). There is a net export of detritus (J20) from the Bay over the course of the year. Benthic macrofauna are fed upon (J21) by shorebirds (B) and by fish (J22). Fish (F) also eat zooplankton (J23) and are fed upon (J24) by seals (S) and (J25) eagles (E). Nitrogen is recycled by the metabolism of all consumers including bacteria (J26), macrofauna (J27), zooplankton (J28), shorebirds (J29), eagles (J30), fish (J31), and seals (J32). There is a net export of phytoplankton on average (J33) but this relationship is variable over the year (Table B25). On average, a net flux of inorganic nitrogen (J34) Table 3. Areas used to determine net primary production, NPP, and other ecosystem flows based on classification of Larsen et al. (2004), Vadas et al. (2004c), Barker (Maine Department of Marine Resources, unpubl. data), and assumptions about the area of the estuary utilized by higher trophic level components. Item Formula Area, ha Area of estuary Classes 1 to 171 10,751 Intertidal area Classes 8 to 171 3584 NPP for phytoplankton Classes 1 to 7 + one half intertidal1 8959 NPP for benthic microalgae Classes 1 to 8 and 13 X 0.71 5629 NPP for macroalgae, kelp Barker’s estimate3 96 NPP for macroalgae, fucoid Classes 9,11, 14 to 174 995 NPP for macroalgae, greens Vadas et. al. (2004c) 916 NPP for macroalgae, reds Vadas et. al. (2004c) 212 NPP for eelgrass Barker’s estimate3 186 Detritus pool & bacteria Classes 1 to 7 + one half intertidal1 8959 Zooplankton Classes 1 to 7 + one half intertidal1 8959 Benthic macrofauna Half the area for phytoplankton 4480 Fish Classes 1 to 7 + one half intertidal1 8959 Shorebirds Area of sand and mud flats5 1810 Eagles High tide surface area6 10,360 Seals High tide surface area6 10,360 Commercial fish Classes 1 to 71 7167 Commercial shellfish Half the area for phytoplankton 4480 1Larsen et al. (2004). 2See Appendix B, note 15. 3See Table B17 for cover in flow type. 4See Table B15 for cover in class. 5US Army Corps (1980). 6Fogeron (1959). 370 Northeastern Naturalist Vol. 11, Special Issue 2 enters the Bay. This is true for all seasons except the fall, when a large net export was observed (Phinney et al. 2004). There is a net flux of zooplankton (J35) from the Bay to the coastal waters. Eagles eat birds, usually waterfowl, for which we were unable to find data. For convenience in evaluating energy flows in the ecosystem network, the consumption of birds by eagles is represented by a flow (J36) from shorebirds to eagles. The harvest of shellfish (J37) and fish (J38) by commercial fisheries operating in the Bay leave the ecosystem as inputs to the Maine economy. Birds and fish immigrate to and emigrate from Cobscook Bay along pathways JBI and JBE and Jfiand JFE, respectively, controlled by seasonal migration programs. Model evaluation. Inorganic nitrogen enters the Cobscook Bay in seawater brought into the Bay with each tide, in fresh water runoff, in wet and dry deposition from the atmosphere, and in the feed and fish added to the Bay for salmon culture. The annual flux of all nitrogen species into the estuary in the volume exchanged from the sea is very large (3.3E+7 kgN y-1), but the net flux of all species is much smaller (8.43E+5 kgN y-1). The relative magnitude of new nitrogen sources to the estuary is shown in Figure 3 and Table 4. Seventy-three percent of the new nitrogen entering the Bay over the course of a year comes in with the net influx of nitrate in coastal water driven by tidal exchange. Salmon aquaculture operations add the second largest amount of new nitrogen to Cobscook Bay or about 14% of the total. The latter is 1.5 times what enters the Bay in runoff from the watershed and 5 times the nitrogen supplied from the atmosphere. Sowles and Churchill (2004) estimated the nitrogen input from salmon culture using two different calculation methods. Their estimate is about 10% lower than the number calculated for Table 4. Tables 4 and 5 can be used to compare the sources supplying new nitrogen to Cobscook Bay with the nitrogen requirements of the plants estimated from measurements of primary production in the Bay. New nitrogen supplies 47% of the nitrogen required to support primary production in Cobscook Bay, thus the net influx of nitrogen from the sea supplies 34% of the plant’s nitrogen requirements. The remainder is supplied by remineralization. Table 4. Inputs of new nitrogen to Cobscook Bay, assuming the area of the Bay is 1.036E+8 m2 (US Army Corps 1980). Nitrogen source N inflow (kgN y-1 x 105) Runoff from the watershed 2.47 Salmon aquaculture 3.67 Wet and dry deposition from the atmosphere 0.72 Net influx of NO3-N in tidal exchange 18.90 Total new N inflows 25.76 2004 D.E. Campbell 371 The annual net primary production per meter square for each category of primary producer and the nitrogen used in making that production is shown in Table 5. Multiplying the nitrogen required m-2 y-1 by the area (m2) occupied by a primary producer gives the annual amount of nitrogen needed to support that producer in the Bay. The nitrogen needed to support the total primary production (Table 5) is 2.1 times greater than the new nitrogen (Table 4) entering the Bay. The excess nitrogen requirement (N used - new N) must be made up by nitrogen recycled within the Bay by consumers during the course of a year. Thus, the ratio of recycled nitrogen to new nitrogen is 1.12:1. Primary production of benthic microalgae and phytoplankton accounted for 87% of the nitrogen used by plants in the Bay. Primary production of Ascophyllum nodosum (Le Jolis, 1863) and Fucus vesiculosus (Linnaeus, 1753), accounts for 72% of the remaining nitrogen uptake. The annual primary production in Cobscook Bay is shown for each primary producer in Table 6. Benthic microalgae, phytoplankton, and Table 5. Estimated nitrogen requirements for net primary production, NPP, using the values in Table 2. NPP N used Area N needed Primary producer (gC m-2 y-1) (gN m-2 y-1) (ha.) (kgN y-1 x 105) Phytoplankton 99 16.5 8959 14.78 Benthic diatoms 348 58.0 5628 32.64 Eelgrass 128 4.7 186 0.09 Fucoid algae 628 53.0 995 5.27 Green algae 121 10.8 916 0.99 Kelp 475 24.1 96 0.23 Red algae 368 28.8 212 0.61 Total N required: 54.6 x 105 kgN y-1 Recycled to new nitrogen: 1.12:1 Table 6. Annual primary production in Cobscook Bay and its possible fate. Primary production Annual consumption Producer (kgC y-1 x 106) Consumer (kgC y-1 x 106) Phytoplankton 8.80 Zooplankton grazing 0.05 Benthic diatoms 19.50 Benthic filter feeders 10.14 Eelgrass 0.24 Grazing on macrophytes 0.89 Fucoid algae 6.25 Detritus filtered 1.49 Green algae 1.11 Detritus, direct deposit1 12.05 Kelp 0.46 Detritus, total deposited 15.59 Red algae 0.78 Detritus export2 12.53 Total production2 37.14 Total consumption3 12.56 Detritus production4 26.10 1Detritus deposited directly is equal to total production minus detritus exported and total consumption. 2An estimate of export (Table B20 ) using one tide in July was applied to the whole year. 3Sum of zooplankton grazing, grazing on macroalgae, benthic filter feeding, and detritus filtered. 4Sum of detritus produced by phytoplankton, benthic microalgae, eelgrass, and macroalgae. 372 Northeastern Naturalist Vol. 11, Special Issue 2 the fucoid algae together account for 93% of the carbon fixed in the Bay. Benthic microalgae fix the largest amount of carbon (52%), followed by phytoplankton (24%) and the fucoid algae (17%). The remaining 7% of the carbon is fixed by green algae, red algae, kelp, and eelgrass. On the right side of Table 6, estimates of the annual consumption of net primary production based on past studies of Cobscook Bay are listed. Legare and MacLellan (1960) measured the zooplankton abundance in Cobscook Bay during 1957 and 1958, and we have no reason to believe that zooplankton is more or less abundant today than it was then. Therefore, a grazing rate of 0.05 x 106 kgC y-1 was used for 1995 based on the earlier biomass values. This grazing rate accounts for only a small fraction of the carbon fixed by phytoplankton and benthic diatoms. The remainder must be either consumed by other pelagic grazers or by benthic grazers, or settle into the detritus pool (Appendix B, notes 29, 31, and 32). If feeding is nonselective and grazers consume on average 50% of daily production, the data and other assumptions in Note 30 can be used to estimate that filter-feeding macrofauna consume 10.1 x 106 kgC y-1 of phytoplankton and benthic microalgae. In note 31, macrofaunal grazing on benthic microalgae was estimated using an alternative method. Based on these data and assumptions, benthic suspension feeders were the largest consumers (27%) of Cobscook Bay primary production in the grazing trophic pathway. The detritus produced by microalgae ranged from 10.1 x 106 to 11.8 x 106 kgC y-1, depending on the estimation method. If benthic macrofauna graze 10% of the annual macrophyte production and the remainder becomes detritus over the course of a year, 8.9 x 105 kgC y-1 are grazed (Note 31) and 8.0 x 106 kgC y-1 of detritus are produced. Approximately 12.5 x 106 kgC y-1 or 33% of the total primary production is exported from Cobscook Bay as detritus, and a large fraction of this material may be of macroalgal origin (Table 6). If benthic macrofauna feed on detritus at 10% of the rate at which algae are eaten, macrofauna consumed 1.5 x 106 kgC y-1 of detritus based on the data and additional assumptions given in Note 32. However, if benthic macrofauna feed on detritus without selection, 15.6 x 106 kgC y-1 of detritus might have been consumed by filter feeders (Note 32). Benthic grazers consumed between 34 and 69% of the total carbon fixed annually in Cobscook Bay depending on the assumptions used about their feeding behavior and abundance. The remainder of the fixed carbon goes into the detritus pool, which is either exported or settles to the bottom to support benthic infaunal, meiofaunal, and bacterial respiration. The detritus produced by primary producers in the Bay was 26.1 x 106 kgC y-1 based on the information given in Table 6. If the estimates for export and consumption given above are approximately correct, then at least 12.1 x 106 kgC y-1 of detritus was directly deposited in the Bay. In fact, 2004 D.E. Campbell 373 this number must be somewhat larger because macrofaunal feces add to the total. If macrofauna assimilated 70% of the food consumed, macrofaunal feces add 3.49 x 106 kgC y-1 to the detritus deposited. This analysis shows that roughly a third of the annual primary production in the Bay is grazed, a third is deposited directly as detritus, and a third is exported to the coastal waters of the Gulf of Maine. The dominant forcing function for Cobscook Bay is the tide, and tidal exchange controls ecological processes in the Bay through the transport of materials into and out of the estuary in proportion to the concentration gradient. Table 7 shows the import-export balances of the material fluxes of NO3, NH4, PO4, SiO3, and phytoplankton C for the five sampling trips on which transect measurements were taken. The October 24–26 sample dates stand out because all five quantities were being exported from the Bay, and the largest quantities of NO3, PO4, and SiO3, were being transported at that time. This pattern is very different from that displayed by nitrate and ammonium during most of the year. Nitrate is imported on all dates except the October sampling, and ammonium is imported on the May and July sample dates but not in October or November. Phosphorus was exported on all dates except those in November, but the amount being exported in October was 2 to 8 times larger than that exported on the other sampling dates. Approximately, 1.0 x 107 gSi d-1 are imported or exported over the sample dates in May and July; however, twice this amount was exported in November, and the export of silicate increased to 5.5 x 107 gSi d-1 in October. Phytoplankton carbon was exported in the spring and fall and imported in the summer. The largest phytoplankton carbon flux was the import of carbon from Head Harbor Passage during July on the spring tide sample dates. The upper trophic levels in Cobscook Bay are represented in Figure 3 as described above. The literature sources, calculations, and assumptions needed to document these flows are given in Appendix B and in ancillary information posted on the worldwide web (US Environmental Protection Agency 2005a). The carbon flowing through these trophic levels and the nitrogen recycled by them are shown in Figure 3. The estimates of secondary production and standing stock in the higher trophic levels are Table 7. Import (+) and export (-) balance for materials moving across the Eastport to Lubec transect on the sample dates in 1995. NO3 NH4 PO4 SiO3 Phyto. C Date (gN d-1) (gN d-1) (gP d-1) (gSi d-1) (gC d-1) May 2, 3, 4 1.0E+7 1.6E+6 -4.3E+5 1.0E+7 -2.7E+6 July 11, 12, 13 4.2E+6 8.9E+6 -1.5E+6 -1.1E+7 9.8E+6 July 21, 22, 23 4.4E+6 1.2E+7 -3.0E+6 1.3E+7 3.2E+7 October 24, 25, 26 -3.0E+7 -3.9E+5 -8.2E+6 -5.5E+7 -1.1E+7 November 7, 8, 9 5.0E+6 -4.8E+6 1.1E+6 -2.2E+7 -7.8E+6 374 Northeastern Naturalist Vol. 11, Special Issue 2 rough approximations compared to the estimates of primary production and biomass, because the primary producers are documented based on 1995 and 1996 field measurements, while the estimates of secondary production and standing stocks in the higher trophic level animals are calculated based on measurements of animal abundance that were made in Cobscook Bay between 1957 and 1992. In addition, the measurements used to represent the fish community in Cobscook Bay were taken from trawls made in the adjacent Western Passage of Passamaquoddy Bay (Tyler 1971). The sea scallop, Placopecten magellanicus (Gmelin, 1791), the softshelled clam, Mya arenaria (Linnaeus, 1758), and the green sea urchin, Strongylocentrotus droehbachiensis (O.F. Müller, 1776), are benthic macrofauna that feed on the abundant microalgae and support major commercial fisheries in the Bay. An early report on the commercial fisheries of Cobscook Bay by Dow (1959) gave evidence to show that the commercial production of intertidal soft-shelled clams in Cobscook Bay was poor to fair when compared to other areas of Washington County, ME. He also stated that mussels were abundant in the Bay, but for the most part were too small to be commercially valuable. The extent and importance of subtidal mussel beds was not known at that time. The Washington County clam harvest declined drastically from the mid- 1980s to the time of this study. A study comparing settling and recruitment on clam flats in Washington and Cumberland County indicated that the supply of clam larvae limits the productivity and recovery on “Down East” clam flats (Ellis and Waterman 1998). The commercial harvest of fish and shellfish from Cobscook Bay in 1996 was estimated to be 2.2 metric tons (MT) and 111 MT, respectively, using data supplied by Keri Lyons and Margaret Hunter of the Maine Department of Marine Resources (see Note 43). Emergy analysis of the Cobscook Bay ecosystem Figure 4 and Table 8 present the results of an emergy analysis of the Cobscook Bay ecosystem. The transformities shown in Table 8 are based on an emergy input of 7.64 x 1020 sej y-1 as presented in Figure 4 and in Table 8. The column of transformities in Table 8 shows the solar emjoules needed to support a joule of energy flow along each pathway of the ecosystem network. The transformity of any pathway can also be derived by dividing the value of the emergy required for the pathway (bold) by the pathway’s energy flow (italics) as shown on Figure 4. The energy flux on each pathway is also shown in the first column of numbers in Table 8, and the emergy required to support that pathway is given in the second column. The emergy base for the flows though any component can be traced on the diagram (Fig. 4) by summing the bold values of emergy entering each 2004 D.E. Campbell 375 producer, consumer, or storage symbol. Brown algae (fucoids and kelp) have the lowest transformities (2.7 x 105 sej J-1 and 3.7 x 105 sej J-1, respectively) of all primary producers in the Bay. Red algae and benthic diatoms have transformities about 50% higher than the brown algae followed by the less efficient groups (eelgrass, green algae, and phytoplankton) that have transformities ranging from 5 to 6.4 times that of the fucoid algae. If we count the total energy flow through any ecosystem component as if it is all of one kind (i.e., any part of the flow is substitutable for any other, thus the flow can be split [Odum 1996]), and then determine the transformity of the throughput, we find that the transformities of Cobscook Bay ecosystem components range over two orders of magnitude from 2.7 x 105 sej J-1 to 1.7 x 106 sej J-1 for primary producers up to 1.03 x 107 sej J-1 for seals. The transformity of detritus was 5.5 x 105 sej J-1, which is in the lower part of the range of transformities determined for the primary producers. The mid-range of transformities in the ecosystem is occupied by benthic macrofauna (1.93 x 106 sej J-1), zooplankton (3.47 x 106 sej J-1), Figure 4. Emergy evaluation of the Cobscook Bay ecosystem network. The emergy received by the ecosystem is shown on the energy sources arrayed around the edge of the box representing the ecosystem in order of increasing transformity. Flows within the system are labeled with two numbers: (1) the emergy in sej y-1 required for that pathway (bold), and (2) the energy flow along the pathway in J y-1 (italics). Dividing (1) by (2) gives the transformity of the pathway in sej J-1. 376 Northeastern Naturalist Vol. 11, Special Issue 2 Table 8. Transformities of Cobscook Bay ecosystem flows based on estimates of net primary production, NPP, given and the annual emergy inflow to the Bay. All transformities are calculated relative to the 9.26 x 1024 sej y-1 planetary baseline proposed by Campbell (2000b). The emergy base for Cobscook Bay (7.64 x 1020 sej y-1) was taken as the sum of the emergy available in waves (2.35 x 1020 sej y-1), the chemical potential energy delivered in fresh water runoff (1.45 X 1020 sej y-1), the chemical potential energy of new nitrogen entering the Bay from all sources (9.7 x 1018 sej y-1), and the tidal energy dissipated in Cobscook Bay (3.74 x 1020 sej y-1). The network structure used to calculate the emergy of the pathways is shown in Figure 4. Energy flux Emergy of pathway Transformity Ecosystem flow (J y-1 x 1012 ) (sej y-1 x 1018) (sej J-1 x 105) Primary production: NPP phytoplankton 369 636 17.2 NPP benthic microalgae 816 400 4.90 NPP kelp 18.3 6.82 3.72 NPP fucoid 262 70.7 2.70 NPP greens 46.2 65.1 14.1 NPP reds 32.4 15.1 4.65 NPP eelgrass 9.94 13.2 13.3 Detritus production: Phytoplankton detritus 150 258 17.2 Benthic microalgae detritus 492 241 4.90 Kelp detritus 16.6 6.14 3.71 Fucoid detritus 237 63.6 2.68 Green detritus 41.4 58.6 14.1 Red detritus 29.4 13.6 4.62 Eelgrass detritus 9.09 11.9 13.1 Detritus use: Detritus is a split 1190 653 5.5 Detritus exported (average) 604 332 5.5 Detritus eaten by macrofauna 123 67.8 5.5 Bacterial decomposition 312 172 5.5 Detritus buried 148 81.3 5.5 Grazing: Zooplankton grazing on phyto. 3.41 5.88 17.2 Macrofauna grazing on phyto. 219 375 17.2 Macrofauna grazing on kelp 1.82 0.68 3.74 Macrofauna grazing on fucoid 26.0 7.07 2.71 Macrofauna grazing on greens 4.56 6.51 14.3 Macrofauna grazing on reds 3.23 1.51 4.66 Macrofauna grazing on eelgrass 1.00 1.32 13.2 Macrofauna grazing on b. algae 321 157 4.90 Zooplankton production: Zooplankton prod. is a split 1.70 5.88 34.7 Eaten by fish 0.27 0.95 34.7 Growth, export, and mortality 1.42 4.93 34.7 Macrofauna production: Macrofauna prod. is a split 320 618 19.3 Feces is a by-product 210 618 29.4 Eaten by birds 0.22 0.42 19.3 Eaten by fish 233 448 19.3 Harvested 4.58 8.83 19.3 Growth and other mortality 83.1 160 19.3 2004 D.E. Campbell 377 and shorebirds (3.7 x 106 sej J-1). The transformities for both zooplankton and shorebirds are 2 times greater than the transformity of their principal food supply. The transformity of benthic macrofauna is 3.9 times that of the benthic microalgae and 35 times that of detritus, their principal food sources. Fish (6.4 x 106 sej J-1), eagles (6.3 x 106 sej J-1), and seals (1.03 x 107 sej J-1) occupy the highest trophic levels. High quality (high transformity) outputs of the Cobscook Bay ecosystem include shorebird out migration (4.0 x 1017 sej y-1) and the harvest of fish (6.0 x 1017 sej y-1) and shellfish (8.8 x 1019 sej y-1). Discussion Data and analysis in this volume can be used to demonstrate that Cobscook Bay is a macrotidal estuary that is naturally eutrophic. Garside and Garside (2004) come to this conclusion and they point out that high nutrients are not necessarily a bad thing because they can potentially support tremendous ecological and economic productivity and do not necessarily lead to eutrophication as manifested by an overgrowth of primary producers. Many unique characteristics of this macrotidal estuary were identified over the course of two years of field work and many subsequent years of discussions and data analysis (Beal et al. 2004; Brooks 2004; Brooks et al. 1997, 1999; Garside and Garside 2004; Kelley and Kelly 2004; Larsen and Gilfillan 2004; Larsen et al. 2004; Phinney et al. 2004; Trott 2004a,b; Vadas et al. 2000, 2004a,b,c) Energy systems modeling was used in this paper to integrate field studies and data analysis into an overall picture of the Cobscook Bay ecosystem, and emergy analysis was applied to gain insights into its functioning by evaluating the physical basis for biological productivity and ecological organization in the Bay. Table 8, continued. Energy flux Emergy of pathway Transformity Ecosystem flow (J y-1 x 1012 ) (sej y-1 x 1018) (sej J-1 x 105) Fish production: Fish production is a split 70.0 448 64.1 Consumed by eagles 0.0008 0.006 64.1 Eaten by seals 3.83 24.6 64.1 Harvested 0.093 0.6 64.1 Growth, mortality, and export 66.1 423 64.1 Shorebird production: Shorebirds prod. as a split 0.115 0.425 37.0 Consumed by eagles (fowl) 0.006 0.022 37.0 Growth and out-migration 0.109 0.402 37.0 Seals: (growth and mortality) 2.37 24.6 103 Eagles: (growth and mortality) 0.004 0.028 62.8 378 Northeastern Naturalist Vol. 11, Special Issue 2 The Cobscook Bay ecosystem is the product of an extremely rich (Brown and Bardi 2001, Campbell 2000a) convergence of natural energies in tides, waves, fresh water, and nitrogen from the deep waters of the Gulf of Maine (Fig. 2). These natural energies support a productive, diverse system of life, especially in the shallow subtidal and intertidal areas of the Bay. Phytoplankton production is less than expected based on the available nutrients (Phinney et al. 2004), but benthic diatoms are highly productive leading to large populations of benthic filter feeders that apparently control phytoplankton growth and prevent eutrophication despite high levels of nutrients. This productive benthos has supported historical and present fisheries for scallops and clams, as well as more recent fisheries for urchins, periwinkles, rockweed, and sea cucumbers. At present, salmon culture is the most important economic use of Cobscook Bay’s marine resources. Salmon culture was second in value only to lobsters in recent Maine landings, and the majority of salmon culture operations are located in Washington County (Sowles and Churchill 2004). In the discussion below, we will explore some of Cobscook Bay’s characteristics as a naturally eutrophic ecosystem and then consider insights into the structure and function of the Bay gained from an emergy analysis of its ecosystem network. Cobscook Bay: a naturally eutrophic ecosystem Cobscook Bay receives high nitrogen concentrations via a natural process, tidal exchange, rather than from sewage or non-point runoff like many other estuaries on the Atlantic coast (Garside and Garside 2004, Nixon and Pilson 1984). The concentrations of NO3 and NH4 (≈ 2 micromoles per liter) found in Cobscook Bay in the summer months (Tables B25 and B26) are within the middle of the range of summer concentrations of these same nitrogen species found by Nixon (1986) in culturally eutrophic estuaries such as the Narragansett Bay. East coast estuaries, other than those in the macrotidal Gulf of Maine (Garside et al. 1978), have been exposed to high nutrient concentrations for a relatively short period of time due to the inflow of sewage and other wastes (Nixon 1997). Cobscook Bay has been a high nutrient macrotidal system for about 4000 years (Campbell 1986), giving it time to build an ecosystem capable of organically exploiting high nutrient levels. Some estuaries affected by sewage appear to have adapted by developing large populations of suspension feeding bivalves that control excess phytoplankton production (Cloern 1982). Officer et al. (1982) proposed benthic filter feeding as a natural mechanism capable of controlling the effects of eutrophication. The results given elsewhere in this volume (Garside and Garside 2004, Larsen and Gilfillan 2004) and results of the analysis presented in this paper indicate that Cobscook Bay is an example of a naturally eutrophic ecosystem regulated by benthic filter feeding, supporting the thesis of Officer et al. (1982). 2004 D.E. Campbell 379 New nitrogen supply and utilization Perhaps the most extraordinary feature of Cobscook Bay is the tremendous flux of nitrogen that enters the Bay on each flood tide with a volume comparable to the average flow of the Mississippi River (Brooks et al. 1999). Much of this nitrogen is removed again as the tide ebbs, but over most of the year there is a smaller net flux to the estuary that results in constant replenishment of this usually limiting nutrient. Emergy in the nitrogen received by the estuary is high, but a relatively small fraction is actually used by primary producers. Nitrogen is abundant in the coastal waters adjacent to Cobscook Bay because nitrogen rich deep water from the Gulf of Maine enters the glacially carved channel at the mouth of Passamaquoddy Bay and is mixed upward by strong tidal flows as the channel shoals. This flux of nitrogen from outside the ecosystem leads to a low ratio of recycled to new nitrogen (1.12:1) within the system compared to eight estuaries examined by Kemp et al. (1982), who found that this ratio ranged between 2:1 and 8:1. Campbell (1986) showed that this ratio is about 2:1 for the Gulf of Maine as a whole. Thus, Cobscook Bay is even richer in new nitrogen than the Gulf of Maine. Even though Cobscook Bay is rich in new nitrogen, the nitrogen required by primary producers exceeds the net flux of new nitrogen into the Bay, thus plant production must also depend on recycle and remineralization. At times and in certain areas of the Bay when other conditions are most favorable for primary production, the supply of new and recycled nitrogen may be insufficient to meet the local demands of dense primary producers as evidenced by the failure of nori to flourish at South Bay farms in some years. (S. Crawford, Eastport, ME, pers. comm). Benthic microalgae are probably the largest users of nitrogen in the Bay, accounting for 60% of the nitrogen required to support net primary production. In the past, marshes, phytoplankton, eelgrass, and macroalgae have been viewed as the major sources of primary production in estuaries. Production by benthic diatoms was often considered to be small, and therefore, it was seldom measured in the past. The standing stock and productivity of benthic diatoms in Cobscook Bay is similar to that measured for intertidal benthic diatoms in the salt marshes of the North Inlet, SC (Pinckney and Zingmark 1993). The daily rates of benthic microalgal production in July (Table B22) were 1.5 to 5.5 times greater than the maximum gross benthic algal production (0.8 gC m-2d-1) measured on intertidal mudflats in the Minas and Cumberland Basins of the Bay of Fundy (Hargrave et al. 1983). The upper bound of biomass and productivity measured in Cobscook Bay in July exceeds the highest values measured in the North Inlet. At certain times, green algae bloom on tidal mud flats in the Bay and eventually form fantastic roped structures under the influence of tides 380 Northeastern Naturalist Vol. 11, Special Issue 2 and wind (Vadas and Beal 1987). This study showed that high concentrations of nitrogen are often present in the estuary. These nitrogen concentrations represent a storage of energy that is waiting to be exploited. Odum et al. (1995) presented a pulsing paradigm that explains many ecological phenomena based on the observation that the accumulation of a stored resource and its subsequent rapid consumption appears to maximize power in ecological networks. Cobscook Bay is a system where an accumulator (stored nitrogen resource) is nearly always charged waiting for a consumer capable of rapid growth (green algae), to exploit it. Observations of pulsed nutrient consumption in Cobscook Bay, like the intertidal green algae blooms observed by Vadas and Beal (1987), may be an example of such maximum power pulsing. Fate of production In this study, I estimated that intertidal and subtidal benthic suspension feeders consume about one third of the total carbon fixed annually in the Bay. The fact that benthic suspension feeders play a large role in the natural economy of the Bay is not surprising given the results of Garside and Garside (2004), Garside et al. (1978), and Larsen and Gilfillan (2004); however, it does not necessarily mean that their productivity will be realized in large commercially exploitable populations of shellfish. Many small animals can consume more food than the same biomass of large ones. In the case of the sea scallop, high primary production appears to be translated into the production of a commercially valuable population because the Bay has supported a scallop fishery at least since the 1940s (Dow and Baird 1960), albeit with large variations in the abundance of year classes. On the other hand, soft-shelled clams appear to grow slowly in the large intertidal area (Dow 1959). Clam populations in Washington County declined drastically from the mid-1980s to 1996 (Ellis and Waterman 1998). In light of the apparent importance of benthic suspension feeders in the natural as well as the human economy of the Bay, it would be prudent to investigate the role of this component within the Cobscook Bay ecosystem in future studies. Import-export patterns There has been a long standing debate on the role of estuaries as sinks for or sources of organic matter (Haines 1979, Hopkinson 1985, Odum 1980). Our analysis of Cobscook Bay estimated that over the course of a year 12,500 MT of 31,000 MT of carbon fixed in the Bay were exported to the surrounding coastal waters. Visual observations indicated that much of this material was in the form of macroalgal detritus, although definitive analyses were not performed. Assuming that detritus is exported in proportion to its production, around 45% of macroalgal primary production is exported while the remainder is 2004 D.E. Campbell 381 transferred to the benthic community and grazers. If the exported detritus is mainly of macroalgal origin, the nitrogen exported in this form is about 30% of the net flux of new NO3 nitrogen received from the sea (see Table B23). The typical pattern for the import and export of nutrient materials is for NO3, NH4, and SiO3 to be imported into the Bay and for PO4 to be exported in spring and summer. The import and export of phytoplankton carbon to and from the Bay appears to be driven by the annual cycles of production offshore and within the Bay. Phytoplankton carbon was imported during July when there is usually an offshore bloom and exported in the spring and fall when chlorophyll concentrations in the Bay exceed those in the offshore waters. The effects of dragging on the marine environment (Watling and Norse 1998) and the changes it can induce in nutrient and sediment distributions (Pilskaln et al. 1998) have been considered for the Gulf of Maine. The import-export balance of chemical constituents during the fall and ancillary observations can be used to gain some insight into probable effects of urchin and scallop dragging on the Bay in 1995. In October, the distribution of NO3 concentrations shows that the Outer Bay is serving as a source of nitrate for both the Inner Bay and Friar Roads. Furthermore, the stations with high nitrate values are grouped along the northern shore of the Outer Bay. Boats were observed dragging this area for urchins during the October sample dates and at least one sample was taken in the plume from a dragger (D. Phinney, Bigelow Laboratory fo Ocean Sciences, West Boothbay Harbor, ME, pers. comm.). The largest differences between low and high tide concentrations of NO3, NO2, PO4, and SiO3 across the Eastport to Lubec line exist at this time reflecting a net export of these materials. This lends circumstantial support to the view that the roiling of the bottom by draggers has increased the ebb tide concentrations of these chemicals. There is also a small net seaward flux of the ammonium ion at this time, but the export of ammonium is an order of magnitude greater in November. On October 24, 25, and 26, average daily wind speed at the Portland airport was less than 10 mph (16.7 kph). There were only 3 days in October prior to the sampling period with average wind speed over 10 mph (16.7 kph), but one of these was a 24-hour period with winds averaging around 20 mph (33.4 kph). Nutrient samples for NO3, NO2, PO4, and SiO3 taken at the surface and bottom of the water column in Friar Roads during the October sampling show that fall winds had not yet been sufficient to overturn the water column offshore. Thus, the nutrient concentrations in the water entering the Bay from Friar Roads are near their annual low in late October. In the absence of dragging, concentrations of these materials inside the Bay would be expected to stand at similar low levels. By the November sample dates, the offshore waters were apparently well mixed, because high concentrations of NO3 382 Northeastern Naturalist Vol. 11, Special Issue 2 and PO4 were present in the water entering as well as within the Bay, resulting in a net import of NO3 and PO4. Between October 27th and November 9th, there were 5 days with average wind speed greater than 10 mph (16.7 kph), one of which was a 24-h period with sustained high winds. During the period between sampling times, ammonium concentrations outside the Bay declined more rapidly than inside, resulting in a large export of NH4 during the November sampling. The actual ammonia flux out of the Bay may be somewhat lower, because data from the Gove–Birch Point line was substituted in the calculation for missing data on the Eastport–Lubec line. Scallop dragging began in November and the disturbance of the bottom that accompanies this activity might have been sufficient to account for the continued export of SiO3 from the Bay despite a doubling of the offshore (Friar Roads) concentrations of this substance (“offshore” stations probably reflect natural conditions in the Bay at this time). High concentrations of silicates were found in the Outer Bay during October when it was being dragged for urchins, and in November, the silicate concentrations are high in the Central and South Bays where the scallop draggers fish. Excess sediment present in the water at this time may account for the September to October depression in eelgrass production at Mahar Point observed by Beal et al. (2004). Trott (2004b) presents evidence that the species composition of benthic communities in the Inner Bay has altered from the seventies and early eighties to 2002, perhaps from the chronic effects of increased sedimentation. Urchin landings in Washington County rapidly increased from 325 MT in 1987 to a peak of 5131 MT in 1994 then rapidly fell to 1065 MT in 2002 (M. Hunter, Maine Department of Marine Resources, pers. comm.); 4749 metric tons were landed in 1995. Also, sedimentation in the Bay could be connected to other observed biological effects such as slow clam growth and low clam recruitment. What are the limits on the human use of the ecosystem? The tremendous daily volume of tidal exchange has the capacity to cleanse the estuary of wastes as it supplies it with new nitrogen to support primary production, which in turn supports a diverse network of consumers. While ecosystems are resilient, humans have the capacity to push systems under exploitation beyond even the most liberal limits afforded by nature such as macrotidal exchange. Strain et al. (1995) used a modeling study to show that the Letang estuary, a macrotidal system in New Brunswick, Canada, exposed to multiple waste streams including wastes from fish processing, a pulp mill, and salmon aquaculture was close to the threshold of biochemical oxygen demand (BOD) loading that would produce harmful low dissolved oxygen levels at times during the year. Salmon aquaculture is now the 2004 D.E. Campbell 383 second largest source of new nitrogen to Cobscook Bay, supplying 19% of the net influx brought in annually by the tide. Sowles and Churchill (2004) convincingly argue that nitrogen additions from salmon aquaculture are not presently a problem in Cobscook Bay. Nevertheless, local effects of nutrient addition are seen in sediment carbon concentration and in benthic community structure below the salmon pens (Table 9, Heinig and Bohlin 1995). In addition, 60% of the nitrogen from salmon culture enters the Bay from July to October. If other human uses of the estuary, such as fish processing plants (prominent in the past), are developed in the future, it may be prudent to establish a baseline for ammonia in the late summer and fall and then monitor the ammonia level in the Bay during this time as an early warning to determine when salmon aquaculture or other uses begin to have major effects on the fall ammonium distribution in the Bay. The fall nutrient signal will be masked by dragging, and thus the base monitoring period must end before the urchin season opens. Even though Cobscook Bay appears to be to be in good overall condition based on energy flows through the ecosystem, evidence presented here also shows that human activities in the Bay alter water column Table 9. Selected benthic stations taken along transects below salmon pens in the Outer Bay (Heinig and Bohlin 1995) showing low to moderate impacts on the benthic community from salmon aquaculture waste. Percent Capitella is an indictor of the degree of impact. Individuals Species Silt-clay TOC1 Capitella Location (# 0.1 m-2) (#) (%) (%) (%) Broad Cove 1 28,678 53 8.1 1.44 56.0 4 11,390 31 7.9 0.90 47.0 6 9564 29 7.7 1.83 63.0 Deep Cove 2 19,300 48 42.2 1.73 9.1 3 12,315 62 42.3 2.11 1.3 7 32,491 70 24.1 2.62 4.9 8 32,615 69 10.2 1.42 8.3 Johnson Bay 1 234 26 84.1 1.56 0.4 5 57 22 82.2 1.92 1.8 9 279 25 58.9 1.53 0.4 10 191 27 85.5 1.61 0.0 Dudley Island 1 529 27 16.0 0.97 6.4 Shakford Head 6 310 34 6.0 1.35 11.9 1 415 41 9.0 1.24 19.8 Birch Point 1 181 35 20.0 1.44 10.5 1Total organic carbon. 384 Northeastern Naturalist Vol. 11, Special Issue 2 properties during the urchin and scallop seasons (Phinney et al. 2004), degrade benthic communities below and adjacent to salmon pens (Heinig and Bohlin 1995), regularly overfish commercial populations of fish and shellfish (Dow and Baird 1960; Ellis and Waterman 1998; M. Hunter, Maine Department of Marine Resources, pers. comm.; urchin landings data), and may be responsible for long term loss of benthic biodiversity in the Inner Bay (Trott 2004b). The negative effects of these human activities were not quantified in emergy terms; therefore, the environmental liabilities (Campbell 2005) incurred through the loss of empower in the natural ecosystem cannot be compared to the concomitant empower gains in the economy. This comparison should be made in the future as an aid to planning and decision making for the Bay. Comparison of Cobscook Bay emergy indicators to other ecosystems The emergy signature of Cobscook Bay has an empower density of renewable resources (renewable empower density) that is higher than any of the 19 terrestrial and lake ecosystems compiled by Brown and Bardi (2001). In general, aquatic ecosystems have higher renewable empower densities than terrestrial ecosystems, but Cobscook Bay’s empower density is also high compared to other estuaries (Table10). The empower density in the Bay (7.4E+12 sej m-2) is comparable to that found for Tilapia fish culture in Nayarit, Mexico (8.0E+12 sej m-2; Brown and Bardi 2001). Odum (2000) evaluated salmon pen culture in British Columbia using data from Bjorndal (1990). He estimated that the minimum empower density required for salmon culture was 2.3E+12 sej m-2. Cobscook Bay supplies over three times the minimum environmental emergy needed for salmon culture. These facts imply that salmon culture may be a good human use of the Bay’s rich emergy signature. The emergy signature of the Bay is dominated by tide and waves. The emergy inflows of tide, waves, chemical potential energy of runoff, and new nitrogen were found in the ratio of 3.8:2.4:1.5:1. A balanced ratio of the dominant energies in the emergy signature is hypothesized to support the development of more diverse biological systems (Odum Table 10. Comparison of Cobscook Bay’s empower density (emergy per unit area in sej m-2) from renewable sources to the renewable empower density of four other estuaries and two lakes. Empower density Estuary (sej m-2 x 109) Source Cobscook Bay, ME 7375 This study Newnans Lake, fl3488 Brown and Bardi (2001) Estuary for salmon culture 2300 Odum (2000) York River, VA 1600 Campbell (2000a) Lake Okeechobee, fl1114 Brown and Bardi (2001) Mosquito Lagoon, fl144 Campbell (2000a) Prince William Sound, AK 100 Brown et al. (1993) 2004 D.E. Campbell 385 et al. 1974). The high diversity of intertidal and subtidal fauna in Cobscook Bay is well known (Trott 2004a, Verrill 1872, Webster and Benedict 1887) and may be explained based on the large and relatively balanced (1.58:1) emergy of the tides and waves supporting ecological organization of the intertidal and shallow subtidal areas of the Bay. The transformities for the principal primary producers show that emergy is being most effectively used to fix carbon by the brown algae (fucoids and kelp), red algae, and benthic diatoms in the subtidal and intertidal areas of the Bay. Thus, available energy is captured most efficiently by the intertidal and subtidal algal ecosystems of the Bay. We can see if Cobscook Bay transformity values are plausible and learn more about the ecosystem by comparing transformities to those from an a similar ecosystem in another estuary, Prince William Sound, AK (Brown et al. 1993). The model that we used to calculate the transformities of higher trophic level components assumes that all emergy enters the network through the primary producers (Fig. 3). A parallel structure was used in the Prince William Sound evaluations, and thus the results of our transformity calculations should be comparable. Brown et al. (1993) evaluated an aggregated model of Alaska fjords from Parsons (1987) and a detailed trophic web for Prince William Sound based on the observations of McRoy and Wyllie-Echeverria (1991). Since the flows through the ecosystem were not known in this more complex model, they used a method similar to Kercher and Shugart (1975) to evaluate the effective trophic position of the components. The transformities determined by this method will vary according to the network structure and the efficiency assumed for the trophic transfers The transformities that were determined by estimating the biomass and energy flows through the various ecosystem components of Cobscook Bay were compared to the transformities of similar components in the Prince William Sound ecosystem using the estimates based on a 10% trophic transfer efficiency between levels reported by Brown et al. (1993). Lower trophic levels were compared to the transformities calculated using the aggregated model based on an evaluation of flows between trophic levels in Alaskan fjords (Parsons 1987). The transformity of phytoplankton is two orders of magnitude higher than expected based on the Prince William Sound analysis and the value for estuarine net production given in Odum (1996). Benthic diatoms, the macroalgae, and eelgrass in the Bay all have transformities an order of magnitude greater than expected. Phinney et al. (2004) documented low levels of phytoplankton production in the Bay compared to that expected based on nutrient concentrations. In addition, the emergy received per unit area in the Bay is very high, principally due to the tides. The large quantity of emergy received by the Bay is not being effectively transferred into 386 Northeastern Naturalist Vol. 11, Special Issue 2 phytoplankton primary production, most probably due to intense mixing and turbidity resulting in light limitation (Phinney et al. 2004). In addition, circumstantial evidence indicates that phytoplankton biomass is heavily grazed by suspension feeding bivalves (Garside and Garside 2004). In contrast, the lower transformities of benthic diatoms and macroalgae indicate that they are more effectively using the emergy available to support primary production than phytoplankton, but they are also less efficient in using the available emergy to fix carbon than expected in a typical estuary. The order of magnitude difference in expected transformity is transmitted through the grazing chain to zooplankton (3.47 x 106 sej J-1 compared to 1.0 x 105 sej J-1). This difference is also seen in benthic macrofauna feces, which was 70 times higher than the transformity of herbivore feces determined by Brown et al. (1993), although detritus was only 15 times greater. However, benthic macrofauna in the Bay are only 2.4 times greater than the transformity found for macrofauna in Prince William Sound (1.9 x 106 sej J-1 versus 8.1 x 105 sej J-1) and fish in Cobscook Bay have a transformity of 6.4 x 106 sej J-1 which is six times higher than the transformity for apex predators calculated from the aggregated Alaskan fjord model (Parsons 1987). If we compare the transformity of fish in Cobscook Bay to individual fish determined from the complex trophic web model (Brown et al. 1993), we find that demersal fish such as cod (Gadus macrocephalus Tilesius), walleyed pollock (Theragra chalcogramma Pallas), rockfish (Sebastes spp.), and sole (Pleuronectidae), which are similar to species found in Cobscook Bay, have a transformity of 1.1 x 107 sej J-1, which is 70% greater than the estimate in this study. The transformity for harbor seals, Phoca vitulina (Linnaeus, 1758), is within the range of transformities estimated for the harbor seal, Phoca vitulina richardsi (L.) in Alaska (2.6 x 106 sej J-1 to 4.6 x 108 sej J-1). Our estimate of the transformity for shorebirds is about half of the estimate made for Arctic Terns (Sterna paradisaea Pontoppidan) and the Black Legged Kittiwake (Rissa tridactyla L.) and one third of the transformity for Glacouswinged Gulls (Larus glaucescens Naumann), Tufted Puffins (Lunda cirrhata Pallas), and Pigeon Guillemots (Cepphus columba Pallas) found in Alaskan fjords. The transformity for Cobscook Bay Bald Eagles (Haliaeetus leucocephalus L.) is one fourth of the transformity found for Bald Eagles in Prince William Sound. The transformities for all the higher trophic level components calculated for Cobscook Bay are well within the bounds of uncertainty established by applying trophic transfer efficiencies of 5, 10, and 30% to similar components of the Prince William Sound food web. Lower trophic level components have higher transformities than those determined from an aggregated food web model for Alaskan fjords and in Odum (1996). This comparison revealed that the emergy converging in 2004 D.E. Campbell 387 Cobscook Bay is not transferred as efficiently into primary productivity as in other estuaries. This inefficiency is reflected in higher transformities for zooplankton in the pelagic grazing pathway and for detritus and macrofaunal feces in the detritus pathway. However, as the energy of primary production moves through the benthic grazing and detritus pathways into the higher trophic levels (macrobenthos, fish, and seals), transformities gradually approach the expected values. The emergy base for the higher trophic levels in Cobscook Bay and the productivity of these components result in efficiencies close to those found in other estuaries. Shorebirds and eagles have transformities somewhat lower than expected based on Brown et al. (1993), perhaps implying that the Bay is particularly good habitat for them. In other words, primary producers in the Bay are working with excess emergy resources over what they can optimally use, whereas, the higher trophic levels, i.e., eagles, seals, and shorebirds appear to be effectively using their resource-rich habitats. Even the most efficient primary production process in Cobscook Bay (the brown macroalgae) has a transformity an order of magnitude higher than that expected for aquatic primary producers from other estuarine systems (105 versus104). This may indicate that our estimates of the energy base for the Bay are too high, or it may be that Cobscook Bay has so much emergy converging in one place that primary producers are unable to use all of it efficiently. If the latter is true, we expect the available energy in the signature to be used to create rare biological, chemical, physical, or geological structures in the environment. Many of the unique features of the Bay are derived from processes using the available energy in its large tides. For example tidal mixing cools the surface waters in summer resulting in an extremely foggy environment that protects intertidal creatures from dessication and may support the development of a diverse and sometimes giant intertidal fauna; swift tidal currents account for rare hydrologic features such as reversing falls and whirlpools, and scour has produced a large expanse of hard bottom (Kelly and Kelly 2004); a large tidal exchange volume and strong vertical mixing result in extremely high nitrate concentrations in the estuary for most of the year. The most uncertain value in the emergy signature is that of the emergy contributed by waves, but even if the average wave height in the Bay was reduced by 50% from 0.2 to 0.1 m, the calculated transformities for primary producers would only fall by 25% and the order of magnitude difference in the transformity of Cobscook net primary production versus the values found by Brown et al. (1993) and Odum (1996) would be maintained. Only a few estuarine ecosystems have been evaluated using emergy analysis; therefore, we may find that estuaries, in general, have higher transformities for primary producers than fresh water or terrestrial ecosystems. 388 Northeastern Naturalist Vol. 11, Special Issue 2 Future research needs Campbell (1998) performed an emergy analysis of the State of Maine in which he examined sustainable development and the quality of life in Maine relative to other states and the nation. One conclusion of that study was that emergy analyses of regions within the State are needed to obtain a better understanding of how to improve the quality of life for all Maine’s people. At that time, Washington County was economically depressed, but rich in natural resources and it was singled out as a place that could benefit from a regional emergy analysis. In this study, the emergy basis for biological productivity in Cobscook Bay was evaluated including its nutrient budgets and how they are affected by salmon culture in the Bay. However, we did not evaluate the environmental–economic interface that might be developed to take full advantage of the renewable emergy input to the Bay, nor did we trace existing links between the local economy and its environmental support systems. Development alternatives utilizing Cobscook Bay’s rich emergy sources have been proposed in the past and rejected on the basis of environmental and safety concerns (Trites 1974, US Army Corps of Engineers 1980). Odum (2000) found that 4.2 sej of purchased economic emergy were invested in salmon culture operations for every solar emjoule provided by the environment. The buyer of farm-raised salmon receives twice as much real wealth (emergy) as he or she would receive by spending the same amount of money on an average product in the economy. Odum’s work shows how evaluating the ecological–economic interface is a logical next step to translate our improved understanding of the Cobscook Bay ecosystem into an assessment of the costs incurred and the benefits gained from its sustainable use. This analysis indicated that future field and laboratory studies in Cobscook Bay should focus on improving our knowledge of the factors controlling biological diversity, sediment resuspension and deposition, and benthic secondary production, as well as the ecological effects of commercial fishing and aquaculture operations. Conclusions Analysis of the Cobscook Bay ecosystem network has given us a clearer, though not unexpected, picture (Garside et al. 1978) of the physical basis for the Bay’s ecological structure and function. Cobscook Bay can be characterized as a naturally eutrophic estuarine ecosystem driven by tidal forcing and dominated by new nitrogen inflows from the sea that provide excess nutrients to support primary production during most of the year. The large quantity of energy provided by the tides is primarily responsible for the transport of new nitrogen into the Bay, thereby removing most nutrient limitations on primary production. The 2004 D.E. Campbell 389 excess tidal energy also produces vigorous mixing regimes that reduce the exposure of suspended algae to light, thereby establishing new limits on phytoplankton primary production. Also, mixing supplies abundant food resources to bottom dwelling suspension feeders that consume excess plant production and keep the nutrient rich system form experiencing an overgrowth of unicellular algae. Emergy represents the organizing power of the available energy inflows to a place, and the convergence of emergy inflows from land and sea in Cobscook Bay has produced many unique hydrographic, climatic, geological, biological, and chemical features as discussed in this volume and above. Emergy analysis of the Cobscook Bay ecosystem network revealed that primary production in the Bay has higher transformities than expected when compared to primary production in two other estuaries. Thus, primary producers in this macrotidal estuary transfer the available emergy inflow into net production less efficiently than in many other terrestrial and aquatic ecosystems. As energy is transformed through the ecosystem network and into the higher trophic levels, the difference in transformities compared to those found at similar trophic levels in other estuaries becomes less, so that transformities are comparable at the highest trophic levels. A comparison of the transformities among primary producers showed that the emergy resources of the Bay are best suited to the production of fucoid algae and benthic diatoms. The high empower density of renewable resources indicated that salmon aquaculture may be a good use of the Bay’s abundant supply of tidal emergy. Emergy analysis indicated that the ecological network in Cobscook Bay is a diverse and productive ecosystem in good condition overall; nonetheless, emergy evaluation of the observed and potential impacts of human activities on the ecosystem, identified in this study and elsewhere in this volume, should be performed to document the magnitude of environmental liabilities and economic gains that are being incurred as a result of the present economic use of the Bay. Acknowledgments This work was conducted as part of a research program, “Developing an Ecological Model of a Boreal, Macrotidal Estuary: Cobscook Bay, Maine,” funded by a grant from the A.W. Mellon Foundation to The Nature Conservancy, with matching funds and services provided by Bigelow Laboratory for Ocean Sciences, United States Environmental Protection Agency, University of Maine at Orono and Machias, Texas A&M University, US Fish and Wildlife Service Gulf of Maine Program, Suffolk University (Friedman Field Station), Maine Department of Marine Resources, and The Nature Conservancy. The data on phytoplankton, benthic microalgae, and water column properties used in this paper and insights related to them were supplied by David Phinney of the Bigelow Laboratory for Ocean Sciences. Chris Garside, also of the Bigelow 390 Northeastern Naturalist Vol. 11, Special Issue 2 Laboratory for Ocean Sciences, analyzed the distribution and supply of nutrients in the Bay. Peter Larsen of the same institution supplied the information on the area of vegetation types. Bob Vadas of the University of Maine at Orono, and Brian Beal of the University of Maine at Machias supplied information and insights on the benthic macroalgae and eelgrass. Seth Barker of the Maine Department of Marine Resources shared information on the distribution of eelgrass beds and current regimes in the Bay. I thank Lesa Meng, Tingting Cai, and Glen Thursby for helpful internal reviews; Doug McGovern for making the map in Figure 1; and Cara Cormier for putting tables and figures into the manuscript. I dedicate this paper to my beloved teacher, H.T. Odum, upon whose insights my work depends. This paper is Contribution Number AED-03- 072 of the USEPA’s Office of Research and Development, National Health and Environmental Effects Research Laboratory, Atlantic Ecology Division. The opinions expressed in this paper are the author’s own and do not necessarily reflect those of the USEPA. Literature Cited Beal, B.F., R.L. Vadas, W.A.Wright, and S. Nicki. 2004. Annual biomass and productivity estimates for intertidal eelgrass (Zostera marina L.) in Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):197–224. Bigelow, H.B., and W.C. Schroeder. 1953. Fishes of the Gulf of Maine. Fishery Bulletin of the Fish and Wildlife Service, Volume 53. US Department of the Interior, US Government Printing Office, Washington, DC. Bjorndal, T. 1990. The Economics of Salmon Aquaculture. Blackwell Scientific Publications, Oxford, UK. 119 pp. Brett, J.R., and T.D.D. Groves. 1979. Physiological energetics. Pp. 279–352, In W.S. Hoar and D.J. Randall (Eds.). Fish Physiology. Vol. III. Academic Press, New York, NY. Brooks, D.A., M.W. Baca, and Y.T. Lo. 1997. Tidal mixing, dispersion, and flushing in Cobscook Bay, Maine: A hydrodynamic model study. No. 97-2- T. Department of Oceanography, Texas A&M University, College Station, Tx. 77 pp. Brooks, D.A., M.W. Baca, and Y.-T. Lo. 1999. Tidal circulation and residence time in a macrotidal estuary: Cobscook Bay, Maine. Estuarine, Coastal, and Shelf Science 49:647–665. Brooks, D.A. 2004. Modeling tidal circulation and exchange in Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):23–50. Brown, M.T., and E. Bardi. 2001. Handbook of Emergy Evaluation: Folio #3 Emergy of Ecosystems. Center for Environmental Policy, Environmental Engineering Sciences, University of Florida, Gainesville, fl. 93 pp. Brown, M.T., R.D. Woithe,, H.T. Odum, C.L. Montague, and E.C. Odum. 1993. Emergy analysis perspectives of the Exxon Valdez oil spill in Prince William Sound, Alaska. Report to the Cousteau Society, Center for Wetlands and Water Resources, University of Florida, Gainesville, fl. 122 pp. Cammen, L. 1987. Polychaeta. Pp. 217–260, In T.J. Pandian and F.J. Vernberg (Eds.). Animal Energetics, Vol. 1. Academic Press, New York, NY. Campbell, D.E. 1986. Process variability in the Gulf of Maine: A macroestuarine environment. Pp. 261–275, In D.A. Wolfe (Ed.). Estuarine Variability. Academic Press, New York, NY. 2004 D.E. Campbell 391 Campbell, D.E. 1998. Emergy analysis of human carrying capacity and regional sustainability: An example using the State of Maine. Environmental Monitoring and Assessment 51:531–569. Campbell, D.E. 2000a. Using Energy Systems theory to define, measure, and interpret ecological integrity and ecosystem health. Ecosystem Health 6:181–204. Campbell D.E. 2000b. A revised solar transformity for tidal energy received by the earth and dissipated globally: Implications for emergy analysis. Pp. 255– 263, In M.T. Brown (Ed.). Emergy Synthesis. Proceedings of the First Biennial EmergyAnalysis Research Conference, The Center for Environmental Policy, Department of Environmental Engineering Sciences, University of Florida, Gainesville, fl. Campbell, D.E. 2001. Proposal for including what is valuable to ecosystems in environmental assessments. Environmental Science and Technology 36:2867–2873. Campbell, D.E. 2003. Emergy analysis of the prehistoric global nitrogen cycle. Pp. 221–239, In M.T. Brown, H.T. Odum, D. Tilley, and S. Ulgiati (Eds.). Emergy Synthesis 2. Proceedings of the Second Biennial Emergy Analysis Conference. Center for Environmental Policy, University of Florida, Gainesville, fl. Campbell, D.E. 2005. Financial accounting methods to further develop and communicate environmental accounting using emergy . In M.T. Brown et al. (Eds.).Emergy Synthesis 3. Proceeding of the Third Biennial Emergy Analysis Conference. Center for Environmental Policy, University of Florida. Gainesville, fl. Campbell, D.E., and C.R. Newell. 1998. MUSMOD,: A production model for bottom culture of the blue mussel, Mytilus edulis L. Journal of Experimental Marine Biology and Ecology 219:171–203. Cebrian, J., and C.M. Duarte. 2002. Detrital stocks and dynamics of the seagrass Posidonia oceanica in the Spanish Mediterranean. Aquatic Botany 70:295–309. Cloern, J.E. 1982. Does the benthos control phytoplankton biomass in South San Francisco Bay? Marine Ecology Progress Series 9:191–202. Collins, D., and H.T. Odum. 2000. Calculating transformities with an eigenvalue method. Pp. 265–280, In M.T. Brown (Ed.). Emergy Synthesis. Proceedings of the First Biennial Emergy Analysis Research Conference, Center for Environmental Policy, Department of Environmental Engineering Sciences, University of Florida, Gainesville, fl. Decker, E.R. 1987. Heat flow and radioactivity in Maine: First-order results and preliminary interpretations. Geophysical Research Letters 14:256–259. Dow, R.L. 1959. Investigation of past, present, and future status of fish and shellfish species in the United States area affected by the Passamaquoddy power project. International Passamaquoddy Fisheries Board, Report to the International Joint Commission; Appendix 3; Biology United States. Ottawa, ON, Canada and Washington DC. 103 pp. Dow, R.L., and F.T. Baird. 1960. Scallop resource of the United States Passamaquoddy area. Special Scientific Report Fisheries No. 367, United States Fish and Wildlife Service, Washington, DC. 9 pp. Dugdale, R.C., and J.J. Goering.1967. Uptake of new and regenerated forms of nitrogen in primary productivity. Limnology and Oceanography 12:196–206. 392 Northeastern Naturalist Vol. 11, Special Issue 2 Ellis, K.L., and M. Waterman (Eds.). 1998. The Maine Clam Handbook, a Community Guide for Improving Shellfish Management. Maine/ New Hampshire Sea Grant College Program, University of Maine, Orono, ME. 77 pp. Fogeron, F.D. 1959. Temperature and salinity in the Quoddy region. International Passamaquoddy Fisheries Board, Report to the International Joint Commission; Appendix Oceanography, Chapter 1, Ottawa, ON, Canada, and Washington, DC. 44 pp. Garside, C., G. Hull, and C.S. Yentsch. 1978. Coastal source waters and their role as a nitrogen source for primary production in an estuary in Maine. Pp. 565–575, In M.L. Wiley (Ed.). Estuarine Interactions Academic Press, New York. NY. Garside, C., and J.C. Garside. 2004. Nutrient sources and distributions in Cobscook Bay. Northeast Naturalist 11(Special Issue 2):75–86. Gordon, D.C., and M.J. Dadswell. 1984. Update on the marine environmental consequences of tidal power development in the upper reaches of the Bay of Fundy. Canadian Technical Report of the Fisheries and Aquatic Sciences No. 1256. 686 pp. Grant, D.R. 1970. Recent coastal submergence of the Maritime Provinces, Canada. Canadian Journal of the Earth Sciences 7:676–689. Haines, E. 1979. Interaction between Georgia salt marshes and coastal waters: A changing paradigm. Pp. 35–46, In R. Livingston (Ed.). Ecological Processes in Coastal and Marine Systems. Plenum, New York, NY. Hargrave, B.T. 1980. Factors affecting the flux of organic matter to the sediments in a marine bay. Pp. 243–263, In K.R. Tenore and B.C. Coull (Eds.). Marine Benthic Dynamics. Belle W. Baruch Library of Marine Science Number 11, University of South Carolina Press, Columbia, SC. Hargrave, B.T., N.J. Prouse, G.A. Phillips, and P.A. Neame. 1983. Primary production and respiration in pelagic and benthic communities at two intertidal sites in the upper Bay of Fundy. Canadian Journal of Fisheries and Aquatic Sciences 40 (Suppl. 1):229–243. Heinig, C.S., and C.E. Bohlin. 1995. Maine Department of Marine Resources fall 1992 and fall 1993 Finfish aquaculture monitoring survey: Benthic infauna and sediment data summary. Prepared for Maine Department of Marine Resources by MER Assessment Corp., Harpswell, ME. Hopkinson, C.S. 1985. Shallow water benthic and pelagic metabolism: Evidence of heterotrophy in the nearshore Georgia Bight. Marine Biology 87:19–32. Kelley, J.T., and A.R. Kelley. 2004. Controls on surficial materials distribution in a rock-framed, glaciated, tidally dominated estuary: Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):51–74. Kemp, W.M., R.L. Wetzel, W.R. Boynton, C.F. D’Elia, and J.C. Stevenson. 1982. Nitrogen cycling and estuarine interfaces: Some current concepts and research directions. Pp. 209–230, In V.S. Kennedy (Ed.). Estuarine Comparisons. Academic Press, New York, NY. Kercher, J.R., and H.H. Shugart. 1975. Trophic structure, effective trophic position, and connectivity in food webs. American Naturalist 109:191–206. Kooyman, G.L. 1981. Weddell Seal, Consummate Diver. Cambridge University Press, Cambridge, UK. Langler, K.F., J.E. Bardach, R.R.Miller, and D.R.M. Passino. 1977. Ichthyology. John Wiley and Sons, New York, NY. 506 pp. 2004 D.E. Campbell 393 Larsen, P.F., and R.V. Webb. 1997. Cobscook Bay: An environmental bibliography. Bigelow Laboratory Technical Report No. 100. The Maine Chapter of the Nature Conservancy, Brunswick, ME. 150 pp. Larsen, P.F., and E.S. Gilfillan. 2004. Preliminary survey of the subtidal macrobenthic invertebrates of Cobscook, Bay, Maine. Northeastern Naturalist 11(Special Issue 2):243–260. Larsen, P.F., L.F. Doggett, and V.M.Berounsky. 1979. Data report on intertidal invertebrates on the coast of Maine. Bigelow Laboratory for Ocean Sciences Technical Report No. 12-77, 722 pp. Larsen, P.F., S. Barker, J. Wright, and C.B. Erickson. 2004 Use of cost effective remote sensing to map and measure marine intertidal habitats in support of ecosystem modeling efforts: Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):225–242. Legare, J.E.H., and D.C. MacLellan, 1960. A qualitative and quantitative study of the plankton of the Quoddy region in 1957 and 1958 with special reference to the food of the herring. Journal of the Fisheries Research Board of Canada 17:409–447. List, R.J. 1951. Smithsonian Meteorological Tables. Smithsonian Miscellaneous Collections Vol. 114, Smithsonian Institution, Washington DC. Loesch, C.R., D.J. Twedt, K. Tripp, W.C. Hunter, and M.S. Woodrey. 2002. Development of management objectives for waterfowl and shorebirds in the Mississippi alluvial valley. Accessed 3 March 2002. Available online from the Valley Migratory Bird Initiative at http://birds.cornell.edu/pifcapemay/ loesch.htm. Lotka, A.J. 1922. Contribution to the energetics of evolution. Proceedings of the National Academy of Science 8:147–155. MacDonald, J.S., M.J. Dadswell, R.G. Appey, G.D. Melvin, and D.A. Methven. 1984. Fishes, fish assemblages, and their seasonal movements in the lower Bay of Fundy and Passamaquoddy Bay, Canada. Fishery Bulletin 82:121–139. Martin, J.F. 2000. The transformity of riverine sediments in the Mississippi Delta. Pp. 33–38, In M.T. Brown (Ed.). Emergy Synthesis. Proceedings of the First Biennial Emergy Analysis Research Conference, the Center for Environmental Policy, Department of Environmental Engineering Sciences, University of Florida, Gainesville, fl. McCollough, M.A. 1981. The feeding ecology of migratory Semipalmated Sandpipers, Short-billed Dowitchers, Semipalmated Plovers, and Blackbellied Plovers on staging areas in eastern Maine. M.Sc. Thesis, University of Maine, Orono, ME. 67 pp. McCollough, M.A., and T.A. May. 1980. Habitat utilization by southward migrating shorebirds in Cobscook Bay, Maine during 1979. Pp. 68–113, In US Army Corps of Engineers. Investigation of Tidal Power: Cobscook Bay, Maine, Environmental Appendix. US Army Engineer Division, New England, Waltham, MA. McRoy, C.P., and T. Wyllie-Echeverria. 1991. Food Webs of Selected Species from Prince William Sound. Institute of Marine Sciences, University of Alaska, Fairbanks, AK. Moreau, Y., A. Cisse, and P. Luquet. 1995. Absolute feeding design: A realistic way for fish nutrient requirement determination. Journal of Applied Ichthyology11: 367–371. 394 Northeastern Naturalist Vol. 11, Special Issue 2 National Atmospheric Deposition Program. 1999. NADP/NTN Site List. Accessed 6 August 1999. Available from the on-line database of National Atmospheric Deposition Program, NADP/NTN Monitoring Locations, ME 98, VA00, and FL99, at: http://nadp.sws.uiuc.edu/nadpdata. Newell, C.R., D.E. Campbell, and S.M. Gallagher. 1998. Development of the mussel aquaculture lease site model MUSMOD: A field program to calibrate model formulations. Journal of Experimental Marine Biology and Ecology 219:143–169. Nixon, S.W. 1986. Nutrient dynamics and productivity of marine coastal waters. Pp. 97–115, In D. Clayton and M. Behbehani (Eds.). Marine Environment and Pollution. The Alden Press, Oxford, UK. Nixon, S.W. 1997. Prehistoric nutrient inputs and productivity in Narragansett Bay. Estuaries 20:253–261. Nixon, S.W., and M.E.Q. Pilson. 1984. Estuarine total system metabolism and organic exchange calculated from nutrient ratios: An example from Narragansett Bay. Pp. 261–290, In V.S. Kennedy (Ed.). The Estuary as a Filter. Academic Press, New York, NY. Odum, E.P. 1980. The status of three ecosystem-level hypotheses regarding salt marsh estuaries: Tidal subsidy, outwelling, and detritus-based food chains. Pp. 485–495, In V. Kennedy (Ed.). Estuarine Perspectives. Academic Press, New York, NY. Odum, H.T. 1971. An energy circuit language for ecological and social systems: Its physical basis. Pp. 139–211, In B. Patten (Ed.). Systems Analysis and Simulation in Ecology, Vol. 2. Academic Press, New York, NY. Odum, H.T. 1987. Enmergy* in ecosystems. Pp. 337–369, In N. Polunin (Ed.). Ecosystem Theory and Application. John Wiley and Sons, New York, NY. Odum, H.T. 1988. Self organization, transformity, and information. Science 242:1132–1139. Odum, H.T. 1994. Ecological and General Systems: An Introduction to Systems Ecology. University Press of Colorado, Niwot, CO. 644 pp. Odum, H.T. 1995. Self-organization and maximum power. Pp. 311–330, In C.A.S. Hall (Ed.). Maximum Power, the Ideas and Applications of H.T. Odum. University of Colorado Press, Niwot, CO. Odum, H.T. 1996. Environmental Accounting: Emergy and Environmental Decision Making. John Wiley and Sons, New York, NY. 370 pp. Odum, H.T. 2000. Emergy evaluation of salmon pen culture. Presented at International Institute of Fisheries Economics and Trade. Microbehavior, Macroresults, and Externalities: Conceptual Issues July 10–15, 2000, Oregon State University, Corvallis, OR. Odum, H.T., and J. Arding. 1991. Emergy analysis of shrimp mariculture in Ecuador. Working Paper prepared for Coastal Resources Center, University of Rhode Island, by Center for Wetlands, University of Florida, Gainesville, fl. 114 pp. Odum, H.T., and E.C. Odum. 1976. Energy Basis for Man and Nature. McGraw- Hill, New York, NY. 297 pp. Odum, H.T., B.J. Copeland, and E.A. MacMahan. 1974. Coastal Ecological Systems of the United States. Conservation Foundation, 1717 Massachusetts Ave. NW, Washington, DC. 4 Vols. 1976 pp. Odum, W.P., E.P. Odum, and H.T. Odum. 1995. Nature’s pulsing paradigm. Estuaries 18:547–555. 2004 D.E. Campbell 395 Odum, H.T., W. Kemp, M. Sell, W. Boynton, and M. Lehman. 1977. Energy analysis and the coupling of man and estuaries. Environmental Management 1:297–315. Odum, H.T., M.J. Lavine, F.C. Wang, J.F. Miller, J.F. Alexander, and T. Butler. 1983. A Manual for Using Energy Analysis for Power Plant Siting. Nuclear Regulatory Commission, NUREG/CR-2443, National Technical Information Service, Springfield, VA. Officer, C.B., T.J. Smayda, and R. Mann. 1982. Benthic filter feeding: A natural eutrophication control. Marine Ecology Progress Series 9:203–210. Parsons, T.R. 1987. Ecological relations. Pp. 561–581, In D.W. Hood and S.T. Zimmerman (Eds.). The Gulf of Alaska: Physical Environment and Biological Resources. National Oceanic and Atmospheric Administration, Washington, DC. Parsons, T.R., and M. Takahashi. 1973. Biological Oceanographic Processes. Pergamon Press, Oxford, UK. 186 pp. Phinney, D.A., C.S. Yentsch, and D.I. Phinney. 2004. Primary productivity of phytoplankton and subtidal microphytobenthos in Cobscook, Bay, Maine. Northeastern Naturalist 11(Special Issue 2):101–122. Pierson, W.J., G. Neumann, and R.W. James. 1958. Practical Methods for Observing and Forecasting Ocean Waves by Means of Wave Spectra and Statistics. H.O. Pub. #603. US Navy Hydrographic Office, Washington, DC. 283 pp. Pilskaln, C.H., J.H. Churchill, and L.M. Mayer. 1998. Resuspension of sediment by bottom trawling in the Gulf of Maine and potential geochemical consequences. Conservation Biology 12:223–1229. Pinckney, J., and R.G. Zingmark. 1993. Biomass and production of benthic microalgal communities in estuarine habitats. Estuaries16:887–897. Schroeder, P.A. 1977. Baseline studies of the physical oceanography of Cobscook Bay, Maine. Suffolk University Senior Thesis, Friedman field Station, Suffolk University, Edmunds, ME. Shenton, E.H., and D.B. Horton. 1973. Literature review of the marine environmental data for Eastport, Maine. TRIGOM publication (No. 2A), The Research Institute of the Gulf of Maine, Portland, ME. Sowles, J.W., and L. Churchill. 2004. Predicted nutrient enrichment by salmon aquaculture and potential for effects in Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):87–100. Strain, P.M., D.L. Wildish, and P.A. Yeats. 1995. The application of simple models of nutrient loading and oxygen demand to the management of a marine tidal inlet. Marine Pollution Bulletin 30:253–361. Strickland, J.D.H. 1960. Measuring the production of marine phytoplankton. Fisheries Research Board of Canada Bulletin 122. 172 pp. Timson, B.S. 1976. Coastal marine geologic environments maps for the Maine coast. Open file maps: Maine Geologic Survey, Augusta, ME. Todd, C.S. 1979. The ecology of the Bald Eagle in Maine. M.Sc. Thesis, University of Maine, Orono, ME. 91 pp. Trites, R.W. (Ed.). 1974. Summary of the physical, biological, socio-economic, and other factors relevant to potential oil spills in the Passamaquoddy region of the Bay of Fundy. Fisheries Research Board of Canada, Technical Report No. 428. 229 pp. Trott, T.J. 2004a. Cobscook Bay inventory: A historical checklist of marine invertebrates spanning 162 years. Northeastern Naturalist 11(Special Issue 2):261–324. 396 Northeastern Naturalist Vol. 11, Special Issue 2 Trott, T.J. 2004b. Late 20th-century qualitative intertidal faunal changes in Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):325–354. Twilly, R.R. 1995. Properties of mangrove ecosystems related to the energy signature of coastal environments. Pp. 43–62, In C.A.S. Hall (Ed.). Maximum Power: The Ideas and Applications of H.T. Odum. University of Colorado Press, Niwot, CO. Tyler, A.V. 1971. Periodic and resident components in communities of Atlantic fishes. Journal of the Fisheries Research Board of Canada 28:935–946. Tyler, A.V. 1972. Food resource division among northern, marine, demersal fishes. Journal of the Fisheries Research Board of Canada 29:997–1003. US Army Corps of Engineers. 1980. Investigation of Tidal Power: Cobscook Bay, Maine, Environmental Appendix. US Army Engineer Division, New England, Waltham, MA, 187 pp. US Department of Commerce. 1975. Climatological Data National Summary. Vol. 26 (13). National Oceanic and Atmospheric Administration, Washington, DC. US Department of Commerce. 1993. Tide Tables 1993 East Coast of North and South America. National Oceanic and Atmospheric Administration. Washington, DC 243 pp. US Department of Energy. 1999. August. 30-year monthly average solar radiation , 1961–1990. Accessed 5 August 1999. Available from the on-line database of the Renewable Resource Data Center. Data files for Portland, ME, Caribou, ME, Richmond, VA, and Daytona Beach, fl, at: http:// rredc.nrel.gov/solar/old_data/nsrdb/redbook/sum2/. US Environmental Protection Agency 2005a. NHEERL, Atlantic Ecology Division, Supporting Information for calculations and data. Available at: http:// epa.gov/aed/research/desupp2.html. [Last updated on 1 February 2005]. US Environmental Protection Agency 2005b. USEPA Storet database. Available at: http://epa.gov/storet/dbtop.html. United States Geological Survey. 1982. Water Resources Data: Maine, 1982. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1983. Water Resources Data: Maine, 1983. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1984. Water Resources Data: Maine, 1984. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1985. Water Resources Data: Maine, 1985. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1986. Water Resources Data: Maine, 1986. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1987. Water Resources Data: Maine, 1987. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. United States Geologic Survey. 1993. Water Resources Data: Maine, 1993. US Department of the Interior, Geological Survey, National Technical Information Service, Springfield, VA. University of Michigan Museum of Zoology 2005. Harbor seal data. Available at: http://animaldiversity.ummz.umich.edu/site/accounts/information/ Phoca_vitulina.html. 2004 D.E. Campbell 397 Vadas, R.L., and B. Beal. 1987. Green algal ropes: A novel estuarine phenomenon in the Gulf of Maine. Estuaries 10:171–178. Vadas, R.L., B. Beal, W.A. Wright, S. Nicki, and S. Emerson. 2000. Macrophyte productivity in Cobscook Bay. Report of the Nature Conservancy. Department of Biological Sciences, University of Maine, Orono, ME. 61 pp. Vadas, R.L., W.A. Wright, and B.F. Beal. 2004a. Biomass and productivity of intertidal rockweeds (Ascophyllum nodosum LeJolis) in Cobscook Bay. Northeastern Naturalist 11(Special Issue 2):123–142. Vadas, R.L., B. Beal, W.A.Wright, S. Nicki, and S. Emerson. 2004b. Growth and productivity of sublittoral fringe kelps (Laminaria longicruris) Bach. Pyl. in Cobscook Bay, ME. Northeastern Naturalist 11(Special Issue 2):143–162. Vadas, R.L., B.F. Beal, W.A.Wright, S. Emerson, and S. Nicki. 2004c. Biomass and productivity of red and green algae in Cobscook Bay, Maine. Northeastern Naturalist 11(Special Issue 2):163–196. Verrill, A.E. 1872. Maine fauna of Eastport, ME. Bulletin of the Essex Institute, Salem, MA 3:2–6. Vinogradov. A.P. 1953. The Elementary Chemical Composition of Marine Organisms. Sears Foundation for Marine Research, Memoir 2, Yale University, New Haven. 647 pp. von Arx, W.S. 1962. An Introduction to Physical Oceanography. Addison- Wesley, Reading, MA. 422 pp. Warwick, R.M., I.R. Joint, and P.J. Radford. 1979. Secondary production of the benthos in an estuarine environment. Pp. 429–450, In A.J. Davy and R.L. Jeffries (Eds.). Ecological Processes in Coastal Environments. Symposium 19. British Ecological Society, Blackwell Scientific Publishers, Oxford, UK. Watling, L., and E.A. Norse. 1998. Disturbance of the seabed by mobile fishing gear: A comparison to forest clearcutting. Conservation Biology 12:1180–1197. Weast, R.C. 1981. CRC Handbook of Physics and Chemistry (2nd Printing). CRC Press, Inc., Boca Raton, fl. Weatherbee, R., and Thomas, A. 2002. Ocean color research from satellites in the Gulf of Maine. Poster presented at Ocean Sciences Meeting, Honolulu, HI. Accessed 8 November 2002. Available at http://wavy.umeoce.maine.edu/ chlposterGOM/chlposterGOM.html. Webster, H.E., and J.E. Benedict. 1887. Annelida Chaetopoda from Eastport, Maine. Report of the US Fishery Commission (1885):707–755. Weddle, T.K., A.L. Tolman, J.S. Williams, J.T. Adamik, C.D. Neil, and J.L. Steiger. 1988. Hydrogeology and water quality of significant sand and gravel aquifers in parts of Hancock, Penobscot, and Washington Counties, Maine. Maine Geological Survey,Augusta , ME. Open-File No. 88-7a. Wiebe, P.H., S. Boyd, and J.L. Cox. 1975. Relationships between zooplankton displacement volume, wet weight, dry weight, and carbon. Fishery Bulletin 73:777–786. 398 Northeastern Naturalist Vol. 11, Special Issue 2 Appendix A. Calculation of the energy and emergy signatures for Cobscook Bay including a new transformity for NOx in the world ocean. Cobscook Bay quick facts: area = 103600000 m-2 (US Army Corps of Engineers 1980); depth = 8.5 m (Trites 1974); length of shoreline = 375,000 m (D. Campbell, estimate); intertidal volume = 5.4E+8 m3 (Brooks et al. 1999); tidal exchange volume = 3.61E+8 m3 (Brooks et al. 1999). 1. Solar Energy Absorbed: Insolation = 4.97E+9 J m-2y-1; interpolation between Portland and Caribou (US Department of Energy 1999). Albedo = 0.0975 (von Arx 1962). Use a decimal fraction at latitude 44.9 N Formula for the energy in solar radiation = (area)(insolation)(1-albedo). Annual energy absorbed = 5.14892E+17 joules y-1. Transformity = 1 sej J-1. Annual emergy absorbed = 5.14892E+17 sej y-1. 2. Wind Absorbed: height = 1000 m (Odum et al. 1983); density = 1.23 kg m-3 (Odum et al. 1983); diffusion coefficient 14.9 m3m-2s-1, average Nov–Apr and May–Oct for Albany (Odum et al. 1983); wind gradient = 0.00458 m s-1m-1, tabulated by National Oceanic and Atmospheric Administration (NOAA) for Portland (US Department of Commerce 1975); conversion factor = 3.15E+7 s y-1. Formula for wind energy absorbed = (height)(density)(diffusion coef.)(wind gradient)(area). Note that another formula may also be used: Energy absorbed in the boundary layer = D = ρ C v3, where ρ is the density of air (1.3 kg m-3), v is velocity in the geostrophic boundary layer (m s-1), and C is the drag coefficient (1.0E-3) for winds 10 m s-1 or less. Winds over land are about 0.6 of what the pressure system would generate in the absence of friction (H.T. Odum, unpubl. manuscript). Annual energy absorbed = 1.26E+15 joules y-1. Transformity = 1470 sej J-1. Annual emergy absorbed = 1.85E+18 sej y-1. 3. Chemical potential in: rainfall = 1.104 m y-1, 36 yr. avg. Eastport, ME.; Gibbs free energy, G, = 4.1933 J g-1; Solute concentration in rain = 13 ppm (National Atmospheric Deposition Program 1999); solutes in ppm = 0.65(conductivity μs cm-1); salinity at mouth = 31,800 ppm (US Army Corps of Engineers 1980), solute ppm, average for 1957 and 1958, Table 10, conversion 1.0E+6 g m-3 water. Formula for chemical potential energy in rain = (area)(rainfall)(Gibbs free energy). Annual energy absorbed = 4.80E+14 joules y-1. Transformity = 18100 sej J-1. Annual emergy absorbed = 8.69E+18 sej y-1. 2004 D.E. Campbell 399 4. Tidal energy absorbed: height = 6.46 m, NOAA Tide Tables (US Department of Commerce 1993); density = 1.03E+3 kg m-3 seawater 35 ‰; gravity = 9.8 m s-2; tides per year = 706 . Tidal energy absorbed = (area elevated)(0.5, center of gravity)(tides y-1)(height2)(density)(gravity). Annual energy absorbed = 1.54E+16 joules y-1. Transformity = 24,300 sej J-1. Annual emergy absorbed = 3.74E+20 sej y-1. 5. Wave energy absorbed: average wind speed = 7.85 knots, seasonal average using monthly data for 1975 (US Department of Commerce 1975); fetch = 8.32 nmi., average of nw-se and ne-sw axes; wave period = 6 s (Pierson et al. 1958); wave velocity = 8.854 m s-1, (gravity x depth).5 for shallow water waves; wave height = 0.244 m, (Pierson et al. 1958, nomogram Figure 2.4b). Wave energy absorbed = (shore length)(1/8)(density)(gravity)(velocity)(seconds per year)(height2). Annual energy absorbed = 7.83E+15 joules y-1. Transformity = 30,000 sej J-1. Annual emergy absorbed = 2.35E+20 sej y-1. 6.Geologic basement heat flux = 37 m W m-2 (Decker 1987); heat flux from the earth per year = 1.17E+6 J m-2 y-1. Earth cycle energy = (heat flux)(area). Annual energy flux = 1.21E+14 joules y-1. Transformity = 33,700 sej J-1. Annual emergy used = 4.07E+18 sej y-1. 7. Groundwater chemical potential: dissolved solids in water = 225 ppm, at Meddybemps and Lubec, 0.65(avg. conductivity; Weddle et al. 1988); Gibbs free energy (G) = 4.166 J g-1; ground water flow = 2.13E+08 m3 y-1, assume 20% of precipitation enters ground water and that (in the long run) infiltration is balanced by inflow to the ocean. Annual energy received = (volume of flow)(density of water)(G). Annual energy received = 8.91E+14 joules y-1. Transformity = 40,200 sej J-1. Annual emergy used = 3.58E+19 sej y-1. 8. River, chemical potential: density = 1.0E6 g m-3; dissolved solids in water = 23 ppm, avg. of 63 measurements 1978–86, for Narraguagus River (US Environmental Protection Agency 2005b); Gibbs free energy (G) = 4.192 J g-1; average discharge = 21.9 m3s-1, Dennys River average discharge of 75 cfs from a 240.6 km2 area (the value for the Denny’s was prorated over the ungauged watershed area); volume of flow = 6.91E+8 m3y-1. Annual energy received = (Volume of Flow)(density)(G). Annual energy received = 2.90E+15 joules y-1. Transformity = 50,100 sej J-1. Annual emergy used = 1.45E+20 sej y-1. 400 Northeastern Naturalist Vol. 11, Special Issue 2 9. Organic matter in river: organic matter concentration = 8.57 g m-3, Narraguagus River, n = 20 (US Environmental Protection Agency 2005b); volume of flow = 6.91E+8 m3 y-1. Annual energy received = (volume of flow)(organic matter conc)(4 kcal g-1)(4186 J kcal-1). Annual energy received = 9.91E+13 joules y-1. Transformity = 72,500 sej J-1; top soil organic matter from Table C4 in Odum (1996) is used here. Annual emergy used = 7.19E+18 sej y-1. 10. Nitrogen in Seawater: Concentration difference, 0.0074 g NO3-N m-3, average annual concentration difference between Cobscook Bay and the Eastport– Lubec transect; tidal exchange coefficient, 0.67, fraction of tidal inflow that is new water based on a well-mixed Cobscook Bay and a tidal excursion volume that greatly exceeds the tidal volume (Brooks et al. 1999); Gibbs free energy of formation, Gf, per mole of N as aqueous HNO3 relative to N2, -110.5 joules mole-1. Nitrogen influx in grams = (intertidal volume)(tides/y)(tidal exchange coefficient)(conc. sea - conc. estuary) Annual nitrate nitrogen received= 1.98E+10 gNO3-N y-1 Annual influx of NO3-N in moles = 1.98E+10 gNO3-N y-1 / 14 g mole-1 = 1.4 E+9 moles y-1 Annual Chemical potential energy received by Cobscook Bay = (moles )/(Gf per mole) = 1.563 E+11 joules y-1 Transformity of NOx-N based on global fluxes (this study) = 4.77E+8 sej J-1 Annual emergy received = 7.47 E+19 sej y-1 For comparison: Specific emergy for N from Odum (1996) = 4.19E+9 sej g-1 Annual emergy received = 8.3 E+19 sej y-1 Transformity of chemical potential energy in NOx-N: The Gibbs free energy of formation for HNO3 in aqueous solution is -26.41 thermo-chemical calories per mole (Weast 1981). There are 4.184 joules in a thermo-chemical calorie or - 110.5 joules mole-1 relative to diatomic nitrogen in the atmosphere; Annual global flux of NOx through all compartments including one half of land plant uptake was 2458 Tg y-1 (Campbell 2003). Annual chemical potential energy in global NOx flux = (Flux of NOx g y-1)/(14g mole-1)(-110.5 j mole-1) = 1.94E+16 joules y-1 Annual global emergy Campbell (2000b) = 9.26E+24 sej y-1 Transformity of NOx flux through global system (ocean, land, and atmosphere) = 4.77E+8 sej J-1 11. Seawater, net influx of Nitrogen: From Table 4 and Note 40 in Appendix B, the net annual influx of N03-N is 1.890E+09 g. (Flux of N03-N)/(14g mole-1) (-110.5 j mole-1) = 1.492E+10 J y-1. 12. Salmon culture, N input: From Table 4 and Note 5 in Appendix B, the net annual influx of N is 3.67E+08 g. (Flux of N)/(14g mole-1)(-110.5 j mole-1) = 2.90 E+09 J y-1. 2004 D.E. Campbell 401 13. Rivers, N inflow: From Table 4 and Note 4 in Appendix B, the net annual influx of N is 2.47 E+08 g. (Flux of N)/(14g mole-1)(-110.5 j mole-1) = 1.95 E+09 J y-1. 14. Atmospheric N deposition: From Table 4 and Note 6 in Appendix B, the net annual influx of N is 7.2E+07 g. (Flux of N)/(14g mole-1)(-110.5 j mole-1) = 5.68E+08 J y-1. 15. Total New Nitrogen: From Table 4, the net annual influx of N is 2.576E+09 g. (Flux of new N)/(14g mole-1)(-110.5 j mole-1) = 2.03E+10 J y-1. 402 Northeastern Naturalist Vol. 11, Special Issue 2 Appendix B: Evaluation of the energy systems model of Cobscook Bay. The notes and tables given in this appendix are intended to supply all the necessary information needed to allow the reader to reproduce the results. In some cases the information used is too detailed to report in this appendix; therefore, we have posted it on the worldwide web (US Environmental Protection Agency 2005a). The reader should refer to this web site as referenced in the notes. Unless stated otherwise, the same factors are used to convert from wet weight to dry weight (x 0.2), from dry weight to carbon (x 0.5), and from dry weight to energy (x 5 kcal/g dry weight and x 4183 J/kcal). 1. The solar radiation received at Eastport was estimated using two data sources. A. NOAA measured incident solar radiation at Portland and Caribou, ME, from 1961 to 1990 using a flat plate 0 degree tilt solar collector(US Department f Energy 1999). We estimated the solar radiation received at Eastport (44.9 ºN) by linearly interpolating the data from Caribou (46.9 ºN) and Portland (43.7 ºN). B. The percent possible solar radiation was measured daily at Eastport from 1893 to 1951 (Shenton and Horton 1973). Three sets of estimates for the solar radiation received at Eastport were obtained by substituting monthly average values of the percent possible sunlight into Angstrom’s equation (List 1951) using the clear day light, Q0, received for atmospheric transmission coefficients, a, of 0.7, 0.8, and 0.9 (Table B1). Divide the annual average insolation by 365 to get the daily average on the diagram. Table B1. Day of the year and annual average values for solar radiation received at Eastport in joules m-2 d-1 for different atmospheric transmission coefficients. Day of the year Flat plate a = 0.7 a= 0.8 a= 0.9 15 6.42E+06 30 9.80E+06 35 6.33E+06 7.07E+06 8.06E+06 60 1.37E+07 80 1.25E+07 1.37E+07 1.51E+07 90 1.68E+07 120 1.96E+07 126 1.83E+07 1.99E+07 2.16E+07 151 2.14E+07 173 2.08E+07 2.25E+07 2.44E+07 182 2.10E+07 212 1.86E+07 220 1.89E+07 2.06E+07 2.24E+07 243 1.43E+07 266 1.25E+07 1.37E+07 1.52E+07 274 9.60E+06 304 5.92E+06 312 5.76E+06 6.45E+06 7.35E+06 335 4.98E+06 356 3.77E+06 4.27E+06 4.96E+06 Annual average 1.36E+07 1.24E+07 1.35E+07 1.49E+07 2004 D.E. Campbell 403 2. Estimated as a decimal fraction of the solar radiation incident on the sea at latitude 44.9 ºN from (von Arx 1962). 3. Daily discharge data for the Denny’s River gauging station is available from October 1955 to the present. The average water discharge from a 240.6 km2 gauged area of the Denny’s River from 1956 to 1994 was 5.44 m3 s-1 (United States Geological Survey [USGS] 1993). If this discharge is prorated over the entire watershed area (962.6 km-2), 6.864 x 108 m3 y-1 enter the estuary from the watershed. Divide this number by 365 and again by 1.04 x 108 m2 , the high tide area of the Bay (US Army Corps of Engineers 1980), to get the m3 fresh water inflow per m-2 d-1 shown in Figure 3. 4. Because water quality data have been seldom measured in the Cobscook watershed, USGS data from the nearby Narraguagus River watershed were used under the assumption that total N discharged from the two watersheds per unit area was similar. The total N discharged from the Narraguagus River was 0.48 gN m-3 over 5 years from 1982–1986 and 0.36 gN m-3 for the 38 year record from the Storet data base (US Environmental Protection Agency 2005b). The estimated total N input to the Cobscook Bay estuary is: (6.864 x 108 m3 y-1) (0.36 gN m-3) = 2.47 x 108 g N y-1. Divide by 365 d y-1 and 1.04 x 108 m2 to get 0.0065 gN m-2 d-1. 5. An estimate of the nitrogen, N, input to the estuary as a result of salmon aquaculture can be obtained by subtracting the nitrogen removed in the fish harvested from the nitrogen added in feed plus smolts. The following information is calculated from data on salmon aquaculture in Cobscook Bay, which was supplied by L. Churchill of the Maine Department of Marine Resources. From July 1994 through June 1995 the total feed given was 7,522,590 kg (16,549,897 lbs); 1,081,522 fish were harvested weighing 5,499,934 kg (12,100,000 lbs) (Sowles and Churchill 2004); and 498,729 mortalities were counted. Assuming that salmon aquaculture operations in Cobscook Bay are in steady state, the smolt added in this calendar year will equal the fish harvested plus any mortality. We estimate that a minimum of 1,580,251 smolt were added. The smolt added weighed about 143 g each (L. Churchill, Maine Department of Marine Resources, pers. comm.), thus 2.26 x 105 kg live weight of fish were added. Assuming that Salmo salar smolt have the same chemical composition as the adults 3.25 % of the live weight of these fish was nitrogen (Vinogradov 1953). Thus, 7345 kgN y-1 were added in the smolt. Salmon feed contains from 46% to 50% crude protein, depending on the age of the fish. Assuming an average crude protein content of 48% (D. Mcphee, Sure Gain Feed Co., pers. comm.) and that Kjeldahl N is 0.16 of crude protein (Moreau et al. 1995), (1.6550 x 107 lbs y-1) (0.45454 kgs lb-1)(.48) (0.16) = 5.7774 x 105 kgN y-1 enters in feed. The N removed in fish harvested and mortalities, respectivley, is: (12.1 x 106 lbs y-1) (0.45454 kgs lb-1) (0.0325) = 1.78 x 105 kgN y-1 (498,729 fish) (5.5 lbs per fish) (0.45454 kgs lb-1) (0.0325) = 0.40 x 105 kg N y-1 Thus, (5.7774 x 105 kgN y-1) - (1.78 x 105 kgN y-1) - (0.40 x 105 kg N y-1)+ (7345 kgN y-1) = 3.67 x 105 kgN y-1 are added to Cobscook Bay as a consequence of salmon aquaculture. This converts to 0.01 gN m-2 d-1. This number is close to the 3.3 to 3.4 x 105 kgN y-1 estimate made by Sowles and Churchill (2004) using two different methods. 404 Northeastern Naturalist Vol. 11, Special Issue 2 6. The nitrogen added directly to Cobscook Bay as a result of wet and dry deposition from the atmosphere was estimated using data from National Atmospheric Deposition Program (1999). The area of the Bay at high water is approximately 103.6 x 106 km-2. The average wet deposition of NH4 and NO3 from 1982 to 1995 at the NADP station in Acadia National Park, Bar Harbor, ME, was 3.46 kgN ha-1y-1. If dry deposition is approximately equal to the measured rate of wet deposition, approximately 6.92 kg N ha-1y-1 would have been deposited directly on Cobscook Bay from the atmosphere. The atmospheric deposition of N on the Bay surface is estimated to be (6.92 kgN ha-1 y-1) (10,360 ha) = 0.717 x 105 kgN y-1 or 0.002 gN m-2 d-1. 7. The tidal exchange coefficient is defined as the fraction of water from Head Harbor Passage that remains in the Bay after each tidal cycle. From Brooks et al. (1999), we know that the tidal prism is approximately 1/3 of the mean estuary volume. We assumed that each incoming tide brings in only new water from Head Harbor Passage. This is a reasonable assumption if the volume of Head Harbor Passage, as defined by the depth of the passage and the area of the tidal excursion, is large compared to the tidal prism of Cobscook Bay (Fogeron 1959) and if the waters in the Passage are completely mixed. If the tidal prism is 1/3 of the Bay’s volume and if Cobscook Bay waters are well-mixed, then 2/3 of the Head Harbor Passage water that enters the Bay on an incoming tide must remain in the Bay and the tidal exchange coefficient is approximately 0.67. The tidal prism volume was estimated as 0.54 x 109 m3 (Brooks et al. 1999). The tidal exchange volume is then 0.67 (0.54 x 109 m3) = 3.61 x 108 m3. Multiply by 1.934 tides d-1 and divide by the area of the Bay to get the daily exchange per m2, which is 0.067 m3 m-2 d-1. 8. The nitrate concentration at high tide along the Eastport-to-Lubec line sampled in this study was used to estimate NO3 in the offshore water entering Cobscook Bay (Table B2). An average of the surface and bottom values on May 2, 3, and 4 taken at 6 stations along the line was 5.75 μmoles NO3 [(5.75 μM)(62 μgNO3 μM-1) = (356 μgNO3 l-1) (14/62) = 80.4 μgN l-1 = 0.08 gN m-3]. The average concentration of N in water entering the Bay over the 5 sample periods was 0.052 g N m-3. 9. Phytoplankton carbon in the waters entering Cobscook Bay is estimated from the average concentration of chlorophyll a at high tide along the Eastport–Lubec line (Table B3). The average of surface and bottom chlorophyll for the five sampling periods was 0.96 g chla m-3, which is multiplied by 30 gC per g chla (Strickland 1960) to give 0.029 gC m-3. Table B2. Average NO3 concentrations at high tide along the Eastport–Lubec line on the dates given. Date (1995) μmoles NO3 May 2, 3, 4 5.75 July 11, 12, 13 1.85 July 21, 22, 23 1.85 October 24, 25, 26 1.40 November 7, 8, 9 7.63 2004 D.E. Campbell 405 10. The zooplankton entering Cobscook Bay from the sea (Table B4) was estimated from the average displacement volume at the 3 passage stations sampled monthly in 1957 and 1958 by Legare and MacLellan (1960). Zooplankton displacement volume was expressed per volume of water by assuming that the towing speed used was about 3 knots, giving approximately 1000 m3 of water filtered in a 15 min tow. Displacement volume in cc m-3 was converted to mgC m-3 using the regression relationship established by Wiebe et al. (1975). The annual average zooplankton concentration in the passage outside Cobscook Bay was 0.43 mgC m-3. 11. Water quality data from the Cobscook watershed are minimal; therefore, USGS data from the neighboring Narraguagus River watershed were used under the assumption that the N discharged from the two watersheds per unit area was similar. Nitrate measurements of 0.01 g m-3 in Denny’s River water and 0.13 g m-3 in water from the Hobart stream (Shenton and Horton 1973) compared to nitrite plus nitrate concentrations ranging from < 0.1 g m-3 to 0.26 g m-3 (average 0.077 ± 0.47 gN m-3, assuming that < 0.1 g m-3 = 0.05 g m-3) measured in the Narraguagus River from 1981–1986 (USGS 1982, 1983, 1984, 1985, 1986, 1987) indicate that the N input from the Narraguagus watershed may be similar to the N input from the Cobscook Bay watershed. Table B3. Average phytoplankton chlorophyll measured at high tide along the Eastport– Lubec line on the dates given. Date (1995) μg chla l-1 May 2, 3, 4 0.12 July 11, 12, 13 1.84 July 21, 22, 32 2.37 October 24, 25, 26 0.24 November 7, 8, 9 0.22 Table B4. Average monthly zooplankton displacement volumes in cubic centimeters (cc) for 1957 and 1958 at the Passage stations of Legare and MacLellan (1960) were conversed to cc m-3 using assumptions given in Appendix B note 10. Month 1957 (cc) 1958 (cc) Avg. cc m-3 mgC m-3* January 18 40 0.029 0.734 February 9 15 0.012 0.246 March 6 9 0.0075 0.138 April 5 12 0.0085 0.161 May 5 7 0.006 0.104 June 6 30 0.018 0.407 July 5 85 0.045 1.26 August 3 16 0.0095 0.184 September 17 10 0.0135 0.285 October 36 8 0.022 0.52 November 8 26 0.017 0.380 December 10 52 0.031 0.797 *Log (DV cc m-3) = -1.429 + 0.808 (Log mg C m-3) Wiebe (1975) 406 Northeastern Naturalist Vol. 11, Special Issue 2 12. McCollough and May (1980) observed the numbers of the six most abundant species of shorebirds on mudflats inside and outside Cobscook Bay during 1979 (Table B5). They also determined the number of birds found on the mudflats inside and outside (Table B6) during the southward fall migration. At the peak use from August 10th to 20th, 14,348 birds were feeding in the Bay or 14,348 birds /1.81E+3 ha mud flat (US Army Corps of Engineers1980) = 8 birds ha-1 of mudflat. The numbers in Table B6 indicate that about 60% of the feeding birds were found on mudflats inside the Bay when all areas were examined. If this proportion is applied to the observations in Table B5 we can estimate the average biomass found in the Bay during each ten day period. To calculate biomass, each species of bird was assigned an average weight from the literature and the weight of an average bird present in the Bay was determined for each ten day period (US Environmental Protection Agency 2005a). Multiplying the weight of an average bird by the number of birds present in each 10 day period and multiplying by 0.6 gives the average biomass of shorebirds inside the Bay in each 10 day period. Dividing this number by the area of mudflat inside the Bay gives the wet weight of shorebirds inside the Bay per unit area. Converting wet weight to carbon using the standard factors in note 19 and averaging over the spring and fall migration periods gives 3.35 E-5 gC m-2 of shorebird biomass per meter square of mudflat present in the Bay during the spring migration and 0.002 gC m-2 present during the fall migration. Table B7 combines the information in Tables B5 and B6 to estimate the number of birds ha-1 mudflat moving in or out of Cobscook Bay each day. Total annual immigration for both spring and fall was 3.47E-6 gC m-2d-1 and emigration was 3.51E-6 gC m-2 d-1. Table B5. Maximum counts of feeding and roosting shorebirds within Cobscook Bay in each ten day period during the spring migration 1980 and fall migration 1979. Both inner and outer shorelines are included in these estimates (McCullough 1981, McCullough and May 1980). SpS = Semipalmated Sandpipers, Calidris pusilla L.; Sa = Sanderlings, Calidris alba Pallas; YL = Greater, Tringa melanoleuca Gmelin; and Lesser, Tringa flavipes Gmelin, Yellow Legs; RT = Ruddy Turnstone, Arenaria interpres L.; SpP = Semipalmated Plover, Charadrius semipalmatus Bonoparte; BbP = Black-bellied Plover, Pluvialis squatarola L. Date SpS Sa YL RT SpP BbP Total Spring 1980 (spring migration) April 14–27 0 0 1 0 0 0 1 April 28–May 4 0 0 14 0 0 0 14 May 5–11 0 0 11 0 0 5 16 May 12–21 34 0 2 1 2 87 126 May 22–25 54 0 3 2 5 38 102 May 26–June 1 144 0 0 0 0 69 213 June 2–8 42 0 0 0 0 5 47 Summer 1979 (fall migration) July 1–10 11 0 31 0 0 0 42 July 10–20 748 0 36 0 3 0 787 July 20–30 24,093 123 71 10 1012 4 25,313 Aug. 1–10 23,600 70 20 11 1206 11 24,918 Aug. 10–20 75,782 51 10 134 928 2066 78,971 Aug. 20–30 25,900 395 40 15 2816 369 29,535 Sep. 1–10 2505 0 0 0 7 55 2567 Sep. 10–20 5448 6 10 4 222 132 5822 Sep. 20–30 76 0 0 0 16 0 92 2004 D.E. Campbell 407 13. The fish community on a 3.3 by 1.7 km area of mud bottom near Western Passage just inside Passamaquoddy Bay was characterized by Tyler (1971). This fish community is assumed to be similar to the fish community found in Cobscook Bay. Tyler’s mean numbers per 0.5 mi. tow were converted to number m-2 assuming his 3/4-35 Yankee trawl with a 12.3 m (40 ft) ground line had a net opening of about 6.15 m (20 ft) between the wings and that the trawl’s fishing efficiency was 25% (Table B8). The weight of an average fish present in each month was determined by finding the relative proportions of the dominant species in the catch for that month (Tyler 1971), then multiplying these fractions by estimates of average fish wet weight determined from Bigelow and Schroeder (1953) based on Tyler’s average size distributions for each species, and then adding up the products to obtain the average biomass for a fish caught in each month. This value was multiplied by the number of fish in the stock or moving in and out of the Bay as determined by month to month differences in Table B6. Maximum number of the six dominant shorebird species on the major and minor mudflats inside and outside Cobscook Bay during the 1979 southward migration (McCullough 1981, McCullough and May 1980). Maximum number Location Feeding Roosting Outside Lubec Flats 2900 Lubec Center 864 13,691 Town of Lubec 1100 5084 Lubec gravel bar 6775 Lubec salt marsh 1525 International Bridge 400 Johnson Cove 6800 Carlow Island 3480 300 Gleason Cove 2000 Subtotal 10,744 34,175 Inside Broad Cove 1758 Carrying Place Cove 6000 65,000 Half Moon Cove 4160 Birch Point 400 250 Goose Island 200 East Bay 500 Sipp Bay 469 Pennamaquan River 46 Hersey Cove 300 Hardscrabble River 18 Denny’s River 8 Hobart Stream 20 Edmunds 187 Whiting Bay 482 Nutter Cove 0 Federal Harbor a few Hallowell Island 150 Subtotal 14,348 65,600 Total 25,092 99,775 408 Northeastern Naturalist Vol. 11, Special Issue 2 the number of a species caught to obtain the following estimates. The average annual standing stock of fish in the Bay was 8.3 gC m-2 with 0.065 gC m-2 d-1 entering the Bay and 0.061 gC m-2 d-1 leaving the Bay on average over the year. Tyler did not catch a large number of juvenile fish possibly because juvenile fish could escape through the liner mesh size of 1 in. Most fish caught were larger than 10 cm. Species that appeared to have young of the year (fish < 10 cm length) present in the size distributions presented by Tyler were alewives (Alosa pseudoharengus Wilson), redfish (Sebastes marinus Cuvier), longhorn sculpin (Myoxocephalus octodecemspinosus Mitchill), and silver hake (Merluccius bilinearis Mitchill). Size distributions from seine samples taken Table B7. Estimates of shorebirds entering and leaving feeding grounds in Cobscook Bay by combining the information in Tables B5 and B6. Relative use Feeding inside Gain or loss Date (Number) (Number ha-1) (Number ha-1da-1) Spring 1980 April 14–27 1 0.0001 +0.00001 April 28–May 4 14 0.001 +0.00013 May 5–11 16 0.002 +0.00014 May 12–21 126 0.013 +0.00081 May 22–25 102 0.010 -0.00043 May 26–June 1 213 0.022 +0.0022 June 2–8 47 0.005 -0.0024 Summer 1979 July 1–10 42 0.004 +0.0004 July 10–20 787 0.08 +0.0076 July 20–30 2531 32.56 +0.248 Aug. 1–10 24,918 2.56 +0 Aug. 10–20 78,971 8.00 +0.544 Aug. 20–30 29,535 2.99 -0.500 Sep. 1–10 2567 0.26 -0.273 Sep. 10–20 5822 0.590 +0.033 Sep. 20–30 92 0.009 -0.0581 Table B8. Fish abundance of all species by month from a mud bottom in Passamaquoddy Bay assuming that the net swept approximately 5000 m-2 (Tyler 1971). In and out migration are calculated based on these abundance measurements. Month # m-2 # m-2 entering (+) or leaving (-) April 0.26508 -0.10272 May 0.16236 -0.05488 June 0.1074 0.07208 July 0.1795 0.13436 August 0.31392 -0.05404 September 0.25988 -0.11428 October 0.1456 0.05632 November 0.20192 0.00748 December 0.2094 -0.11452 January 0.09488 -0.02252 February 0.07236 0.00888 March 0.08124 0.18384 2004 D.E. Campbell 409 along the inner Passamaquoddy shore (MacDonald et al. 1984) show that juvenile winter flounder (Pseudopleuronectes americanus Walbaum) and cod (Gadus morhua L.) use Passamaquoddy Bay in the spring. 14. Average chlorophyll a from surface and bottom measurements taken throughout the Bay (Table B9) was converted to carbon using 30 mgC per mg chla (Strickland 1960). The average annual phytoplankton stock from Table B9 is 0.224 gC m-2, which was obtained by averaging the spring neap sample dates and applying each average estimate to a time determined from the center of each pair of sample dates (US Environmental Protection Agency 2005a). The October– November value, which was equal to 0.6 of the May to November average, was assumed to represent the winter–spring period when no samples were taken. This may be a reasonable assumption because Weatherbee and Thomas (2002) found that winter chlorophyll concentrations in the eastern Gulf of Maine coastal area were 0.67 of the average chlorophyll during the summer and fall. 15. The benthic microalgae carbon m-2 was estimated based on benthic chlorophyll a measured in this study and a carbon to chlorophyll ratio calculated in the phytoplankton section of this report (Table B10). Only 71% of the bottom samples attempted had suitable benthic diatom habitat; therefore, 71% of Larsen et al.’s (2004) Class 1, 2, 3, and 7 areas were used to calculate benthic microalgal stock and production in the Bay. The average annual benthic microalgae carbon m-2 was 2.07 gC m-2 when determined by the method given for phytoplankton in Note 14. Table B9. Average of surface and bottom chlorophyll measured in Cobscook Bay was converted to carbon using a ratio of 30 mgC / mg chla l-1 (Strickland 1960). The average sonic depth, 8.5 m, was used to calculate biomass m-2. Dates (1995) Avg. μg chla l-1 mgC m-3 gC m-2 May 2, 3, 4 0.39 ± 0.22 11.8 0.10 May 16, 17, 18 0.69 ± 0.51 20.8 0.18 July 11, 12, 13 2.08 ± 0.81 62.3 0.53 July 21, 22, 23 1.70 ± 0.83 50.9 0.43 October 24, 25, 26 0.68 ± 0.43 20.5 0.17 November 7, 8, 9 0.54 ± 0.32 16.2 0.14 Table B10. Average benthic carbon was estimated from benthic chlorophyll a measured in Cobscook Bay. Dates (1995) gC m-2 May 2, 3, 4 1.15 May 16, 17, 18 2.26 July 11, 12, 13 1.13 July 21, 22, 23 3.11 October 24, 25, 26 1.90 November 7, 8, 9 2.35 410 Northeastern Naturalist Vol. 11, Special Issue 2 16. Surface and bottom concentrations of nitrate, nitrite, ammonia, phosphate, and silicate were measured at 32–36 stations throughout Cobscook Bay at six times during 1995 (see Tables B11 and B12 for inorganic nitrogen). On May 2, 3, and 4, there were 0.6 gN m-2 in the Bay. The annual average concentration of nitrogen in the Bay was 0.78 gN m-2 using the averaging method given in Note 14. 17. Macrophyte biomass and productivity in Cobscook Bay was measured in this study by Bob Vadas of the University of Maine (Vadas et al. 2000, 2004a,b,c). This note uses data on the annual average biomass and productivity provided by Vadas et al. (2000) to evaluate the model (Table B13 and B14). Data on the areas covered by the various plants were determined by Larsen et al. (2004) from a recent satellite photo (Table B15) and by S. Barker (Maine Department of Marine Resources, unpubl. data) based on modifications to Timson (1976)'s CMGE classification. I distributed the productivity and biomass which Vadas found at high and low flow across the areas measured by Larsen et al. (2004) according to the proportion of area in a flow type determined by S. Barker (Maine Department of Marine Resources, unpubl. data), who applied the velocity predictions of Brook’s (2004) hydrodynamic model to Timson’s (1976) data on bottom communities (Table B16). I used Barker’s estimates for sub-tidal eelgrass and kelp (Table B17). Larsen et al. (2004) found that the two area estimates agreed within 10% of the total. The annual estimates of macrophyte biomass and production by species group in Cobscook Bay are given in Table B18. I used Vadas et al. (2000) for the area covered by green and red algae. Also, the conversion factors given by Vadas et al. (2000) were used to change the wet weight biomass and productivity values in Table B18 to the carbon storages or flows shown in Figure 3 and Table 1. Table B11. Average of surface and bottom concentrations of nitrate, nitrite, and ammonium in μmoles measured in Cobscook Bay. NO3 NO2 NH4 Date (1995) (μmoles) (μmoles) (μmoles) May 2, 3, 4 3.81 ± 0.87 0.11 ± 0.1 1.13 ± 0.32 May 16, 17, 18 3.66 ± 1.07 0.11 ± 0.1 3.11 ± 1.07 July 11, 12, 13 0.86 ± 0.86 0.12 ± 0.11 1.89 ± 1.14 July 21, 22, 23 0.87 ± 0.60 0.23 ± 0.13 2.32 ± 0.98 October 24, 25, 26 2.60 ± 2.67 0.33 ± 0.23 1.98 ± 0.86 November 7, 8, 9 6.91 ± 0.70 0.48 ± 0.15 3.16 ± 1.79 Table B12. Average nitrate, nitrite, and ammonium nitrogen m-2 if the average depth is 8.5 m. NO3 NH4 NO2 Total Dates (1995) (gNm-)2 (gN m-2) (gN m-2) (gN m-2) May 2, 3, 4 0.45 0.13 0.01 0.60 May 16, 17, 18 0.44 0.37 0.01 0.82 July 11, 12, 13 0.14 0.23 0.01 0.38 July 21, 22, 23 0.10 0.28 0.03 0.41 October 24, 25, 26 0.31 0.24 0.04 0.58 November 7, 8, 9 0.82 0.38 0.06 1.26 2004 D.E. Campbell 411 Table B13. Average biomass and productivity of the major types of aquatic macrophytes in Cobscook Bay from Vadas et al. (2000). High flow values for greens are given first for low and next for high nutrient supply. Macrophyte biomass and productivity1 Low flow High flow Kelp (Laminaria longicruris Bach. Pyl.) Biomass2 2.13 1.16 Productivity 8.65 6.97 Productivity range 1.8–26.6 2.2–15.5 Fucoids (Ascophyllum nodosum) Biomass2 17.8 20.7 Productivity 6.8 8.9 Productivity (adjusted)3 10 13 Biomass range4 11.4–28.9 8.5–26.7 Productivity range 3.8–8.9 4.4–14.9 Eelgrass (Zostera marina) Biomass (above ground)5 0.23 0.13 Productivity 1.81 1.22 Productivity range 0.32–2.72 0.17–2.22 Greens (Enteromorpha and Ulva) Productivity6 1.12 1.39 1Units of biomass are kg wwt. m-2 and units for productivity are kg wwt. m-2 y-1. 2Multiply wet weight by 0.2 to get Vadas et al.’s (2000) dry weight estimates, and by 0.06 to get carbon. 3Using fall and spring measurements, Vadas et al. (2000) was able to adjust his two low flow sites to account for winter mortality of shoots. I applied the average increase in adjusted low flow productivity to adjust high flow productivity, which was not measured. 4Vadas et al. (2000) found no significant difference between the standing stocks of Ascophyllum nodosum at high and low flow sites. 5Multiply wet weight by 0.2 to get Vadas et al.’s (2000) dry weight estimates, and by 0.076 to get carbon. 6 Productivity of high flow high intertidal was assumed to be equal to low flow regime high intertidal production. Table B14. Average biomass and productivity for green and red algae in Cobscook Bay. Production and biomass were measured relative to position in the intertidal area (see Vadas et al. 2004c). Biomass and Productivity1 Low Mid High Greens (Enteromorpha and Ulva) Biomass2 0.4 0.2 0.018 Productivity3 1.29 0.7 0.17 Productivity range 0.025–4.84 0.003–6.07 0.001–0.29 Reds (Palmaria palmata (L.) O. Kuntze)) Biomass2 0.5 Productivity3 6.1 Productivity range 0.26–9.94 1Units of biomass are kg wwt. m-2 and units for productivity are kg wwt. m-2 y-1. 2Multiply wet weight by 0.2 to get Vadas et. al.’s (2004c) dry weight estimates, and by 0.06 to get carbon. 3Productivity from Table 4-4 in Vadas et al. (2000). 412 Northeastern Naturalist Vol. 11, Special Issue 2 18. The zooplankton in Cobscook Bay was estimated from the average displacement volume at the two Cobscook stations sampled monthly in 1957 and 1958 by Legare and MacLellan (1960). Using data in Table B19 and assuming an average depth of 8.5 m, the 1957–1958 annual average concentration of zooplankton in Cobscook Bay was 0.73 mgC m-3 or 6.2 mgC m-2. The annual average standing stock of zooplankton in the Bay is 0.733 mgC m-3 x 8.0E+8 m3 average volume of the Bay = 5.86E+5 gC. 19. Some information on the concentration of suspended matter in Cobscook Bay was available from a summer project by Schroeder (1977). Table B20 summarizes his data as reported in US Army Corps (1980). Detritus export from Cobscook Bay in July was estimated as 0.1 mg l-1 tide-1 by subtracting the average concentration on ebb tide from the average concentration on flood. The average stock of detritus suspended in the water column for July 1975 was 1.85 mg l-1 or (15.7 g m-2) x (0.33 C/dwt.) = 5.2 gC m-2, assuming 8.5 m is the average Table B15. Area weighted average intertidal macrophyte cover for brown and green algae from Larsen et al. (2004). See Table 3 and Larsen et al. (2004) for definition of the cover classes. Cover class % cover Area (ha) Area weighted cover (ha) Brown Algae (Fucoids) Class 9 and 11 25 589.4 0.072 Class 14 5 270.5 0.007 Class 15 50 247.4 0.061 Class 16 90 595.7 0.263 Class 17 50 340.6 0.084 Total 2043.6 0.487 Green Algae Class 10 90 435.5 0.239 Class 9 and 11 25 589.4 0.090 Class 12 50 344.9 0.105 Class 14 5 270.5 0.008 Total 1640.3 0.442 Table B16. Fraction of macrophyte area identified by Seth Barker (Maine Department of Marine Resources, unpubl. data) that was found in each flow type: high, low, or medium velocity. Low flow type includes medium and low flow areas identified using results from Brooks et al. (1999). Flow type Covered area (ha) Macrophyte flow type Area (ha) fraction in flow type* Brown algae (Fucoids) Low flow 1028 0.84 836 High flow 203 0.16 159 Green algae Low flow 10.4 0.84 609 High flow 2.0 0.16 116 * The covered area in a flow type was calculated by applying Barker’s fraction of area in a flow type to Larsen et al. (2004) estimate of area covered. 2004 D.E. Campbell 413 depth of the Bay. Additional data from Schroeder (1977) presented in US Army Corps of Engineers (1980) show that the Inner Bay exported 1.5 mg l-1 of detritus per tide to the Outer Bay during July 1977. Detritus export from the Bay in July can be estimated by multiplying the detritus concentration difference by the tidal exchange volume, (0.15 g m-3)(3.61E+8 m-3 tide-1) = (5.415E+7 g dwt.)(1.9342 tides d-1) = (1.047E+8 g dwt. d-1)/(1.04E+8 m2 ) = (1 g m-2 d-1)(0.33 gC/g dwt) [see Table B20] = 0.33 gC m-2 d-1. The 0.33 C to dwt. ratio assumes that exported detritus is mostly derived from macroalgae. If this gradient is maintained over the year, 120 gC m-2 y-1 of detritus are exported which is equal to 12.53 x 106 kgC y-1. During the first July 1995 sampling period, I observed numerous fragments of macroalgae of all sizes suspended in the water and present on the millipore filters. Table B17. The area weighted average for the subtidal macrophyte cover of eelgrass and kelp for two flow types from Seth Barker’s (Maine Department of Marine Resources, unpubl. data) analysis. Medium and high flow areas identified by Barker using the model of Brooks et al. (1999) are combined. See Table B15 and B16 for definitions of cover classes and flow types. Covered fraction in Cover class % cover Area (ha) area flow type Kelp Low flow Cover class 1 5 0.4 0.02 Cover class 2 15 110.0 16.5 Cover class 3 55 14.3 7.8 Cover class 4 85 14.6 12.4 Subtotal 139.3 36.7 0.38 Med. and high flow Cover class 1 5 0.9 0.05 Cover class 2 15 100.9 15.1 Cover class 3 55 28.3 15.6 Cover class 4 85 32.9 28.0 Subtotal 163.0 58.75 0.62 Eelgrass Low flow Cover class 1 5 44.9 2.24 Cover class 2 15 114.5 17.2 Cover class 3 55 160.1 88.1 Cover class 4 85 35.2 29.9 Subtotal 354.7 137.4 0.74 Med. and high flow Cover class 1 5 10 0.5 Cover class 2 15 28.7 4.3 Cover class 3 55 61 33.6 Cover class 4 85 11.7 9.9 Subtotal 111.4 48.3 0.26 414 Northeastern Naturalist Vol. 11, Special Issue 2 Table B18. Average macrophyte biomass and productivity per m-2 of covered area weighted by the fraction of area in a flow type. Barker’s (Maine Department of Marine Resources, unpubl. data) medium flow areas were grouped with low flow for browns and greens and with high flow for kelp and eelgrass. Use the factors in the notes to Table B13 to convert from wet weight to carbon. Avg. biomass Avg. productivity Area Macrophyte (kg wwt. m-2) (kg wwt. m-2 y-1) (x 106 m-2) Intertidal Fucoid algae 18.26 10.5 9.95 Green algae 0.35 2.0 9.161 Red algae 0.50 6.1 2.121 Sub-tidal Kelp 1.53 7.6 0.96 Eelgrass 0.20 1.7 1.86 1Area given in Vadas et al. (2000) based on his cover estimates. Table B19. Average monthly zooplankton displacement volumes in cubic centimeters (cc) for 1957 and 1958 at the Cobscook stations from Figure 4 in Legare and MacLellan (1960). Month 1957 (cc) 1958(cc) Avg. cc m-3 mgC m3 * January 22 125 0.074 2.34 February 12 20 0.016 0.35 March 2 11 0.0065 0.12 April 11 8 0.0095 0.18 May 10 18 0.014 0.30 June 25 15 0.020 0.46 July 14 100 0.057 1.69 August 3 95 0.049 1.40 September 12 38 0.025 0.61 October 18 20 0.019 0.43 November 10 30 0.020 0.46 December 9 30 0.0195 0.45 *Log (DV cc m-3) = -1.429 + 0.808 (Log mgC m-3) Wiebe (1975) Table B20. Concentrations of suspended matter and the percent organic matter in Cobscook Bay during July 1977. Ebb tide Flood tide Surface Bottom Surface Bottom Quantity (mg l-1) (mg l-1) (mg l-1) (mg l-1) Mean 3 4 3 3 Range 8 9 5 5 % organic 60 50 70 50 Detritus 1.8 2.0 2.1 1.5 Std. deviation 0.6 0.8 1.2 0.9 2004 D.E. Campbell 415 20. Invertebrate counts from Cobscook Bay intertidal areas were made by McCollough and May (1980), but they were not reported. Larsen et al. (1979) reported the benthic invertebrates found on a low energy rocky intertidal area near Dennysville. Peter Larsen’s unpublished data on the benthic community in Broad and Deep Coves was used to estimate benthic biomass and species diversity in Cobscook Bay. The numbers of dominant species were converted to volume based on average sizes and shapes from the published literature. Volume was then converted to wet weight using 1 g /cc. The average number of infauna m-2 was 3730 with a range from 870 to 12,970 animals. An average of 12 gC m-2 of benthic biomass was present at these sites distributed over an average of 49.5 species. The analysis of these data and ancillary information can be found on the worldwide web (US Environmental Protection Agency 2005a). 21. Todd (1979) studied the ecology of Bald Eagles in Maine. He found that Cobscook Bay supported a dense population of eagles which included 7 occupied breeding sites in 1977 and 1978. Of these seven pairs, 5 bred successfully in 1977, but only 3 were successful in 1978. Seven young chicks were fledged from these nests in 1977 and six in 1978. Cobscook Bay supported 10 adult and 3 immature eagles in the winter of 1977, and 12 adults and 2 immature birds overwintered there in 1978 . From this information, I estimate that in the late seventies Cobscook Bay supported approximately 14 birds or one bird for every 742 ha of the water surface at high tide. If an average bird weighs 4767 g (US Environmental Protection Agency 2005a), there was 6.42E-5 gC m-2 of eagle biomass in the Bay at this time. 22. The breeding population of harbor seals, Phoca vitulina, in Cobscook Bay was estimated at several hundred individuals (US Army Corps of Engineers 1980). We take 600 as a rough estimate of the resident seal population in 1980. If an average seal weighs 1.1E+5 g, there are 0.064 gC of seal biomass m-2 of high tide area in the Bay (US Environmental Protection Agency 2005a). 23. Phytoplankton production was estimated by Phinney et al. (2004) based on water column chlorophyll a and light (Table B21). The annual average phytoplankton production was 0.269 gC m-2 d-1, calculated using the time averaging method given in Note 14. Table B21. Average phytoplankton primary production in the waters of Cobscook Bay during six sample times in 1995. Phytoplankton production was calculated by Phinney et al. (2004). Phytoplankton production Date (1995) (gC m-2 d-1) n May 2, 3, 4 0.11 ± 0.12 16 May 16, 17, 18 0.17 ± 0.17 18 July 11, 12, 13 1.08 ± 0.44 17 July 21, 22, 23 0.83 ± 0.50 17 October 24, 25, 26 0.09 ± 0.08 18 November 7, 8, 9 0.06 ± 0.06 17 416 Northeastern Naturalist Vol. 11, Special Issue 2 24. The primary production of benthic microalgae (Table B22) was estimated based on benthic chlorophyll a measurements made throughout Cobscook Bay and irradiance at the sediment surface (Phinney et al. 2004). The annual average production of benthic microalgae was 0.954 gC m-2d-1, again using the time averaging method given in Note 14. 25. Strickland (1960) suggested a C/N ratio of 6 ± 2 for phytoplankton. Applying this ratio to our net primary production estimates for phytoplankton in Cobscook Bay divided by 0.85 to include phytoplankton respiration at 15% of gross primary production gives 0.053 gN m-2 d-1 annual average nitrogen uptake by phytoplankton. Divide the numbers in Table B21 by 6 to estimate N uptake by phytoplankton at other times. 26. Vinogradov (1953) gave factors for converting wet weight of algae to dry weight, carbon, or nitrogen (Table B23). These factors are applied to production values in Table 17 as follows: (1) Browns, (10.48 kg wwt. m-2 y-1)(0.266 dwt/wwt.)(0.019 fraction N) = 0.053 kg N m-2 y-1. Table B22. Average primary production of benthic microalgae on the bottom of Cobscook Bay measured at n stations during six sample times in 1995. Benthic algal primary production was determined by Phinney et al. (2004). Benthic microalgae production Date (1995) (gC m-2 d-1) n May 2, 3, 4 0.49 ± 0.60 12 May 16, 17, 18 1.55 ± 1.98 12 July 11, 12, 13 1.17 ± 1.17 11 July 21, 22, 23 4.46 ± 3.97 12 October 24, 25,26 0.74 ± 2.28 15 November 7, 8, 9 0.16 ± 0.17 14 Table B23. Conversion factors from Vinogradov (1953). Plant % H2O C as % dwt. N as % dwt. Fucoids Ascophyllum nodosum 74.4 38.0 2.12 (n = 3) Fucus vesiculosus 72.3 35.3 1.64 (n = 14) Average 73.4 36.7 1.88 Greens Enteromorpha 70.8 31.5 1.57 (n = 5) Ulva 78.0 36.1 2.66 (n = 8) Average 74.4 33.8 2.12 Kelp Laminaria digita (Hudson) 81.2 31.9 2.23 (n = 20) Laminaria saccharina 87.1 26.8 1.80 (n = 13) (Lamouroux) Average 84.2 29.4 2.02 Reds Rhodymenia palmata (L.) 83.6 28.3 2.91 (n = 5) Eelgrass Zostera marina 85 33.9 (n = 12) 1.91 (n = 22) 2004 D.E. Campbell 417 (2) Greens, (2.0 kg wwt. m-2 y-1)(0.256 dwt/wwt.)(0.021 fraction N) = 0.011 kg N m-2 y-1. (3) Kelp, (7.61 kg wwt.m-2 y-1)(0.158 dwt/wwt.)(0.02 fraction N) = 0.024 kg N m-2 y-1. (4) Reds, (6.1 kg wwt. m-2 y-1)(0.164 dwt/wwt.)(0.029 fraction N) = 0.029 kg N m-2 y-1. (5) Eelgrass, (1.66 kg wwt. m-2 y-1)(0.15 dwt/wwt.)(0.019 fraction N) = 0.005 kg N m-2 y-1. Multiplying by 1000 g/kg and dividing by 365 d/y gives the numbers for N uptake on Figure 3 and in Table 2. 27. Strickland (1960) suggested a C/N ratio of 6 ± 2 for phytoplankton. We assume that this ratio also applies to benthic diatoms. Dividing the average primary production estimate for benthic microalgae (Table B22), temporally averaged as in Note 15, by 6 gives 0.16 gN m-2 d-1 for the nitrogen uptake by benthic microalgae. 28. Large zooplankton was assumed to eat approximately 20% of their body weight per day (Parsons and Tagahashi 1973). We estimate that the annual average zooplankton concentration is 6.2 mgC m-2 x 0.2 = 1.24 mgC m-2d-1 phytoplankton carbon grazed by zooplankton. Zooplankton production of 2.5 mgC m-2 d-1 is needed to balance the measured demands of feeding and export. This discrepancy could be explained by retention in the Bay if zooplankton do not behave like passive particles. 29. Table B24 shows that during July there was a net influx of chlorophyll a into Cobscook Bay from Head Harbor Passage. A minimum estimate for the carbon consumed in the estuary can be made for this time, but not on the other sample dates. The excess chlorophyll that comes into the Bay along with internal production in this month must have been consumed by grazers or settled to the bottom. Using a chlorophyll a:carbon ratio of 30 gives 14.1 and 46.2 mgC m-3of phytoplankton imported to the Bay on the first and second sample periods in July, respectively. This is an average of 256 mgC m-2 tide-1 (z = 8.5 m) or 496 mgC m-2 d-1 (for 1.9342 tides d-1) of imported phytoplankton during July, which is either grazed or settles to the bottom. Internal net production (Tables B21 and B22) during this time (assuming respiration is 15% of gross production) averaged 955 mgC m-2 d-1 and 2815 mgC m-2 d-1 for phytoplankton and benthic Table B24. The difference between average phytoplankton chlorophyll a measured at high tide and low tide along the Eastport–Lubec line. High tide Low tide Difference Date (1995) (μg chla l-1) (μg chla 1-1) (μg chla l-1) May 2, 3, 4 0.12 0.25 -0.13 July 11, 12, 13 1.84 1.37 0.47 July 21, 22, 23 2.37 0.83 1.54 October 24, 25, 26 0.24 0.76 -0.52 November 7, 8, 9 0.22 0.59* -0.37 *Data from low tide on the Birch Point to Gove Point line. 418 Northeastern Naturalist Vol. 11, Special Issue 2 microalgae, respectively, or an average of 1885 mgC m-2 d-1 during July. If grazers consume approximately 50% of the available food, approximately 1190 mgC m-2 d-1 were consumed by grazing in Cobscook Bay during July in the period between samples. Zooplankton grazing is small (1–2 mgC m-2 d-1), thus 1188 mgC m-2 d-1 are grazed by the benthic community in July. If this grazing on suspended algae is nonselective (in proportion to the abundance of suspended food items), 75% or 0.90 gC m-2 d-1 of the food consumed is from benthic microalgae and 25% or 0.30 gC m-2 d-1 is from phytoplankton. A time weighted average for the year, interpolating data between the sample times, gives 0.62 gC m-2 d-1 for the annual average consumption of phytoplankton (0.16 gC m-2 d-1) and benthic microalgae (0.47 gC m-2 d-1) by benthic macrofauna if benthic grazing occurs in 4480 ha (Note 32). This amount of macrofaunal grazing on phytoplankton leaves 0.18gC m-2 d -1 to enter the detritus pool in the estuary (8959 ha). Benthic macrofauna graze 10.1 x 106 kgC y-1 of microalgae. The detritus formed from benthic microalgae and phytoplankton was also estimated to be 0.62 gC m-2 d-1 or 10.1 x 106 kgC y-1 by difference. If macrofauna assimilate 70% of the food consumed, 30% or 0.19 gC m-2 d -1 of feces are produced and added to detritus. 30. The contribution of macroalgae to the detritus pool in Cobscook Bay can be estimated assuming that direct grazing on macroalgae is small. Allowing 10% of net production for direct grazing by benthic invertebrates on macroalgae, 90% of macroalgal net production would go to the detritus pool. Net production per m2 of surface covered by algae of a given type is given below: (1) Browns, (10.48 kg wwt. m-2 y-1)(0.2 dwt/wwt.)(0.3 C/dwt) = 0.63 kgC m-2 y-1. (2) Greens, (2.0 kg wwt. m-2y-1)(0.2 dwt/wwt.)(0.3 C/dwt) = 0.12 kgC m-2y-1. (3) Kelp, (7.61 kg wwt. m-2 y-1)(0.2 dwt/wwt.)(0.3 C/dwt) = 0.46 kgC m-2 y-1. (4) Reds, (6.1 kg wwt. m-2 y-1)(0.2 dwt/wwt. * (0.3 C/dwt) = 0.37 kgC m-2 y-1. (5) Eelgrass, (1.66 kg wwt. m-2 y-1)(0.2 dwt/wwt.)(0.38 C/dwt) = 0.13 kgC m-2 y-1. Multiplying by the area in algae of a given type gives an estimate of net production in kgC y-1 for Cobscook Bay: (1) Browns, (0.63 kgC m-2y-1)(9.95 x106m2) = 6.3 x 106 kgC y-1. (2) Greens, (0.12 kgC m-2y-1)(9.16 x 106m2) = 1.1 x 106 kgC y-1 . (3) Kelp, (0.46 kgC m-2y-1)(0.96 x 106m2) = 0.44 x 106 kgC y-1. (4) Reds, (0.37 kgC m-2 y-1)(2.12 x 106m2) = 0.78x 106kgC y-1. (5) Eelgrass, (0.13 kgC m-2 y-1)(1.86 x 106m2) = 0.24x 106 kgC y-1. We estimate that macroalgae and eelgrass can supply 0.9 times 8.86 x 106 kgC y- 1 or a total of 7.97 x 106 kgC y-1or 0.32 gC m-2d-1 from eel grass and 0.35 gC m-2d- 1 from the total area covered by macroalgae. Total grazing on eelgrass is estimated as 2.4 x 104 kgC y-1and on macroalgae 8.62 x 105 kgC y-1. 2004 D.E. Campbell 419 31. Primary production of benthic microalgae averaged 348 gC m-2y-1 (Table 4) or 0.954 gC m-2d-1 in areas with suitable habitat. If 56.3 x 106 m2 of the intertidal and subtidal area is suitable for benthic microalgae, 19.6 x 106 kgC y-1 is consumed by suspension feeders or goes into the detritus pool of Cobscook Bay. We assume that 90% of benthic algae are regularly suspended in the water column (Campbell and Newell 1998), and therefore they are subject to the same processes that govern phytoplankton. We assume that 90% of resuspended benthic microalgal production could be grazed by dense shellfish beds (Newell et al. 1998). If shellfish beds cover one half of the intertidal plus subtidal area (Note 32), 7.9 x 106 kgC y-1or 0.48 gC m-2 d-1 can be grazed by macrobenthos and the remainder or 11.8 x 106 kgC y-1 or 0.36 gC m-2d-1 enters the detritus pool, assuming the detritus pool covers the intertidal and subtidal areas (8959 ha). Export of benthic algae is assumed to be small because their settling rates are high relative to phytoplankton. 32. During July, detrital carbon is about 1.65 times greater than the carbon in suspended phytoplankton. There are (1.85 g dwt. m-3 [see Table B20]) (0.33 C/ dwt. ) = 0.62 gC m-3 of organic matter in the water column which included 0.057 gC m-3 of phytoplankton (Table B9) and 0.22 gC m-3 of benthic microalgae (Table B10) if 90% are resuspended. Subtracting our July 1995 measurements from Schroeder’s (1977) earlier estimates of July organic matter gives 0.34 gC m-3 of detritus in the water column. We don’t know how much detritus is consumed by benthic macrofauna based on the information available, but a maximum estimate for July based on nonselective feeding and a benthos that consumes 50% of the available food gives 0.17 gC m-3 d-1 If the benthos feed selectively so that detritus is consumed at 10% of the rate algae is eaten, then only 0.017 gC m-3 d-1 of detritus is eaten. Detritus consumption by the benthos for selective and nonselective feeding ranges from 33 to 330 gC m-2 y-1, assuming that the winter consumption rate is 25% of the July consumption rate. If the area of potential shellfish beds is taken as one half of the subtidal (4480 ha) plus one fourth (half the area times half the time inundated) the intertidal (8959 ha), then between 1.5 and 15 x 106 kgC y-1 are consumed. Using the conservative estimate, 0.09 gC m-2 d-1 of detritus is consumed by suspension feeders. The annual macrofaunal food consumption was also estimated by applying a consumption to biomass ratio of 11:1 for macrofauna (Warwick et al. 1979) to our biomass estimate which predicted consumption of 132 gC m-2 y-1 compared to 262 gC m-2 y-1 estimated by summing average daily consumption in Notes 29 and 32. 33. The consumption of detrital carbon by bacteria was estimated from the detritus deposited (11.2 x 106 kgC y-1) plus fecal production by zooplankton and macrofauna (3.1 x 106 kgC y-1) assuming 70% assimilation, which gives a total flux to the bottom of 14.3 x 106 kgC y-1 assuming that 80% of the carbon deposited is consumed (Hargrave 1980). This calculation gave 0.347 gC m-2 d-1 consumed by bacteria over the high tide area of the Bay. The remainder of the carbon production (0.088 gC m-2 d-1) was assumed to accumulate in the sediment and buried over time. 420 Northeastern Naturalist Vol. 11, Special Issue 2 34. An estimate for the macrofauna eaten by shorebirds was made using the bird populations given in McCullough (1981) and the biomass estimated above, assuming that an average 45-g shore bird consumes 8 g of invertebrates per day (Loesch et al. 2002). Given an average shorebird biomass of 0.002 gC m-2 d-1, the birds in Cobscook Bay consume an average of 0.0004 gC m-2 d-1. 35. Benthic macrofauna accounted for most of the prey items eaten by the fish caught by Tyler (1972). An average daily ration for a fish of 600 g wet weight feeding largely on invertebrates was estimated to average 2% of body weight per day from information given in Langler et al. (1977). Using the biomass of fish given above, 0.166 gC m-2 d-1 of macrofauna is consumed by fish each day. 36. If herring (Clupea harengus L.) consume all excess zooplankton production in April and May when they are abundant, and April–May zooplankton production would otherwise be at the average for the year, herring consume 0.003 gC m-2 d-1 for those two months. If large numbers of herring are only present in April and May as indicated by the data in Tyler (1971), 0.0005 gC m-2 d-1 are consumed on average over the year. 37. Eagle diet in the estuaries of coastal Maine was described in Todd (1979) as 81% waterfowl, 14% fish, and 5% mammals. Using a literature estimate of 0.75 lbs of food as a daily ration, Cobscook Bay eagles eat on average 6.4E-7 gC m-2 d-1 fish and 3.7E-6 gC m-2d-1 fowl. 38. Nitrogen recycled by the various consumer groups important in Cobscook Bay follows directly from the calculation of the metabolic requirements for each group using an appropriate C:N ratio. Assume that bacteria recycle nitrogen in proportion to the nitrogen in the detritus that they process. A weighted average based on the nitrogen in the plant sources of detritus gives a C:N ratio of approximately 20 to 1. Under these assumptions bacteria recycle about 0.017 gN m-2 d-1. If zooplankton assimilate 80% of the food consumed, spend half of that assimilated on metabolism, and have a C:N ratio of 4.6 to 1 (Vinogradov 1953), they recycle about 1.1E-4 gN m-2 d-1. Macrofauna recycle about 0.031 gN m-2d-1, assuming the average organism size from Larsen’s (1979) data, the equation developed for polychaete respiration in Cammen (1987), and a C:N ration of 4:1 from data in Vinogradov (1953). Shorebirds in migration metabolize about 75% of their total consumption (Loesch et al. 2002). If their C:N ratio is about 4:1, they recycle 0.00008 gN m-2 d-1 . If Cobscook Bald Eagles respire at the rate of 17 kcal per bird per day (US Environmental Protection Agency 2005a) and their C:N ratio is about 4:1, approximately 6E-8 gN m-2 d-1 are recycled. An average rate of metabolism for temperate zone fish is 90 mgO2 kg-1 hr-1 (Brett and Groves 1979). Applying this factor to the average fish biomass measured by Tyler (1971) and using a C:N ratio of 4:1, 0.017 gN m-2 d-1 are recycled by fish. The metabolic rate of Phoca vitulina was calculated by applying the correction factor in Kooyman (1981) to the rate determined from the standard equation for mammals for a seal of average weight. Given a metabolic rate of 4.4 gC kg-1 d-1 and a C:N ratio of approximately 4:1, 7E-5 gN m-2 d-1 are recycled by the seals of Cobscook Bay. 2004 D.E. Campbell 421 39. The concentration differences inside and outside Cobscook Bay on the sample dates in 1995 were determined for NO3 (Table B25), NH4 (Table B26), NO2 (Table B27), PO4 (Table B28), and SiO3 (Table B29). Import-export fluxes Table B25. The difference between the average concentration of NO3 at high tide and low tide along the Eastport–Lubec line. High tide Low tide Difference Date (1995) (μmoles l-1 NO3) (μmoles l-1 NO3) (μmoles l-1 NO3) May 2, 3, 4 5.75 4.72 1.03 July 11, 12, 13 1.85 1.42 0.43 July 21, 22, 23 1.85 1.40 0.45 October 24, 25, 26 1.40 4.49 -3.09 November 7, 8, 9 7.63 7.12* 0.51 *Data from low tide on the Birch Point to Gove Point line. Table B26. The difference between the average NH4 concentrations at high tide and low tide along the Eastport–Lubec line. High tide Low tide Difference Date (1995) (μmoles l-1 NH4) (μmoles l-1 NH4) (μmoles l-1 NH4) May 2, 3, 4 1.55 1.39 0.16 July 11, 12, 13 2.72 1.80 0.91 July 21, 22, 23 3.41 2.18 1.23 October 24, 25, 26 2.19 2.23 - 0.04 November 7, 8, 9 1.36 1.85* - 0.49 *Data from low tide on the Birch Point to Gove Point line. Table B27. The difference between the average NO2 concentrations at high tide and low tide along the Eastport–Lubec. High tide Low tide Difference Date (1995) (μmoles l-1 NO2) (μmoles l-1 NO2) (μmoles l-1 NO2) May 2, 3, 4 0.17 0.18 -0.01 July 11, 12, 13 0.10 0.05 0.05 July 21, 22, 23 0.22 0.16 0.06 October 24, 25, 26 0.16 0.48 -0.32 November 7, 8, 9 0.38 0.48* -0.10 *Data from low tide on the Birch Point to Gove Point line. Table B28. The difference between the average PO4 concentrations at high tide and low tide along the Eastport–Lubec line. High tide Low tide Difference Date (1995) (μmoles l-1 PO4) (μmoles l-1 PO4) (μmoles l-1 PO4) May 2, 3, 4 0.52 0.50 0.02 July 11, 12, 13 0.27 0.34 -0.00 July 21, 22, 23 0.33 0.47 -0.14 October 24, 25, 26 0.14 0.52 -0.38 November 7, 8, 9 0.76 0.71* 0.05 *Data from low tide on the Birch Point to Gove Point line. 422 Northeastern Naturalist Vol. 11, Special Issue 2 Table B29. The difference between the average SiO3 concentrations at high tide and low tide along the Eastport–Lubec line. High tide Low tide Difference Date (1995) (μmoles l-1 SiO3) (μmoles l-1 SiO3 ) (μmoles l-1 SiO3) May 2, 3, 4 8.20 7.68 0.52 July 11, 12, 13 3.32 3.86 -0.54 July 21, 22, 23 4.42 3.75 -2.81 October 24, 25, 26 3.65 6.46 -2.81 November 7, 8, 9 9.63 11.49* -1.15 *Data from low tide on the Birch Point to Gove Point line. were calculated from these concentration differences (Table 7) by multiplying the concentration differences by the tidal exchange volume (3.61 x 108 m3 tide-1 (Brooks et al. 1999). For example, the May concentration difference for nitrate was 103 μmoles NO3, which equals 14.4 mgN m-3 x 3.61 x 108 m3 tide-1 = 5.2 x 106 gN per tide and multiplying by 1.934 tides d-1 gives 1.0 x 107 gN d-1 or, dividing by area, 0.097 gN m-2 d-1 imported as NO3 in May. Table B30 combines data on NO3, NO2, and NH4 to determine the net flux of inorganic nitrogen. A Table B31. The weighted average inorganic nitrogen concentration difference between flood and ebb tide along the Eastport to Lubec line over a year. Fraction of days X avg. N concentration = Weighted fraction mg (mgN m-3) (mgN m-3) 175/365 (-1.12 + 16.5)/2 3.69 70/365 (16.5 + 19.4)/2 3.44 10/365 (19.4 + 24.3)/2 0.60 95/365 (24.3 + 0)/2 3.16 15/365 (-48.3 - 1.12)/2 -1.02 Sum of weighted fractions for all forms 9.87 175/365 (7.1 + 14.4)/2 5.22 70/365 (14.4 + 6.0)/2 1.96 10/365 (6.0 + 6.3)/2 0.17 95/365 (6.3 - 0)/2 0.82 15/365 (-43.3 + 7.1)/2 -0.74 Sum of weighted fractions for NO3-N 7.43 Table B30. The net difference in concentrations of inorganic nitrogen at high tide and low tide along the Eastport–Lubec line. Positive values have higher concentrations on the flood. NO3 NH4 NO2 net change Date (1995) (mgN m-3) ( mgN m-3) ( mgN m-3) (mgN m-3) May 2, 3, 4 14.4 2.24 -0.14 16.50 July 11, 12, 13 6.0 12.7 0.70 19.40 July 21, 22, 23 6.3 17.2 0.84 24.34 October 24, 25, 26* -43.3 -0.56 -4.48 -48.34 November 7, 8, 9 7.1 -6.86 -1.14 -0.90 *Point altered by dragging. Assume 0 for averaging over the time from July sampling to Oct. 20. 2004 D.E. Campbell 423 weighted average of the concentration differences over the course of the year for all species (Table B31) was 9.87 mgN m-3; that amounts to an import of 0.067 gN m-2 d-1. A weighted average of the NO3-N concentration differences over the course of the year, which we assume, indicates the net N influx offshore (Table B32) was 7.43 mgN m-3; that amounts to an import of 0.05 gN m-2 d-1. 40. Table B25 shows the chlorophyll a concentration difference along the Eastport to Lubec line on the sample dates in 1995. Converting g chla l-1 to gC -3 and multiplying by the tidal exchange volume gives the phytoplankton carbon imported or exported per tide. Annual average chlorophyll difference of (0.198 μg chla l-1)(30 C:chla) gives a concentration difference of 5.94 mgC m-3 between inside and outside the Bay or an export of phytoplankton carbon equal to 2.14 x 106 gC d-1 or 0.021 gC m-2 d-1. 41. Zooplankton import or export may be calculated from the information in Table B32 in a manner similar to that used for NO3 and phytoplankton. The average monthly difference between passage and bay stations was -0.283 mgC m-3. This gives an average daily loss of 0.0023 gC m-2 d-1. This estimate assumes that zooplankton behave like passive particles, which is not true, and leads to an export estimate which is greater than our estimate of zooplankton production. Assuming that our estimates of zooplankton production and consumption are approximately correct, the net production and export of zooplankton can be estimated by difference as 0.0007 gC m-2 d-1. Thus, about 70% of those animals that would leave the Bay daily, if zooplankton behave like passive particles, are retained in the Bay. 42. The food consumption of seals is estimated at 5–6% of their body weight per day (University of Michigan Museum of Zoology 2005). Using the estimate of 600 seals in the Bay given above, 0.0035 gC m-2 d-1 of fish are consumed by seals in the Bay. Table B32. The difference between average monthly zooplankton concentrations in mgC m-3 at the Passage and Cobscook Bay stations of Legare and MacLellan (1960). Passages Bay Difference Month (mgC m-3)* (mgC m-3) (mgC m-3) January 0.734 2.34 - 1.60 February 0.246 0.35 - 0.10 March 0.138 0.12 0.02 April 0.161 0.18 - 0.02 May 0.104 0.30 - 0.02 June 0.407 0.46 - 0.05 July 1.260 1.69 - 0.43 August 0.184 1.40 - 1.22 September 0.285 0.61 - 0.33 October 0.520 0.43 0.09 November 0.380 0.46 - 0.08 December 0.797 0.45 0.35 *Log (DV cc m-3) = -1.429 + 0.808 (Log mgC m-3) Wiebe (1975) 424 Northeastern Naturalist Vol. 11, Special Issue 2 43. Landings data for Washington County in 1996 were supplied by Keri Lyons of the Maine Department of Marine Resources. The major fin fish species taken in that year were white hake (Melanogrammus aeglefinus L. [49,962 lbs.]), cod (Gadus morhua L., [34,992 lbs.]), pollock (Pollachius virens L. [38,756 lbs.], and herring (Clupea harengus L. [291,550 lbs.]). Commercial fisheries for soft clams (Mya arenaria L.), sea scallops (Placopecten magellanicus Gmelin), periwinkles (Littorina littorea L.), sea cucumbers (Cucumaria frondosa Gunnerus), and urchins (Strongylocentrotus droebachiensis Müller) presently exist in Cobscook Bay. The live weights of these species landed in Washington County in 1996 were 938,344 kg (2,064,360 lbs) soft clams, 1,004,629 kg (2,210,212 lbs) sea scallops, 2,886,704 kg (6,350,826 lbs) urchins, 1,164,253 kg (2,561,388 lbs) sea cucumbers, and 144,247 kg (317,347 lbs) periwinkles. Landings reported for Washington County are not reported by the location in the county where they were caught; therefore, Cobscook Bay landings can be only roughly estimated. US Army Corps of Engineers (1980) reported that Cobscook Bay did not appear to have significant commercially valuable fish stocks. Dow (1959) reported that the Cobscook Bay clam harvest averaged 9.5% of Washington County landings from 1948 to 1957. Quoddy scallop landings, which are mostly taken from Cobscook Bay, averaged 43.3% of the County landings over a similar time span. Using the 1996 landings and assuming that 10% of fish landed in Washington County are produced by the Cobscook Bay ecosystem, 8.5E-5 gC m-2 d-1 of fish are harvested from the Bay. Applying Dow’s fractions of sea scallops and soft clams to the 1996 Washington County landings of shellfish and assuming that 34% of the urchins and 10% of sea cucumbers and periwinkles are landed from the Bay (Maggie Hunter, pers. comm.), 0.0068 gC m-2 d-1 of shellfish are harvested. Additional information can be found on the worldwide web (US Environmental Protection Agency 2005a).
