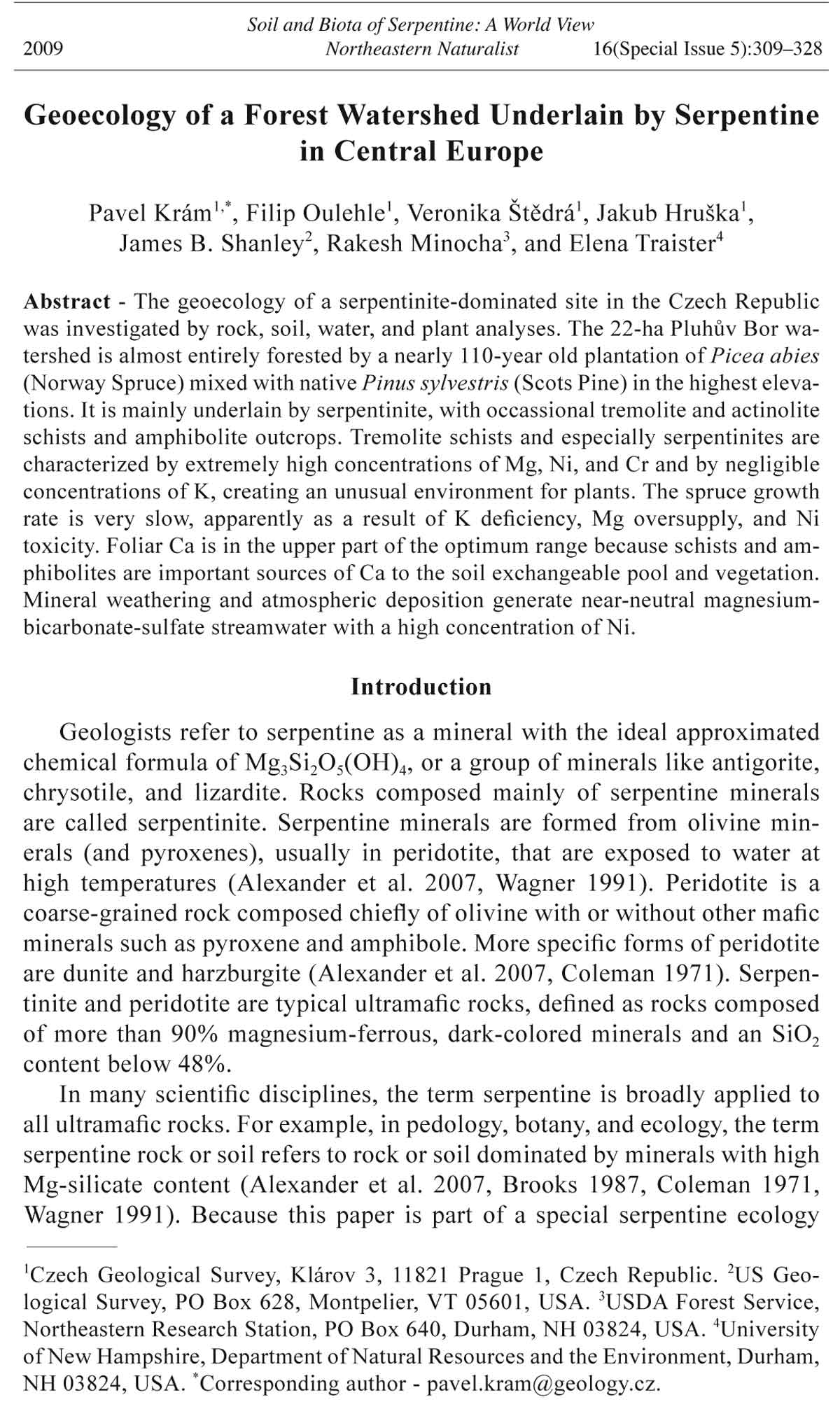

Soil and Biota of Serpentine: A World View
2009 Northeastern Naturalist 16(Special Issue 5):309–328
Geoecology of a Forest Watershed Underlain by Serpentine
in Central Europe
Pavel Krám1,*, Filip Oulehle1, Veronika Štědrá1, Jakub Hruška1,
James B. Shanley2, Rakesh Minocha3, and Elena Traister4
Abstract - The geoecology of a serpentinite-dominated site in the Czech Republic
was investigated by rock, soil, water, and plant analyses. The 22-ha Pluhův Bor watershed
is almost entirely forested by a nearly 110-year old plantation of Picea abies
(Norway Spruce) mixed with native Pinus sylvestris (Scots Pine) in the highest elevations.
It is mainly underlain by serpentinite, with occassional tremolite and actinolite
schists and amphibolite outcrops. Tremolite schists and especially serpentinites are
characterized by extremely high concentrations of Mg, Ni, and Cr and by negligible
concentrations of K, creating an unusual environment for plants. The spruce growth
rate is very slow, apparently as a result of K deficiency, Mg oversupply, and Ni
toxicity. Foliar Ca is in the upper part of the optimum range because schists and amphibolites
are important sources of Ca to the soil exchangeable pool and vegetation.
Mineral weathering and atmospheric deposition generate near-neutral magnesiumbicarbonate-
sulfate streamwater with a high concentration of Ni.
Introduction
Geologists refer to serpentine as a mineral with the ideal approximated
chemical formula of Mg3Si2O5(OH)4, or a group of minerals like antigorite,
chrysotile, and lizardite. Rocks composed mainly of serpentine minerals
are called serpentinite. Serpentine minerals are formed from olivine minerals
(and pyroxenes), usually in peridotite, that are exposed to water at
high temperatures (Alexander et al. 2007, Wagner 1991). Peridotite is a
coarse-grained rock composed chiefly of olivine with or without other mafic
minerals such as pyroxene and amphibole. More specific forms of peridotite
are dunite and harzburgite (Alexander et al. 2007, Coleman 1971). Serpentinite
and peridotite are typical ultramafic rocks, defined as rocks composed
of more than 90% magnesium-ferrous, dark-colored minerals and an SiO2
content below 48%.
In many scientific disciplines, the term serpentine is broadly applied to
all ultramafic rocks. For example, in pedology, botany, and ecology, the term
serpentine rock or soil refers to rock or soil dominated by minerals with high
Mg-silicate content (Alexander et al. 2007, Brooks 1987, Coleman 1971,
Wagner 1991). Because this paper is part of a special serpentine ecology
1Czech Geological Survey, Klárov 3, 11821 Prague 1, Czech Republic. 2US Geological
Survey, PO Box 628, Montpelier, VT 05601, USA. 3USDA Forest Service,
Northeastern Research Station, PO Box 640, Durham, NH 03824, USA. 4University
of New Hampshire, Department of Natural Resources and the Environment, Durham,
NH 03824, USA. *Corresponding author - pavel.kram@geology.cz.
310 Northeastern Naturalist Vol. 16, Special Issue 5
issue of the Northeastern Naturalist (Rajakaruna and Boyd 2009), we adopt
the ecological use of the word serpentine throughout the paper.
Most of the serpentine in the world is derived from ultramafic mantle
rocks through the process of serpentinization. In this process, water invades
fractured mantle rock and alters it to serpentinite. Complete serpentinization
of an ultramafic rock requires a dramatic influx of water that produces a large
expansion of volume up to 33%, with a corresponding decrease in density
from 3.3 to 2.5 Mg m-3, as the newly formed serpentine minerals require
much more volume than the primary minerals they replace. In this slow and
complicated process, the rock changes from a brittle, strong, dense peridotite
to a plastic, weak, light serpentinite. The serpentinite is easily deformed
and often rises in the form of buoyant rock as a diapir, when orogenic folding
forces the light and weak serpentinite to migrate upward (Alexander et
al. 2007, Hostetler et al. 1966). Peridotite and serpentinite are chemically
similar, but about 12–15% water is added to the crystalline structure in the
conversion of peridotite to serpentinite. On the other hand, serpentinization
is accomplished with no change in the relative amount of Si, Al, Mg, Cr, Mn,
Fe, Co, and Ni. The only major component removed during serpentinization
is Ca (Alexander et al. 2007, Sleep et al. 2004).
Ecosystems with serpentine soils are less productive than ecosystems
with most other kinds of soils. Vegetation on serpentine soils is often
sparser, smaller in stature, and atypical for its particular climatic zone,
with an unusual plant species composition. Many endemic species are
entirely or almost entirely restricted to serpentine areas (Alexander et al.
2007, Brooks 1987).
The first major objective of this paper is to summarize the geology and
vegetation of the largest Czech serpentine body situated in the Slavkov Forest
in the western part of the Czech Republic (Figs. 1 and 2). The second
major objective, after introducing the occurrences of serpentine bodies in the
Czech Republic (Fig. 1), is to discuss and interpret relevant facets of a longterm
geoecology and biogeochemistry study on Pluhův Bor, a small, forested
watershed from that area which is underlain by serpentine (Figs. 2 and 3).
Only a limited number of serpentine watersheds in the world have been
studied from the hydrologic and biogeochemical point of view (Table 1).
We have previously published on three of these watersheds in the Czech
Republic (Krám 2006), and in this paper, we build on our knowledge of the
hydrology and biogeochemistry to analyze the geoecology of Pluhův Bor. It
Figure 2 (opposite page bottom). Surficial geologic map of the central part of the
Slavkov Forest with the location of the largest serpentine body (Vlčí Hřbet) of the
Czech Republic. The elongated discontinuities within the major serpentine body
are surficial quaternary deposits, mostly alluvial. Abbreviations used for the small
protected areas: PB = Pluhův Bor; K = Křížky; V = Vlček; PV = Planý Vrch; M =
Mokřady pod Vlčkem; D = Dominova Skalka. Three forested serpentine watersheds
(Pluhův Bor, Vlčí Kámen and Císařský Les) were studied. Prepared using digital versions
of the geologic maps 1:50,000 (after Schovánek 1997 and Tonika 1998).
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 311
Figure 1. Upper–right panel: schematic map of Europe showing the location of the
Czech Republic (in black). Lower panel: map of the Czech Republic showing occurrences
of ultramafic rocks (serpentines). The largest Czech body of serpentine is
situated in the Slavkov Forest Protected Landscape Area (CHKO Slavkovský Les).
312 Northeastern Naturalist Vol. 16, Special Issue 5
is relevant to study this spruce-dominated, serpentine watershed because a
very limited amount of research in such environments has been published,
and in particular, the water fluxes of this watershed have been monitored
continuously and quantitatively for a long period of time.
Site Description
One-third of the Czech Republic is forested, predominantly by managed
stands of conifers. Damage to forest health by elevated atmospheric deposition
of sulfur was severe in the northwestern part of the country mainly in the
1970s and 1980s (Hruška and Krám 2003). The Slavkov Forest (Slavkovský
Les) is a Protected Landscape Area with an area of 610 km2 (Majer et al. 2005)
located in western Bohemia, western Czech Republic (Fig. 1). The highest
elevations are in the southwest; Lesný at 983 m and Lysina at 982 m have the
highest summits. There is no evidence of glaciation in the Slavkov Forest.
Serpentine geology of the Slavkov Forest
The most extensive accumulation (230 km2) of metamorphic mafic and
ultramafic rocks in the Bohemian Massif, the large craton of Central Europe,
is situated in the Slavkov Forest. This accumulation has a triangular shape
and is called the Mariánské Lázně Complex (MLC). It forms an independent
unit (allochthonous body) of an ophiolite nature with foliations dipping
mostly to the southeast. The rocks of the MLC contain mainly amphibolites
(more than 60% by volume), and also eclogite lenses, gneisses, granulites,
metagabbros, and partly or completely serpentinized peridotites. The MLC
is associated with a first-order tectonic zone, interpreted as a subductionrelated
boundary between the Saxothuringian Zone (SZ) and the Teplá
Crystalline Unit (TCU). Final configuration of the units was established
during the Variscan collision about 390–370 million years ago in which the
rocks of the MLC and TCU were thrust to the northwest over the SZ for
a distance of at least 25 km. The thrust involved lower crustal and mantle
rocks (Štědrá 2001, Štědrá et al. 2007).
Table 1. List of studied ultramafic (serpentine) watersheds in North America, South America,
Europe, Asia, and Oceania.
Area Elevation
Watershed (km2) (m asl) Reference
Clear Creek, California, USA 36.5 792–1579 Alexander et al. 2007
Soldiers Delight, Maryland, USA 0.567 140–213 Cleaves et al. 1974
Yaou, French Guiana 0.29 100–220 Freyssinet and Farah 2000
Vlčí Kámen, Czech Republic 0.24 756–849 Krám 2006
Císařský Les, Czech Republic 0.12 700–851 Krám 2006
Pluhův Bor, Czech Republic 0.216 690–804 Krám 2006
S1, in Nio watershed, Oe, Japan 0.073 170–430 Onda et al. 2001
S2, Oe, Japan 0.052 440–610 Onda et al. 2001
Couvelée, New Caledonia 40.5 0–1148 Trescases 1975, Alexander et al. 2007
Dumbéa Nord, New Caledonia 28.1 0–1250 Trescases 1975, Alexander et al. 2007
Dumbéa Est, New Caledonia 56.1 0–1046 Trescases 1975, Alexander et al. 2007
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 313
The ultramafic complex of the MLC spans approximately 9 km2. The main
strip of the ultramafic ridge, 8.1 km long and up to 1.6 km wide, is oriented
in the northeast–southwest direction (Fig. 2) in the northwestern edge of the
MLC. The dip of the main serpentine ridge is mostly very steep and varies between
60–90o southeast. Elevations reach up to 883 m on the highest summit
named Vlčí Kámen. In addition, about ten smaller, elongated bodies of basal
serpentinites occur as isolated pods or outliers of the MLC rocks further north
and west on the SZ, forming small topographic highs (Fig. 2). They could be
classified as immersed roof pendant relicts (Štědrá et al. 2007).
Serpentinized and retrogressed ultramafic rocks form the lowermost
structural base of the MLC. They form sheets and pods of serpentinized
peridotite several hundred meters thick, accompanied by minor tremolite,
actinolite and chlorite schists, and metagabbros. In particular, the internal
part of the main ultramafic ridge contains completely retrogressed spinel
peridotite and bronzite harzburgite (Fiala 1958). Rather homogenous serpentinized
peridotites include planar or elongated pale green tremolitite bodies a
few decimeters in thickness and up to a few meters in length. The magmatic
assemblage was replaced by products of metamorphism and hydration. The
main ultramafic body corresponds to so-called alpine peridotites and islandarc
harzburgites which equilibrated under temperatures of 850–900 ºC
(Goliáš 1994). Complex segments with angular blocks of amphibolites, thin
laminae and folded patches of actinolite schists, and relicts of segmented
tremolitite veins were formed especially in the external parts of the main
ultramafic body (Štědrá et al. 2007).
Serpentine vegetation of the Slavkov Forest
The rarest vegetation on serpentine is protected in five areas (Fig. 2),
which cover an area of 1.7 km2 and range in elevation from 662 to 883 m.
The National Nature Reserve Pluhův Bor was declared in 1969 with an area
of 87.2 ha and elevations of 662–766 m. The National Nature Monument
Křížky was founded in 1962 and covers an area of 4.0 ha with elevations
of 788–817 m. The three remaining areas have lower protection levels and
include: Nature Reserve Vlček (1966: 62.3 ha, 784–883 m); Nature Reserve
Planý Vrch (1966: 11.3 ha, 720–790 m); and Nature Monument Dominova
Skalka (1989: 6.6 ha, 724–747 m).
A part of the Slavkov Forest which is underlain by ultramafic rocks belongs
to the Serpentine Acidophilous Pine Woodland area, which includes
the botanical association of Asplenio cuneifolii-Pinetum sylvestris. The
overstory of this association on the main serpentine ridge is usually represented
by semi-dense stands of old and stunted Pinus sylvestris L. (Scots
Pine). Natural stands are often dominated by pine from the original local
genotype, with a natural admixture of Picea abies (L.) Karsten (Norway
Spruce) in wetter areas. At present, natural regeneration of pine is limited
due to deer browsing (Neuhäuslová et al. 2001).
314 Northeastern Naturalist Vol. 16, Special Issue 5
Several important understory species of this association are present on
the main serpentine ridge. Shrubs form local heathland with dominant Erica
herbacea L. (Winter Heath), Calluna vulgaris (L.) Hull (True Heather), and
admixed Polygaloides chamaebuxus (L.) O. Schwarz (Creeping Evergreen).
Juniperus communis L. (Common Juniper) sporadically represents the shrub
layer, and the presence of Rubus saxatilis L. (Stone Bramble) is another feature
(Zahradnický and Mackovčin 2004). In more open stands, large grassy
areas have developed, mainly composed of Calamagrostis arundinacea (L.)
Roth (Feather Reedgrass), Festuca ovina L. (Sheep’s Fescue), Deschampsia
flexuosa (L.) Trin. (Wavy Hairgrass), and Calamagrostis villosa (Chaix) J.F.
Gmelin (Small Reed) (Neuhäuslová et al. 2001, Průša 2001).
The herb level contains the ferns Asplenium cuneifolium Viv. (Serpentine
Spleenwort) and Asplenium adulterinum Milde (Adulterated Spleenwort).
The largest Czech fern, Pteridium aquilinum (L.) Kuhn (Western Brackenfern),
is also locally dense. The endemic herb Cerastium alsinifolium Tausch
(Mouse-eared Chickweed) is very rare, and there is sparse occurrence of
Dianthus sylvaticus Willd. (Carnation). Other species present at the main
serpentine ridge, but also growing frequently outside the serpentine, are a
tiny fern, Botrychium lunaria (L.) Schwartz (Moonwort), and the herbs Huperzia
selago (L.) C.F.P. Mart. (Fir Club Moss) and Anthericum liliago L.
(St. Bernard’s Lily) (Neuhäuslová et al. 2001, Nevečeřal 1995, Zahradnický
and Mackovčin 2004).
From the naturalist point of view, rock outcrops with associations of Asplenietum
serpentini contain the most valuable vegetation. The association
is formed by rare ferns such as Asplenium cuneifolium, A. adulterinum, and
Polypodium vulgare (L.) var. serpentiniti (Common Polypody). The only
known serpentine endemite of the area is the globally rare and endangered
Cerastium alsinifolium. It is only present on the serpentines of the Slavkov
Forest and it does not occur any other place in the world. This endemite was
described in 1828 at Křížky as the very first Czech endemite (Neuhäuslová
et al. 2001, Zahradnický and Mackovčin 2004).
Pluhův Bor watershed
The Pluhův Bor watershed (21.6 ha) is situated in the middle of the
Slavkov Forest with an elevation range of 690–804 m (Fig. 3). Pluhův Bor
watershed has a mixture of Picea abies (88%) and Pinus sylvestris (11%).
Most stands were converted into even-aged Picea abies plantations between
1874 and 1894. The average age of trees in the watershed is 107 years. The
major part of the watershed belongs to two altitudinal vegetation zones of
the Czech forestry system (Průša 2001). Fifty-eight percent of the watershed
is covered by waterlogged spruce-pine wood (0G category) and 34% is covered
by serpentine pine wood (0C category) (Pavloňová et al. 2008). Pluhův
Bor has been a research watershed since 1992 and belongs to the Czech
GEOMON network of small forest watersheds (Oulehle et al. 2008).
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 315
Methods
All serpentine bodies of the Czech Republic were identified from the
geodatabase of the Czech Geological Survey (CGS; Gürtlerová et al. 2002)
based on archived 1:500,000 geological maps. The areal extent of serpentine
bodies in the Czech Republic was evaluated (Fig. 1).
All rock outcrops in the Pluhův Bor watershed and its vicinity were
mapped during the creation of a 1:1000 scale topographic map in 2002
(Hrdlička-Sokolov Ltd., Sokolov, Czech Republic, unpubl. data). Rocks
were sampled at all major outcrops in the watershed and its immediate
vicinity in autumn 2005. Rock samples were crushed and powdered in an
agate mill. Prepared powders of 29 selected rock samples were dissolved in
a mixture of H2SO4, HNO3, and HF at 200 ºC and analyzed mostly by flame
atomic absorption spectrophotometry (Flame AAS) and for FeO and SiO2 by
titration at the CGS, Prague.
Soils were sampled at four locations in the watershed, and the soil pool
was estimated by excavating a quantitative pit with a surface area of 0.5 m2
in June 1993 (Krám et al. 1997). Samples were taken from each organic
and mineral soil horizon, and the mineral soil was also collected at 10-cm
intervals from the surface of the mineral soil to a depth below 40 cm. The
soil samples were air dried, weighed, and passed through either a 5-mm
sieve for the organic soil or a 2-mm sieve for the mineral soil. Soil results
are reported on an oven-dried (105 ºC) mass basis. Exchangeable base cations
(Ca2+, Mg2+, K+, Na+) were determined by extracting 2.5 g of soil with
50 mL of a 1 M NH4Cl solution for 12 hours using a mechanical vacuum
Figure 3. Topographic map of the intensively studied Pluhův Bor watershed showing
the watershed boundary and the major stream channel. The contour interval is 5 m.
Major sampling locations are shown: open triangle = throughfall plot; open circle =
bulk precipitation plot; closed triangle = tree plot; open square = soil and soil water
plot; line = weir.
316 Northeastern Naturalist Vol. 16, Special Issue 5
extractor. Exchangeable acidity was determined with an identical procedure
using a 1 M KCl solution. Individual base cations were analyzed by flame
AAS in the laboratory at Syracuse University, Syracuse, NY, USA. Cation
exchange capacity (CEC) was computed as the sum of the four exchangeable
base cations and exchangeable acidity. Base saturation (BS) was calculated
as the fraction of CEC occupied by base cations. Soil pH was determined in
distilled deionized water using a glass combination electrode. The dilution
ratios (solution mass:soil mass) were 5:1 for organic soils and 2.5:1 for mineral
soils.
Spruce tissue samples were obtained in July 1994 from 4 felled trees at
different altitudes of the watershed (Krám et al. 1997). One whole branch
was collected from the upper, middle, and lower canopy, and twigs and foliage
were separated after air-drying. The bole sample (circle shape) was sawn
from the lowermost part of the felled tree. After air drying, its bark and wood
were separated. Spruce samples and the Oi+Oe soil horizon samples were
dried at 70 ºC, ground, and dry-ashed. The ash was dissolved in concentrated
HNO3 plus 30% H2O2 and then in 10% HCl plus 10% HNO3. Total cations
were analyzed by inductively-coupled plasma (ICP) emission spectrophotometry
at Cornell University, Ithaca, NY, USA.
In May 2003, foliar samples were collected from the mid-to-upper canopy
with a pole pruner from 5 spruce trees situated at a plot in the lower part
of the Pluhův Bor watershed (Fig. 3). Individual samples from six different
foliage age groups were pooled together for chemical analyses of base cations.
Unfortunately there was not enough sample collected for the third-year
group because of technical difficulties. Total base cation concentrations of
the 5 remaining age groups of foliage were determined by flame AAS after
digestion with H2SO4 and HCl at the CGS.
The same pole-pruner technique was used at the identical plot in September
2004. Visually healthy needles for three age groups were collected
from 15 trees. Samples were collected from each tree, placed in pre-weighed
microfuge tubes, and 1 mL of 5% perchloric acid (PCA) was added to them
in order to extract PCA exchangeable base cations (Minocha et al. 1994).
Samples were transported to the laboratory on ice (Minocha et al. 2000) and
stored at -20 ºC until analyzed. They underwent 3 freeze-thaw cycles, then
were centrifuged at 13,000 x g for 10 min (Minocha et al. 1994). Exchangeable
cations were analyzed on fresh-weight basis using a simultaneous axial
ICP emission spectrophotometer (Vista CCD, Varian, Palo Alto, CA, USA)
and Vista Pro software (Version 4.0) at the USDA Forest Service, Durham,
NH, USA. Sample supernatants were diluted 100x with deionized water
prior to analysis.
Hydrochemical sampling of a watershed underlain by serpentine (Vlčí
Kámen; Fig. 2) started in January 1988. In 1991, water sampling was transferred
to the better hydrologically defined watershed of Pluhův Bor, and
a V-notch weir was built there (Figs. 2 and 3). The outflow from Pluhův
Bor was monitored continuously using a water-level recorder. Regular
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 317
hydrologic and hydrochemical monitoring of the watershed has been conducted
from 1992 to the present. Water monitoring consisted of measurements
of bulk (open area) precipitation, spruce canopy throughfall, soil water in
the organic and upper mineral soil, and streamwater (Fig. 3). Water was
collected at monthly intervals with the exception of streamwater, which
was collected weekly and more intensively during some high-flow events.
Bulk precipitation and throughfall concentrations were multiplied by water
quantities of individual samples to determine annual fluxes of chemical
elements. Mass fluxes of individual solutes in streamwater were calculated
using annual discharge-weighted average solute concentrations and annual
water output. For detail description of the analytical procedures used, see
Krám (1997) and Krám et al. (1997). Cations were analyzed by AAS or ICP
methods at the CGS.
Above the V-notch weir, a 100-m reach was established and three replicate
samples were collected from each major habitat type (pool, riffle, run)
in June 2007, for a total of nine samples. Benthic macroinvertebrates were
collected using a net and by scrubbing all rocks and disturbing sediment within
30 cm of the net frame. Specimens were usually identified to the family
level (Krám et al. 2008).
Results and Discussion
There are 38 relatively large occurrences of serpentine rocks in the
Czech Republic (Fig. 1). The area of these individual bodies is between 0.3
and 8.5 km2. The total area covered by these serpentines is 67.8 km2, which
represents 0.09% of the country. The largest serpentine bodies are the Vlčí
Hřbet (Fig. 2), the focus of this paper, between Prameny and Mnichov in
northwestern Czech Republic (8.53 km2), and the serpentine close to Mohelno
(8.02 km2) in southeastern Czech Republic (Fig. 1). Two other major
serpentine bodies have an area between 4 and 5 km2, and five bodies have an
area between 1 and 3 km2.
In total, 47 outcrops were described in the Pluhův Bor watershed and its
immediate vicinity. Twenty-four (51%) outcrops were formed by serpentinite,
seven (15%) by tremolite schist or tremolitite, six (13%) by actinolitic
schist or actinolitite, and another six (13%) by amphibolite and other
geochemically similar rocks. The remaining four outcrops were composed
of other rocks (Table 2).
A geochemical comparison of serpentinites and other ultramafic and
mafic rocks occurring in the watershed is shown in Table 3. The four major
rock types differ markedly in chemical composition. Tremolite schists and
serpentinites are characterized by extremely high concentrations of Mg, Ni,
and Cr, and only negligible concentrations of K, Na, and Al. These rocks,
therefore, create a very unusual environment for biota. It should be noted
that the K concentrations are higher in actinolite schist and amphibolite,
but the absolute values are still very low. Moreover, serpentinite contains
negligible concentrations of Ca, but that is not the case for the tremolite and
318 Northeastern Naturalist Vol. 16, Special Issue 5
actinolite schists, nor for amphibolite. The lowest content of SiO2 and the
highest content of crystalline water (H2O+) were found in serpentinite.
Serpentinite concentrations of the major oxides (SiO2, MgO, and Fe2O3)
and crystalline water (H2O+) at Pluhův Bor (Table 3) are similar to average
world serpentinite values calculated from the data in the review edited by
Roberts and Proctor (1992). However, the serpentinite at Pluhův Bor contains
lower amounts of K2O (two thirds), CaO (one fifth), and especially NaO
(one tenth of the global average value).
Soils in the Pluhův Bor watershed are moderately deep, roughly 1 m
(Hruška and Krám 2003), and most soils are Eutric Magnesic Cambisols
(Eutric Inceptisols). The mean documented depth of the upper mineral soil
(to the C horizon) in the soil pits was 70 cm, and the mean depth of forest
floor was 6 cm (Krám et al. 1997). Soils exhibited high base saturation,
increasing with depth and reaching essentially 100% in the C horizon. Soil
Table 2. List of all rock types observed at outcrops of the Pluhův Bor watershed and its immediate
vicinity within an area of approximately 0.3 km2 in 2005.
Documented Samples Samples
Rock outcrops collected analyzed
Serpentinite 24 52 16
Tremolite schist, tremolitite 7 14 7
Actinolite schist, actinolitite 6 17 3
Amphibolite, amphibole gneiss, amphibolized mylonite 6 10 2
Derivate of ultramafics – deformed pegmatite 1 4 1
Gabbro 1 1 0
Calc–silicate rock 2 2 0
Total 47 100 29
Table 3. Elemental composition (mass percentage) of major rocks in the Pluhův Bor watershed.
Abbreviations: n = number of rock samples; Md = median; SD = standard deviation; H2O+ =
crystalline water determined as loss on ignition at 1050 ºC; H2O– = moisture content determined
by heating to 110 ºC.
Serpentinite Tremolite schist Actinolite schist Amphibolite
(n = 16) (n = 7) (n = 3) (n = 2)
% Mean Md SD Mean Md SD Mean Md SD Mean, Md SD
CaO 0.34 0.05 0.53 7.27 8.37 3.77 9.78 9.76 1.03 8.8 0.2
MgO 36.0 36.1 1.3 24.9 24.2 2.3 12.6 15.2 3.9 8.0 1.8
K2O 0.018 0.020 0.008 0.024 0.020 0.014 0.15 0.16 0.02 0.23 0.02
Na2O 0.022 0.020 0.015 0.087 0.080 0.046 2.8 2.1 1.1 4.5 0.7
Ni 0.197 0.197 0.029 0.131 0.122 0.030 0.023 0.028 0.012 0.007 0.002
Cr 0.241 0.252 0.048 0.255 0.217 0.163 0.055 0.042 0.044 0.010 0.003
Al2O3 1.21 1.00 0.73 2.60 3.12 1.15 14.5 13.5 1.8 16.4 0.2
Fe2O3 6.37 6.37 0.72 4.06 3.51 2.77 2.03 2.05 0.34 2.4 0.4
FeO 1.53 1.33 0.77 3.99 3.67 1.72 6.71 6.78 0.55 6.8 0.3
MnO 0.131 0.128 0.022 0.13 0.12 0.04 0.17 0.16 0.02 0.17 0.01
H2O+ 11.8 12.0 1.0 4.6 4.2 1.1 2.7 2.9 0.6 1.9 0.2
H2O– 0.86 0.87 0.31 0.17 0.14 0.07 0.21 0.16 0.07 0.2 0.01
SiO2 41.0 40.7 1.5 51.3 51.9 3.2 47.4 45.7 2.5 48.9 0.4
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 319
pHH2O increased steadily with depth from 3.8 (Oi+Oe) and 4.0 (Oa) to 5.0 (A)
and 5.8 (B) and then to nearly neutral values (6.7) in the C horizon. Very high
concentrations of Mg were observed in the soil exchange complex. Concentrations
of exchangeable Mg increased from 0.7 g kg-1 in the litter (Oi+Oe)
to 2.4 g kg-1 in the humus (Oa), decreased markedly in the uppermost mineral
soil, and then increased steadily in the deeper mineral soils (Table 4). Pools
of exchangeable Mg were high in the forest floor (12 g m-2) and in the deepest
mineral soil examined (60 g m-2), but exhibited lower values (3 g m-2) in the
uppermost mineral soil, probably due to acidification and leaching by acidic
throughfall fluxes and spruce litterfall (Krám et al. 1997).
Spruce tissue concentrations and pools of elements are summarized
in Table 5. Among the base cations, Ca exhibited the highest concentrations
and pools in tree tissue compartments with the exception of cones.
The highest concentrations were found in bole bark. In contrast to nonserpentine
stands, Mg concentrations and pools in spruce tissues were very
high (Krám et al. 1997). The highest concentrations of K were found in
the foliage, and concentrations of Na were very low in all compartments.
Extremely high concentrations of Ni were observed, and Ni was especially
concentrated in the bole bark (Table 5).
Elemental concentrations in foliage at Pluhův Bor were similar to values
reported by Kaupenjohann and Wilcke (1995) at a serpentine site with
a 120-year old Picea abies stand at Zell in the Fichtelgebirge, Germany.
Total foliage concentrations at Pluhův Bor were 150% for Mg and 70% for
Ni of the needle concentrations at Zell. Foliar concentrations of nutrient
base cations and potentially toxic Ni were also compared with deficient and
optimum concentrations proposed by several authors (Innes 1993, Zech et
al. 1985, Zoettl et al. 1989). Foliar K appeared to be deficient at Pluhův
Bor, with concentrations at only 70–85% of the published critical values.
In contrast, foliar Ca was in the upper optimum range, and Mg exceeded
the upper maximum by at least 90%. Concentrations of Ni in Picea abies at
Pluhův Bor were about twice the upper critical concentration, representing
the point at which yield starts to decline (5.8 g kg-1; Burton et al. 1983, Innes
1993) for Picea sitchensis (Bong.) Carr (Sitka Spruce). Such a value is not
directly available for Picea abies, but it is possible that the two Picea species
are similar. The annual increment of bole wood biomass was only about one
third of that in non-serpentine stands in the vicinity of Pluhův Bor (Krám et
al. 1997).
At Pluhův Bor, total and exchangeable Ca and Mg concentrations increased
with needle age (Table 6). However, an opposite trend of lower K
concentrations was measured in older needles, suggesting that the deficient
K may be retranslocated from the older to the current needles (Ende and
Evers 1997, Kaupenjohann et al. 1989).
Net annual uptake of base cations fixed to above-ground tree biomass in
the watershed (Pavloňová et al. 2008) was calculated from the tissue chemistry
of bole wood and bole bark (Krám et al. 1997) which was divided linearly
320 Northeastern Naturalist Vol. 16, Special Issue 5
Table 4. Mean values of chemical properties of the fine soil fraction (<2 mm for mineral soil, <5 mm for organic soil) in the Pluhův Bor watershed based on
sampling in June 1993 (Krám 1997). The uppermost horizon Oi+Oe was analyzed for total (tot) and exchangeable (ex) fractions. All other horizons were only
analyzed for the exchangeable fraction. Abbreviations: CEC = cation exchange capacity (in millimoles of charge); BS = base saturation; nd = not determined.
Concentration (g kg–1) CEC Concentration (mmol+ kg–1)
Soil horizon or stratum Ca Mg K Na Ni (mmol+ kg–1) BS (%) Ca2+ Mg2+ K+ Na+
Oi+Oe (tot) 1.310 1.39 0.360 0.025 0.099
Oi+Oe (ex) 1.000 0.72 0.270 0.021 nd 236 48 51.0 60 6.90 0.9
Oa 0.760 2.41 0.300 0.025 nd 346 59 38.0 198 7.60 1.1
0–10 cm 0.048 0.08 0.041 0.008 nd 82 12 2.4 6 1.00 0.34
10–20 cm 0.027 0.17 0.013 0.007 nd 45 35 1.4 14 0.34 0.31
20–30 cm 0.068 0.42 0.007 0.006 nd 44 86 3.4 34 0.17 0.27
30–40 cm 0.098 0.69 0.006 0.006 nd 64 98 4.9 57 0.14 0.25
Dry weight Pool (g m–2) CEC Pool (mmol+ m–2)
pool (kg m–2) Ca Mg K Na Ni (mmol+ m–2) Ca2+ Mg2+ K+ Na+
Oi+Oe (tot) 3.1 4.0 4.4 1.10 0.076 0.31
Oi+Oe (ex) 3.1 3.2 2.2 0.83 0.067 nd 730 158 184 21 3
Oa 4.1 3.1 9.9 1.21 0.101 nd 1420 156 812 31 4
0–10 cm 40.0 1.9 3.0 1.61 0.308 nd 3260 95 245 41 13
10–20 cm 68.0 1.9 11.4 0.90 0.490 nd 3100 93 935 23 21
20–30 cm 89.0 6.0 36.8 0.59 0.550 nd 3910 298 3030 15 24
30–40 cm 84.0 8.3 58.5 0.47 0.490 nd 5360 413 4810 12 21
Forest floor 7.2 6.3 12.1 2.00 0.200 nd 2150 314 996 52 7
Mineral soil 281.0 18.0 110.0 3.60 1.800 nd 15600 899 9020 91 80
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 321
by mean forest age (Pavloňová et al. 2008). The following net uptake of
nutrient base cations was determined: Ca = 218 mg m-2 yr-1, Mg = 50 mg m-2
yr-1, and K = 27 mg m-2 yr-1. The uptake of Na, the sole base cation that is
not a nutrient, was only 1 mg m-2 yr-1. The mean annual weathering rates of
base cations were estimated by the biogeochemical MAGIC model (Cosby
et al. 2001) calibration procedure. The fitted annual weathering rates were
dominated by Mg (2800 mg m-2 yr-1). Weathering release of Ca was much
lower (200 mg m-2 yr-1), but still significant, and the weathering releases of
Na and K were negligible at 12 and 2 mg m-2 yr-1, respectively (Hruška and
Krám 2003). Long-term mean atmospheric deposition of K, apparently the
most critical nutritional base cation, was 13 mg m-2 yr-1 in wet deposition and
Table 6. Mean total and exchangeable element concentrations in Picea abies foliage by age class
in the Pluhův Bor watershed. The first set of samples was collected in May 2003 (J. Albrechtová
and Z. Lhotáková, Charles University, Prague, Czech Republic) and analyzed at the Czech Geological
Survey (Prague, unpubl. data). Samples from 2003 were pooled for each age class. The
second set of samples was collected in September 2004 and analyzed at the USDA Forest Service
(Durham, NH, unpubl. data). Samples from 15 individual trees per age class were analyzed.
The data shown for exchangeable ions are mean ± standard error. nd = not determined.
Total concentration in 2003 Exchangeable concentration in 2004
Foliage Dry weight (g kg–1) Fresh weight (g kg–1)
age (yr) Ca Mg K Ca Mg K
1 2.15 1.80 3.44 0.54 ± 0.05 0.35 ± 0.07 0.95 ± 0.04
2 2.89 2.29 3.00 0.97 ± 0.07 0.49 ± 0.12 0.78 ± 0.05
3 nd nd nd 1.21 ± 0.06 0.54 ± 0.10 0.72 ± 0.05
4 3.17 2.60 2.42 nd nd nd
5 3.90 2.70 2.08 nd nd nd
6 4.33 2.85 2.25 nd nd nd
Table 5. Mean total element concentrations and pools of Picea abies tissues in the Pluhův Bor
watershed. Concentrations are based on sampling in July 1994 (Krám 1997). Pools of tree compartments
are from calculations of Pavloňová et al. (2008).
Concentration in g kg–1 Ni
Spruce tissue Ca Mg K Na (mg kg–1)
Foliage 6.53 2.71 3.27 0.027 11.4
Branches and twigs 3.67 1.00 1.80 0.017 10.0
Bole bark 8.37 1.57 2.03 0.010 20.0
Bole wood 0.53 0.16 0.14 0.010 0.70
Cones 0.16 0.47 1.10 0.022 10.9
Dry weight Pool in g m–2
Ni
Spruce tissue pool in kg m–2 Ca Mg K Na (mg m–2)
Foliage 1.0 6.6 2.7 3.3 0.027 11.6
Branches and twigs 2.4 8.7 2.4 4.2 0.039 23.7
Bole bark 1.9 15.5 2.9 3.8 0.019 37.0
Bole wood 15.3 8.1 2.5 2.1 0.154 10.7
Total 20.5 38.8 10.5 13.4 0.240 82.9
322 Northeastern Naturalist Vol. 16, Special Issue 5
4 mg m-2 yr-1 in dry deposition at Pluhův Bor. The difference between the K
uptake of the trees (27 mg m-2 y-1) and the deposition and weathering fluxes
of K (19 mg m-2 y-1) suggests that there is an additional source of base cation
uptake by the trees which we are not accounting for and it is likely leaching
from the soil exchangeable complex.
Serpentinite had the lowest Ca/Mg and K/Mg ratios of the four main rock
types (Table 7). The ratios were higher in tremolite schist and especially in
actinolite schist, and were greatest in amphibolite. Ca/Mg and K/Mg ratios
in spruce foliage were much larger than in the soil. A serpentine soil sampled
at Pluhův Bor exhibited a range of exchangeable Ca/Mg values from 0.1 in
the deepest mineral soil to 0.6 in the shallowest mineral soil. The ratio was
even higher in the litter (1.4). A similar pattern was apparent for the K/Mg
values with the exception of the highest ratio, which was found in the uppermost
mineral horizon. These two ratios were higher in surface horizons
than in subsoils partially because Ca and K supplied by atmospheric deposition
are retained near the surface by cycling in vegetation. Trees growing
on serpentine take up and store more Ca and K, which are returned to the
surface when the foliage falls to the ground and decomposes. Some nutrients
are removed from senescent foliage before it falls. Similar Ca/Mg ratios
in serpentine soils were reported in California, North Carolina, Maryland,
Table 7. Mean mass ratios (g g–1) of nutrient base cations in different compartments of the
Pluhův Bor watershed.
Compartment Ca/Mg K/Mg
Rock (total concentrations)
Serpentinite 0.006 0.0003
Tremolite schist 0.4 0.0006
Actinolite schist 0.8 0.007
Amphibolite 1.3 0.02
Soil (exchangeable concentrations)
Organic horizon Oi+Oe 1.4 0.4
Organic horizon Oa 0.3 0.1
Mineral soil 0–10 cm 0.6 0.5
Mineral soil 10–20 cm 0.2 0.08
Mineral soil 20–30 cm 0.2 0.02
Mineral soil 30–40 cm 0.1 0.009
Water (total concentrations)
Bulk precipitation 5.7 0.7
Spruce throughfall 1.8 1.5
Soil water O horizon 0.2 0.2
Soil water A horizon 0.06 0.03
Streamwater 0.1 0.007
Picea abies (total concentrations)
Foliage 2.4 1.2
Cones 0.3 2.3
Branches and twigs 3.7 1.8
Bole bark 5.3 0.6
Bole wood 3.3 0.9
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 323
Pennsylvania, New York, and Maine in the USA; Newfoundland, Canada
(Rajakaruna et al. 2009); and France (Chardot et al. 2007).
Water Ca/Mg and K/Mg ratios (Table 7) declined steadily in the Pluhův
Bor watershed from bulk precipitation and throughfall to the soil water in
the mineral soil. An extremely low K/Mg ratio (0.007) was found in streamwater,
which demonstrates convincingly the shortage of K in the watershed
(Krám et al. 1997). Streamwater chemistry was also evaluated in 2001–2003
for a comparative study of Pluhův Bor with two other serpentine watersheds
(Table 1). In that comparative study, higher values of K/Mg (0.013) calculated
at Pluhův Bor were comparable to streamwater ratios at Vlčí Kámen
(0.013) and Císařský Les (0.010) (Krám 2006).
According to some published results, highly deformed and sheared
serpentines could act as an aquifer. Storage in this aquifer would delay
stream runoff in such serpentine watersheds, and there would be more
streamwater available later during the drier season. For example, a gradual
release in stream runoff at the Clear Creek watershed in California,
USA was attributed to fractures in tectonically sheared serpentine which
retain precipitation and release groundwater gradually (Alexander et
al. 2007). Slower runoff from sheared serpentine watersheds than from
watersheds with more massive rock was also demonstrated in Japanese
watersheds (Table 1); high flow was delayed, compared with flow from
non-serpentine watersheds (Onda et al. 2001).
At Pluhův Bor, long-term mean annual precipitation and throughfall
were 861 and 529 mm yr-1, respectively, and mean streamwater runoff was
273 mm yr-1. Long-term mean air temperature was 6 ºC, with the lowest
mean monthly temperature in January (-3 ºC) and the highest in July and
August (16 ºC). Mean lowest, median, and highest daily discharges of individual
years were 0.03 L s-1 (0.014 mm d-1), 0.52 L s-1 (0.21 mm d-1), and
39 L s-1 (15.7 mm d-1), respectively. Of the fourteen forested Czech catchments
of the GEOMON network (Krám and Fottová 2007), Pluhův Bor
had the largest percentage of runoff occurring during the wettest days of
the year. These flow characteristics suggest a rapid or “flashy” hydrologic
response, which is inconsistent with the development of an important
aquifer within the serpentinite observed in the studies in California and
Japan. Reasons for this discrepancy are unclear, but soil grain-size fraction
(especially clay percentage and clay mineralogy) could contribute to
the hydrologic differences.
Smectites are common secondary clay minerals in serpentine soils.
Forces between layer complexes in smectites do not prevent entry of water,
resulting in enormous expansion when the smectites are saturated with water.
Smectites were detected at Pluhův Bor, and the areal masses of clay (<0.002
mm: 5 kg m-2) and silt (0.002–0.063 mm: 110 kg m-2) in the uppermost 40 cm
of the mineral soil were considerably greater (almost one order of magnitude
greater for clays) in comparison to the non-serpentine site nearby (Krám
1997). The clay fraction, particularly the swelling smectites, could lower
324 Northeastern Naturalist Vol. 16, Special Issue 5
the soil infiltration rate and increase the near-surface contribution to stream
runoff, which may explain the flashy hydrology described above.
Pluhův Bor streamwater exhibited an extremely rapid decrease of sulfate
concentrations in the 1990s (Hruška and Krám 2003, Majer et al. 2005).
The relation of sulfate to flow shifted from positive in the early 1990s to
negative in the 2000s, which indicates that the soil sulfate pool has become
progressively depleted (Shanley et al. 2004). Magnesium-sulfate-bicarbonate
streamwater (in equivalent units) dominated previously due to sulfur pollution.
Streamwater shifted gradually to more natural magnesium-bicarbonate
water where Mg2+ is the predominant cation and bicarbonate (HCO3
-) is the
dominant anion. Streamwater pH was usually in the range between 6.9 and
8.1 (Hruška et al., in press). Streamwater was partially acidified only during
short-term hydrologic episodes when the runoff was dominated by flow
through surface soil horizons. A typical feature of serpentine waters is an
elevated concentration of Ni. The long-term mean streamwater concentration
of potentially toxic Ni was 88 μg L-1 at Pluhův Bor (standard deviation
= 45 μg L-1, range = 23–253 μg L-1). These values were always above 20 μg
L-1, the European Union annual mean limit for inland surface waters (Anonymous
2008).
Benthic macroinvertebrates in the lowermost part of the serpentine
stream at Pluhův Bor were examined (Krám et al. 2008). Nineteen taxons
were identified in the bottom sediments, including sixteen families
of Insecta (insects), and one taxon each of Arachnida (includes mites),
Oligochaeta (worms), and Turbellaria (flatworms). Within the insects, there
were 7 families of Diptera (flies), 3 families of Coleoptera (beetles) and
Trichoptera (caddisflies), 2 families of Plecoptera (stoneflies), and 1 family
of Ephemeroptera (mayflies). The most abundant individuals at Pluhův Bor
were Leuctridae (roll-winged stoneflies) from Plecoptera, and Simuliidae
(black flies) and Chironomidae (midges) from Diptera. The richness in
biodiversity at Pluhův Bor was only slightly lower than expected from the
regional relationship between the number of taxons and water pH. The described
taxons were similar to taxons observed in other Czech streams with
circum-neutral pH.
Conclusions
The total area covered by ultramafic (serpentine) rocks in the Czech Republic
is 68 km2, which represents almost 0.1% of the total land area. This
study focused on field research at a small watershed on the largest serpentine
body of the Czech Republic with an area of 8.5 km2. The whole serpentine
ridge originally belonged to the pine woodland area that includes the association
Asplenio cuneifolii-Pinetum sylvestris. However, most of the forest
stands in the Pluhův Bor watershed were converted into even-aged Picea
abies plantations.
Serpentinites and tremolite schists in the watershed were characterized
by extremely high concentrations of Mg and Ni and by negligible
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 325
concentrations of K, creating an unusual environment for vegetation. Very
slow Picea abies growth appears to be caused by K deficiency, Mg oversupply,
and Ni toxicity. However, foliar Ca was well above the deficiency level
probably because tremolite and actinolite schists and amphibolites in the
watershed were important sources of Ca to the soil and vegetation. Mineral
weathering and S from atmospheric deposition generated near-neutral
magnesium-bicarbonate-sulfate streamwater with a high concentration of
Ni. The stream was characterized by a relatively rich community of benthic
macroinvertebrates.
Acknowledgments
Contributions and kind help from D. Fottová (support in the frame of the GEOMON
network), C.T. Driscoll, C.E. Johnson (biogeochemical methods), J. Mrnková,
J. Skořepa, T.D. Bullen (rock sampling), J. Šikl, M. Mikšovský (rock analyses), B.S.
Wenner (soil processing), J. Albrechtová, Z. Lhotáková, S. Long (foliage sampling
in 2000s), K. Kolaříková (benthic macroinvertebrate determination), and J. Václavek
(streamwater sampling) are greatly appreciated. The most recent research was
supported by a grant of the Czech Ministry of Environment (VaV SP/1a6/151/07),
by the Norway and the European Economic Area Financial Mechanisms (CZ 0051),
and by the Research Plan of the Czech Geological Survey (MZP0002579801). The
comments of three anonymous reviewers and the guest editor (J.L. Horvath) are gratefully
acknowledged.
Literature Cited
Alexander, E.B., R.G. Coleman, T. Keeler-Wolf, and S.P. Harrison. 2007. Serpentine
Geoecology of Western North America: Geology, Soils, and Vegetation. Oxford
University Press, New York, NY, USA. 512 pp.
Anonymous. 2008. Directive 2008/105/EC of the European Parliament and of the
Council of 16 December 2008 on environmental quality standards in the field of
water policy. Official Journal of the European Union L 348:84–97.
Brooks, R.R. 1987. Serpentine and its Vegetation: A Multidisciplinary Approach.
Dioscorides Press, Portland, OR, USA. 514 pp.
Burton, K.W., E. Morgan, and A. Roig. 1983. The influence of heavy metals upon
the growth of Sitka spruce in south Wales forests. 1. Upper critical and foliar
concentrations. Plant and Soil 73:327–336.
Chardot, V., G. Echevarria, M. Gury, S. Massoura, and J.L. Morel. 2007. Nickel
bioavailability in an ultramafic toposequence in the Vosges Mountains (France).
Plant and Soil 293:7–21.
Cleaves, E.T., D.W. Fisher, and O.P. Bricker. 1974. Chemical weathering of
serpentinite in the Eastern Piedmont of Maryland. Geological Society of America
Bulletin 85:437–444.
Coleman, R.G. 1971. Petrologic and geophysical nature of serpentinites. Geological
Society of America Bulletin 82:897–918.
Cosby, B.J., R.C. Ferrier, A. Jenkins, and R.F. Wright. 2001. Modelling the effects of
acid deposition: Refinements, adjustments, and inclusion of nitrogen dynamics in
the MAGIC model. Hydrology and Earth System Sciences 5:499–517.
326 Northeastern Naturalist Vol. 16, Special Issue 5
Ende, H.P., and F.H. Evers. 1997. Visual magnesium deficiency symptoms (coniferous,
deciduous trees) and threshold values (foliar, soil). Pp. 3–21, In R.F. Hüttl
and W. Schaaf (Eds.). Magnesium Deficiency in Forest Ecosystems. Kluwer
Academic Publishers, Dordrecht, The Netherlands. 362 pp.
Fiala, J. 1958. Major rock types in the broad vicinity of Prameny, Imperial Forest (in
Czech). Geologické Práce, Bratislava, Slovakia 50:1–55.
Freyssinet, P., and A.S. Farah. 2000. Geochemical mass balance and weathering rates
of ultramafic schists in Amazonia. Chemical Geology 170:133–151.
Goliáš, V. 1994. Ore minerals of the Mariánské Lázně Metabasic Complex. M.Sc.
Thesis. Charles University, Prague, Czech Republic. 94 pp. [In Czech].
Gürtlerová, P., J. Aichler, and R. Tomas (Eds.). 2002. Digital atlas of maps of the
Czech Republic 1:500,000. Czech Geological Survey, Prague, Czech Republic.
Hostetler, P.B., R.G. Coleman, F.A. Mumpton, and B.W. Evans. 1966. Brucite in
alpine serpentinites. American Mineralogist 51:75–98.
Hruška, J., and P. Krám. 2003. Modelling long-term changes in stream water and
soil chemistry in catchments with contrasting vulnerability to acidification
(Lysina and Pluhuv Bor, Czech Republic). Hydrology and Earth System Sciences
7:525–539.
Hruška, J., P. Krám, W.H. McDowell, and F. Oulehle. 2009. Increased dissolved organic
carbon (DOC) in Central European streams is driven by reductions in ionic
strength rather than climate change or decreasing acidity. Environmental Science
and Technology 43:4320–4326.
Innes, J.L. 1993. Forest Health: Its Assessment and Status. CAB International,
Wallingford, UK. 677 pp.
Kaupenjohann, M., and W. Wilcke. 1995. Heavy metal release from a serpentine
soil using a pH-stat technique. Soil Science Society of America Journal
59:1027–1031.
Kaupenjohann, M., W. Zech, R. Hantschel, R. Horn, and B.U. Schneider. 1989.
Mineral nutrition of forest trees: A regional survey. Pp. 282–296, In E.D.
Schulze, O.L. Lange, and R. Oren (Eds.). Forest Decline and Air Pollution. A
Study of Spruce (Picea abies) on Acid Soils. Ecological Studies 77. Springer-
Verlag, Berlin, Germany. 475 pp.
Krám, P. 1997. Biogeochemistry of forest catchments in the Czech Republic with
contrasting lithology under conditions of acidic deposition. Ph.D. Dissertation.
Syracuse University, Syracuse, NY, USA. 179 pp.
Krám, P. 2006. Chemical composition of runoff from eleven forested and
geochemically contrasting catchments underlain by leucogranite, serpentinite,
and amphibolite. Pp. 182–186, In Geoscience Research Reports for 2005, Czech
Geological Survey, Prague, Czech Republic. [In Czech, with English abstract].
Krám, P., and D. Fottová. 2007. Daily surface runoff characteristics from fourteen
forest catchments of the Czech GEOMON network in 1994–2005 water years
[in Czech, English Abstract]. Pp. 61–68, In A. Jakubíková, V. Broža and J.
Szolgay (Eds.). Adolf Patera 2007 Workshop: Extreme Hydrological Events in
Catchments, Czech Technical University, Prague, Czech Republic. 332 pp.
Krám, P., J. Hruška, B.S. Wenner, C.T. Driscoll, and C.E. Johnson. 1997. The
biogeochemistry of basic cations in two forest catchments with contrasting
lithology in the Czech Republic. Biogeochemistry 37:173–202.
Krám, P., E. Traister, K. Kolaříková, F. Oulehle, J. Skořepa, and D. Fottová. 2008.
Stream benthic macroinvertebrates of nine selected catchments of the GEOMON
network. Pp. 160–166, In Geoscience Research Reports for 2007, Czech
Geological Survey, Prague, Czech Republic. [In Czech, with English abstract].
2009 P. Krám, F. Oulehle, V. Štědrá, J. Hruška, J.B. Shanley, R. Minocha, and E. Traister 327
Majer, V., P. Krám, and J.B. Shanley. 2005. Rapid regional recovery from sulfate and
nitrate pollution in streams of the western Czech Republic—Comparison to other
recovering areas. Environmental Pollution 135:17–28.
Minocha, R., W.C. Shortle, S. Long, and S.C. Minocha. 1994. A rapid and reliable
procedure for extraction of cellular polyamines and inorganic ions from plant
tissues. Journal of Plant Growth Regulation 13:187–193.
Minocha, R., S. Long, A.H. Magill, J. Aber, and W.H. McDowell. 2000. Foliar free
polyamine and inorganic ion content in relation to soil and soil solution chemistry
in two fertilized forest stands at the Harvard Forest, Massachusetts. Plant and
Soil 222:119–137.
Neuhäuslová, Z., D. Blažková, V. Grulich, V., M. Husová, M. Chytrý, J. Jeník, J.
Jirásek, J. Kolbek, Z. Kropáč, V. Ložek, J. Moravec, K. Prach, K. Rybníček, E.
Rybníčková, and J. Sádlo. 2001. Map of the Potential Natural Vegetation of the
Czech Republic. Academia, Prague, Czech Republic. 341 pp. [In Czech, with
English summary].
Nevečeřal, P. 1995. Flora and vegetation. Pp. 15–21, In Arnika Special 1, Protected
Landscape Area Slavkov Forest. Slavkov Forest Authority, Mariánské Lázně,
Czech Republic. 108 pp.
Onda, Y., Y. Komatsu, M. Tsujimura, and J. Fujihara. 2001. The role of subsurface
runoff through bedrock on storm-flow generation. Hydrological Processes
15:1693–1706.
Oulehle F., W.H. McDowell, J.A. Aitkenhead-Peterson, P. Krám, J. Hruška, T.
Navrátil, F. Buzek, and D. Fottová. 2008. Long-term trends in stream nitrate concentrations
and losses across watersheds undergoing recovery from acidification
in the Czech Republic. Ecosystems 11:410–425.
Pavloňová, G., D. Cichra, M. Hanychová, and M. Nikl. 2008. Biomass balance for
the fourteen GEOMON catchments (in Czech). Research Report. Project 30309/
ENV/2008 2027/610/2008, Stages 1, 2. Forest Management Institute ÚHÚL,
Brandýs nad Labem, Czech Republic. 55 pp.
Průša, E. 2001. Silviculture on Typological Principles. Lesnická Práce, Kostelec nad
Černými lesy, Czech Republic. 593 pp. [In Czech].
Rajakaruna, N., and R.S. Boyd. 2009. Advances in serpentine geoecology: A retrospective.
Northeastern Naturalist 16(Special Issue 5):1–7.
Rajakaruna, N., T.B. Harris, and E.B. Alexander. 2009. Serpentine geoecology of
Eastern North America: A review. Rhodora 111:21–112.
Roberts, B.A., and J. Proctor (Eds.). 1992. The Ecology of Areas with Serpentinized
Rocks: A World View. Geobotany 17. Kluwer Academic Publishers, Dordrecht,
The Netherlands. 427 pp.
Schovánek, P. 1997 (Ed.). Geological map 1:50,000 sheet 11–23 Sokolov. Czech
Geological Survey, Prague, Czech Republic.
Shanley, J.B., P. Krám, J. Hruška, and T.D. Bullen. 2004. A biogeochemical comparison
of two well-buffered catchments with contrasting histories of acid deposition.
Water, Air, and Soil Pollution: Focus 4/2–3:325–342.
Sleep, N.H., A. Meibom, T. Fridriksson, R.G. Coleman, and D.K. Bird. 2004. H2-rich
fluids from serpentinization: Geochemical and biotic implications. Proceedings
of the National Academy of Science USA 101:1218–1223.
Štědrá, V. 2001. Tectonometamorphic evolution of the Mariánské Lázně Complex,
western Bohemia, based on the study of metabasic rocks. Ph.D. Dissertation.
Charles University, Prague, Czech Republic. 168 pp.
328 Northeastern Naturalist Vol. 16, Special Issue 5
Štědrá, V., S. Vrána, V. Kachlík, V. Žáček, and J. Konopásek. 2007. The Mariánské
Lázně Complex and its relations to neighbouring metamorphic units. Post-
Conference Excursion Guide. Pp.127–153, In Z. Venera (Ed.). CzechTech 07:
5th Meeting of the Central European Tectonic Studies Group and 12th Meeting
of the Czech Tectonic Studies Group. Czech Geological Survey, Prague, Czech
Republic. 153 pp.
Tonika, J. 1998 (Ed.). Geological map 1:50,000 sheet 11–41 Mariánské Lázně.
Czech Geological Survey, Prague, Czech Republic.
Trescases, J.J. 1975. Supergenic Geochemical Evolution of the Ultrabasic Rocks
in the Tropical Zone—Formation of the Nickeliferous Deposits in New Caledonia.
Mémoires No. 78. ORSTOM, Paris, France. 259 pp. [In French, with
English abstract].
Wagner, D.L. 1991. The state rock of California: Serpentine of serpentinite? California
Geology 44:164.
Zahradnický, J., and P. Mackovčin (Eds.). 2004. Pilsen and Carlsbad Regions. Protected
Areas of the Czech Republic, Volume 11. Agency for Nature Conservation
and Landscape Protection of the Czech Republic, Prague, Czech Republic. 588
pp. [In Czech].
Zech, W., T. Suttner, and E. Popp. 1985. Elemental analyses and physiological responses
of forest trees in SO2-polluted area of NE-Bavaria. Water, Air, and Soil
Pollution 25:175–183.
Zoettl, H.W., R.F. Huettl, S. Fink, G.H. Tomlinson, and J. Wisniewski. 1989. Nutritional
disturbances and histological changes in declining forests. Water, Air, and
Soil Pollution 48:87–109.
