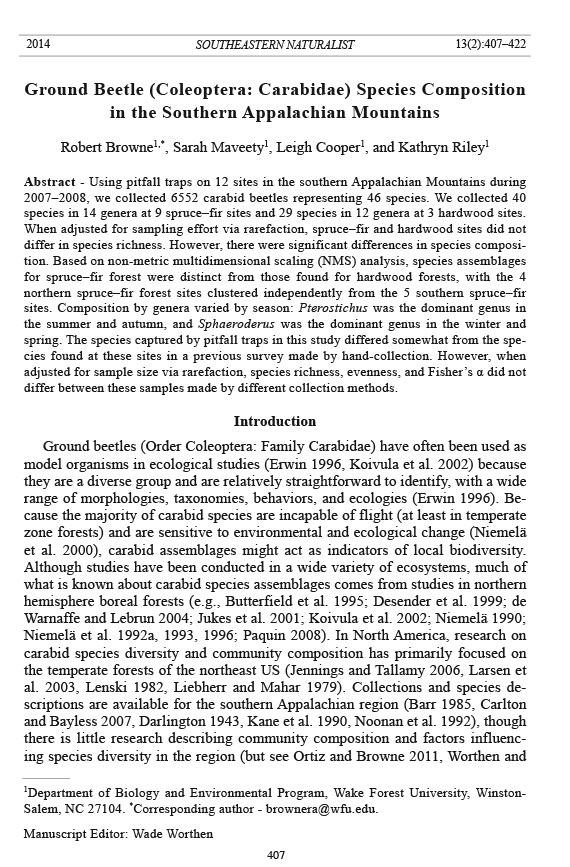

Southeastern Naturalist
407
R. Browne, S. Maveety, L. Cooper, and K. Riley
22001144 SOUTHEASTERN NATURALIST 1V3o(2l.) :1430,7 N–4o2. 22
Ground Beetle (Coleoptera: Carabidae) Species Composition
in the Southern Appalachian Mountains
Robert Browne1,*, Sarah Maveety1, Leigh Cooper1, and Kathryn Riley1
Abstract - Using pitfall traps on 12 sites in the southern Appalachian Mountains during
2007–2008, we collected 6552 carabid beetles representing 46 species. We collected 40
species in 14 genera at 9 spruce–fir sites and 29 species in 12 genera at 3 hardwood sites.
When adjusted for sampling effort via rarefaction, spruce–fir and hardwood sites did not
differ in species richness. However, there were significant differences in species composition.
Based on non-metric multidimensional scaling (NMS) analysis, species assemblages
for spruce–fir forest were distinct from those found for hardwood forests, with the 4
northern spruce–fir forest sites clustered independently from the 5 southern spruce–fir
sites. Composition by genera varied by season: Pterostichus was the dominant genus in
the summer and autumn, and Sphaeroderus was the dominant genus in the winter and
spring. The species captured by pitfall traps in this study differed somewhat from the species
found at these sites in a previous survey made by hand-collection. However, when
adjusted for sample size via rarefaction, species richness, evenness, and Fisher’s α did not
differ between these samples made by different collection methods.
Introduction
Ground beetles (Order Coleoptera: Family Carabidae) have often been used as
model organisms in ecological studies (Erwin 1996, Koivula et al. 2002) because
they are a diverse group and are relatively straightforward to identify, with a wide
range of morphologies, taxonomies, behaviors, and ecologies (Erwin 1996). Because
the majority of carabid species are incapable of flight (at least in temperate
zone forests) and are sensitive to environmental and ecological change (Niemelä
et al. 2000), carabid assemblages might act as indicators of local biodiversity.
Although studies have been conducted in a wide variety of ecosystems, much of
what is known about carabid species assemblages comes from studies in northern
hemisphere boreal forests (e.g., Butterfield et al. 1995; Desender et al. 1999; de
Warnaffe and Lebrun 2004; Jukes et al. 2001; Koivula et al. 2002; Niemelä 1990;
Niemelä et al. 1992a, 1993, 1996; Paquin 2008). In North America, research on
carabid species diversity and community composition has primarily focused on
the temperate forests of the northeast US (Jennings and Tallamy 2006, Larsen et
al. 2003, Lenski 1982, Liebherr and Mahar 1979). Collections and species descriptions
are available for the southern Appalachian region (Barr 1985, Carlton
and Bayless 2007, Darlington 1943, Kane et al. 1990, Noonan et al. 1992), though
there is little research describing community composition and factors influencing
species diversity in the region (but see Ortiz and Browne 2011, Worthen and
1Department of Biology and Environmental Program, Wake Forest University, Winston-
Salem, NC 27104. *Corresponding author - brownera@wfu.edu.
Manuscript Editor: Wade Worthen
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
408
Merriman 2013). Although seasonal occurrence has been reported for some North
American carabid species (Larochelle and Lariviere 2003), detailed studies for
carabid species assemblages have primarily been reported for north temperate
sites, e.g., Alberta (Niemelä et al. 1992b).
In the southern Appalachians of Virginia, North Carolina, and Tennessee, colder
temperatures and high rainfall are conducive to growth of Picea rubens Sargent
(Red Spruce) and Abies fraseri Pursh (Poir) (Fraser Fir), which are the dominant
trees at elevations >1370 m (White et al. 1993). These spruce–fir forests only occur
on mountaintops, and represent relict ecosystems from the last glacial period (Crespi
et al. 2003, Ortiz and Browne 2011, Sipe and Browne 2004). As such, spruce–fir
forests are insular “sky-islands” for habitat specialists such as Glaucomys sabrinus
Shaw (Northern Flying Squirrel; Arbogast et al 2005, Browne et al. 1999), Demoganathus
wrighti King (Pygmy Salamander; Crespi et al. 2003), and Desmognathus
organi (Northern Pygmy Salamander; Crespi et al. 2003, 2010).
Curiously, carabid beetles do not seem to respond to these habitats as islands.
Contrary to the predictions of the theory of island biogeography (MacArthur and
Wilson 1967), Ortiz and Browne (2011) found no significant relationships between
habitat size or degree of isolation and any measure of carabid diversity (species
richness, Shannon-Weiner diversity, Shannon’s evenness, Fisher’s alpha, probability
of interspecific encounter [PIE], dominance, or rarefaction score).
Ortiz and Browne (2011) collected beetles by hand, in an active-search method.
Numerous studies of arthropod communities suggest that choice of collection
method influences the species detected and their relative abundances. Pitfall traps
have routinely been used in temperate regions to assess carabid diversity (e.g.,
Dufrêne and Legendre 1997, Günter and Assmann 2004, Liu et al. 2007). Pitfall
traps might reflect activity patterns more than community composition (Greenslade
1964, Gutiérrez and Menéndez 1997). However, the amount of activity may be a
better index of ecological importance and competitive and predatory effects than
absolute abundance alone (Lenski 1982). Pitfall trapping is not always the most
appropriate sampling method for carabids. A more complete inventory of the species
present in a study area is obtained by employing multiple modes of collection
that target different activity types and niches (Coddington et al. 1991, Longino et
al. 2002, Maveety et al. 2011). For these reasons, we decided to sample these sites
again using a new method.
As such, the principle objectives of this investigation were to: 1) identify, via
pitfall trapping, carabid species composition for spruce–fir sites in the southern
Appalachian Mountains; 2) describe how community composition varies between
forest habitats (spruce–fir vs. hardwood) and between seasons; 3) and compare carabid
species composition in samples from pitfall traps and in samples gathered by
Ortiz and Browne (2011) using hand-collection techniques.
Methods
Using pitfall traps at 9 sites representing the largest spruce–fir areas in the southern
Appalachians, we collected ground beetles (Coleoptera: Carabidae) (Table 1,
Southeastern Naturalist
409
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
Fig. 1). For more detailed site descriptions of the sites, see White et al. (1993) and
Ortiz and Browne (2011). For comparative purposes, we also collected ground beetles
at 3 lower-elevation hardwood sites (Table 1) that are dominated by Quercus
Figure 1. Map of spruce–fir forest study sites in the southern Appalachian Mountains.
Clingmans’s Dome and Newfound Gap sites are located within the Great Smoky Mountains
National Park. Shaded areas indicate spruce–fir forests (after O rtiz and Browne 2011).
Table 1. Description of sites, with number of carabid beetles (n) collected at each site. Area size is
not given for hardwood sites since it is orders of magnitude greater than for spruce–fir sites. Forest
type: spruce–fir (SF) and hardwood (HW).
Forest Latitude (N), Elevation
Site Code type longitude (W) (m) Area (ha) n
Clingman’s Dome, NC GSM SF 35°33.473', 83°29.690' 1606–1920 18,390 1692
Grandfather Mt., VA GF SF 36°05.958', 81°47.740' 1324 285 430
Newfound Gap, NC NF SF 35°33.335', 83°08.382' 1554 931 697
Mt. Mitchell, NC MI SF 35°46.149', 82°15.818' 2008 4337 609
Mt. Rogers, VA MR SF 36°38.122', 81°36.373' 1616 639 236
Richland Balsam/ RIPI SF 35°20.700', 82°57.937' 1874 1740 959
Mt. Pisgah, NC
Roan Mt., NC RM SF 36°06.461', 82°06.594' 1859 713 186
Water Rock Knob, NC WR SF 35°27.555', 83°08.382' 1798 537 514
Whitetop Mt./ WTEG SF 36°38.310', 81°36.373' 1646 138 185
Elk Garden, VA
Bradley Fork Trail NC BF HW 35°33.182', 83°18.702' 675 - 297
Doughton Park, NC DP HW 36°25.555', 81°09.105' 975 - 532
Kephart Trail NC KEP HW 35°35.327', 83°21.900' 886 - 215
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
410
(oak) and Fagus (beech). Carabid beetles had previously been collected by hand at
12 sites (Ortiz and Browne 2011); 11 of the sites we sampled for this study were
also sampled in the previous study. Due to road closure, we did not sample in the
present study the Balsam (BA) site that Ortiz and Browne (2011) sampled. Newfound
Gap (NF), located at approximately the same elevation within Great Smoky
Mountains National Park but 20 km to the east, was substituted for BA in this study.
We believe, based on forest age, elevation, rain fall, and tree species composition,
that these two spruce–fir sites are approximately ecologically equivalent. The maximum
distance is 206 km between any two of the spruce–fir study sites, and 224 km
between any two of the hardwood study sites.
We constructed each pitfall trap by embedding a 16-ounce plastic cup in the
soil with the rim flush with the ground. We embedded 12 cups, arranged along an
approximately 20-m line, at each site. We half-filled the cups with non-toxic antifreeze
(propylene glycol), which kills and preserves arthropods. A flexible foam
cover (12 x 12 cm), raised approximately 1 cm above each cup (via nails partially
pushed into the soil) prevented excess rainwater and debris from entering the cup.
Each month from June 2007 through May 2008, we drained the contents of each
cup through a fine-mesh strainer and removed adult carabid beetles, which we preserved
in 95% ethanol, identified to species, and stored at Wake Forest University.
We used several indices to measure carabid beetle diversity for each site (for
detailed descriptions of indices, see Magurran 2004): raw number of species,
number of genera, Fisher’s alpha, and Shannon’s evenness (E). We adjusted species
numbers for sampling effort using rarefaction curves. Randomized rarefaction
curves without replacement were produced for each site with EstimateS 8.20 using
the Mao Tau richness index (Colwell 2005). The steepness of the slope of the curve
indicates the rate at which more species can be expected to be added to the sample
with more collection effort. When a curve is at asymptote, it implies that all species
present at that location have been collected.
We analyzed species composition via non-metric multidimensional scaling
(NMDS), using PC-ORD Version 6 (www.pcord.com). NMDS was calculated
based on Sørensen’s (Bray-Curtis) index, using 500 runs with real data and 100
iterations; we analyzed three dimensions and reported in the results the two dimensions
with greatest r2. We also analyzed species composition for seasonal effects.
We defined seasons as: summer (June–August), autumn (September–November),
winter (December–February), and spring (March–May). We compared data from
this pitfall trap study to previously reported data for carabids based on hand collections
(Ortiz and Browne 2011). The same sites were used in both studies, with the
exception of the substitution of the NF site for the BA site.
Results
Collections from pitfall traps
We collected a total of 6552 individuals representing 46 species in 14 genera:
5508 individuals representing 40 species in 14 genera from 9 spruce–fir sites
(Table 2), and 1044 carabid beetles representing 29 species in 12 genera from 3
Southeastern Naturalist
411
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
Table 2. Species composition for 9 spruce–fir sites and 3 hardwoo d sites in the southern Appalachians. See text for site abbreviations.
Spruce–fir Hardwood
Species GSM GF NF MI MR RIPI RM WR WTEG Total BF DP KEP Total
Agonum spp. A 0 1 1
Agonum spp. B 1 1 0
Carabus goryi Dejean 10 13 1 274 22 133 8 21 23 505 139 227 2 368
Carabus serratus Say 6 6 0
Chlaenius amoenus Dejean 1 1 0
Chlaenius emarginatus Say 1 1 1 3 1 1
Cyclotrachelus laevipennis LeConte 3 1 4 1 3 4
Cyclotrachelus sigillatus Say 1 1 4 3 51 58
Dicaelus ambiguus LaFerte-Senectere 2 2 0
Dicaelus polinotes Dejean 0 1 1
Dicaelus politus Dejean 0 2 2
Dicaelus teter Bonelli 8 6 1 1 9 25 17 10 19 46
Galerita lecontei lecontei Dejean 2 2 0
Gastrellarius blanchardi Horn 2 2 1 1
Gastrellarius honestus Say 12 2 3 20 2 3 3 45 1 1 8 10
Gastrellarius unicarum Say 1 1 0
Harpalus herbivagus Say 1 1 2 0
Harpalus pensylvanicus De Geer 1 1 2 0
Harpalus spadiceus Dejean 13 5 1 4 3 2 28 2 11 13
Maronetus debilis LeConte 14 1 5 39 1 5 65 0
Myas coracinus Say 0 1 1
Myas cyanescens Dejean 3 3 0
Platynus angustatus Dejean 6 1 2 76 4 1 90 2 2
Platynus cincticollis Say 1 1 2 0
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
412
Table 2, continued.
Spruce–fir Hardwood
Species GSM GF NF MI MR RIPI RM WR WTEG Total BF DP KEP Total
Platynus decentis Say 0 1 1
Platynus trifoveolatus Beutenmuller 1 1 0
Pterostichus acutipes Barr 0 7 7
Pterostichus adoxus Say 176 67 22 22 5 103 6 75 30 506 2 19 2 23
Pterostichus coracinus Newman 62 2 23 20 53 160 0
Pterostichus lachrymosus Newman 506 38 311 17 7 404 86 1369 70 70
Pterostichus moestus Say 4 1 5 4 13 17
Pterostichus mutus Say 1 3 1 5 0
Pterostichus palmi Schaeffer 2 2 3 1 8 0
Pterostichus relictus Newman 1 1 1 1
Pterostichus rostratus Newman 98 47 9 83 47 114 72 30 1 501 11 4 15
Pterostichus tristis Dejean 73 18 11 161 31 8 8 310 10 1 11
Scaphinoutus andrewsii Valentine 6 5 3 3 3 20 0
Scaphinotus elevatus Fabricius 76 9 101 186 83 2 85
Scaphinotus guyotii LeConte 1 2 2 1 17 23 1 1
Scaphinotus tricarnitus Casey 93 43 3 31 1 30 201 1 1 1 3
Scaphinotus viduus Dejean 45 2 3 3 7 2 62 1 1
Scaphinotus violaceous LeConte 2 25 2 2 2 3 2 38 3 1 4
Sphaeroderus bicarinatus LeConte 271 2 105 1 32 1 87 2 501 69 11 99 179
Sphaeroderus canadensis Chaudoir 310 21 17 5 2 45 24 32 9 465 11 10 12 33
Sphaeroderus schaumi Chaudoir 1 13 1 15 0
Sphaeroderus stenostomus Dejean 53 157 4 2 31 4 44 6 40 341 34 50 1 85
Total 1692 430 697 609 236 959 186 514 185 5508 297 532 215 1044
Southeastern Naturalist
413
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
hardwood sites. For all statistical tests, we corrected abundance for trap nights and
adjusted for sampling effort based on n = 185 at all sites. Four species were present
at all 12 sites: Carabus goryi, Pterostichus adoxus, Sphaeroderus canadensis, and
Sphaeroderus stenostomus. These four species can be considered elevation/foresttype
generalists. In addition to these four generalist species, Pterostichus rostratus
was found at all spruce–fir sites, and Cyclotrachelus sigillatus, Dicaelus teter, Gastrellarius
honestus, and Scaphinotus tricarnitus occured at all hardwood sites.
When comparing indices for spruce–fir sites versus hardwood sites (Table 3),
Shannon’s evenness was higher for spruce–fir sites than hardwood sites (single
factor ANOVA: P = 0.014). Richness adjusted by rarefaction (Sadj) did not differ
significantly between spruce–fir and hardwood sites. There was no difference in
occurrence of rare species between spruce–fir and hardwood forests. For spruce–fir
forests, 27/40 species (68%) were rare (defined as <1% of total abundance); for
hardwood forests, 16/29 (55%) species were rare.
For genera (Fig. 2), a higher proportion of Pterostichus and Maronetus were
found in spruce–fir forests than in hardwood forests (repeated measures ANOVA:
P < 0.01 and P < 0.002, respectively). Conversely, Carabus and Dicaelus were more
common in hardwood forests than spruce–fir forests (repeated measures ANOVA:
P < 0.001 and P < 0.0001, respectively). For carabid beetle taxa assemblages as
a whole, spruce–fir and hardwood forests differed significantly (χ2 = 58.67, P <
0.001). Six species were significantly more abundant at spruce–fir sites than hardwood
sites (Table 2): Pterostichus adoxus, Pterostichus coracinus, Pterostichus
rostratus, Scaphinotus andrewsii, Scaphinotus tricarinitus, and Maronetus debilis
Table 3. Diversity indices for carabid beetle assemblages. Upper panel is for spruce–fir sites; Lower
panel is for hardwood sites. S = number of species, E = Shannon’s evenness, α = Fisher’s alpha, Sadj
= species number based on rarefaction. See Table 1 for site codes.
Site n S E α Sadj
Spruce–fir sites
GSM 1698 24 0.66 3.96 12.5
GF 430 20 0.71 4.34 12.5
MI 606 17 0.56 3.25 9.7
MR 236 18 0.71 4.53 14.0
NF 697 23 0.61 4.57 12.7
RIPI 959 18 0.66 3.14 11.5
RM 186 13 0.68 3.18 10.5
WR 514 18 0.78 3.63 13.5
WTEG 166 17 0.72 4.74 14.4
Mean 610.2 18.70 0.68 3.93 12.37
S.E. 161.2 1.10 0.02 0.22 0.52
Hardwood sites
BF 297 16 0.59 3.62 11.5
DP 532 22 0.62 4.62 13.2
KEP 215 17 0.60 4.32 11.5
Mean 348 18.30 0.62 4.19 12.07
S.E. 95 1.86 0.01 0.30 0.57
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
414
(single factor ANOVA: P < 0.05 in all cases). Only Cyclotrachelus sigillatus was
significantly more common in hardwood sites than spruce–fir sites (single factor
ANOVA: P < 0.01).
For NMS analysis (Fig. 3), Axes 2 and 3 had the largest r values, although
Axes 1 and 2 were significantly correlated (F = 5.7569, P = 0.037, r = 0.605).
Spruce–fir forest sites and hardwood forest sites clustered independently (Fig. 3).
Figure 3. Nonmetric multidimensional scaling (NMS) based on Sorenson’s similarity index
derived from carabid species presence/absence from our pitfall-trap collections.
Figure 2. Composition of Carabidae genera obtained from traps for combined spruce–fir
sites and combined hardwood sites. Genera consisting of <1.20% of collected individuals
are not shown.
Southeastern Naturalist
415
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
Spruce–fir forests are aligned on a northeast-to-southwest axis, with the four
northern-most sites (MR, WTEG, RM, and GF) clustering in the lower left-hand
portion of the quadrant, and the remaining more southern sites clustering in the
upper right of the quadrant. The correlations were significant between Axis 3
and both latitude (F = 21.65, P = 0.002, r = 0.869) and longitude (F = 10.34, P =
0.011, r = 0.775).
When species richness (S) was adjusted for sampling effort via rarefaction (Sadj),
there was no significant difference for Sadj among spruce–fir sites (χ2 test: P > 0.5).
Randomized rarefaction curves do not reach asymptote for any site (Fig. 4). The
Figure 4. Randomized rarefaction curves from trap collections for A) spruce–fir sites and
B) hardwood sites, based on the Mao Tau richness estimator.
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
416
slope of the species-accumulation curve for hardwood forest sites was significantly
higher than that for spruce–fir sites (slope ± s.e. = 0.027 ± 0.0019 for hardwood sites
and 0.0078 ± 0.0056 for spruce–fir sites; F = 3.4, P = 0.021). Abundances of the 12
most common species (n ≥ 45) varied significantly across sites (χ2 tests: P < 0.001 for
all 12 species, P < 0.004 with Bonferroni correction). There was no significant difference
among Sadj for hardwood sites (χ2 test: P > 0.5). Eight species had sufficient
sample size using values adjusted for sampling effort (n ≥ 15, the minimum n for χ2
test for 3 sites with an expected value of n = 5 per site) to test for differences in abundance
among sites: Carabus goryi, Cyclotrachelus sigillatus, Dicaelus teter, Pterostichus
lachrymosus, Scaphinotus elevatus, Sphaeroderus bicarnitus, and Sphaeroderus
stenostomus (P < 0.001 for all species, except P < 0.05 for Dicaelus teter). The
only species which did not have a significant difference in abundance among hardwood
sites was Sphaeroderus canadensis.
The abundance of several genera varied seasonally (Fig. 5). The majority
(54.4%) of individuals were trapped in summer, with 23.9% in autumn, 20.2% in
spring and 1.5% in winter. Pterostichus was the dominant genus in the summer and
fall months, while Sphaeroderus was dominant in winter (composing more than
95% of individuals captured during that season). The other two Cychrine genera,
Scaphinotus and Maronetus, showed more restrictive seasonal distributions; we
found Scaphinotus only in summer and autumn, and collected the majority (82%) of
Maronetus in autumn. At spruce–fir sites, Pterostichus lachrymosus was the mostcommon
species for all seasons except winter, when Sphaeroderus stenostomus
dominated (Table 4). For hardwood forests, Carabus goryi was the most common
species in spring and summer and was relatively abundant in autumn along with
Scaphinotus elevatus, and Sphaeroderus bicarinatus was the most abundant in winter.
Thus, Cychrines, which prey almost exclusively on gastropods, dominated in
winter and autumn at both spruce–fir and hardwood forest sites, although they were
Figure 5. Seasonal composition of Carabidae genera from combined spruce–fir sites. Genera
consisting of <1.2% of collected individuals are not shown.
Southeastern Naturalist
417
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
collected in extremely low numbers in winter and at just 6 of the 9 spruce–fir sites
as well as at all the hardwood sites during that season.
Comparison of hand and trap methods for spruce–fir forest sites
Of the 39 species collected by hand by Ortiz and Browne (2011), 29 (74%) were
also collected in this study. Conversely, 30 (64%) of the 46 species collected in this
study were represented in the hand collections. The raw species count collected
by trap was larger than that collected by hand, probably due to the higher number
of individuals sampled via traps (i.e., sampling effort). However, there was no
significant difference (repeated measures ANOVA: P > 0.10) between Sadj, E, and
Fisher’s α for our trap collections and the hand collections reported by Ortiz and
Browne (2011). While Sadj was not significantly different for trap and hand collections,
taxa composition did significantly differ. At the genus level, Gastrellarius
was approximately 30 times more likely to be collected by hand than by trap (repeated
measures ANOVA: P = 0.003), while Sphaeroderus and Carabus were more
likely to be found in traps (repeated measures ANOVA: P = 0.004 and P = 0.047,
respectively). In contrast, Pterostichus constituted a large portion of all individuals
captured by both trap (49.9%) and by hand (51.2%). The difficulty of separating
variation due to technique and due to the different times of collection complicate
comparisons between hand and trap techniques, but the data reinforce that while
both techniques provide similar diversity estimates, the use of both sampling techniques
provide a more complete inventory of the species present.
Discussion
Although there was no significant difference in Sadj, E, and Fisher’s α between
carabid beetles assemblages from spruce–fir sites and hardwood sites, there were
marked differences in taxa composition. Pterostichus spp. make up the majority
(52%) of individuals sampled at spruce–fir sites, and are significantly less common
Table 4. Three most-abundant carabid species by season for combined spruce–fir sites and for combined
hardwood sites.
Season Spruce–fir Sites Hardwood Sites
Summer Pterostichus lachrymosus (31%) Carabus goryi (30%)
Carabus goryi (11%) Cyclotrachelus sigallutus (11%)
Pterostichus rostratus (10%) Sphaeroderus bicarinatus (11%)
Autumn Pterostichus lachrymosus (16%) Scaphinotus elevatus (30%)
Sphaeroderus bicarinatus (13%) Carabus goryi (19%)
Pterostichus adoxus (11%) Pterostichus lachrymosus (15%)
Winter Sphaeroderus stenostomus (78%) Sphaeroderus bicarinatus (53%)
Sphaeroderus bicarinatus (11%) Sphaeroderus stenostomus (29%)
Sphaeroderus canadensis (9%) Sphaeroderus canadensis (16%)
Spring Pterostichus lachrymosus (22%) Carabus goryi (53%)
Sphaeroderus canadensis (21%) Sphaeroderus bicarinatus (25%)
Sphaeroderus bicarinatus (18%) Sphaeroderus stenostomus (8%)
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
418
at hardwood sites. Maronetus debilis occurs at a majority of spruce–fir sites but at
no hardwood sites, and thus appears to be a strong candidate as an indicator species
of spruce–fir forests. We also found Platynus angustatus almost entirely (90 of 92
individuals) in spruce–fir forests and Cylcotrachelus sigillatus almost exclusively
(58 of 59 individuals) in hardwood forests.
The question of what determines species occurrence at a particular location has
been debated for many years. Among the more obvious factors that affect where a
species can be found, as suggested in this study, are elevation, temperature, moisture,
and forest tree composition (with possible dependence among the factors).
Species composition varied by forest type (spruce–fir forests versus hardwood
forests) and location (latitude and longitude). Location effects may be related to
moisture levels, reinforcing the relationship between geography and rainfall in the
southern Appalachians. Large-scale clockwise wind patterns bring moisture into
the southern portion of the United States from the Gulf of Mexico, causing precipitation
to decrease with latitude in the southern Appalachians (Reinhardt and Smith
2008). Carabid species composition appears to be at least partially influenced by
moisture level (Larochelle and Lariviere 2003, Lovei and Sunderland 1996), which
in turn might be correlated with elevation. The role of biotic influences such as
predator-prey interactions and competition remain largely unknown.
We found no significant difference for Sadj among spruce–fir sites. However, species
presence varied among sites. Five species were present at all spruce–fir sites; for
12 additional species there were significant differences in abundance among those
sites. A question for future studies is whether the species composition is primarily
stochastic and follows a neutral model (Hubbell 2001) or has more deterministic
components (e.g., niche-assembly theory). Although the number of sample sites for
hardwood forests is more limited, the results are similar to spruce–fir sites. Adjusted
species richness did not differ among the three hardwood sites, but seven of the eight
most common carabid species had heterogeneous abundances among sites.
The majority of the most-abundant species were spring breeders that overwinter
as adults. These species would be expected to be most active in the spring, summer,
and fall months (Larochelle and Lariviere 2003). Cychrines, which can live for more
than one year, were present in large numbers in the winter months (Larochelle and
Lariviere 2003). In winter, our carabid captures at both spruce–fir and hardwood
sites were limited almost entirely to Sphaeroderus. Likewise, at lower-elevation
sites in the Piedmont region of North Carolina, Cychrines (primarily Sphaeroderus)
dominated overall catch in the winter months (Riley and Browne 2011). Based on
the by-catch found in pitfall traps, there is no evidence that Cychrine’s prey (primarily
snails) are more common in winter. In fact, more snails have been caught
during the summer (R. Browne, unpubl. data).
A single year of sampling is not sufficient to reach a definitive conclusion about
seasonality in carabid communities. Populations of carabid beetles fluctuate over
time, with both the number of individuals collected and the number of species
varying by year (Günter and Assmann 2004). Multi-annual collections are needed
to definitively determine seasonal patterns.
Southeastern Naturalist
419
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
The integrity of any community comparison is dependent on the degree to which
the samples truly reflect the entire community. In this study, species accumulation
curves do not reach asymptote, even for sites with high sample numbers. For
example, at GSM, where the most individuals were sampled, rarefaction analyses
suggest that one new species would be added for approximately 160 new individuals
collected. Additional extensive sampling would be needed for a complete
inventory of the carabid beetles at all sites. Obtaining a complete inventory often
remains an ideal rather than an attainable goal, especially for species-rich taxa in
areas with both high alpha and beta diversity such as the southern Appalachians
(Carlton and Bayless 2007). Although species accumulation curves are significantly
different between hardwood and spruce-fir forest sites, there are little differences
in the slope of the curves among hardwood forest sites or in the slope of the curves
among spruce-fir forest sites, indicating that species richness is unaffected by
altitude, rainfall or tree species composition within a forest type (e.g. among hardwood
forest sites). In contrast, the slope of species-accumulation curves increased
significantly as elevation decreased in a study in the Peruvian Andes (Maveety et
al. 2011).
While species richness and number of genera were not significantly different
between trap- and hand-sampling techniques, they targeted different taxonomic
subsets at both the species and genera levels. Surveys using a combination of both
trap and hand collections would more accurately reflect actual species composition
(Coddington et al. 1991, Longino et al. 2002, Maveety et al. 2011), and are a necessary
pre-requisite for comparing communities across habitats.
Acknowledgments
We thank the Great Smoky Mountains National Park, Blue Ridge National Park, Pisgah
National Forest, Jefferson National Forest, and Mount Mitchell State Park for collection
permits. We also are indebted to C. Carlton, V. Bayless, and T. Erwin for assistance in taxonomic
identification.
Literature Cited
Arbogast, B.S., R.A. Browne, P.A. Weigl, and J.G. Kanagy. 2005. Conservation genetics
of endangered flying squirrels of the Appalachian Mountains of eastern North America.
Animal Conservation 8:123–133
Barr, T.C.J. 1985. Pattern and process in speciation of Trechine beetles in eastern North
America (Coleoptera: Carabidae: Trechinae). Pp. 371–372, In G.E. Ball (Ed.) Taxonomy,
Phylogeny, and Zoography of Beetles and Ants. Dr. W. Junk Publishers, Amsterdam,
Netherlands.
Browne, R.A., S.M. Steele, P.D. Weigl, J. Kelly, and E. Eagleston. 1999. Mountain tops as
islands: Genetic variation in Northern Flying Squirrel populations. Pp. 205–214 In R.
Eckerlin (Ed.). Proceedings of the Appalachian Biogeography Symposium, Virginian
Museum of Natural History Publications, Martinsville, VA.
Butterfield, J., M.L. Luff, M. Baines, and M.D. Eyre. 1995. Carabid beetle communities as
indicators of conservation potential in upland forests. Forest Ecology and Management
79:63–77.
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
420
Carlton, C., and V. Bayless. 2007. Documenting beetle diversity in Great Smoky Mountains
National Park: Beyond the halfway point. Southeastern Naturalist 6:183–192.
Coddington, J.A., C.E. Griswold, D. Silva Dávila, E. Peñaranda, and D.F. Larcher. 1991.
Designing and testing sampling protocols to estimate biodiversity in tropical ecosystems.
Pp. 44–60, In E.C. Dudley (Ed.). The Unity of Evolutionary Biology. Proceedings
of the Fourth International Congress of Systematic and Evolutionary Biology.
Dioscorides Press, Portland, OR.
Colwell, R.K. 2005. EstimateS: Statistical estimation of species richness and shared species
from samples. Version 7.5. User’s Guide and application. Available online at http://purl.
oclc.org /estimates. Acessed March 2012.
Crespi, E.J., L.J. Rissler, and R.A. Browne. 2003. Testing Pleistocene refugia theory:
Phylogeographic analysis of Desmognathus wrighti, a high-elevation salamander in the
southern Appalachians. Molecular Ecology 12:969–984.
Crespi E.J., R.A. Browne, and L.J. Rissler. 2010. Taxonomic revision of Desmoganthus
wrighti. Herpetologia 66:283–285.
Darlington, P.J. 1943. Carabidae of mountains and islands: Data on the evolution of isolated
faunas and on atrophy of wings. Ecological Monographs 13:37–61.
de Warnaffe, G.B., and P. Lebrun. 2004. Effects of forest management on carabid beetles
in Belgium: Implications for biodiversity conservation. Biological Conservation
118:219–234.
Desender, K., A. Ervynck, and G. Tack. 1999. Beetle diversity and historical ecology of
woodlands in Flanders. Belgian Journal of Zoology 129:139–156.
Dufrêne, M., and P. Legendre. 1997. Species assemblages and indicator species: The need
for a flexible asymmetrical approach. Ecological Monographs 67:3 45–366.
Erwin, T.L. 1996. Biodiversity at its utmost: Tropical forest beetles. Pp. 27–40, In M.L.
Reaka-Kudla, D.E. Wilson, and E.O. Wilson (Eds.). Biodiversity II: Understanding and
Protecting our Biological Resources. Joseph Henry Press, Washington, DC.
Greenslade, P.J.M. 1964. Pitfall trapping as a method for studying populations of Carabidae
(Coleoptera). Journal of Animal Ecology 33:301–310.
Günter, J., and T. Assmann. 2004. Fluctuations of carabid populations inhabiting ancient
woodland (Coleoptera: Carabidae). Pedobiologia 48:159–164.
Gutiérrez, D. and R. Menéndez. 1997. Patterns in the distribution, abundance, and body
size of carabid beetles (Coleoptera: Caraboidea) in relation to dispersal ability. Journal
of Biogeography 24:903–914.
Hubbell, S.P. 2001. The Unified Neutral Theory of Biodiversity and Biogeography. Princeton
University Press, Princeton, NJ.
Jennings, V.H., and D.W. Tallamy. 2006. Composition and abundance of ground-dwelling
Coleoptera in a fragmented and continuous forest. Environmental Ecology 35:1550–1560.
Jukes, M.R., A.J. Peace, and R. Ferris. 2001. Carabid beetle communities association with
coniferous plantations in Britain: The influence of site, ground vegetation, and stand
structure. Forest Ecology and Management 148:271–286.
Kane, T.C., T.C. Barr, and G.E. Stratton. 1990. Genetic patterns and population structure in
the Appalachian Trechus of the vandykei group. Brimleyana 16:133–150.
Koivula, M., J. Kukkonen, and J. Niemelä. 2002. Boreal carabid-beetle (Coleoptera, Carabidae)
assemblages along the clear-cut–originated succession gradient. Biodiversity and
Conservation 11:1269–1288.
Southeastern Naturalist
421
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
Larochelle, A., and M.C. Lariviere. 2003. A Natural History of Ground Beetles (Coleoptera:
Carabidae) of North America and Mexico. Pensoft, Sofia–Moscow, Russia.
Larsen, K.J., T.T. Work, and F.F. Purrington. 2003. Habitat-use patterns by ground beetles
(Coleoptera: Carabidae) of northeastern Iowa. Pedobiologia 11:288–299.
Lenski, RE. 1982. The impact of forest cutting on the diversity of ground beetles (Coleoptera:
Carabidae) in the southern Appalachians. Ecological Entomology 7:385–390.
Liebherr, J., and J. Mahar. 1979. The carabid fauna of the upland oak forest in Michigan:
Survey and analysis. Coleopterists Bulletin 33:183–197.
Liu Y., J.C. Axmacher, L. Li, C. Wang, and Z. Yu. 2007. Ground beetle (Coleoptera: Carabidae)
inventories: A comparison of light and pitfall trapping. Bulletin of the Entomological
Research 97:577–583.
Longino, J.T., J. Coddington, and R.K. Colwell. 2002. The ant fauna of a tropical rainforest:
Estimating species richness three different ways. Ecology 83:689–702.
Lovei, G.L., and K.D. Sunderland. 1996. Ecology and behavior of ground beetles (Coleoptera:
Carabidae). Annual Review of Entomology 41:231–256.
MacArthur, R.H., and E.O. Wilson. 1967. The Theory of Island Biogeography. Princeton
University Press, Princeton, NJ.
Magurran, A.E. 2004. Measuring Biological Diversity. Blackwell Science. Oxford, UK.
Maveety, S.A., R.A. Browne, and T.L. Erwin. 2011. Carabidae diversity along an altitudinal
gradient in a Peruvian cloud forest (Coleoptera). In T. Erwin (Ed.). Proceedings
of a symposium honoring the careers of Ross and Joyce Bell and their contributions to
scientific work. Burlington, Vermont, 12–15 June 2010. ZooKeys 147:651–666.
Niemelä, J. 1990. Spatial distribution of carabid beetles in the southern Finnish taiga: The
question of scale. Pp. 143–155, In N.E. Stork (Ed.). The Role of Ground Beetles in
Ecological and Environmental Studies. Intercept Limited, Andover, Hampshire, UK.
Niemelä, J., Y. Haila, E. Halme, T. Pajunen, and P. Punttila. 1992a. Small-scale heterogeneity
in the spatial distribution of carabid beetles in the southern Finnish taiga. Journal of
Biogeography 19:174–181.
Niemelä, J., J.R. Spence, and D.H. Spence. 1992b. Habitat association and seasonal activity
of ground beetles (Coleoptera, Carabidae in central Alberta). Canadian Entomologist
124:521–541.
Niemelä, J., D. Langor, and J.R. Spence. 1993. Effects of clear-cut harvesting on boreal
ground beetles (Coleoptera: Carabidae) in western Canada. Conservation Biology
7:551–561.
Niemelä, J.K., Y. Haila, and P. Punttila. 1996. The importance of small-scale heterogeneity
in Boreal forests: Variation in diversity in forest-floor invertebrates across the succession
gradient. Ecography 19:352–368.
Niemelä, J., J. Kotze, A. Ashworth, P. Brandmayr, K. Desender, T. New, T. Penev, M. Samways,
and J. Spence. 2000. The search for common anthropogenic impacts on biodiversity:
A global network. Journal of Insect Conservation 4:3–9.
Noonan, G.R., G.E. Ball, and N.E. Stork. 1992. The Biogeography of Ground Beetles of
Mountains and Islands. Intercept Press, Andover, Hampshire, UK.
Ortiz, C.C., and R.A. Browne. 2011. Carabidae (Ground Beetle) species composition of
southern Appalachian spruce–fir forests. Southeastern Naturalist 10:591–6 08.
Paquin, P. 2008. Carabid beetle (Coleoptera: Carabidae) diversity in the Black Spruce succession
of eastern Canada. Biological Conservation 14:261–275.
Southeastern Naturalist
R. Browne, S. Maveety, L. Cooper, and K. Riley
2014 Vol. 13, No. 2
422
Reinhardt, K., and W.K. Smith. 2008. Impacts of cloud immersion on microclimate, photosynthesis,
and water relations of Abies fraseri (Pursh.) Poiret in a temperate mountain
cloud forest. Oecologia 158:229–238.
Riley, K.N., and R.A. Browne. 2011. Changes in ground beetle (Coleoptera: Carabidae)
diversity and community composition in age-structured forests. ZooKeys 147:601–621.
Sipe, T.W., and R.A. Browne. 2004. Intraspecific phylogeography of the Masked Shrew
(Sorex cinereus) and Smoky Shrew (Sorex fumeus) in the southern Appalachians. Journal
of Mammalogy 84:161–175.
White, P.S., E. Buckner, J.D. Pitillo, and C.V. Gogbill. 1993. High-elevation forest: Spruce–
fir forest, nothern hardwood forest, and associated communities. Pp. 305–338, In W.H.
Matin (Ed.). Biodiversity of the Southeastern United Sates: Upland Terrestrial Communities.
John Wiley and Sons, New York, NY.
Worthen, W.B., and D.C. Merriman. 2013. Relationship between carabid beetle communities
and forest-stand parameters: Taxon congruence or habitat association? Southeastern
Naturalist 12:379–386.
