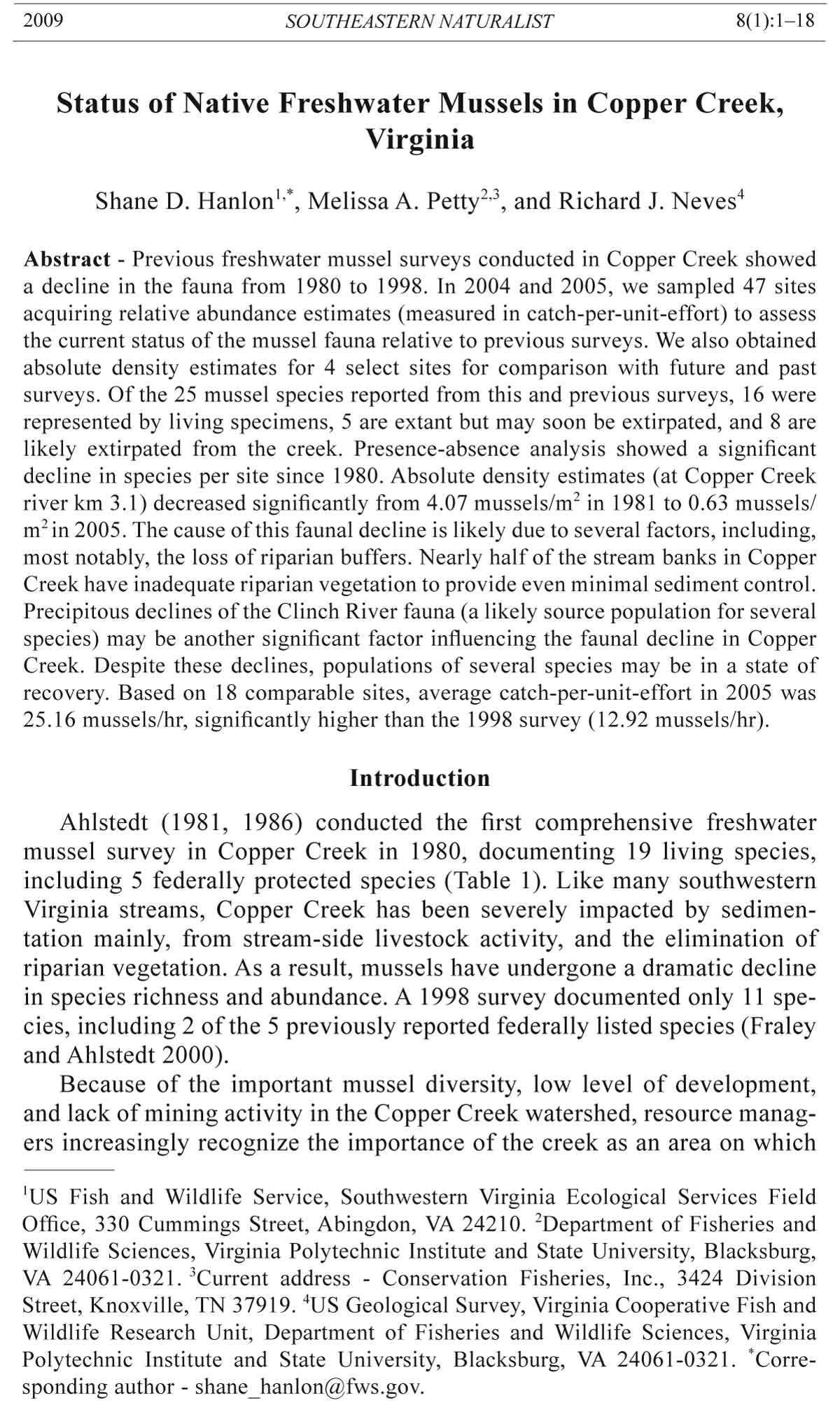

2009 SOUTHEASTERN NATURALIST 8(1):1–18
Status of Native Freshwater Mussels in Copper Creek,
Virginia
Shane D. Hanlon1,*, Melissa A. Petty2,3, and Richard J. Neves4
Abstract - Previous freshwater mussel surveys conducted in Copper Creek showed
a decline in the fauna from 1980 to 1998. In 2004 and 2005, we sampled 47 sites
acquiring relative abundance estimates (measured in catch-per-unit-effort) to assess
the current status of the mussel fauna relative to previous surveys. We also obtained
absolute density estimates for 4 select sites for comparison with future and past
surveys. Of the 25 mussel species reported from this and previous surveys, 16 were
represented by living specimens, 5 are extant but may soon be extirpated, and 8 are
likely extirpated from the creek. Presence-absence analysis showed a significant
decline in species per site since 1980. Absolute density estimates (at Copper Creek
river km 3.1) decreased significantly from 4.07 mussels/m2 in 1981 to 0.63 mussels/
m2 in 2005. The cause of this faunal decline is likely due to several factors, including,
most notably, the loss of riparian buffers. Nearly half of the stream banks in Copper
Creek have inadequate riparian vegetation to provide even minimal sediment control.
Precipitous declines of the Clinch River fauna (a likely source population for several
species) may be another significant factor infl uencing the faunal decline in Copper
Creek. Despite these declines, populations of several species may be in a state of
recovery. Based on 18 comparable sites, average catch-per-unit-effort in 2005 was
25.16 mussels/hr, significantly higher than the 1998 survey (12.92 mussels/hr).
Introduction
Ahlstedt (1981, 1986) conducted the first comprehensive freshwater
mussel survey in Copper Creek in 1980, documenting 19 living species,
including 5 federally protected species (Table 1). Like many southwestern
Virginia streams, Copper Creek has been severely impacted by sedimentation
mainly, from stream-side livestock activity, and the elimination of
riparian vegetation. As a result, mussels have undergone a dramatic decline
in species richness and abundance. A 1998 survey documented only 11 species,
including 2 of the 5 previously reported federally listed species (Fraley
and Ahlstedt 2000).
Because of the important mussel diversity, low level of development,
and lack of mining activity in the Copper Creek watershed, resource managers
increasingly recognize the importance of the creek as an area on which
1US Fish and Wildlife Service, Southwestern Virginia Ecological Services Field
Office, 330 Cummings Street, Abingdon, VA 24210. 2Department of Fisheries and
Wildlife Sciences, Virginia Polytechnic Institute and State University, Blacksburg,
VA 24061-0321. 3Current address - Conservation Fisheries, Inc., 3424 Division
Street, Knoxville, TN 37919. 4US Geological Survey, Virginia Cooperative Fish and
Wildlife Research Unit, Department of Fisheries and Wildlife Sciences, Virginia
Polytechnic Institute and State University, Blacksburg, VA 24061-0321. *Corresponding
author - shane_hanlon@fws.gov.
2 Southeastern Naturalist Vol. 8, No. 1
to focus aquatic conservation efforts. Initial efforts to augment mussel
populations and restore riparian habitat within the watershed are currently
underway. A quantitative assessment of the stream’s mussel fauna and habitat
conditions is needed to identify and prioritize conservation actions and to
provide a baseline for detection of future changes in the fauna.
We assess the current status of mussel populations in Copper Creek and
compare the results with previous mussel surveys to evaluate changes in the
fauna over the last 25 years. In addition, we present density estimates of 4
selected sites to provide baseline data for future assessments of the fauna,
and we compare data from one of these sites with absolute estimates reported
by Barr et al. (1993–1994), survey work that was conducted in 1981. We
also conducted an inventory of forested riparian habitat to assess watershed
condition and quantify stream-side impacts.
Study Area
Copper Creek is located in the Ridge and Valley physiographic province
of southwestern Virginia (Fig. 1). The creek’s confl uence with the Clinch
Table 1. Living specimens recorded (X) for Copper Creek in 1980, 1998, and 2005. Fresh dead
(FD), relic specimen (R), and federal protection (*) are indicated.
1980 1998 2005
Actinonaias ligamentina Lamarck (Mucket) R
Actinonaias pectorosa Conrad (Pheasantshell) X R X
Alasmidonta viridis Rafinesque (Slippershell) X X
Amblema plicata plicata Say (Three Ridge) X R R
Elliptio dilatata Rafinesque (Spike) X X X
Epioblasma brevidens Lea (Cumberland Combshell) R
Epioblasma capsaeformis Lea (Oyster Mussel)* X
Fusconaia barnesiana Lea (Tennessee Pigtoe) X X X
Fusconaia cor Conrad (Shiny Pigtoe)* X FD X
Fusconaia cuneolus Lea (Fine-rayed Pigtoe)* X X X
Fusconaia subrotunda Lea (Long-solid) R
Lampsilis fasciola Rafinesque (Wavy-rayed Lampmussel) X X X
Lampsilis ovata Say (Pocketbook) X R
Lasmigona costata Rafinesque (Fluted-shell) X X
Lasmigona holstonia Lea (Tennessee Heelsplitter) R FD
Ligumia recta Lamarck (Black Sandshell) R
Medionidus conradicus Lea (Cumberland Moccasinshell) X X X
Pegius fabula Lea (Little-wing Pearlymussel)* R
Pleurobema oviforme Conrad (Tennessee Clubshell) X X X
Ptychobranchus fasciolaris Rafinesque (Kidneyshell) X X
Ptychobranchus subtentum Say (Fluted Kidneyshell)* X X X
Quadrula cylindrica strigillata Say (Rough Rabbitsfoot)* X R X
Villosa iris Lea (Rainbow) X X X
Villosa perpurpurea Lea (Purple Bean)* X X X
Villosa vanuxemensis Lea (Mountain Creekshell) X X X
Total** 19 11 16
**While this study’s (2005) data does not assume fresh dead specimens represent an extant population,
the total number of extant species for 1998 has been figured in a manner consistent with
the original sources of the data (Fraley and Ahlsedt 2000) and includes the fresh dead F. cor.
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 3
River is at Clinch River kilometer 340.5, near Speers Ferry, Scott County.
The stream is roughly 97 km long and fl ows in a southwesterly direction
through Russell and Scott counties, draining the valley between Copper
Ridge and Moccasin Ridge, ≈345 km2. Hubbard (2001) showed the entire
watershed to be underlain by karst topography, formed on soluble limestone
bedrock and characterized by sinkholes, sinking streams, caves, and large
springs where water returns to the surface. According to 1996 classified
Landsat Thematic Maper imagery, land use within the watershed in 1996
consisted primarily of pasture (40.9%) and highly fragmented forest (57.7%)
(USEPA 2002).
Methods
Timed searches
We surveyed 47 sites along 93 km of Copper Creek between February
2004 and April 2005 (Fig. 1, Table 2). For simplification, we refer to this
study as the 2005 survey. We sampled 29 sites sampled by previous surveys
(Ahlstedt 1986, Fraley and Ahlstedt 2000) as well as 18 new sites. We
determined the distance from the mouth of Copper Creek to each site and
numbered sites accordingly in an upstream direction (Table 2, Appendix 1).
We conducted timed searches using snorkeling and view-buckets. Survey
efforts were timed searches and were expressed as catch-per-unit-effort
(CPUE) in person-hours. Catch-per-unit-effort values were calculated as
the total number of living mussels observed divided by the total effort in
Figure 1. Sites surveyed for freshwater mussels in 2005 (solid circles) in Copper
Creek, Russell and Scott counties, VA.
4 Southeastern Naturalist Vol. 8, No. 1
hours. A variety of habitats including gravel and cobble riffl es and runs,
gravel bars, and shallow pools are favored by species previously collected
Table 2. Sites surveyed for mussels in 2005 (Rkm = river kilometers, * = sites quantitatively
sampled in 2005, X = denotes whether the site was surveyed in 1980 and/or 1998).
Survey year
Site Rkm Location 1980 1998
1 1.6 First major bend in creek adjacent to VA 627 X
2 1.9 West side of big bend in Copper Creek X X
3 2.9 Below VA 627 bridge crossing
4 3.1 Above VA 627 bridge* X X
5 3.4 At unnamed tributary X
6 3.5 Below Jennings Ford, VA 627 X
7 4.2 Above Jennings Ford, VA 627 X X
8 5.3 Adjacent to VA 627
9 5.8 Below Spivey Ford X
10 7.1 Below junction of VA 627 and VA 644 X X
11 8.2 Below small unnamed tributary
12 9.5 Above swinging bridge and ford X X
13 10.1 Below ford and swinging foot bridge X
14 10.5 Above ford and swinging bridge
15 11.1 At unnamed tributary
16 12.6 Below Spivey Mill Dam X X
17 13.7 At Blackoak Branch X
18 15.1 Between two unnamed tributaries
19 15.8 Above Lark Creek X
20 18.5 Adjacent to VA 627
21 19.0 Adjacent to VA 627 X X
22 20.8 Above Plank Camp Creek X
23 22.2 Below VA 72 bridge
24 22.5 Above VA 72 bridge X X
25 24.3 Below bend in Copper Creek*
26 25.1 Above bend in Copper Creek X
27 29.4 At island*
28 34.0 At swinging bridge X X
29 38.5 At VA 671 bridge X X
30 47.0 At VA 674 bridge X X
31 49.6 Above unnamed tributary
32 52.8 above 2nd VA 670 bridge crossing X
33 53.6 above first VA 670 bridge crossing X
34 56.0 Above VA 71 bridge crossing X X
35 64.4 Below VA 682 bridge X X
36 67.8 Above VA 612 bridge X X
37 72.1 Below Drake Branch
38 72.7 Above Drake Branch
39 73.7 Below Moll Creek
40 77.7 Below low head bridge off 678 X
41 78.7 0.8 kilometers above low head bridge
42 81.1 At VA 679 ford X
43 82.9 Above bridge crossing
44 83.8 Above bend in Copper Creek*
45 85.3 Below island and unnamed tributary X
46 87.2 Wooded area adjacent to VA 678
47 93.0 Above bridge crossing
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 5
in Copper Creek (Fraley and Ahlstedt 2000) and were intensively searched.
Beyond timed searches, stream margins were checked for shell remains
and muskrat middens. Species and number of individuals were recorded to
evaluate species richness and relative abundance. Each observed specimen
was recorded as living, fresh dead, or relic. The presence of tissue remains,
or lustrous nacre were used to define specimens as fresh dead; all other shells
were considered relic. Mussels were removed from the substrate, identified,
and returned to the exact location of collection.
We tested for overall differences across sites in the number of extant species
between 1980 and 2005 and between 1998 and 2005 using a Wilcoxon
Signed Rank Test (α = 0.05) (e.g., Pilarczyk et al. 2006). We also tested for
differences in overall and per species CPUE across sites between 1998 and
2005 using the Wilcoxon Signed Rank Test (α = 0.05).
Estimation of mussel density
We estimated total mussel density (densities of all species combined)
at 4 sites (Table 2). We chose sites with the highest mussel abundance and
species richness, as identified in timed searches. We used a random experimental
sampling design (Strayer and Smith 2003) and followed methods
similar to those reported by Henley et al. (1999). Survey fl ags were placed
along both stream banks to partition transect lanes across the stream. The
number of transects and distance between transects varied among survey
sites to accommodate mussel aggregations. Four to six transects were placed
20 m apart except at rkm 24.3, where an additional transect was sampled at
10 m. Ten 0.25-m2 quadrats, made of 12-mm rebar, were randomly assigned
along each transect line using a random numbers table. We estimated a requisite
number of quadrats to sample each site for population density (mean
mussels/m2) using the following formula (Downing and Downing 1992):
n = 1 x (P / [10,000 / A])-0.5 x D-2,
where P = provisional estimate of mussel density (per m2), A = area (cm2)
covered by each replicate sample (0.25-m2 quadrat = 2500 cm2), and D =
the desired degree of precision of density estimates. Based on provisional
densities obtained from 20 initial quadrat samples at each site, we calculated
requisite sample numbers based on a 20% degree of precision.
Using mask and snorkel gear, we visually searched each quadrat for
mussels by fanning and excavated the substrate down to the hardened and
embedded layer, typically 10–20 cm in depth. Species, shell length, and estimated
age were recorded for each specimen found. Age was estimated by
counting external growth arrests. Shell length was measured using calipers.
Mussels and substratum were returned to their original location once data were
collected. Density estimates at the site located at rkm 3.1 were compared with
those documented by Barr et al. (1993–1994). We note that density estimates
for Copper Creek reported in Barr et al. (1993–1994) appear to be densities
estimates within 0.25-m2 quadrat units and not per m2 as presented. Density
data used in our comparison were obtained from quadrat data presented in the
Appendices, Figure A-15, p. 202 of Barr et. al (1993–1994).
6 Southeastern Naturalist Vol. 8, No. 1
Riparian buffer analysis
Fraley and Ahlstedt (2000) identified livestock activity and loss of riparian
vegetation as major contributors to the destabilization and siltation of
Copper Creek. We conducted an inventory of riparian buffer width on the
main stem of Copper Creek to provide a quantitative measure of the extent
of this problem. Using ArcGIS (ESRI®ArcMapTM 9.1), we visually examined
2002 aerial imagery (Commonwealth of Virginia 2002) and quantified
riparian coverage for left and right ascending stream banks along the main
channel, using 4 categories of riparian buffer width. Categories of the buffer
width are as follows: 1) no riparian vegetation, 2) a single row of trees,
3) wider than a single row of trees up to10 m, and 4) >10 m. These categories
were chosen to define the absolute minimum in riparian benefits that have
been quantified in the literature (Wenger 1999).
Results
Timed searches
Sixteen native mussel species were observed alive, and 6 additional species
were represented by relic shells among all sites (Table 1). Overall, 111.5
person-hours of effort resulted in 4106 living mussels collected, with an overall
CPUE of 36.8 living mussels/hour. The mussel assemblage was dominated by
Villosa iris, representing 71.5% of the fauna. With the exception of the furthest
upstream site surveyed, living V. iris were present at all sites. Pleurobema
oviforme, Medionidus conradicus, and Fusconaia barnesiana were relatively
abundant, composing 12.5%, 7. 9%, and 3.5% of the fauna occurring at 38, 25,
and 23 sites, respectively. Lampsilis fasciola, Ptychobranchus subtentum, and
Elliptio dilatata were uncommon, representing 0.9%, 1.6%, and 1.2% of the
fauna and occurring at 15, 6, and 9 sites, respectively. Of the federally listed
species, Villosa perpurpurea was encountered most frequently, occurring at
7 sites and constituting 0.4% of the fauna. The other federally listed species,
Fusconaia cuneolus, Fusconaia cor, and Quadrula cylindrica strigillata, were
very rare––present only at 3, 1, and 1 sites, respectively. Actinonaias pectorosa,
Ptychobranchus fasciolaris, Villosa vanuxemensis, Alasmidonta viridis, Lasmigona
costata were also rare, occurring at 1–4 sites. Amblema plicata plicata,
Epioblasma brevidens, Lampsilis ovata, Lasmigona holstonia, Ligumia recta,
and Pegius fabula were represented by relic shells in this survey.
The number of extant species decreased from 1980–2005 across 24 comparable
sites (Z = -2.255, P = 0.023; Table 3, Fig. 2). We could not compare
CPUE between the 1980 and 2005 surveys because search time was not documented
in 1980. Although we found 16 species in 2005 vs. 11 in 1998, there
was no significant difference in the number of extant species from 1998–2005
across 18 comparable sites (Z = 1.663, P = 0.100; Table 3). However, total
mussel abundance (CPUE) increased from 1998–2005 (Z = 2.847, P = 0.004;
Table 3). This increase was attributed to increases in CPUE for 11 out of 14
species including A. pectorosa, E. dilatata, F. cor, L. fasciola, M. conradicus,
P. oviforme, P. fasciolaris, P. subtentum, Q. c. strigillata, V. iris, and V. perpurpurea.
Among species, only of V. iris had a CPUE that was significantly
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 7
greater in the 2005 survey compared to the 1998 survey (n = 18, Z = -2.46, P =
0.013). No significant changes in abundance were evident among other species
between the 1998 and 2005 surveys (P-values ranged from 0.138 to1.000).
Figure 2. Change in the number of freshwater mussel species reported at 24 sites from
1980 (zero line; Ahlstedt 1986) to 2005; * = no change. Site numbers correspond to
site identifications in the 2005 survey.
Table 3. Comparison of 18 sites surveyed on Copper Creek, VA in 1998 (Fraley and Ahlstedt
2000) and 2005. Site number corresponds to site identifications in the 2005 survey. CPUE =
catch per unit effort expressed as number of living mussels observed per person hour.
Number of species found alive CPUE (no/h)
Site # 1998 2005 Difference 1998 2005 Difference
2 4 7 3 1.25 32.40 31.15
4 2 10 8 1.25 10.43 9.18
7 3 3 0 3.67 3.85 0.18
10 5 2 -3 5.00 15.00 10.00
12 1 2 1 0.50 9.33 8.83
15 0 2 2 0.00 1.52 1.52
18 2 3 1 10.50 18.00 7.50
20 3 2 -1 3.25 13.33 10.08
23 3 6 3 6.25 53.33 47.08
25 5 6 1 14.25 30.67 16.42
27 2 2 0 5.50 8.00 2.50
28 3 5 2 35.50 28.00 -7.50
29 3 4 1 21.33 17.20 -4.13
32 4 4 0 49.00 50.00 1.00
33 5 4 -1 20.25 15.11 -5.14
34 3 1 -2 29.00 35.00 6.00
35 3 4 1 21.50 67.00 45.50
41 2 4 2 4.50 44.67 40.17
Mean 2.94 3.94 1.00 12.92 25.16 12.24
± SE ± 0.32 ± 0.53 ± 0.56 ± 3.27 ± 4.41 ± 4.04
8 Southeastern Naturalist Vol. 8, No. 1
Estimation of mussel density
Overall, we observed a wide range of age classes, including young
and mature specimens, for 6 species (Table 4). Villosa iris was the most
abundant species and was represented by young specimens at all 4 sites.
Mussel density was relatively high at the 3 sites located in the middle and
upper reaches of Copper Creek, ranging from 3.10–5.95 mussels/m2, but
density was low at rkm 3.1 (Table 5). It should be noted that the coefficient
of variation at the rkm 3.1 sampling site did not meet the 20% precision target.
This was attributed to assumption error associated with higher mussel
densities in the provisional sample set than the remaining quadrat samples.
Among the 51 quadrats we sampled at rkm 3.1, we found 5 species and
an overall mussel density of 0.63/m2 (SE ± 0.21/m2). In 1981, Barr et al.
(1993–1994) reported 10 species at an overall density of 4.07/m2 (n = 58,
SE ± 1.32/m2) at this site. Density estimates among the species found at rkm
3.1 decreased significantly (Z = -2.016, P = 0.007) from 1981 to 2005.
Table 4. Shell length (mm ± SE) and estimated age (years ± SE) of mussels collected within
0.25-m2 quadrats during a quantitative survey in Copper Creek, VA. E.d. = Elliptio dilatata,
F.b. = Fusconaia barnesiana, M.c. = Medionidus conradicus, P.o. = Pleurobema oviforme, P.s.
= Ptychobranchus subtentum, V.i. = Villosa iris, V.v. = Villosa vanuxemensis, n = number of
mussels collected.
Mean length Mean age
Species n mm (± SE) Range (mm) years (± SE) Range (years)
Overall
E.d. 6 51.17 (4.66) 33–61 9.00 (1.15) 5–12
F.b. 18 32.11 (2.98) 10–53 5.72 (0.80) 2–13
M.c. 15 34.07 (1.36) 25–47 6.77 (0.86) 4–14
P.o. 6 44.92 (7.28) 10–61 10.67 (2.36) 2–20
P.s. 3 57.30 (20.0) 18–83 9.00 (3.51) 2–13
V.i. 113 37.69 (0.69) 17–54 5.72 (0.24) 2–18
V.v. 1 47.00 - 10.00 -
Rkm 3.1
F.b. 1 51.00 - 13.00 -
M.c. 1 39.00 - 10.00 -
V.i. 4 37.00 (6.07) 36–48 5.75 (1.38) 3–9
V.v. 1 47.00 - 10.00 -
Rkm 24.3
E.d. 6 51.17 (4.66) 33–61 9.00 (1.15) 5–12
F.b. 7 40.57 (3.87) 28–53 7.71(1.13) 5–13
M.c. 6 32.50 (1.89) 25–38 5.33 (0.99) 4–10
P.o. 6 44.92 (7.28) 10–61 10.67 (2.36) 2–20
P.s. 3 57.30 (20.0) 18–83 9.00 (3.51) 2–13
V.i. 35 36.46 (1.02) 17–48 5.50 (0.29) 2–10
Rkm 29.4
F.b. 2 14.50 (4.50) 10–19 2.50 (0.50) 2–3
M.c. 5 37.00 (2.77) 30–47 10.00 (2.00) 8–14
V.i. 24 37.67 (1.69) 22–54 7.33 (0.82) 2–18
Rkm 83.8
F.b. 8 26.75 (2.44) 19–41 3.88 (0.55) 2–7
M.c. 3 30.67 (1.45) 28–33 5.33 (0.67) 4–6
V.i. 50 38.62 (1.05) 18–54 5.10 (0.21) 2–8
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 9
Riparian buffer analysis
Approximately 48% of the length of Copper Creek had a riparian buffer
>10 m, but 23% of the stream’s length had no riparian vegetation. Stream
banks were protected by a single row of trees along ≈22% of the creek’s
length, and riparian buffers wider than a single row of trees up to 10 m wide
occurred along ≈7% of the stream bank.
Discussion
Current state of the fauna
In addition to the 19 species found alive in Copper Creek, 6 species
represented by only relic specimens were reported in this and previous surveys,
indicating that the creek supported at least 25 species during the twentieth
century. Of the total species reported from Copper Creek, 8 (32%) are likely
extirpated. These species include Actinonaias ligamentina, A. p. plicata, E.
brevidens, Epioblasma capsaeformis, Fusconaia subrotunda, L. recta, L.
ovata, and P. fabula. Although A. viridis, F. cor, F. cuneolus, L. costata, and Q.
c. strigillata still occur in Copper Creek, they persist only as aging cohorts, and
these species may soon be extirpated. Species loss has occurred most notably in
the lower 24 km of the creek, where the great majority of species richness historically
occurred.
Despite an overall decline in the mussel fauna since 1980, our comparison
of CPUE indicates a significant increase in overall abundance since
1998. This increase in CPUE was predominantly due to a significant increase
in number of V. iris observed. The cause of this disproportionate increase in
V. iris is unknown but may relate to multiple factors. One suspected determinant
may be inter-specific differences in sensitivity to nitrogenous wastes,
as these pollutants have been prevalent in the Copper Creek watershed due
to widespread livestock operations (USDA 1992). Mussels of V. iris may be
more tolerant to certain agricultural pollutants than those species in Copper
Creek that have shown the most significant declines. For example, several
toxicity studies have demonstrated greater ammonia tolerance values for V.
iris than for E. capsaeformis, a species now extirpated from Copper Creek
Table 5. Estimates of mean (SE) density for mussel species collected at four sites in Copper
Creek, Scott and Russell counties, VA. Sample sizes (n) represent the number of 0.25-m2 quadrat
samples per site. nf = not found, rkm = river kilometer, CV = coefficient of variation
Density (No. /m2 )
Rkm 3.1 Rkm 24.3 Rkm 29.4 Rkm 83.8
Species (n = 51) (n = 60) (n = 40) (n = 41)
V. iris 0.31 (0.15) 2.47 (0.45) 2.40 (0.47) 4.98 (0.94)
M. conradicus 0.08 (0.08) 0.47 (0.19) 0.50 (0.21) 0.20 (0.14)
V. vanuxemensis 0.08 (0.08) nf nf nf
F. barnesiana 0.08 (0.08) 0.53 (0.26) 0.20 (0.14) 0.78 (0.25)
P. subtentum nf 0.13 (0.13) nf nf
P. oviforme 0.08 (0.08) 0.47 (0.24) nf nf
E. dilatata nf 0.40 (0.18) nf nf
Total 0.63 (0.21) 4.47 (0.82) 3.10 (0.46) 5.95 (0.99)
CV 0.33 0.18 0.15 0.17
10 Southeastern Naturalist Vol. 8, No. 1
(Augspurger et al. 2003; Wang et al. 2007a, b). Similarly, the ammonia sensitivity
level reported for M. conradicus, a species maintaining population
abundance in Copper Creek, is similar to that reported for V. iris (Augspurger
et al. 2003). Perhaps other species that have been extirpated or had signifi-
cant reductions in abundance in Copper Creek have higher sensitivities to
agricultural pollutants such as ammonia. The emerging discipline of ecotoxicology
and mussels is still in its infancy (Farris and Van Hassel 2007),
but chemical toxicity and the variety of exposure routes for contaminants
to affect mussels may help to explain both the chronic and acute decline of
populations throughout many river systems.
Another factor that may explain the recent increase in V. iris is its pre-decline
population size. This pattern of persistence was documented in the Little
South Fork Cumberland River, where 65% of the mussel fauna was seemingly
extirpated due to surface mining and oil extraction (Warren and Haag 2005). If
Copper Creek is entering into some state of recovery, then species populations
with the highest abundance such as V. iris, F. barnesiana, P. oviforme, and M.
conradicus will likely have the highest probability of survival over time. These
species are also widespread throughout the mainstem and likely occur in larger
tributaries of Copper Creek, enabling greater success in reestablishing populations
if losses occur in the mainstem population. Recovery of less widespread
species are presumably compromised by their limited distribution, particularly
species occupying only the lower mainstem reach of the creek.
Although our data show an increase in mussel abundance from 1998 to
2005, statistical analysis did not support a significant increase in the number
of species per site. Presence-absence sampling designs typically have
a low to moderate statistical power to detect modest and uniform changes
(<20–50%) in a population (Strayer 1999). Therefore, a change in the fauna
was not discernible. Although we observed 5 additional species that were not
reported in the 1998 survey, these species were represented by older specimens
during our survey and were most likely present, but simply undetected
during the 1998 survey. This possibility is logical given the lower level of
survey effort conducted in the 1998 survey.
Causes of decline
There are likely multiple factors that have contributed to the faunal decline
in Copper Creek, particularly in the lower reaches of the creek. Exactly
when this decline began and what the historic status of fauna in Copper
Creek was prior to 1980 is clouded by lack of data.
Declining populations in the lower reaches of Copper Creek may be
“sink” populations and may depend on the Clinch River “source” populations;
the lower reaches of the creek may merely represent a habitat interface
between species adapted to smaller and larger streams. Lower Copper Creek
may represent marginal habitat for much of the declining fauna, especially
for those species that were never reported in any abundance in Copper
Creek. Although data collected on overall mussel densities at Speers Ferry
have been relatively consistent since 1979, the composition of the fauna
has changed (Ahlstedt et al. 2005). Prior to 1979, there are no population
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 11
data from Speers Ferry to evaluate changes in density. However, Ortmann
(1918) reported 25 species from Speers Ferry, 15 species more than what
was detected in the most recent survey conducted in 2004, indicating a substantial
decline in species richness. While some species populations could
likely persist in isolation of the Clinch River, others species such as A. p.
plicata, A. ligamentina, E. brevidens, E. capsaeformis, F. cor, F. cuneolus,
F. subrotunda, and Q. c. strigillata, may represent declining sink populations
that have subsequently followed population declines in the Clinch River.
Another factor that would impede dispersal of mussels upstream from
source populations is the presence of the Spivey Mill dam. This low-head dam
is located in Copper Creek 20 rkm from the confl uence with the Clinch River.
While the dam certainly limits upstream expansion of mussel populations, 20
km of the creek below the dam has suffered the greatest loss in species richness,
indicating other factors are also contributing to the decline.
In 1992, Copper Creek ranked number one for the most significant agricultural
water quality and erosion problems in the Clinch River basin (USDA
1992). Primary problems were siltation and pathogens related to poor agricultural
and silvicultural practices. Soil loss in the watershed was estimated
to be 130,329 metric tons/year. High levels of nitrogenous wastes may have
also contributed to the decline in mussel fauna. Nitrogen and phosphorus
production from livestock and other forms of agriculture was estimated to be
927,918 kg/yr or 27 kg/ha/yr. By comparison, estimates for the Guest River
and Swords/Lewis Creek watersheds, adjacent hydrologic units of comparable
size, were 1.96 and 8.27 kg/ha/yr, respectively.
Given that several species including E. brevidens, L. recta, A. ligamentina,
F. subrotunda, and P. fabula were only reported as relics and were not reported
alive during the initial survey (Ahlstedt 1981, 1986), it is possible that the mussel
fauna in Copper Creek was more diverse prior to 1980. In fact, some level
of faunal decline may have been linked to land-use legacies initiated during the
early 20th century, when most of the region’s forest was harvested and the watershed
was converted to row cropping and pasture land (Pederson 1925).
However, forest cover has increased in Scott and Russell counties, VA,
from 42.2% of land area in 1940 to 66.6% in 2002 (Lotti and Evans 1942,
Miles 2007). A similar rate of increase has occurred in the Copper Creek
watershed, which occupies 13.5% of the area in the combined counties. Forest
cover in the Copper Creek watershed apparently increased from 38.9% in
1992 (USDA 1992) to 57.7% in 2002 (USEPA 2002). Perhaps impacts from
the larger landscape level are beginning to lessen and may, in part, infl uence
recovery of the Copper Creek fauna.
Despite an increase in forest cover within the watershed, removal of riparian
vegetation has progressively increased in the last 30 years (Fraley and
Ahlstedt 2000). Even while conducting our survey, we observed land owners
actively removing large trees and root masses from stream banks, presumably
to accommodate livestock grazing. Elimination of stream-side riparian vegetation
is widespread, and cattle have unlimited access to the creek in many
places (Fraley and Ahlstedt 2000). The removal of riparian vegetation has destabilized
stream banks and has destroyed reaches of suitable mussel habitat.
12 Southeastern Naturalist Vol. 8, No. 1
Nearly 23% of the mainstem length has no riparian vegetation, and ≈22% of
stream banks are protected only by a narrow strip of trees. Riparian widths
of about 9 m are a minimum for effective sediment control (Wenger 1999).
Therefore, approximately half (45%) of the stream banks in Copper Creek
have inadequate riparian vegetation necessary to provide even minimal sediment
control. Historically, species diversity in Copper Creek increased in a
downstream direction, with the lower 24 km being the most diverse section of
the creek. It is clear from our data that significant declines in species richness
and abundance have occurred in the downstream section, particularly in the
lower 32 km of the creek. Mussel populations in the upper reaches, although
not excluded from impacts, seem to have remained relatively intact. Stressors
impacting the lower reaches may be more intense, given the culmination of
hydrologic impacts associated with widespread riparian degradation and loss
of forest cover. Therefore, a resultant increase in siltation and stream-bed destabilization
will impact mussel habitat, particularly in the lower reaches.
Implications
In summary, there are several factors that are likely contributing to the current
faunal structure of Copper Creek. These factors include: 1) agricultural
and land conversion stressors and the inter-specific tolerances to those stressors
among species, 2) pre-decline population densities and distribution, 3) population
source-sink relationships with the Clinch River, and 4) a barrier (Spivey
Mill Dam) to upstream dispersal. What exact weight each factor has in determining
the current and future fauna of Copper Creek is unclear. Faunal decline
in the Clinch River and agricultural and land conversion stressors may be the
most significant factors in driving the decline.
Copper Creek was one of the most diverse lotic systems of its size in North
America, and is of national importance as a refugium for rare and endangered
mussel species. Unlike many tributaries of the Upper Tennessee River system,
it has escaped large-scale impacts from urban, railroad, and highway development,
as well as mining and point-source discharges. Gradual reforestation of
the watershed may be providing some relief to the system at a larger landscape
level. However, this reforestation is occurring more in upland areas and may be
less important than the riparian corridor in infl uencing suitable habitat for mussels
(USEPA 2002). Although the mussel fauna has shown some initial signs
of recovery, streamside livestock activity and loss of forested riparian vegetation
may be pivotal in contributing to the faunal decline. Currently there are no
state laws or county ordinances to mandate livestock exclusion from streams
or riparian protection in the watershed. Government-sponsored incentive programs
such as the Conservation Reserve Enhancement Program, Landowner
Incentive Program, and Partners for Fish and Wildlife Program have succeeded
in introducing best management practices (BMPs) into the watershed. However
voluntary cost-share programs such as these may not be enough to correct
perturbations within the time frame necessary to prevent the extirpation of additional
species.
A higher level of resources and focus must be dedicated to establishing
conservation easements, purchasing lands for permanent protection, educat2009
S.D. Hanlon, M.A. Petty, and R. J. Neves 13
ing the public, and assisting land owners in implementing BMPs. Although
installation of a fish-passage structure or removal of the Spivey Mill dam will
reestablish connectivity to the middle and upper reaches of Copper Creek,
further investigation on sediment transport and changes in hydraulics will need
to be conducted to estimate the impact to mussel populations below the dam.
Further monitoring of the mussel populations will be necessary periodically to
evaluate trends in populations over time. Specifically, comprehensive surveys
need to be conducted in the near future to determine whether mussel populations
are truly rebounding or continuing in a state of decline.
Acknowledgments
We thank Dave Garst for conducting much of the qualitative survey work. We
also thank Rachel Mair, Jake Rash, John Schmerfeld, Brett Ostby, and Sumalee
Hoskin for assisting in survey work. John Scrivani provided USDA Forest Service
forest inventory and analysis data, and Carolyn Copenhaver provided references on
historic regional forest cutting. We also appreciate reviews of this paper by Mike
Pinder and Brian Watson. This work was funded by USGS Science Supported Partnership
Program in cooperation with the US Fish and Wildlife Service and Virginia
Polytechnic Institute and State University.
Literature Cited
Ahlstedt, S.A. 1981. The molluscan fauna of Copper Creek (Clinch River System) in
southwestern Virginia. Bulletin of the American Malacological Union 1981:4–6.
Ahlstedt, S.A. 1986. Cumberlandian mollusk conservation program. Activity 1: Mussel
distribution survey. Unpublished report, Tennessee Valley Authority, Office of
Natural Resources and Economic Development, Knoxville, TN. 125 pp.
Ahlstedt, S.A., M.T. Fagg, RS. Butler, and J.F. Connell. 2005. Long-term trend information
for freshwater mussel populations at twelve fixed-station monitoring sites in
the Clinch and Powell River of eastern Tennessee and Southwestern Virginia 1979–
2004. Unpublished report prepared for the US Fish and Wildlife Service, Ecological
Services, Cookeville, TN. 38 pp.
Augspurger, T., A.E. Keller, M.C. Black, W.G. Cope, and F.J. Dwyer. 2003. Water quality
guidance for protection of freshwater mussels (Unionidae) from ammonia exposure.
Environmental Toxicology and Chemistry 22(11):2569–2575.
Barr, W.C., S.A. Ahlstedt, G.D. Hickman, and D.M. Hill. 1993–1994. Cumberlandian
mollusk conservation program. Activity 8: Analysis of macrofauna factors. Walkerana
7(17/18):159–224.
Commonwealth of Virginia. 2002. Aerial imagery, raster digital data - true color. Virginia
Geographic Information Network. Available online at www.vgin.virginia.gov.
Accessed April 28, 2007.
Downing, J.A., and W.L. Downing. 1992. Spatial aggregation, precision, and power
in surveys of freshwater mussel populations. Canadian Journal of Fisheries and
Aquatic Sciences 49:985–991.
Farris, J.L., and J.H. Van Hassel. 2007. Freshwater Bivalve Ecotoxicology. Society of
Environmental Toxicology and Chemistry, Pensacola, FL. 375 pp.
Fraley, S.J., and S.A. Ahlstedt. 2000. The recent decline of the native mussels (Unionidae)
of Copper Creek, Russell and Scott counties, Virginia. Pp.189–195, In R.A.
Tankersley, D.I. Warmolts, G.T. Watters, B.J. Armitage, P.D. Johnson, and R.S.
Butler (Eds.). Freshwater Mollusk Symposia Proceedings. Ohio Biological Survey,
Columbus, OH.
14 Southeastern Naturalist Vol. 8, No. 1
Henley, W.F., R.J. Neves, L.L. Zimmerman, and R. Winterringer. 1999. A survey
of freshwater mussels in the Middle Fork Holston River, Virginia. Banisteria
14:15–24.
Hubbard, D.A., Jr. 2001. Selected karst features of the Southern Valley and Ridge
Province, Virginia. Virginia Division of Mineral Resources, Charlottesville, VA.
Publication 167.
Lotti, T., and T.C. Evans. 1942. Virginia’s forests. US Department of Agriculture.
Forest Service, Resources Bulletin SE-8. Southeastern Forest Experiment Station,
Asheville, NC. 47 pp.
Miles, P.D. 2007. Forest inventory mapmaker web-application version 2.1. US Department
of Agriculture, Forest Service, North Central Research Station, St. Paul,
MN. Available online at www.ncrs2.fs.fed.us/4801/fiadb/index.htm. Accessed
February 9, 2007.
Ortmann, A.E. 1918. The nayades (freshwater mussels) of the upper Tennessee
drainage, with notes on synonymy and distribution. Proceedings of the American
Philosophical Society 57(6):521–626.
Pederson, F.C. 1925. The forest of the valley coal fields of Virginia. Virginia Forestry
Publication Number 34, University of Virginia, Charlottesville, VA.
Pilarczyk, M.M., P.M. Stewart, D.N. Shelton, H.N. Blalock-Herod, and J.D. William.
2006. Current and recent historical freshwater mussel assemblages in the Gulf
Coastal Plains. Southeastern Naturalist 5(2):205–226.
Strayer, D.L. 1999. Statistical power of presence-absence data to detect population
declines. Conservation Biology 13(5):1034–1038.
Strayer, D.L., and D.R. Smith. 2003. A Guide to Sampling Freshwater Mussel Populations.
American Fisheries Society, Monograph 8, Bethesda, MD.
US Department of Agriculture (USDA). 1992. Clinch River basin land and water
resources study for hydrologic units. Unpublished report, June 1992, Richmond,
VA. 58 pp.
US Environmental Protection Agency (USEPA). 2002. Clinch and Powell Valley watershed
ecological risk assessment. National Center for Environmental Assessment,
Washington, DC. EPA/600/R-01/050. Available from National Technical
Information Service, Springfield, VA as publication PB2003-101118, and online
at http://www.epa.gov/ncea.
Wang, N., C.G. Ingersoll, D.K. Hardesty, C.D. Ivey, J.L. Kunz, T.W. May, F.J.
Dwyer, A.D. Roberts, T. Augsburger, C.M. Kane, R.J. Neves, and M.C. Barnhart.
2007a. Acute toxicity of copper, ammonia, and chlorine to glochidia and
juveniles of freshwater mussels (Unionidae). Environmental Toxicology and
Chemistry 26(10):2036–2047.
Wang, N., C.G. Ingersoll, I.E. Greer, D.K. Hardesty, C.D. Ivey, J.L. Kunz, W.G.
Brumbaugh, F.J. Dwyer, A.D. Roberts, T. Augsburger, C.M. Kane, R.J. Neves,
and M.C. Barnhart. 2007b. Chronic toxicity of copper and ammonia to juvenile
freshwater mussels (Unionidae). Environmental Toxicology and Chemistry
26(10):2048–2056.
Warren, M.L., and W.R. Haag. 2005. Spatio-temporal patterns of the decline of freshwater
mussels in the Little South Fork Cumberland River, USA. Biodiversity and
Conservation 14:1383–1400.
Wenger, S. 1999. A review of the scientific literature on riparian buffer width, extent,
and vegetation. Office of Public Service and Outreach, Institute of Ecology, University
of Georgia, Athens, GA. 59 pp.
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 15
Appendix 1. Mussel data for 47 survey sites in Copper Creek, Scott and Russell counties, VA collected in 2004 and 2005. Data represent living
individuals observed. R = relic specimen. * = federally listed endangered or candidate species.
Site number
1 2 3 4 5 6 7 8 9 10 11 12 13
River kilometer 1.6 1.9 2.9 3.1 3.4 3.5 4.2 5.3 5.8 7.1 8.2 9.5 10.1
Person hours 3.75 2.5 2 4.6 2 2 1.3 2 1.5 2 2 0.75 1
Actinonaias pectorosa 2 1 1 1
Alasmidonta viridis
Amblema plicata plicata R
Elliptio dilatata 3 3 1 1 R R
Epioblasma brevidens*
Fusconaia barnesiana 1 1 1
Fusconaia cor* 1 R
Fusconaia cuneolus* 1 1 R R
Lampsilis fasciola 1 5 1 1
Lampsilis ovata R
Lasmigona costata 1
Lasmigona holstonia
Ligumia recta R
Medionidus conradicus 4 1 1 1 R
Pegias fabula* R
Pleurobema oviforme 3 8 1 2 1 2 1 3 2 10
Ptychobranchus fasciolaris 1 1 1 R
Ptychobranchus subtentum* 1
Quadrula c.strigillata* 2 R R
Villosa iris 8 63 10 28 31 54 3 2 19 27 2 6 15
Villosa perpurpurea* 2 1 R R 1
Villosa vanuxemensis 1 1
Total living mussels 11 81 11 48 36 64 5 4 21 30 4 7 26
Living mussels CPUE 2.93 32.40 5.50 10.43 18.00 32.00 3.85 2.00 14.00 15.00 2.00 9.33 26.00
Total living species 4 7 2 10 6 10 3 2 3 2 2 2 3
16 Southeastern Naturalist Vol. 8, No. 1
Site number
14 15 16 17 18 19 20 21 22 23 24 25 26
River kilometer 10.5 11.1 12.6 13.7 15.1 15.8 18.5 19.0 20.8 22.2 22.5 24.3 25.1
Person hours 5.5 1.5 3.3 0.75 1.5 2 2 1.5 5 4.5 3 5 3
Actinonaias pectorosa
Alasmidonta viridis
Amblema plicata plicata
Elliptio dilatata 1 R R R R 5 24 10
Epioblasma brevidens* R
Fusconaia barnesiana 22 1 1 7 1 6 19 7
Fusconaia cor* R
Fusconaia cuneolus* 1
Lampsilis fasciola 6 1 R 2 2 1 6
Lampsilis ovata
Lasmigona costata
Lasmigona holstonia
Ligumia recta
Medionidus conradicus 1 1 3 4 5 88 11
Pegias fabula*
Pleurobema oviforme 42 2 4 R 8 5 5 4 11 10 43 11 5
Ptychobranchus fasciolaris 2
Ptychobranchus subtentum* R 1 R R R 3 R 22 8
Quadrula c. strigillata* R
Villosa iris 36 10 1 7 5 27 10 16 50 30 100 169 51
Villosa perpurpurea* 2 R R 5R 4 R R 3 R R 3 R
Villosa vanuxemensis R R
Total living mussels 110 15 5 9 14 36 15 20 76 50 160 344 92
Living mussels CPUE 20.00 10.00 1.52 12.00 9.33 18.00 7.50 13.33 15.20 11.11 53.33 68.80 30.67
Total living species 7 5 2 3 3 3 2 2 6 6 6 9 6
2009 S.D. Hanlon, M.A. Petty, and R. J. Neves 17
Site number
27 28 29 30 31 32 33 34 35 36 37 38 39
River kilometer 29.4 34.0 38.5 47.0 49.6 52.8 53.6 56.0 64.4 67.8 72.1 72.7 73.7
Person hours 3.5 0.75 4 5 1 0.25 1 4.5 1 1 2 1 0.75
Actinonaias pectorosa
Alasmidonta viridis
Amblema plicata plicata
Elliptio dilatata 1
Epioblasma brevidens*
Fusconaia barnesiana 21 11 2 1 1 3 1 13 5
Fusconaia cor*
Fusconaia cuneolus*
Lampsilis fasciola 1 2 R
Lampsilis ovata
Lasmigona costata
Lasmigona holstonia 1R
Ligumia recta
Medionidus conradicus 102 4 1 R 3 1 6 7 1
Pegias fabula*
Pleurobema oviforme 90 1 23 5 1 1 8 4 R 10 28 20
Ptychobranchus fasciolaris
Ptychobranchus subtentum* 30
Quadrula c. strigillata*
Villosa iris 150 5 72 78 22 3 38 60 35 50 115 64 8
Villosa perpurpurea*
Villosa vanuxemensis
Total living mussels 395 6 112 86 24 4 50 68 35 67 163 90 8
Living mussels CPUE 112.86 8.00 28.00 17.20 24.00 16.00 50.00 15.11 35.00 67.00 81.50 90.00 10.67
18 Southeastern Naturalist Vol. 8, No. 1
No. of sites
Site number occurring
40 41 42 43 44 45 46 47 Total % of total alive
River kilometer 77.7 78.7 81.1 82.9 83.8 85.3 87.2 93.0
Person hours 3 0.75 3 4 3.5 1.5 2 2 111.45
Actinonaias pectorosa 5 0.12% 4
Alasmidonta viridis 1 1R 3RD 1 0.02% 1
Amblema plicata plicata 0 0.00% 0
Elliptio dilatata 49 1.19% 9
Epioblasma brevidens* 0 0.00% 0
Fusconaia barnesiana 6 2 12 145 3.53% 23
Fusconaia cor* 1 0.02% 1
Fusconaia cuneolus* 3 0.07% 3
Lampsilis fasciola 1 1R 2 8 40 0.97% 15
Lampsilis ovata 0 0.00% 0
Lasmigona costata 1 0.02% 1
Lasmigona holstonia 1R 1R 1R 5R 0 0.00% 0
Ligumia recta 0 0.00% 0
Medionidus conradicus 2 3 11 53 6 4 324 7.89% 25
Pegias fabula* 0 0.00% 0
Pleurobema oviforme 11 3 41 75 9 513 12.49% 38
Ptychobranchus fasciolaris 5 0.12% 4
Ptychobranchus subtentum* 65 1.58% 6
Quadrula c. strigillata* 2 0.05% 1
Villosa iris 101 6 126 318 438 172 293 2934 71.46% 46
Villosa perpurpurea* 16 0.39% 7
Villosa vanuxemensis 1R 2 0.05% 2
Total living mussels 121 6 134 372 587 187 297 0 4106 100.00%
Living mussels CPUE 40.33 8.00 44.67 93.00 167.71 124.67 148.50 0.00 36.84
Total living species 5 1 4 4 6 3 2 0 16
