Comparison of Radio-telemetric Home-Range Analysis and
Acoustic Detection for Little Brown Bat Habitat Evaluation
Laci S. Coleman, W. Mark Ford, Christopher A. Dobony, and Eric R. Britzke
Northeastern Naturalist, Volume 21, Issue 3 (2014): 431–445
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
431

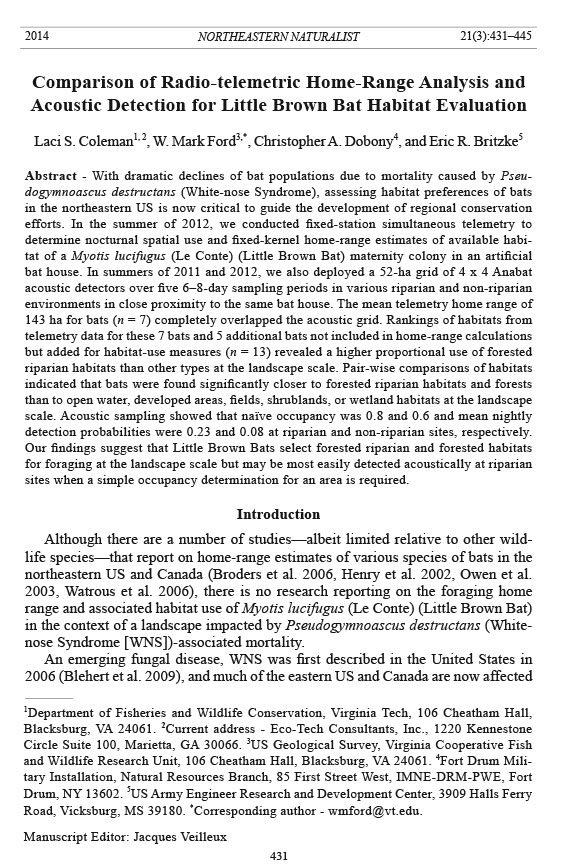

2014 NORTHEASTERN NATURALIST 21(3):431–445
Comparison of Radio-telemetric Home-Range Analysis and
Acoustic Detection for Little Brown Bat Habitat Evaluation
Laci S. Coleman1, 2, W. Mark Ford3,*, Christopher A. Dobony4, and Eric R. Britzke5
Abstract - With dramatic declines of bat populations due to mortality caused by Pseudogymnoascus
destructans (White-nose Syndrome), assessing habitat preferences of bats
in the northeastern US is now critical to guide the development of regional conservation
efforts. In the summer of 2012, we conducted fixed-station simultaneous telemetry to
determine nocturnal spatial use and fixed-kernel home-range estimates of available habitat
of a Myotis lucifugus (Le Conte) (Little Brown Bat) maternity colony in an artificial
bat house. In summers of 2011 and 2012, we also deployed a 52-ha grid of 4 x 4 Anabat
acoustic detectors over five 6–8-day sampling periods in various riparian and non-riparian
environments in close proximity to the same bat house. The mean telemetry home range of
143 ha for bats (n = 7) completely overlapped the acoustic grid. Rankings of habitats from
telemetry data for these 7 bats and 5 additional bats not included in home-range calculations
but added for habitat-use measures (n = 13) revealed a higher proportional use of forested
riparian habitats than other types at the landscape scale. Pair-wise comparisons of habitats
indicated that bats were found significantly closer to forested riparian habitats and forests
than to open water, developed areas, fields, shrublands, or wetland habitats at the landscape
scale. Acoustic sampling showed that naïve occupancy was 0.8 and 0.6 and mean nightly
detection probabilities were 0.23 and 0.08 at riparian and non-riparian sites, respectively.
Our findings suggest that Little Brown Bats select forested riparian and forested habitats
for foraging at the landscape scale but may be most easily detected acoustically at riparian
sites when a simple occupancy determination for an area is required.
Introduction
Although there are a number of studies—albeit limited relative to other wildlife
species—that report on home-range estimates of various species of bats in the
northeastern US and Canada (Broders et al. 2006, Henry et al. 2002, Owen et al.
2003, Watrous et al. 2006), there is no research reporting on the foraging home
range and associated habitat use of Myotis lucifugus (Le Conte) (Little Brown Bat)
in the context of a landscape impacted by Pseudogymnoascus destructans (Whitenose
Syndrome [WNS])-associated mortality.
An emerging fungal disease, WNS was first described in the United States in
2006 (Blehert et al. 2009), and much of the eastern US and Canada are now affected
1Department of Fisheries and Wildlife Conservation, Virginia Tech, 106 Cheatham Hall,
Blacksburg, VA 24061. 2Current address - Eco-Tech Consultants, Inc., 1220 Kennestone
Circle Suite 100, Marietta, GA 30066. 3US Geological Survey, Virginia Cooperative Fish
and Wildlife Research Unit, 106 Cheatham Hall, Blacksburg, VA 24061. 4Fort Drum Military
Installation, Natural Resources Branch, 85 First Street West, IMNE-DRM-PWE, Fort
Drum, NY 13602. 5US Army Engineer Research and Development Center, 3909 Halls Ferry
Road, Vicksburg, MS 39180. *Corresponding author - wmford@vt.edu.
Manuscript Editor: Jacques Veilleux
Northeastern Naturalist
432
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
by the fungus associated with WNS (USFWS 2013). This pathogen is known to
affect 7 species of eastern cave-hibernating bats: the federally endangered Myotis
sodalis Miller and Allen (Indiana Bat) and M. grisescens Howell (Gray Bat), as well
as M. septentrionalis (Trouessart) (Northern Long-eared Bat), M. leibii (Audubon
& Bachman) (Eastern Small-footed Bat), the Little Brown Bat, Eptesicus fuscus
(Beauvois) (Big Brown Bat), and Perimyotis subflavus (Cuvier) (Tri-colored Bat).
Since its onset, WNS has caused the death of >6 million bats (USFWS 2013),
decreasing many winter hibernacula-colony counts by 75–100% from pre-WNS
estimates (Blehert et al. 2009; Frick et al. 2010; R. Reynolds, Virginia Department
of Game and Inland Fisheries, Verona, VA, pers. comm.; Turner et al. 2011) and has
led to the proposed rule to list the Northern Long-eared Bat as endangered (Federal
Register § 78:61045–61080).
The Little Brown Bat was among the most common insectivorous bat species
in North America (Fenton and Barclay 1980). Little Brown Bats use a variety of
forested and open habitats near bodies of water for foraging (Fenton and Barclay
1980), and both forests and human-made structures as summer roosting sites (Davis
and Hitchcock 1965, Fenton and Barclay 1980). As a species formerly found
in summer colonies of hundreds to thousands of individuals (Davis and Hitchcock
1965), Little Brown Bats are now rarely observed in the northeastern US because
most known colonies have decreased precipitously in number or disappeared (Dobony
et al. 2011, Dzal et al. 2011, Ford et al. 2011, Frick et al. 2010, Turner et al.
2011). These declines have resulted in Little Brown Bats facing potential local to
regional extirpation from WNS- associated mortality (Frick et al. 2010). As populations
continue to shrink, understanding spatial and temporal use of the landscape by
Little Brown Bats will be important for conservation of remaining populations and
for potential recovery efforts in the future.
The objective of our study was to determine the congruency between nocturnal
spatial use of foraging habitat and acoustic monitoring locations for Little Brown
Bats by describing foraging home ranges, conducting habitat analyses, and developing
occupancy and detection estimates. Such data can help optimize detectordeployment
sites for implementing an effective acoustic-sampling protocol for
myotine species. Herein, we report on and compare the nocturnal spatial use of
adult females from a Little Brown Bat maternity colony roosting in an artificial bat
house at the Fort Drum Military Installation (hereafter, Fort Drum), in northwestern
New York, using radio-telemetric and acoustical methods.
Field-site Description
We conducted our study at Fort Drum, a US Army installation of approximately
43,000 ha in Jefferson and Lewis counties in northern New York (44°00'N, 75°49'W;
Fig. 1). The installation lies at the intersection of the St. Lawrence–Great Lakes
Lowlands, foothills of the Adirondack Mountains, and Tug Hill Plateau ecoregions
within the Black River and Indian River drainages. The nearby Niagara Escarpment
(10–15 km west of Fort Drum) contains karst formations and numerous caves used as
overwintering sites for bats. Approximately 57% of Fort Drum consists of forested
habitat dominated by northern hardwoods. Wetland systems including wet meadows
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
433
and Castor canadensis Kuhl (North American Beaver)-impacted streams and ponds
make up 20% of the installation’s area. Development is concentrated in a cantonment
area, with the remainder of the installation consisting of 18 training areas, an airfield,
and a large, centralized ordinance-impact zone that are all largely undeveloped.
Methods
In June and July 2012, we captured Little Brown Bats day-roosting in a bat
house in the cantonment area using double-stacked mesh mist nets (5.1 m high
and 3–12 m in width; Avinet, Inc., Dryden, NY). We placed nets along edges between
open fields and forests, and along forested corridors in close proximity to
the bat house occupied by Little Brown Bats. For each captured bat, we recorded
age, sex, reproductive condition, mass, and right forearm length. We attached
0.34-g radio transmitters (LB 2XT Holohil Systems Ltd., Carp, ON, Canada) to
the interscapular region of adult females using Skin Bond (Smith and Nephew,
Largo, FL) or Perma-Type (Perma-Type Company Inc., Plainville, CT) medical
adhesive. The transmitter to body-mass ratios were less than 5% of the average
body mass of adult female Little Brown Bats as suggested by Aldridge and
Brigham (1988). We released bats near the site of capture, and waited to begin
foraging telemetry until the following night to avoid including unusual behaviors
Figure 1. Fort Drum Military Installation, Jefferson and Lewis counties, NY; cantonment
area site of the 4x4 grid of passive acoustic sampling for Little Brown Bats, during summers
2011–2012 is demarcated by black line.
Northeastern Naturalist
434
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
resulting from handling. Bat capture and handling procedures were approved by
the Virginia Polytechnic Institute and State University Institutional Animal Care
and Use Committee (Protocol # 11-059-FIW).
We used fixed-station telemetry to conduct simultaneous bi-angulation (Menzel
et al. 2005a, Owen et al. 2003) within or adjacent to the expected foraging area near
the cantonment from emergence (approximately 2100 hours) until bats returned to
the bat box, roosted elsewhere, or could no longer be found. We used Wildlife Materials
TRX-2000S (Murphysboro, IL) telemetry receivers and five-element Yagi
antennas to estimate the azimuths of foraging bats in 5–10-minute intervals (Menzel
et al. 2005a). We monitored signals in synchronization between two observers at
an approximately 90° position. We tracked individual bats nightly for the duration
of transmitter operability.
We entered coordinates of each fixed telemetry station and all azimuth readings
into LOCATE III software (Pacer Computing, Tatamagouche, NS, Canada) to obtain
universal transverse mercator (UTM) coordinates of each foraging location (Menzel
et al. 2005a, Owen et al. 2003). We calculated home-range estimates for bats with ≥30
location estimations (Seaman et al. 1999) using the habitat-analysis tool in Biotas
(Ecological Software Solutions, LLC, Hegymagas, Hungary). We used the fixedkernel
density estimator with the least-squares cross-validation smoothing factor
based on a 95% confidence interval to exclude outliers. In addition to the bats with
calculated home-range metrics, we also incorporated telemetry data from 3 female
bats in 2012 (1 pregnant and 2 post-lactating) and 2 females in 2010 (2 post-lactating)
from the same colony to increase overall sample size for habitat-use analyses. Tracking
methodologies were the same for all bats included in the study.
We created a habitat map of the study area using 2006 land-cover data provided
by the Fort Drum natural resources branch for areas inside the installation and the
2006 National Land Cover Database (Fry et al. 2011) for areas outside its boundary.
We reclassified habitat types from both sources into 7 categories: open water,
forests, developed areas, fields, shrublands, forested riparian areas, and wetlands
(i.e., various emergent wetland and wetland meadow complexes). We categorized
open water, forests, developed areas, fields, and shrublands directly from our landcover
sources. We derived forested riparian zones and wetland zones by creating
15-m-wide buffer zones around mapped forested and open-water riparian areas and
wetlands to match the width of suggested streamside management zones for New
York (NYDEC 2011). We exported home-range polygons from Biotas for use in
ArcMap 9.3 (Environmental Systems Research Institute, Redlands, CA) for area
calculations and habitat analysis.
We used the Euclidean distance approach that analyzes habitat use linearly,
thereby readily capturing the use of ecotones or edges (Conner and Plowman 2001).
Without requiring explicit error modeling or equal sampling of individuals, Euclidean
distance can be adapted to multiple spatial scales, which for our data, were the
home-range and landscape scales. To define the landscape scale, we buffered all
points by the greatest distance observed among all points and merged those polygons.
At both scales, we used the distance tool in ArcMap to calculate the Euclidean distance
between each location and the closest representative polygon of each habitat
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
435
type (Conner and Plowman 2001). We used the Create Random Points tool in Arc-
Map to create random locations to pair with bat locations within individual bat home
ranges and across the entire landscape to represent the two scales, respectively. We
created a vector of ratios between distances to habitat types from foraging and random
locations, and used a multivariate analysis of variance (MANOVA) to determine
if ratios were different from 1.0, indicating nonrandom habitat use. We then used a
paired t-test to determine whether habitats were used in proportion with their availability
at each scale and a series of t-tests to determine habitat preference rankings.
We defined statistical significance as P ≤ 0.05 and used SAS statistical software (SAS
Institute 2012, Cary, NC) to perform all statistical analyses.
During the summers of 2011 and 2012, we collected acoustic data on Little
Brown Bats as part of an effort that was initiated to modify pre-WNS bat-monitoring
protocols initially established in 2003 at Fort Drum. We focused sampling
efforts to specifically target the putative Little Brown Bat foraging area near the
known maternity-roost structure. We deployed a 52-ha grid of 4 x 4 Anabat acoustic
detectors (Titley Scientific, Columbia, MO) over 6–8-day sampling periods in
various riparian (n = 11) and non-riparian (n = 5) environments near the bat house.
Sampling occurred during 5 periods: 25 July–1 August, in 2011 and 30 May–5
June, 20 June–27 June, 6 July–13 July, and 23 July–30 July, in 2012.
We collected acoustic data using Anabat II detectors connected to a compact
flash-storage zero-crossings analysis-interface module (ZCAIM), as well as SD1 and
SD2 units (Titley Electronics, Ballina, NSW, Australia). Before deployment, we calibrated
all units using an ultrasonic insect-deterrent device following the methods of
Larson and Hayes (2000). We placed Anabat units in weatherproof boxes with polyvinyl
chloride (PVC) tubes that contained a small weep hole in the bottom for water
drainage according to the methods of O’Farrell (1998). We placed boxes on 1.5-m
tripods aligned to allow sound to enter the PVC tubes at a 45° reflective angle to be
received perpendicularly by Anabat transducers (Britzke et al. 2010).
To ensure that more than one Anabat did not collect data on the same bat simultaneously,
we installed detectors so that ~200–250 m separated each placement
site. At each sample site, we chose deployment location and microphone direction
to maximize call quality. For example, we targeted sites with uncluttered openings
such as canopy gaps, forested trails with open corridors, or open water. We set Anabats
to record data continuously from approximately 1900–0700 h for 6–8 days
during each sampling period. We changed batteries and memory cards as needed
and downloaded data onto a laptop computer using CFCread software (Titley Electronics
Ballina, NSW, Australia).
We used the automated analysis program EchoClass version 1.1 (US Army
Engineer Research and Development Center, Vicksburg, MS) to identify bat calls
to species level. Although accuracy rates using automated software to identify individual
species are <100% (Britzke et al. 2011), EchoClass provides a maximum
likelihood estimate which allows the user to determine the probable presence or
absence of a species with predetermined levels of accuracy as modified by the presence
of other species with overlapping echolocation-pulse characteristics (Britzke
2002). We considered Little Brown Bats to be present at a site if the maximum
Northeastern Naturalist
436
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
likelihood value estimate was ≥90%. We visually examined a subset of bat calls
from 2011 and found no discrepancy with the automated classifer (L.S. Coleman,
unpubl. data). Moreover, by the summer of 2012, presence of Indiana Bats and
Northern Long-eared Bats at Fort Drum (as determined by mist-net survey efforts)
was much reduced relative to the remaining Little Brown Bats, further strengthening
our confidence in correct identification of Little Brown Bat echolocation calls
(Coleman et al. 2013).
We created a nightly presence–absence detection history from the acoustic data
(Gorresen et al. 2008). We considered each survey night independent due to the
separation of sites and the break in sampling during daylight hours. We used program
PRESENCE (version 2.4; Hines and Mackenzie 2008) to attempt to fit a candidate set
of a priori models that incorporated broad habitat categorizations as a site covariate,
and several time parameters as sampling covariates that could affect the probability
of detection or occupancy (Table 1). We eliminated any models from the candidate
set that included illogical parameter estimates and models with parameter estimates
that did not converge. We ranked models using Akaike’s information criterion (AICc)
corrected for small sample size and compared them with Akaike weights (Burnham
and Anderson 2002). We compared occupancy estimates between habitat types using
multi-season models that assumed changing detection probabilities based on site and
sampling covariates. We then extracted the 95% confidence set of models (Burnham
and Anderson 2002) to recalculate model weights (Weller 2008).
Results
We tracked and determined fixed-kernel density home-range estimates for 7
adult female Little Brown Bats during June–August 2012. Our sample included
1 pregnant, 2 lactating, 3 post-lactating, and 1 non-reproductive bat; to maintain
Table 1. Multiple-season occupancy models explaining the influence of habitat and time on occupancy
and detection estimates of Little Brown Bats at a grid of acoustic echolocation detectors at Fort Drum
Military Installation, NY, summers of 2011–2012; Ψ = occupancy, γ = colonization, ε = extinction,
p = detection, habitat = riparian versus non-riparian, day = day of the year, day2 = day of the year
squared, year = 2011 versus 2012, day*year = interaction term of day and year, full = full identity,
and “.” = constant.
Model K AICc ΔAICc ωi
Ψ(habitat), γ(full), ε(full), p (habitat + day + day2) 14 201.02 0.00 0.4292
Ψ (habitat), γ(full), ε(full), p (habitat + day*year + day2) 14 201.27 0.25 0.3787
Ψ (habitat), γ(full), ε(full), p (habitat + day + day2 + year) 15 202.95 1.93 0.1635
Ψ(habitat), γ(.), ε(.), p (habitat) 6 207.43 6.41 0.0174
Null 4 210.65 9.63 0.0035
Ψ(habitat + year), γ(.), ε(.), p (habitat + year) 8 210.97 9.95 0.0030
Ψ(habitat), γ(day*year), ε(year), p (habitat) 8 211.43 10.41 0.0024
Ψ(habitat), γ(full), ε(full), p (habitat + year) 13 213.48 12.46 0.0008
Ψ(habitat), γ(full), ε(full), p (habitat + day*year) 13 213.54 12.52 0.0008
Ψ(habitat + year), γ(full), ε(full), p (habitat + year) 14 215.48 14.46 0.0003
Ψ(habitat + day*year), γ(full), ε(full), p (habitat + year) 14 215.48 14.46 0.0003
Global 24 217.92 16.90 0.0001
Ψ(habitat), γ(full), ε(full), p (habitat) 12 233.31 32.29 0.0000
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
437
sample size, bats were not separated by reproductive status in our analyses. Mean
number of locations retained to calculate each bat’s home range was 63 (SE = 9.9,
range = 33–102). The mean area of Little Brown Bat home ranges was 143.0 ha
(n = 7, SE = 71.0). For these bats, and the additional 5 females also tracked in 2012
(1 pregnant and 2 post-lactating) or 2010 (1 pregnant and 1 non-reproductive),
mean distances from bat locations to habitat types (Table 2) were not different from
random at the home-range scale (F7,5 = 3.88, P = .0775) but were nonrandom at
the landscape scale (F7,5 = 379.37, P < 0.0001). At the landscape scale, we found
bats significantly closer to open water (t = -32.00, P < 0.0001), developed areas
(t = -5.20, P = 0.0003), forests (t = -29.61, P < 0.0001), shrublands (t = -6.02, P <
0.0001), forested riparian areas (t = -35.32, P < 0.0001), and wetlands (t = -21.39,
P < 0.0001) than expected, but further from fields (t = 10.31, P < 0.0001) than
expected. A ranking of habitats showed that forested riparian zones and forests
were used at a similar proportion to each other based on their availability, followed
by open-water habitats (Table 3). Pairwise comparisons of the distances between
Little Brown Bat foraging locations and habitat types indicated that bats foraged
significantly closer to forested riparian zones and forests than to any other habitat
type, followed by open water and wetland zones, but there was not a significant
difference between the distance to forested riparian zones or fore sts (Table 3).
We collected acoustic data during 5 sampling periods totaling 40 sampling nights
at a grid of detectors placed in the vicinity of the Little Brown Bat maternity colony
Figure 2. Location of acoustical detector grid at Fort Drum Military Installation, NY, summers
2011–2012 relative to 95% adaptive kernel home ranges for female Little Brown Bats
(n = 7), summer 2012. MYLU = Myotis lucifugus. All home-ranges (demarcated by colored
lines) encompassed most or all of the detector grid. See text for additional details.
Northeastern Naturalist
438
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
Table 4. Ninety-five percent confidence set of models and associated mean occupancy (ψ) estimates for Little Brown Bats at a grid of acoustic echolocation
detectors at Fort Drum Military Installation, NY, summers 2011–2012. γ = colonization, ε + extinction, p = detection, habitat = riparian versus non-riparian,
day = day of the year, day2 = day of the year squared, year = 2011 versus 2012, day*year = interaction term of day and year, and full = full identity.
Model K AIC ΔAIC ωi ψRiparian (SE) ψNonriparian (SE)
1. Ψ(habitat) γ(full) ε(full) p (habitat + day + day2) 14 201.02 0.00 0.4418 0.6031 (0.5922) 1.0 (0.0)
2. Ψ(habitat) γ(full) ε(full) p (habitat + day*year + day2) 14 201.27 0.25 0.3899 0.6137 (0.2167) 1.0 (0.0)
3. Ψ(habitat) γ(full) ε(full) p (habitat + day + day2 + year) 15 202.95 1.93 0.1683 0.6168 (0.5699) 1.0 (0.0)
Table 3. Ranking matrix of Little Brown Bat habitat use at the landscape scale derived from foraging telemetry conducted at Fort Drum Military Installation,
June–August 2010 and 2012. Numbers are t-statistics associated with pairwise comparisons of corrected distances to habitat. Rankings interpreted as
relative magnitudes, i.e., larger values associated with higher proportional use. *P < 0.05, **P < 0.01, ***P < 0.0001.
Open Water Developed areas Fields Forests Shrublands Forested riparian areas Wetlands
Open water -7.24*** -19.35*** 4.04** -12.85*** 15.57*** -24.74***
Developed areas 7.24*** -7.66*** 7.83*** -2.25* 8.80*** 2.98*
Fields 19.35*** 7.66*** 30.40*** 8.93*** 22.68*** 14.50***
Forests -4.04** -7.83*** -30.40*** -12.66*** 1.35 (0.2029) -14.35***
Shrublands 12.85*** 2.25* -8.93*** 12.66*** 14.57*** 6.48***
Forested riparian areas -15.57*** -8.80*** -22.68*** -1.35 (0.2029) -14.57*** -36.90***
Wetlands 24.74*** -2.98* -14.50*** 14.35*** -6.48*** 36.90***
Table 2. Mean (SE) Euclidean distances of bat and random locations to habitat types derived from foraging telemetry conducted at Fort Drum Military
Installation, June–August 2012.
Locations n Open water Developed areas Field Forest Shrublands Forested riparian Wetland
Bats 523 92.4 (6.9) 166.3 (12.2) 233.1 (8.5) 21.4 (3.2) 153.0 (5.9) 38.6 (6.7) 187.4 (6.4)
Random (home range) 523 112.5 (12.2) 146.7 (11.0) 234.9 (17.5) 23.7 (5.2) 138.5 (6.4) 55.2 (13.7) 185.0 (10.4)
Random (landscape) 523 312.3 (13.8) 229.5 (11.0) 143.5 (11.9) 115.1 (7.5) 188.8 (9.4) 276.8 (13.9) 326.8 (13.5)
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
439
(Fig. 2); we detected Little Brown Bats at 12 of the 16 sites. However, to eliminate
the high potential for sound distortion caused by multiple bats being detected simultaneously,
we removed one of the 12 sites where Little Brown Bats were detected
due to its close proximity (within < 50 m) to the bat house and along its exiting
and entering flight corridor. Little Brown Bat home ranges largely encompassed the
acoustic detector grid (Fig. 2). The 95% confidence set of models included 3 competing
top models with high empirical support according to AIC weights (Table 4).
These competing models presented occupancy estimates that varied by habitat and
detection probabilities that varied by habitat and time-related covariates. Because
our top and third model had large standard errors around the occupancy estimates
and detection probabilities, we drew most inference from model 2 (Table 4). This
model suggested higher occupancy of Little Brown Bats at non-riparian sites versus
riparian sites but higher naïve occupancy estimates and probabilities of detection at
riparian sites than non-riparian sites (Table 4; Fig. 3).
Discussion
There have been few published reports of efforts to assess Little Brown Bat
home range and habitat use by telemetric methods, with work to date restricted to
Acadian region boreal forests in eastern Canada (Broders et al. 2006, Henry et al.
Figure 3. Naïve occupancy, mean occupancy (psi) and detection (p) probability estimates
of Little Brown Bats at riparian/wetland and non-riparian sites at a 4 x 4 grid of acoustic
echolocation detectors at Fort Drum Military Installation, NY, summers 2011–2012.
Northeastern Naturalist
440
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
2002) and the agricultural Midwest (Bergeson 2012). The Little Brown Bats in our
study exhibited larger home-range sizes (143 ha) than 90% fixed-kernel estimates
of pregnant (30 ha) or lactating (18 ha) females in Quebec, Canada (Henry et al.
2002) or 100% minimum convex polygons of males (52 ha) in New Brunswick,
Canada (Broders et al. 2006). In Illinois, Bergeson (2012) reported a mean 95%
fixed-kernel home-range size much larger than we observed (515 ha versus 143
ha). Unlike our research, these studies occurred before the onset of WNS in their
respective regions. We pooled data for all bats in our study regardless of reproductive
status and home-range sizes, and landscape position appeared similar among
bats; however, our sample sizes were too small to definitively demonstrate this.
Neither did we attempt to track male Little Brown Bats that were common in mistnetting
surveys on the installation away from the bat house prior to the onset of
WNS (C.A. Dobony, unpubl. data). Nonetheless, discrepancies between our homerange
estimations and those of other studies may have been caused by differences
in estimation method, differences between males and females, sample size, habitat
quality, prey availability, and/or spatial arrangement. Moreover, the presence of
WNS-associated declines and physiological changes to extant bats may also be
factors impacting how bats interact with their environment and how that response
is modified by the changed intra- and interspecific competition among bats at Fort
Drum (Jachowski et al., in press).
From a habitat-selection perspective, our findings were consistent with the
results of Broders et al. (2006) and Bergeson (2012). Specifically, Broders et
al. (2006) reported that bats select open water and deciduous forested sites, and
Bergeson (2012) described that bats selected closed-canopy and open-water sites
but avoided open-field sites. Our results suggest that, at the landscape scale, adult
female Little Brown Bats prefer forested riparian zones and forests, followed by
open water and wetlands. We expected to detect selection for aquatic habitats because
Little Brown Bats are known to have a diet that is skewed towards a diverse
variety of adult aquatic insects (Belwood and Fenton 1976, Edythe and Kunz 1977).
It is also well documented that linear landscape features such as riparian zones and
corridors are used by bats as foraging areas and as travel corridors between roosting
and foraging sites (Menzel et al. 2005a, b; Rogers et al. 2006; Verboom and
Huitema 1997). The Little Brown Bat foraging areas at Fort Drum contained an
abundance of such corridor habitats, e.g., old logging roads and hiking trails. These
corridors may have been especially well-used by pregnant or lactating females to
facilitate travel between open water and riparian foraging habitats and their primary
bat-box day-roost or other night roosts.
At Fort Drum, acoustic surveys showed that occupancy and detection probability
estimates varied by our two simple habitat designations. We expected high
detection-probability estimates at riparian sites, but the discrepancy between occupancy
and detection-probability estimates at riparian versus non-riparian sites
was unforeseen because Little Brown Bats are known to preferentially forage near
bodies of water (Fenton and Barclay 1980). Johnson et al. (2008) reported that
where Little Brown Bats were the predominant species, overall bat activity was
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
441
highest at water sources within a rural–urban gradient of the mid-Atlantic region
near Washington, DC. Similar research from the coastal plain of South Carolina
confirms the importance of riparian and wetland areas as foraging habitats for most
species of bats, and suggests that monitoring acoustically within forest canopies
may underestimate activity levels of many bat species (Ford et al. 2006, Menzel et
al. 2005b). Therefore, higher probability of detection at acoustic sites dominated
by aquatic characteristics in our study is consistent with most acoustic studies. Accordingly,
using acoustics simply for presence/absence monitoring of Little Brown
Bats in the Northeast should preferentially target riparian areas because they avoid
closed-canopy, upland forests (Brooks and Ford 2005). The bats in our study equally
preferred forests and forested riparian zones according to our Euclidean-distance
habitat analysis, so a high occupancy estimate at non-riparian sites is unsurprising.
However, occupancy estimates very close to 1 should be cautiously interpreted if
obtained when the detection probability is <0.15 (MacKenzie et al. 2002). Such
estimates are based on small amounts of presence data, making it difficult for
models to distinguish between genuine absences and non-detections. Clearly, Little
Brown Bats occupy forested habitat at Fort Drum; however, accuracy of the wide
occupancy estimate across these sites reflected in our findings is uncertain. In this
instance, we believe the naïve occupancy estimates were likely more informative,
indeed suggesting higher occupancy in riparian habitats. Schirmacher et al. (2007)
found similar acoustic survey results in the New River Gorge area of West Virginia,
with Little Brown Bats more likely to be present in openings in forested habitats
than closed-canopy forests when water was present or nearby. Brooks (2011)
reported overall declines in Myotis species activity since the onset of WNS, but
greatest activity levels at forested roads rather than at other forested sites such as
recent clear cuts, streams, and beaver meadows. Despite WNS, Little Brown Bats
continue to utilize habitat in similar patterns acoustically, although overall populations
are smaller. In our study, all acoustic detectors that were set in non-riparian
sites were placed along trails or near canopy gaps where some recordable activity
was predicted a priori. Future acoustics sampling aimed at answering ecological
questions about habitat should recognize that lower detection probabilities in forested
upland habitats will require expanded survey effort—more sites and longer
duration—to compensate (Coleman et al. 2014).
Previous research has suggested that cluttered habitats do not significantly
impact the ability to detect bats acoustically when species are adapted to such environments
(Menzel et al. 2005b, Patriquin et al. 2003), but a threshold probably
exists whereby acoustic detection is compromised in forested habitats (i.e., call
structure is altered). Some Little Brown Bat calls may have been misclassified as
Indiana Bats or labeled as unknown Myotis even though we placed microphones in
our perceived best possible collection circumstances. Although acoustic identification
accuracy rates of >90% can be achieved for myotids in open habitats in the
Northeast, impacts of clutter on accuracy rates are not well understood (Britzke et
al. 2011). Alternatively, it is possible that bats used forested habitats primarily for
travel and did not extensively echolocate for navigation in these familiar corridors,
Northeastern Naturalist
442
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
resulting in lower acoustic detection. Nonetheless, use of occupancy analyses
rather than traditional measures of relative activity is robust to identification errors
of both commission and omission, assuming that enough sites over sufficient duration
have been sampled.
Regardless of differences between optimum derived occupancy and detection
estimates at different habitats, telemetry and acoustic results suggest congruent
patterns in bat activity at the landscape scale. In the only similar matched technique
effort, Morris et al. (2011) found that telemetry and acoustic sampling were
qualitatively similar at the home-range scale for determining the importance of pine
habitat for Nycticeius humeralis Rafinesque (Evening Bat) in southwestern Georgia.
At a landscape scale, however, telemetry data indicated that hardwood forests
were used preferentially, but this relationship was not detected using acoustics.
Accordingly, it should not be assumed that acoustic sampling always provides
similar conclusions to telemetry across scales, because acoustics are biased towards
foraging behavior and may underrepresent habitats that are important for travel or
day- and night-roosting. As research using both telemetry and acoustics in concert
expands, understanding how telemetry-error biases and detection-probability biases
among habitats drives conclusions in similar or disparate directions is needed.
However, in our study, telemetry results successfully validated use of general habitat
types at the landscape scale that were chosen for acoustic sampling where Little
Brown Bats were assumed to be present and active.
Volant species are very difficult to track accurately using telemetry, and bats in
this study were rarely tracked for their entire foraging durations in any one night.
Regardless, results presented herein provide a novel perspective for validating
optimal conditions for acoustically monitoring Little Brown Bats in a post-WNS
environment. Furthermore, acoustics provide an alternative monitoring tool that
may deliver similar results to telemetry at some scales, is a simpler method to
implement over wider temporal and spatial scales, and will likely be more successful
than other traditional capture methodologies and monitoring techniques as bat
population declines continue. In areas severely impacted by WNS, Little Brown
Bat detection will likely be difficult in any habitat and at any scale. Despite these
challenges, results of our study confirm that summer monitoring can be successfully
accomplished by deploying acoustic detectors along riparian habitats in areas
where Little Brown Bats were historically present and are still known to occur,
as confirmed by telemetry. Employing monitoring programs such as these, sooner
rather than later, will help managers understand bat spatial and temporal use of their
properties and provide them the information they need to address potential new
state or federal listings of Little Brown Bats (Kunz and Reicha rd 2010).
Acknowledgments
Funding for this study was provided by the Fort Drum Natural Resources Branch
through National Park Service, Southern Appalachian Cooperative Ecosystem Study Unit
contract W9126G-11-2-SOI-0029 and the US Geological Survey Cooperative Research
Unit Research Work Order VA-RWO-142. We thank R. Rainbolt, A. Dale, S. Dedrick,
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
443
G. Luongo, and N. Grosse for field assistance. An earlier draft of this manuscript was reviewed
by D. Stauffer.
Literature Cited
Aldridge, H.D.J.N., and R.M. Brigham. 1988. Load carrying and maneuverability in an
insectivorous bat: A test of the 5% ”rule” of radio-telemetry. Journal of Mammalogy
69:379–382.
Belwood, J.J., and M.B. Fenton. 1976. Variation in the diet of Myotis lucifugus (Chiroptera:
Vespertilionidae). Canadian Journal of Zoology 54:1674–1678.
Bergeson, S.M. 2012. Examing the suitability of the Little Brown Bat (Myotis lucifugus)
as a surrogate for the endangered Indiana Bat (M. sodalis). M.Sc. Thesis. Ball State
University, Muncie, IN. 99 pp.
Blehert, D.S., A.C. Hicks, M. Behr, C.U. Meteyer, B.M. Berlowski-Zier, E.L. Buckles,
J.T.H. Coleman, S.R. Darling, A. Gargas, R. Niver, J.C. Okoniewski, R.J. Rudd, and
W.B. Stone. 2009. Bat White-nose Syndrome: An emerging fungal pathogen? Science
323:227–227.
Britzke, E.R., K.L. Murray, J.S. Heywood, and L.W. Robbins. 2002. Acoustic identification.
Pp. 220–224, In A. Kurta and J. Kennedy (Eds.). The Indiana Bat: Biology and
Management of an Endangered Species. Bat Conservation International, Austin, TX. xii
+ 253 pp.
Britzke, E.R., B.A. Slack, M.P. Armstrong, and S.C. Loeb. 2010. Effects of orientation and
weatherproofing on the detection of bat-echolocation calls. Journal of Fish and Wildlife
Management 1:136–141.
Britzke, E.R., J.E. Duchamp, K.L. Murray, R.K. Swihart, and L.W. Robbins. 2011. Acoustic
identification of bats in the eastern United States: A comparison of parametric and nonparametric
methods. The Journal of Wildlife Management 75:660–667.
Broders, H.G., G.J. Forbes, S. Woodley, and I.D. Thompson. 2006. Range extent and stand
selection for roosting and foraging in forest-dwelling Northern Long-eared Bats and
Little Brown Bats in the Greater Fundy Ecosystem, New Brunswick. The Journal of
Wildlife Management 70:1174–1184.
Brooks, R.T. 2011. Declines in summer bat activity in central New England 4 years following
the initial detection of White-nose Syndrome. Biodiversity and Conservation
20:2537–2541.
Brooks, R.T., and W.M. Ford. 2005. Bat activity in a forest landscape of central Massachusetts.
Northeastern Naturalist 12:447–462.
Burnham, K.P., and D.R. Anderson. 2002. Model Selection and Multi-model Inference: A
Practical Information-theoretic Approach. Springer, New York, NY. 496 pp.
Coleman, L.S., W.M. Ford, C.A. Dobony, and E.R. Britzke. 2013. Doubting Thomas probably
did not own an Anabat. Abstracts of the 2013 Northeast Bat Working Group. 2013:6.
Coleman, L.S., W.M. Ford, C.A. Dobony, and E.R. Britzke. 2014. Effect of passive acoustic
sampling methodology on detecting bats after declines from White-nose Syndrome.
Journal of Ecology and the Natural Environment 6:56–64.
Conner, L.M., and B.W. Plowman. 2001. Using Euclidean distances to assess non-random
habitat use. Pp. 526–531, In J.J. Millspaugh and J.M. Marzluff (Eds.). Radio Tracking
and Animal Populations. Academic Press, San Diego, CA. 474 pp.
Davis, W.H., and H.B. Hitchcock. 1965. Biology and migration of the bat, Myotis lucifugus,
in New England. Journal of Mammalogy 46:296–313.
Northeastern Naturalist
444
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014 Vol. 21, No. 3
Dobony, C.A., A.C. Hicks, K.E. Langwig, R.I. von Linden, J.C. Okoniewski, and R.E.
Rainbolt. 2011. Little Brown Myotis persist despite exposure to White-nose Syndrome.
Journal of Fish and Wildlife Management 2:190–195.
Dzal, Y., L.P. McGuire, N. Veselka, and M.B. Fenton. 2011. Going, going, gone: The impact
of White-nose Syndrome on the summer activity of the Little Brown Bat (Myotis
lucifugus). Biology Letters 7:392–394.
Edythe, L.P.A., and T.H. Kunz. 1977. Feeding strategies of the Little Brown Bat, Myotis
lucifugus, in southern New Hampshire. Ecology 58:775–786.
Fenton, M.B., and R.M.R. Barclay. 1980. Myotis lucifugus. Mammalian Species:1–8.
Ford, W.M., J.M. Menzel, M.A. Menzel, J.W. Edwards, and J.C. Kilgo. 2006. Presence and
absence of bats across habitat scales in the upper coastal plain of South Carolina. Journal
of Wildlife Management 70:1200–1209.
Ford, W.M., E.R. Britzke, C.A. Dobony, J.L. Rodrigue, and J.B. Johnson. 2011. Patterns
of acoustical activity of bats prior to and following White-nose Syndrome occurrence.
Journal of Fish and Wildlife Management 2:125–134.
Frick, W.F., J.F. Pollock, A.C. Hicks, K.E. Langwig, D.S. Reynolds, G.G. Turner, C.M.
Butchkoski, and T.H. Kunz. 2010. An emerging disease causes regional population collapse
of a common North American bat species. Science 329:679–682.
Fry, J., G. Xian, S. Jin, J. Dewitz, C. Homer, L. Yang, C. Barnes, N. Herold, and J. Wickham.
2011. Completion of the 2006 National land-cover database for the conterminous
United States. Photographic Engineering and and Remote Sensing 77:858–864.
Gorresen, P.M., A.C. Miles, C.M. Todd, F.J. Bonaccorso, and T.J. Weller. 2008. Assessing
bat detectability and occupancy with multiple automated echolocation detectors. Journal
of Mammalogy 89:11–17.
Henry, M., D.W. Thomas, R. Vaudry, and M. Carrier. 2002. Foraging distances and home
range of pregnant and lactating Little Brown Bat (Myotis lucifugus). Journal of Mammalogy
83:767–774.
Hines, J.E., and D.I. McKenzie. 2008. PRESENCE version 2.4. Available online at http://
www.mbr-pwrc.usgs.gov/software/presence.html. Accessed 9 October 2011.
Jachowski, D.S., C.A. Dobony, L.S. Coleman, W.M. Ford, E.R. Britzke, and J.L. Rodrigue.
In Press. Disease and community assemblage: White-nose Syndrome alters spatial and
temporal niche partitioning in sympatric bat species. Diversity and Distributions
Johnson, J.B., J.E. Gates, and W.M. Ford. 2008. Distribution and activity of bats at local
and landscape scales within a rural–urban gradient. Urban Ecosystems 11:227–242.
Kunz, T.H., and J.D. Reichard. 2010. Status review of the Little Brown Myotis (Myotis
lucifugus) and determination that immediate listing under the Endangered Species
Act is scientifically and legally warranted. Boston University, Boson, MA. Available
online at http://www.bu.edu/cecb/files/2010/12/Final-Status-Review.pdf. Accessed 1
December 2011.
Larson, D.J., and J.P. Hayes. 2000. Variability in sensitivity of Anabat II bat detectors and
a method of calibration. Acta Chiropterologica 2:209–213.
MacKenzie, D.I., J.D. Nichols, G.B. Lachman, S. Droege, J.A. Royle, and C.A. Langtimm.
2002. Estimating site-occupancy rates when detection probabilities are less than one.
Ecology 83:2248–2255.
Menzel, J.M., W.M. Ford, M.A. Menzel, T. Carter, J.E. Gardner, J.D. Garner, and J.E.
Hofmann. 2005a. Research Notes: Summer habitat use and home-range analysis of the
endangered Indiana Bat. Journal of Wildlife Management 69:430–436.
Northeastern Naturalist Vol. 21, No. 3
L.S. Coleman, W.M. Ford, C.A. Dobony, and E.R. Britzke
2014
445
Menzel, J.M., M.A. Menzel, Jr., J.C. Kilgo, W.M. Ford, J.W. Edwards, and G.F. McCracken.
2005b. Effect of habitat and foraging height on bat activity in the coastal plain of
South Carolina. The Journal of Wildlife Management 69:235–245.
Morris, A.D., D.A. Miller, and L.M. Conner. 2011. A comparison of ultrasonic detectors
and radiotelemetry for studying bat–habitat relationships. Wildlife Society Bulletin
35:469–474.
New York State Department of Environmental Conservation (NYDEC). 2011. New York
State best management practices for water quality management: BMP field guide 2011
Edition. Available online at http://www.dec.ny.gov/docs/lands_forests_pdf/dlfbmpguide.
pdf. Accessed 30 May 2013.
O’Farrell, M.J. 1998. A passive monitoring system for Anabat II using a laptop computer.
Bat Research News 39:147–150.
Owen, S.F., M.A. Menzel, W.M. Ford, B.R. Chapman, K.V. Miller, J.W. Edwards, and P.B.
Wood. 2003. Home-range size and habitat used by the Northern Myotis (Myotis septentrionalis).
American Midland Naturalist 150:352–359.
Patriquin, K.J., L.K. Hogberg, B.J. Chruszez, and R.M.R. Barclay. 2003. The influence of
habitat structure on the ability to detect ultrasound using bat detectors. Wildlife Society
Bulletin 31:475–481.
Rogers, D.S., M.C. Belk, M.W. González, and B.L. Coleman. 2006. Patterns of habitat
use by bats along a riparian corridor in northern Utah. The Southwestern Naturalist
51:52–58.
Schirmacher, M.R., S.B. Castleberry, W.M. Ford, and K.V. Miller. 2007. Habitat associations
of bats in south-central West Virginia. Proceedings of the Annual Conference of
the Southeastern Association of Fish and Wildlife Agencies 61:46–52.
Seaman, D.E., J.J. Millspaugh, B.J. Kernohan, G.C. Brundige, K.J. Raedeke, and R.A.
Gitzen. 1999. Effects of sample size on kernel home-range estimates. The Journal of
Wildlife Management 63:739–747.
Turner, G.G., D.M. Reeder, and J.T.H. Coleman. 2011. A five-year assessment of mortality
and geographic spread of White-nose Syndrome in North American bats and a look to
the future. Bat Research News 52:13–27.
United States Fish and Wildlife Service (USFWS). 2013. White-nose Syndrome.org: North
America’s response to the devastating bat disease. Available online at http://whitenosesyndrome.
org/. Accessed 13 November 2013.
Verboom, B., and H. Huitema. 1997. The importance of linear landscape elements for the
Pipistrelle, Pipistrellus pipistrellus, and the Serotine Bat, Eptesicus serotinus. Landscape
Ecology 12:117–125.
Watrous, K.S., T.M. Donovan, R.M. Mickey, S.R. Darling, A.C. Hicks, and S.L. Von Oettingen.
2006. Predicting minimum habitat characteristics for the Indiana Bat in the
Champlain Valley. Journal of Wildlife Management 70:1228–1237.
Weller, T.J. 2008. Using occupancy estimation to assess the effectiveness of a regional
multiple-species conservation plan: Bats in the Pacific Northwest. Biological Conservation
141:2279–2289.
