Reduced Genetic Variation in Populations of Black Cherry
(Prunus serotina subsp. serotina, Rosaceae) at Its Western
Range Limit in Kansas
James B. Beck, Carolyn J. Ferguson, Mark H. Mayfield, and Joey Shaw
Northeastern Naturalist, Volume 21, Issue 3 (2014): 472–478
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist
472
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
22001144 NORTHEASTERN NATURALIST 2V1(o3l). :2417,2 N–4o7. 83

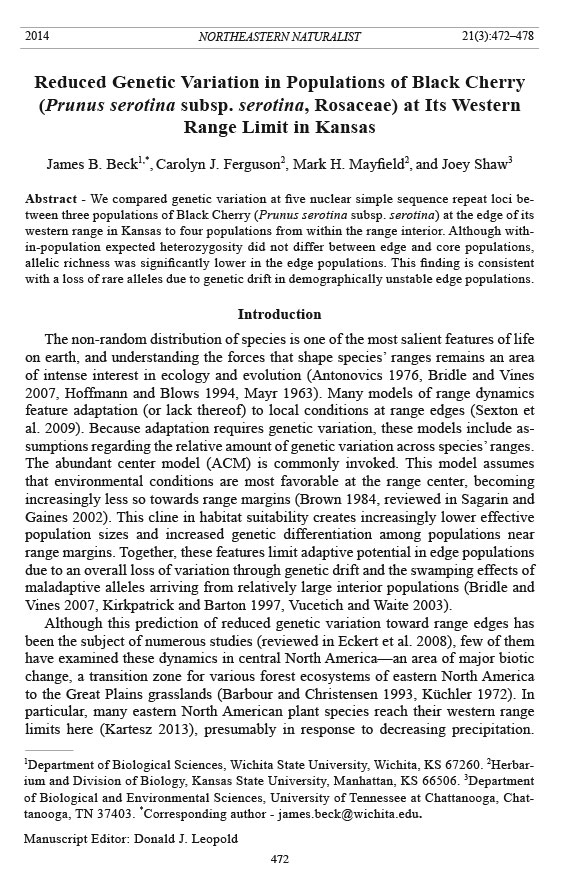

Reduced Genetic Variation in Populations of Black Cherry
(Prunus serotina subsp. serotina, Rosaceae) at Its Western
Range Limit in Kansas
James B. Beck1,*, Carolyn J. Ferguson2, Mark H. Mayfield2, and Joey Shaw3
Abstract - We compared genetic variation at five nuclear simple sequence repeat loci between
three populations of Black Cherry (Prunus serotina subsp. serotina) at the edge of its
western range in Kansas to four populations from within the range interior. Although within-
population expected heterozygosity did not differ between edge and core populations,
allelic richness was significantly lower in the edge populations. This finding is consistent
with a loss of rare alleles due to genetic drift in demographically unstable edge populations.
Introduction
The non-random distribution of species is one of the most salient features of life
on earth, and understanding the forces that shape species’ ranges remains an area
of intense interest in ecology and evolution (Antonovics 1976, Bridle and Vines
2007, Hoffmann and Blows 1994, Mayr 1963). Many models of range dynamics
feature adaptation (or lack thereof) to local conditions at range edges (Sexton et
al. 2009). Because adaptation requires genetic variation, these models include assumptions
regarding the relative amount of genetic variation across species’ ranges.
The abundant center model (ACM) is commonly invoked. This model assumes
that environmental conditions are most favorable at the range center, becoming
increasingly less so towards range margins (Brown 1984, reviewed in Sagarin and
Gaines 2002). This cline in habitat suitability creates increasingly lower effective
population sizes and increased genetic differentiation among populations near
range margins. Together, these features limit adaptive potential in edge populations
due to an overall loss of variation through genetic drift and the swamping effects of
maladaptive alleles arriving from relatively large interior populations (Bridle and
Vines 2007, Kirkpatrick and Barton 1997, Vucetich and Waite 2003).
Although this prediction of reduced genetic variation toward range edges has
been the subject of numerous studies (reviewed in Eckert et al. 2008), few of them
have examined these dynamics in central North America—an area of major biotic
change, a transition zone for various forest ecosystems of eastern North America
to the Great Plains grasslands (Barbour and Christensen 1993, Küchler 1972). In
particular, many eastern North American plant species reach their western range
limits here (Kartesz 2013), presumably in response to decreasing precipitation.
1Department of Biological Sciences, Wichita State University, Wichita, KS 67260. 2Herbarium
and Division of Biology, Kansas State University, Manhattan, KS 66506. 3Department
of Biological and Environmental Sciences, University of Tennessee at Chattanooga, Chattanooga,
TN 37403. *Corresponding author - james.beck@wichita.edu.
Manuscript Editor: Donald J. Leopold
Northeastern Naturalist Vol. 21, No. 3
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014
473
A particularly dramatic example is Prunus serotina Ehrh. subsp. serotina (Black
Cherry: Rosaceae). This taxon forms part of Prunus serotina s.l., which also
includes P. serotina subsp. hirsuta (Ell.) McVaugh (Alabama Cherry) from the highlands
of Alabama and Georgia; subsp. eximia (Small) McVaugh from the Edwards
Plateau; subsp. virens (Woot. & Standl.) McVaugh from west Texas, New Mexico,
Arizona, and northern Mexico; and subsp. capuli (Cav.) McVaugh (Capulí) from
southern Mexico and Guatemala (McVaugh 1951). Although McVaugh assigned
some individuals from Mexico and Guatemala to subsp. serotina, the main range of
P. serotina subsp. serotina is in eastern North America, where it is found essentially
throughout the United States east of 96° west longitude, at which point its range
ends somewhat abruptly (Prasad and Iverson 2003). This longitudinal range boundary
presents an opportunity to evaluate the ACM’s prediction of reduced genetic
variation in edge populations by comparing them to populations from well inside
the main Black Cherry range.
Methods
Field sampling
Samples were obtained from seven P. serotina subsp. serotina populations in
2012. These included four populations from within the range interior and three
populations at or near the western edge of its range in Kansas (Fig. 1). Names
and geographic coordinates for each population are as follows: Chisholm Creek
Park, KS (37.7429°N, 97.2740°W); Cross Timbers State Park, KS (37.8039°N,
95.8446°W); Osage State Fishing Lake, KS (38.7711°N, 95.6649°W); University
of Wisconsin-Milwaukee Field Station, WI (43.3906°N, 88.0260°W);
Catoosa County, GA (34.9250°N, 85.0620°W); Lewis County, TN (35.5608°N,
87.4440°W); and the Tyson Research Center, MO (38.5250°N, 90.5577°W).
The Chisholm Creek Park population is particularly extreme geographically.
Of the 143 Kansas specimens of Black Cherry at the Kansas State University
(KSC) and University of Kansas (KANU) herbaria, only two were collected farther
west (just 0.23° and 0.07° westward). The Kansas populations were found in
finite forested patches within agricultural or urban landscapes, and the interior
populations were in areas of relatively continuous forest. Trees were informally
sampled, although we made an effort to sample broadly across each local area.
We obtained silica-dried leaf tissue from 10 individuals at the Catoosa County,
GA site, and from each of 20 individuals in the remaining six populations.
A voucher specimen from one individual per population was archived at the
Kansas State University Herbarium (KSC), the University of Tennessee at Chattanooga
Herbarium (UCHT), or the Wichita State University Herbarium (WICH).
DNA extraction and SSR genotyping
We extracted DNA from 130 samples using a modified CTAB protocol designed
for 96-well plates (Beck et al. 2012), except that we performed tissue grinding using
the reciprocating saw bead-mill described by Alexander et al. (2007). We assessed
microsatellite, or simple sequence repeat (SSR), allele variation at five previously
Northeastern Naturalist
474
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014 Vol. 21, No. 3
published loci (UDP96-005 and UDP98-405 [Cipriani et al. 1999], UCD-CH14
[Struss et al. 2003], PceGA34 [Downey and Iezzoni 2000], and M4c [Yamamoto
et al. 2002]). Although P. serotina is a putative allotetraploid, three of these loci
(UDP96-005, UDP98-405, and UCD-CH14) are specific to one of the two parental
genomes (Pairon and Jacquemart 2008). Locus M4c is not specific to either parental
genome (Pairon and Jacquemart 2008), and PceGA34 has not been evaluated. We
labeled forward primers for each locus with 6-FAM or HEX, and the five loci were
amplified using a multiplex PCR protocol (one triplex and one duplex). Each 8-μL
reaction contained 2.5 μl 2X Qiagen Multiplex PCR Master mix (Qiagen, Germantown,
MD), 0.2 μM each primer, and ~20 ng DNA template. Reactions involved
denaturing at 95 °C (15 minutes) and 30 cycles of 94 °C denaturing (30 seconds),
annealing at 53 °C (90 seconds), and extension at 72 °C (60 seconds), followed by a
final extension at 60 °C (30 minutes). Amplicons were sized using the 500 LIZ standard
on an Applied Biosystems 3730xl DNA Analyzer (LifeTechnologies, Carsbad,
CA) at the University of Chicago Comprehensive Cancer Center DNA Sequencing
and Genotyping Facility (Chicago, IL). Alleles were determined using GeneMarker
1.9 (SoftGenetics, State College, PA).
Figure 1. Generalized range (following Prasad and Iverson 2003) of Black Cherry (Prunus
serotina subsp. serotina) and the locations of the seven analyzed populations. Populations
are as follows: A) Chisholm Creek Park, KS; B) Cross Timbers State Park, KS; C) Osage
State Fishing Lake, KS; D) University of Wisconsin-Milwaukee Field Station, WI; E) Catoosa
County, GA; F) Lewis County, TN; and G) Tyson Research Center, MO.
Northeastern Naturalist Vol. 21, No. 3
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014
475
Data analysis
Within-population expected heterozygosity (HE) at the four single-genome-specific
loci (see below) was calculated in GenAlEx 6.0 (Peakall and Smouse 2006).
Data at the 2-genome locus M4c were randomly subsampled to produce a maximum
of two alleles per individual in GenoDive 2.0 (Meirmans and Van Tienderen 2004),
and a sample-size-corrected measure of within-population allelic richness across all
loci (A) was then calculated in HP-Rare (Kalinowski 2005). We evaluated differences
between mean interior vs. mean edge HE and A with Welch’s t-tests on the R
platform (R Foundation for Statistical Computing, Vienna, Austria).
Results
No more than two alleles per individual were amplified at UDP96-005, UDP98-
405, and UCD-CH14, consistent with the claim that these loci amplify one of the
two P. serotina subsp. serotina parental genomes (Pairon and Jacquemart 2008).
In addition, PceGA34 also exhibited no more than two alleles per individual, suggesting
that it also targets a single genome. As previously demonstrated in Pairon
and Jacquemart (2008), M4c frequently exhibited 3–4 (but not more than 4) alleles
per individual. Details regarding the size and variability of each locus, along
with measures of within-population variability are presented in Table 1. Although
within-population HE (averaged across loci) did not significantly differ between
edge (0.732) and interior (0.748) populations (t[4.03] = -0.46, P = 0.6721), average
within-population A was significantly lower in edge (5.91) relative to interior (7.50)
populations (t[3.84] = -3.37, P = 0.02975). Average within-population A was lower
across edge populations at all five loci (UDP96-005: edge 4.33 vs. interior 4.51;
Table 1. Size and variability of the 5 SSR loci across all populations and diversity across loci within
populations. Size = fragment-size range in bp, # alleles = number of alleles, Ho = observed heterozygosity,
HE = expected heterozygosity, n = sample size, # genotypes = number of unique multilocus
genotypes, and A = allelic richness. Per-locus heterozygosity measures were not calculated for the
tetraploid locus M4c, and within-population heterozygosity measures were calculated excluding this
locus. Allelic richness was calculated with "diploidized" locus M4c.
Locus Size # alleles Ho HE
UDP96-005 91–11 9 0.707 0.682
UDP98-405 109–125 9 0.521 0.552
UCD-CH14 124–178 28 0.871 0.869
PceGA34 128-174 21 0.900 0.860
M4c 65-95 15 – –
Population n # alleles # genotypes Ho HE A
Chisholm Creek Park, KS 20 31 20 0.725 0.681 5.38
Cross Timbers State Park, KS 20 39 20 0.763 0.774 6.66
Osage State Fishing Lake, KS 20 35 20 0.750 0.741 5.69
UWM Field Station, WI 20 58 20 0.725 0.799 8.07
Catoosa County, GA 10 41 10 0.700 0.704 7.69
Lewis County, TN 20 48 20 0.788 0.729 6.78
Tyson Research Center, MO 20 51 20 0.800 0.758 7.46
Northeastern Naturalist
476
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014 Vol. 21, No. 3
UDP98-405: 3.41 vs. 4.23; UCD-CH14: 7.46 vs. 11.40; PceGA34: 8.24 vs. 10.22;
M4c: 6.11 vs. 7.15). Although this difference was only statistically significant at
UCD-CH14, our limited sample size (seven populations) likely constrained our
power to detect effects.
Discussion
Our finding of reduced within-population genetic diversity in range-edge populations
is consistent with previous work. Eckert et al. (2008) identified 68 studies
that statistically evaluated this claim, and 65% found significantly lowered withinpopulation
genetic diversity towards at least one range limit. It is also not surprising
that allelic richness was significantly lower in edge populations, while expected heterozygosity
was not. As a measure of the number of alleles present in a population,
A is more sensitive to the presence/absence of rare alleles, which are most vulnerable
to loss through genetic drift. Edge populations are thought to be more strongly
influenced by such drift due to relatively frequent extinction/recolonization and
population size fluctuations, although tests of these demographic hypotheses have
received mixed results (Murphy et al. 2006, Sagarin and Gaines 2002).
While we made no formal measures of such population dynamics in these
seven populations, field observations suggest that the edge populations are prone
to demographic fluctuations. Both recent mortality in trees of all size classes
and clear signs of drought stress in living trees (wilting and leaf scorch) were
frequently observed. In addition, only one of 60 trees sampled in the edge popu -
lations was in fruit. This anecdotal evidence suggests that these populations,
presumably at their adaptive limit to precipitation, are declining in response
to extreme drought conditions during 2011 and 2012 in the Midwest (NDMC
2013). Long-term monitoring of fitness and demography in these and other
P. serotina subsp. serotina populations at this precipitation gradient is needed to
fully evaluate this possibility.
The examined edge populations exhibited reduced genetic variability relative
to interior populations, but this may not be a general feature of the P. serotina
subsp. serotina range boundary. Although they did not statistically compare them
to interior populations, Pairon et al. (2010) included three populations from near
the western range limit in Nebraska and Oklahoma in their analysis of invasive
Black Cherry in Europe relative to native North American populations. Although
the Oklahoma population displayed the lowest allelic richness, the Nebraska sites
exhibited allelic richness measures that were higher than those of many interior
populations. Indeed, we have examined a single small section of the expansive
range edge of Black Cherry (Fig. 1), and populations along this boundary likely experience
many selective environments. We also classified all populations as either
interior or edge, but an optimal strategy for an expanded study might describe the
geographic position of each population as a continuous variable such as distance
to range edge (Murphy et al. 2006). Future study of P. serotina subsp. serotina,
that samples densely within all portions of the range interior and along the entire
range boundary (see Eckert et al. 2008) is warranted. This and other expansive
Northeastern Naturalist Vol. 21, No. 3
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014
477
range-edge studies of taxa with similar distributions in North American will advance
our understanding of species distributions and are of particular interest due
to changing environmental conditions in the region.
Acknowledgments
The authors would like to thank the following for permission to collect on their properties:
the Kansas Department of Wildlife, Parks, and Tourism, Pratt, KS; The Wichita
Department of Park and Recreation (Chisholm Creek Park), Wichita, KS; Tyson Research
Center at Washington University, St. Louis, MO; the University of Wisconsin-Milwaukee
Field Station, Saukville, WI; and the Tennessee Army National Guard Volunteer Training
Site, Catoosa County, GA. Special thanks go to Gretchen Meyer and Jim Reinartz (UWM
Field Station), Travis Mohrman (Tyson Research Center), and Jim Mason (Great Plains
Nature Center) for facilitating fieldwork; to Paul Beck for obtaining and optimizing the
reciprocating saw bead-mill; and to Cristian Beza for help preparing Figure 1. Funding for
this project was provided by the Wichita State University Department of Biological Sciences
and the Department of Biological and Environmental Sciences at the University of
Tennessee at Chattanooga. This is contribution no. 14-303-J from the Kansas Agricultural
Experiment Station.
Literature Cited
Alexander, P.J., G. Rajanikanth, C.D. Bacon, and C.D. Bailey. 2007. Recovery of plant
DNA using a reciprocating saw and silica-based columns. Molecular Ecology Notes
7:5–9.
Antonovics, J. 1976. The nature of limits to natural selection. Annals of the Missouri Botanical
Garden 63:224–247.
Barbour, M.G., and N.L. Christensen. 1993. Vegetation. Pp. 97–131, In Flora of North
America Editorial Committee (Eds.). Flora of North America North of Mexico. Oxford
University Press, New York, NY. 372 pp.
Beck, J.B., P.J. Alexander, L. Allphin, I.A. Al-Shehbaz, C. Rushworth, C.D. Bailey, and
M.D. Windham. 2012. Does hybridization drive the transition to asexuality in diploid
Boechera? Evolution 66:985–995.
Bridle, J.R., and T.H. Vines. 2007. Limits to evolution at range margins: When and why
does adaptation fail? Trends in Ecology and Evolution 22:140–147.
Brown, J.H. 1984. On the relationship between abundance and distribution of species.
American Naturalist 124:255–279.
Cipriani, G., G. Lot, W.-G. Huang, M.T. Marrazzo, E. Peterlunger, and R. Testolin. 1999.
AC/GT and AG/CT microsatellite repeats in Peach [Prunus persica (L.) Batsch]: Isolation,
characterization, and cross-species amplification in Prunus. Theoretical and Applied
Genetics 99:65–72.
Downey, S.L., and A.F. Iezzoni. 2000. Polymorphic DNA markers in Black Cherry (Prunus
serotina) are identified using sequences from Sweet Cherry, Peach, and Sour Cherry.
Journal of the American Society for Horticultural Science 125:76–80.
Eckert, C.G., K.E. Samis, and S.C. Lougheed. 2008. Genetic variation across species’
geographical ranges: The central–marginal hypothesis and beyond. Molecular Ecology
17:1170–1188.
Hoffmann, A.A., and M.W. Blows. 1994. Species borders: Ecological and evolutionary
perspectives. Trends in Ecology and Evolution 9:223–227.
Northeastern Naturalist
478
J.B. Beck, C.J. Ferguson, M.H. Mayfield, and J.Shaw
2014 Vol. 21, No. 3
Kalinowski, S.T. 2005. HP-RARE 1.0: a computer program for performing rarefaction on
measures of allelic richness. Molecular Ecology Notes 5:187–189 .
Kartesz, J.T. The Biota of North America Program (BONAP). 2013. North American
plant atlas. Available online at http://www.bonap.org/MapSwitchboard.html. Accessed
1 May 2013.
Kirkpatrick, M., and N.H. Barton. 1997. Evolution of a species’ range. American Naturalist
150:1–23.
Küchler, A.W. 1972. The oscillations of the mixed prairie in Kansas. Erdkunde 26:120–129.
Mayr, E. 1963. Animal Species and Evolution. Belknap Press of Harvard University, Cambridge,
UK. 797 pp.
McVaugh, R. 1951. A revision of the North American Black Cherries (Prunus serotina
Ehrh., and relatives). Brittonia 7:279–315.
Meirmans, P.G., and P.H. Van Tienderen. 2004. GENOTYPE and GENODIVE: Two programs
for the analysis of genetic diversity of asexual organisms. Molecular Ecology
Notes 4:792–794.
Murphy, H.T., J. VanDerWal, and J. Lovett-Doust. 2006. Distribution of abundance across
the range in eastern North American trees. Global Ecology and Biogeography 15:63–71.
National Drought Mitigation Center (NDMC). 2013. US Drought Monitor. Available online
at http://droughtmonitor.unl.edu/. Accessed 1 May 2013.
Pairon, M., and A. Jacquemart. 2008. Detection and characterization of genome-specific
microsatellite markers in the allotetraploid Prunus serotina. Journal of the American
Society for Horticultural Science 133:390–395.
Pairon, M., B. Petitpierre, M. Campbell, A. Guisan, O. Broennimann, P.V. Baret, A. Jacquemart,
and G. Besnard. 2010. Multiple introductions boosted genetic diversity in the
invasive range of Black Cherry (Prunus serotina; Rosaceae). Annals of Botany (London)
105:881–890.
Peakall, R., and P.E. Smouse. 2006. GENALEX 6: Genetic analysis in Excel. Population
genetic software for teaching and research. Molecular Ecology N otes 6:288–295.
Prasad, A.M., and L.R. Iverson. 2003. Little’s range and FIA importance-value database
for 135 eastern US tree species, Northeastern Research Station, USDA Forest Service,
Delaware, OH. Available online at http://www.fs.fed.us/nrs/atlas/littlefia/index.html#.
Accessed 1 May 2013.
Sagarin, R.D., and S.D. Gaines. 2002. The “abundant centre” distribution: To what extent
is it a biogeographical rule? Ecology Letters 5:137–147.
Sexton, J.P., P.J. McIntyre, A.L. Angert, and K.J. Rice. 2009. Evolution and ecology of species
range limits. Annuual Review of Ecology, Evolution, and Systematics 40:415–436.
Struss, D., R. Ahmad, S.M. Southwick, and M. Boritzki. 2003. Analysis of Sweet Cherry
(Prunus avium L.) cultivars using SSR and AFLP markers. Journal of the American
Society for Horticultural Science 128:904–909.
Vucetich, J.A., and T.A. Waite. 2003. Spatial patterns of demography and genetic processes
across the species’ range: Null hypotheses for landscape conservation genetics. Conservation
Genetics 4:639–645.
Yamamoto, T., K. Mochida, T. Imai, Y.Z. Shi, I. Ogiwara, and T. Hayashi. 2002. Microsatellite
markers in Peach [Prunus perica (L.) Batsch] derived from an enriched genomic and
cDNA libraries. Molecular Ecology Notes 2:298–301.
