Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
529

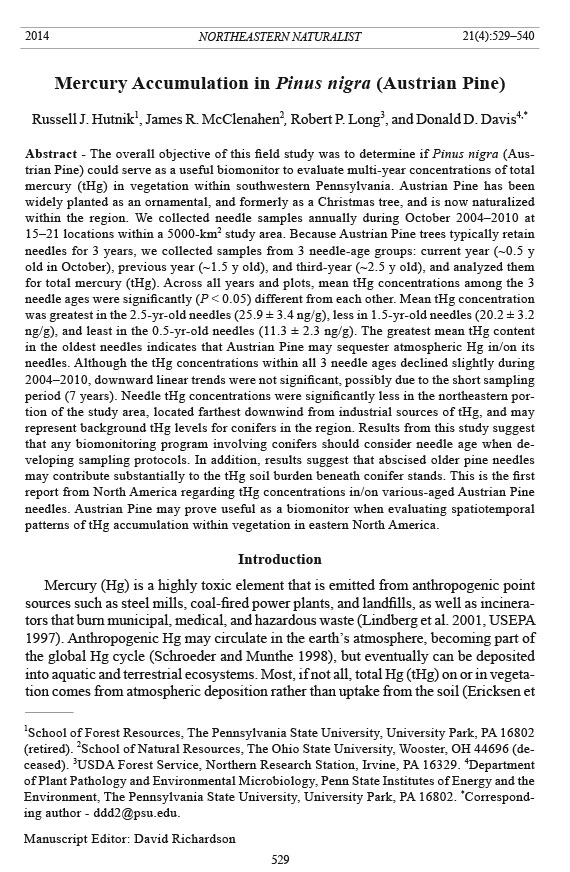

2014 NORTHEASTERN NATURALIST 21(4):529–540
Mercury Accumulation in Pinus nigra (Austrian Pine)
Russell J. Hutnik1, James R. McClenahen2, Robert P. Long3, and Donald D. Davis4,*
Abstract - The overall objective of this field study was to determine if Pinus nigra (Austrian
Pine) could serve as a useful biomonitor to evaluate multi-year concentrations of total
mercury (tHg) in vegetation within southwestern Pennsylvania. Austrian Pine has been
widely planted as an ornamental, and formerly as a Christmas tree, and is now naturalized
within the region. We collected needle samples annually during October 2004–2010 at
15–21 locations within a 5000-km2 study area. Because Austrian Pine trees typically retain
needles for 3 years, we collected samples from 3 needle-age groups: current year (~0.5 y
old in October), previous year (~1.5 y old), and third-year (~2 .5 y old), and analyzed them
for total mercury (tHg). Across all years and plots, mean tHg concentrations among the 3
needle ages were significantly (P < 0.05) different from each other. Mean tHg concentration
was greatest in the 2.5-yr-old needles (25.9 ± 3.4 ng/g), less in 1.5-yr-old needles (20.2 ± 3.2
ng/g), and least in the 0.5-yr-old needles (11.3 ± 2.3 ng/g). The greatest mean tHg content
in the oldest needles indicates that Austrian Pine may sequester atmospheric Hg in/on its
needles. Although the tHg concentrations within all 3 needle ages declined slightly during
2004–2010, downward linear trends were not significant, possibly due to the short sampling
period (7 years). Needle tHg concentrations were significantly less in the northeastern portion
of the study area, located farthest downwind from industrial sources of tHg, and may
represent background tHg levels for conifers in the region. Results from this study suggest
that any biomonitoring program involving conifers should consider needle age when developing
sampling protocols. In addition, results suggest that abscised older pine needles
may contribute substantially to the tHg soil burden beneath conifer stands. This is the first
report from North America regarding tHg concentrations in/on various-aged Austrian Pine
needles. Austrian Pine may prove useful as a biomonitor when evaluating spatiotemporal
patterns of tHg accumulation within vegetation in eastern North America.
Introduction
Mercury (Hg) is a highly toxic element that is emitted from anthropogenic point
sources such as steel mills, coal-fired power plants, and landfills, as well as incinerators
that burn municipal, medical, and hazardous waste (Lindberg et al. 2001, USEPA
1997). Anthropogenic Hg may circulate in the earth’s atmosphere, becoming part of
the global Hg cycle (Schroeder and Munthe 1998), but eventually can be deposited
into aquatic and terrestrial ecosystems. Most, if not all, total Hg (tHg) on or in vegetation
comes from atmospheric deposition rather than uptake from the soil (Ericksen et
1School of Forest Resources, The Pennsylvania State University, University Park, PA 16802
(retired). 2School of Natural Resources, The Ohio State University, Wooster, OH 44696 (deceased).
3USDA Forest Service, Northern Research Station, Irvine, PA 16329. 4Department
of Plant Pathology and Environmental Microbiology, Penn State Institutes of Energy and the
Environment, The Pennsylvania State University, University Park, PA 16802. *Corresponding
author - ddd2@psu.edu.
Manuscript Editor: David Richardson
Northeastern Naturalist
530
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
al. 2003, Grigal 2003). As such, patterns of atmospheric Hg deposition/accumulation
in terrestrial ecosystems can be evaluated using plant biomonitors.
Since 1999, we have used biomonitors (e.g., leaves, lichens, moss, and soil) to
elucidate patterns of pollutant deposition/accumulation in southwestern Pennsylvania
(Davis et al. 2001, 2002, 2007; Hutnik et al. 1989; McClenahen et al. 1999, 2007,
2012, 2013). Non-deciduous coniferous plant species are especially useful biomonitors
of Hg concentrations because many species retain needles for several years.
Simultaneous collection of several years’ needle complements from individual trees
allows estimation of past annual Hg deposition/accumulation over multiple years.
As such, needle samples may reflect annual Hg accumulations that have occurred
for a decade or more for coniferous species that retain needles for longer times (Grigal
2003). Rasmussen (1995) reported that Hg concentrations within needles of the
coniferous genera Abies (fir) and Picea (spruce) in Ontario generally increased from
spring to fall within the same growing season. He also reported that Hg concentrations
in A. balsamea L. (Balsam Fir) and P. glauca (Moench) Voss (White Spruce) in
Ontario increased as needle age increased from 1–3 years. Regarding the coniferous
genus Pinus (pines), Fleck et al. (1999) reported that Hg concentrations in 2-yearold
P. resinosa Ait. (Red Pine) needles in Minnesota were approximately twice that
of 1-yr-old needles. Pinus nigra Arnold (Austrian Pine), the pine species used in
this study, is commonly planted as an ornamental or Christmas tree in northeastern
US and southeastern Canada, and has become naturalized throughout our study area
within southwestern Pennsylvania (D.D. Davis, pers. observ.).
The objectives of this study were to determine 1) if needles of Austrian Pine
accumulated tHg and could serve as a biomonitor of Hg pollution in southwestern
Pennsylvania, 2) if tHg concentrations varied with needle age, 3) which needle
age would best characterize patterns of tHg pollution, and 4) if there were spatial
patterns of tHg accumulation across the study area. To facilitate meeting these objectives,
we used a robust sample size (n = 372), a 7-year sampling period (2004–
2010), 3 needle-age groups (0.5-, 1.5-, and 2.5-yr-old needles), and a large sampling
area (~5000 km2).
Methods
Study area
The study area is located in a mainly rural area within the Appalachian Plateau
physiographic province in southwestern Pennsylvania (Fig. 1). The area has a
rolling, dissected topography: ridges oriented in a southwest–northeast direction,
and elevations ranging from 300 to 800 m (McClenahen et al. 2013). Average annual
precipitation is ~100 cm, the climate is continental, and prevailing winds are
from the west–southwest. Laurel Ridge, one of the first ridges east of the Rocky
Mountains that pollutant-laden air masses encounter as they travel towards the
Northeast, is located within the study area. Forests are mainly Quercus (oak)-dominated
mixed hardwoods with areas of Fagus (beech)-Betula (birch)-Acer (maple)
northern hardwoods on the more mesic sites and at higher elevations. Pinus strobus
L. (Eastern White Pine) and Tsuga canadensis (L.) Carr. (Eastern Hemlock) are the
Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
531
predominant native conifers in the area, but occur only at scattered locations. However,
non-native ornamental conifers including Austrian Pine have been planted as
ornamentals and Christmas trees, and have become naturalized throughout the area,
as well as much of northeastern US and southeastern Canada (USDA 2013). Small
towns and villages dot the region. Farms are generally small, and agricultural crops
(e.g., corn and hay) are grown mainly as animal feed to support the dairy industry.
The study area contains some industries, including steel mills and coal-fired
electric generating stations, and is downwind from the Pittsburgh and industrial
Ohio River Valley areas, which are regional sources of historical and current
tHg emissions. The city of Johnstown, which has a 100-year history of pollut-
Figure 1. Location
of 21 Austrian Pine
sample plots (open
circles) and 4 coalfired
power plants
(solid triangles)
within the study
area in southwestern
Pennsylvania.
For spatial analysis,
tHg (ng/g) needle
data from plots 1–6,
7–12, 13–18, and
19–21 were combined
into 4 area
groups, respectively
designated as areas
1–4.
Northeastern Naturalist
532
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
ant emissions from steel mills and coke works (Brown 1989, McClenahen et al.
2013), lies at the southeastern edge of the study area. Although Johnstown is
slightly downwind from the study area, occasional southeasterly wind may funnel
air pollutants from Johnstown through the Conemaugh River Gap and into our
study area (McClenahen et al. 2013). In addition, during nocturnal inversions, air
emissions from Johnstown accumulate within the valley and flow downstream
into the Conemaugh Gap (J.R. McClenahen, pers. observ.). Annual ambient Hg
deposition near the study area is ~9–11 μg/m2 (Lynch et al. 2001), some of which
likely originates from sources outside of the study area (McClenahen et al. 2013).
In recent years, industrial emissions have been reduced within and upwind from
the study area, and ambient air quality in southwestern Pennsylvania has improved
(McClenahen et al. 2013).
During the late 1960s and mid-1970s, R.J. Hutnik established Austrian Pine
biomonitors on a grid-like network of 22 plots (Hutnik et al. 1989), mainly on
low-elevation former agricultural fields within the study area, to evaluate sulfur (S)
accumulation in pine needles. Although some plots have been abandoned, Dr. Hutnik
and his colleagues have monitored 18 plots (plots 4–21 in Fig. 1) for decades
and conducted a variety of field studies. Beginning in 2004, we utilized this overall
network of 18 plots as the basis for our sampling design. However, larger Austrian
Pines that shaded the plots had been routinely removed at 10–15-year intervals
and replaced with new Austrian Pine seedlings. Thus, the number of plots that we
sampled varied from year-to-year because we did not sample plots that contained
only seedlings or young Austrian Pine saplings.
In order to balance the sampling design and to increase the number of samples,
we established 3 new sampling sites (plots 1–3 in Fig. 1) in 2006 approximately 10
km upwind (southwest) from the most southwestern plots. Each of these new locations
consisted of 5–10 individual landscape Austrian Pine trees because we found
no pine plantations in the area. We established 15–21 plots in these latter 3 locations
and sampled them annually.
For spatial analyses, we grouped plots into 4 areas, according to distance from
the more industrialized regions as well as elevation. Area 1 included the 6 most
southwesterly plots (plots 1–6 in Fig. 1) that were closest to, and immediately
downwind from, the industrial Ohio River Valley and Pittsburgh regions. Area 2
consisted of the 6 plots (plots 7–12 in Fig. 1) located immediately downwind from
four large coal-fired electric generating stations within the study area. Area 3 included
the 6 most northeasterly plots (plots 13–18 in Fig. 1), which were farthest
from industrial sources of pollution and represented possible background sites in
the study area. Area 4 consisted of 3 plots (plots 19–21 in Fig. 1) that were located
between Areas 1 and 2, but were on ridgetops as opposed to the valley floor where
most other plots were located.
Sampling and Hg analyses
We collected needle samples annually during October 2004–2010. Rasmussen
et al. (1991) reported that location of needle sampling within a conifer crown did
Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
533
not influence Hg content, so we sampled only readily accessible lower branches.
We wore particle-free latex gloves and removed needle samples by hand from the
mid-portion of several branch whorls at 1–2 m height; needles on the main trunk
were not sampled.
Austrian Pine trees within the region normally retain 3 years’ needles. We collected
ten needle samples from each of the 3 needle-age groups on each of 5 trees/
plot and composited them by needle age. Thus, samples consisted of current-year
needles (~0.5 yr old), previous-year needles (~1.5 yr old), and third-year needles
(~2.5 yr old). Assuming no Hg uptake from the soil or Hg mobility from other age
needles, current-year needles would reflect the tHg deposition/accumulation that
occurred only during that first growing season. We hypothesized that the 1.5-yr-old
and 2.5-yr-old needles would retain the first-year tHg, but would also accumulate
additional tHg during the second and third year, respectively. This sampling procedure
resulted in 372 samples analyzed for tHg over the duration of the study ([3
needle-age groups] x [7 years] x [average of 17.71 plots sample d/year]).
We air-dried, ground, and passed unwashed needle samples through a 20-mesh
sieve, then stored them in sealed plastic bags. Samples were sent to Flett Research
Ltd. (440 De Salaberry Avenue, Winnipeg, MB RLOY7, Canada), where they were
oven-dried and analyzed for tHg as described by McClenahen et al. (2013). Analysis
employed a nitric-sulfuric acid digestion followed by atomic fluorescence,
which allowed a detection limit of ~2 ng tHg/g dry wt. Approximately 0.1–0.2 g
of each dry sample was placed into acid-clean 20 mm x 150 mm test tubes and
weighed to 0.0001 g. A typical sample lot was comprised of 20 samples, two matrix
spike/matrix spike duplicates (~3–10 X tissue ng Hg), one sample duplicate, 3 analytical
blanks, and duplicate certified reference materials ([CRM] NIST 1515 apple
leaf CRM typical), for a total of 30 tubes. All dry samples were first wet with 0.5–1
ml DI water, then 10 ml of acid (1:2.5 HNO3 :H2SO4 ) was added to each test tube,
including blanks, and the tubes were covered with acid-cleaned glass marbles. The
acid was allowed to sit at room temperature in the covered test tube for 1 hr before
a 6-hr digestion (covered) at 150 °C in an aluminum hot-block. When cool, 200 μL
of BrCl was added and the digests brought up to 25.0 ml with low-Hg DI water.
Aliquots of 0.1–1.0 ml were analyzed by a variant of EPA Method 1631 (USEPA
2013). Method-detection limits were ~2 ng Hg/g dry weight of tissue. Spike and
reference recoveries typically were 100 ± 10%. We present all values on a dryweight
basis.
Data analyses
We evaluated normality of the Hg data using SAS Proc Univariate; data
transformations were not required. To determine the effect of needle age on tHg
concentration and to examine temporal trends in tHg concentrations, the 7-yr
(2004–2010) mean concentration of tHg in the 3 needle ages was subjected to a
fixed-effects 2-factor ANOVA with year (7) and needle age (4) as main factors. To
examine spatial trends, area data were analyzed with a 2-factor fixed-effects ANOVA
with year (7) and area (4), using tHg data only from the 2.5-yr-old needles. We
Northeastern Naturalist
534
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
selected the 2.5-yr-old needles for the spatial analysis rather than the 0.5- or 1.5-yrold
needles because of their greater tHg content (see Results). Least squares means
were evaluated using the Tukey-Kramer adjustment. Pairwise mean comparisons
were used to test for location of significant differences in all analyses (SAS 2008).
Significance in all statistical analyses was tested at P < 0.05.
Results and Discussion
Average tHg needle concentrations
The mean tHg concentration of Austrian Pine needles across all plots, sampling
dates, and needle ages was 18.8 ± 7.3 ng/g tHg (n = 372; Table 1). This concentration
is generally similar to mean tHg levels of unwashed needles for other
coniferous species within North America (Fleck et al. 1999, Grigal 2003, Heyes et
al. 1998, Rasmussen 1995, Rasmussen et al. 1991), but is considerably less than
Hg concentrations in conifer needles sampled near large point-sources of Hg in
Europe (Bargagli et al. 1986, Barghigiani and Bauleo 1992, Maserti and Ferrara
1991). However, these results do not agree with the preliminary finding of Smith
(1972), who reported that the 1969 Austrian Pine needles collected from a single
tree during fall 1970 (~1.5-yr-old needles) in urban New Haven, CT, contained 170
ng/g Hg. This discrepancy may have been related to Smith’s small sample size (n =
1) compared to ours (n = 124) or to a greater tHg deposition in CT during the late
1960s.
Most Hg in plant tissues is accumulated from atmospheric deposition (Ericksen
et al. 2003, Grigal 2003), thus, our results likely reflect atmospheric deposition
from the upwind industrial Ohio River Valley and Pittsburgh regions, and point
sources in southwestern Pennsylvania.
Influence of needle age
All pairwise comparisons of Hg concentrations among the 3 needle-age classes
were significant. Least-squares-mean tHg concentrations across all locations and
sampling dates were greatest in 2.5-yr-old needles (25.4 ± 1.8 ng/g), less in 1.5-yrold
needles (19.9 ± 1.7 ng/g), and least in 0.5-yr-old needles (11.2 ± 1.6 ng/g) (Table
1). Regarding annual accumulations, the 0.5-yr-old needle concentration of 11.2
ng/g tHg represented 44% of the 3-year total accumulation. The 1.5-y-old needles
accumulated an additional mean 8.7 ng/g tHg (34% of the 3-year total). Finally, the
2.5-y-old needles accumulated an additional 5.6 ng/g tHg (22% of the 3-year total).
These results suggest that the rate of apparent accumulation decreased annually
during the 3 sampling years (44 > 34 > 22%) and may indicate that the number of
sorbtion sites on the needles decreased over time as tHg occupi ed available sites.
Greater concentrations of tHg in older needles were also reported in Balsam
Fir and White Spruce in Ontario (Rasmussen 1995). Similarly, Barakso and
Tarnocai (1970) reported greater Hg concentrations in older conifer needles
and recommended the use of second- and third-year needles in biogeochemical
prospecting for Hg in British Columbia. Likewise, Fleck et al. (1999) reported
that the Hg concentrations of 2-year-old Red Pine needles in Minnesota
Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
535
Table 1. Total mercury (tHg) concentrations (ng/g) and standard deviations in 0.5-, 1.5-, or 2.5-yr-old needles from Austrian Pines sampled in 2004–2010.
For clarity, raw means are presented in main table body, and Least Squares (LS) means, which were used in statistical analyses, are presented in the summary
column and summary row. 7-year needle age tHg LS means followed by the same uppercase letter are not significantly different (P < 0.05) based on
Tukey’s pairwise means comparisons. Yearly tHg LS means for all 3-year needle ages followed by the same lowercase letters are not significantly different
(P < 0.05) based on Tukey's pairwise means comparisons.
Year of sampling
Needle age (yrs) 2004 2005 2006 2007 2008 2009 2010 7-year LS mean
0.5 14.3 ± 4.1 9.3 ± 1.8 11.3 ± 2.9 11.8 ± 3.3 10.2 ± 2.0 10.6 ± 2.0 10.6 ± 2.3 11.2 ± 1.6A
(n = 15) (n = 18) (n = 21) (n = 20) (n = 18) (n = 17) (n = 15) (n = 7)
1.5 23.0 ± 5.4 18.2 ± 4.5 19.7 ± 4.9 20.3 ± 3.7 18.0 ± 3.6 20.9 ± 3.5 19.2 ± 3.6 19.9 ± 1.7B
(n = 15) (n = 18) (n = 21) (n = 20) (n = 18) (n = 17) (n = 15) (n = 7)
2.5 28.8 ± 6.5 23.4 ± 5.3 25.5 ± 5.4 25.3 ± 4.3 24.6 ± 4.6 26.3 ± 5.3 23.8 ± 5.2 25.4 ± 1.8C
(n = 15) (n = 18) (n = 21) (n = 20) (n = 18) (n = 17) (n = 15) (n = 7)
Annual LS means for all age groups 22.0 ± 7.3a 17.0 ± 7.1b 18.9b ± 7.1c 19.1 ± 6.8bc 17.6 ± 7.2b 19.2 ± 8.0bc 17.9 ± 6.7bc 18.8 ± 7.3
(n = 3) (n = 3) (n = 3) (n = 3) (n = 3) (n = 3) (n = 3) (n = 372)
Total number of plots sampled 15 18 21 20 18 17 15 124
Northeastern Naturalist
536
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
were approximately twice that of 1-yr-old needles. Barghigiani et al. (1991) and
Maserti and Farrara (1991) reported that P. nigra Arnold var. laricio Maire]), a
Mediterranean variety of Austrian Pine (Calabrian Black Pine), had greater Hg
concentrations in the 2- and 3-yr-old needles than in the 1-yr-old needles. Furthermore,
Barghigiani and Bauleo (1992) reported that the Hg content of Abies
alba Mill. (Silver Fir) in Italy generally increased as needle age progressed from
1–12 years. Because Austrian Pine retains only 3 years’ healthy needles in Pennsylvania,
we could not evaluate the temporal trend in our data beyond 3 years.
However, our overall findings of increasing tHg content with Austrian Pine needle
age are consistent with other reports, indicating that the increasing trend occurs in
at least three genera of conifers: Abies, Picea, and Pinus. Also, our results suggest
that any biomonitoring program involving conifers should take needle age in to
consideration when formulating needle-sampling protocols.
The oldest needles of Austrian Pines annually fall to the forest floor as litter.
Mercury in litterfall constitutes new annual input to a forest ecosystem, and the total
Hg flux in litterfall varies among forest-cover types (Bushey et al. 2008, McClenahen
et al. 2013, Rea et al. 2001, Risch et al. 2012). Annual variation in amount
of litterfall may be more important than concentration of litterfall Hg in determining
total dry Hg deposition (Risch et al. 2012). Most reports dealing with tHg in
litterfall involve deciduous forests; we do not attempt to present an Hg budget for
our study area, but we suggest that older fallen conifer needles likely represent a
substantial contribution to the tHg burden in soil beneath conifer stands.
2004–2010 temporal trends
Although the tHg concentrations in all 3 needle-age groups declined somewhat
during the 7-year period from 2004–2010, the slight downward trends for all 3
needle groups, as determined by linear regression (SAS 2008, regression analysis
not shown), were neither significant nor greatly influenced by high 2004 levels. In
2004, the mean tHg concentration for all needle ages was significantly greater than
for all other years, which were statistically similar (T able 1).
Figure 2 illustrates the difference in tHg content among the 3 needle ages over
time, and also illustrates that the annual variation in tHg content among the 3
needle ages was synchronous. For instance, the sharp decline in tHg content from
2004–2005, due to unknown causes, occurred in all 3 needle-age classes.
The lack of a significant downward temporal trend in Hg concentrations within
Austrian Pine needles from 2004–2010 is in contrast to our longer-term findings in
the study area for other bioindicators, including freshly fallen oak litter, a corticolous
moss, and the fermentation organic soil layer (McClenahen et al. 2013). Use of
these latter bioindicators revealed significant decreases in tHg over time within the
same region, possibly relating known emission controls to concomitant tHg reductions.
However, the time period covered by our Austrian Pine dataset (2004–2010)
was shorter than for our other biomonitors, and use of Austrian Pine needles may
require a longer monitoring period to determine if statistically significant time
trends can be discerned. We recommend using 3-yr-old needles rather than younger
Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
537
needles in future biomonitoring efforts using Austrian Pine. The tHg concentrations
were greatest for the oldest needles and were well above threshold levels thus minimizing
non-detectable values.
Spatial trends
As stated above, only the oldest Austrian Pine needles were used to evaluate
spatial patterns. The 6 most northeasterly plots (Area 3, plots 13–18 in Fig. 1),
which were located farthest downwind from industrial sources of pollution, had a
significantly lower mean tHg concentration (22.1 ± 1.9 ng/g) than needle samples
from Area 1 (plots 1–6; 28.5 ± 4.0 ng/g), Area 2 (plots 7–12; 27.2 ± 1.9 ng/g), and
Area 4 (plots 19–21; 25.5 ± 1.3 ng/g). Area 1 (27.9 ± 4.0 ng/g) also had a significantly
greater (P < 0.03) tHg concentration than Area 4 (25.5 ± 1.3 ng/g). All other
comparisons were not significantly different. These findings suggest tHg deposition
may be similar and regional in nature within the 6 plots closest to, and immediately
downwind from, the industrial Ohio River and Pittsburgh industrial regions (Area
1), the 6 plots immediately downwind from the four large coal-fired generating stations
(Area 2), and the 3 ridgetop plots (Area 4). In contrast, tHg deposition in Area
3 may represent background with little tHg augmentation from in dustrial sources.
Figure 2. Means and standard deviations of tHg concentration (ng/g) for 0.5-, 1.5-, and
2.5-yr-old Austrian Pine needles during 2004–2010. Mean tHg contents for the 3 needle
classes were significantly different (P < 0.05) from each other. Mean tHg contents for 2004
were significantly different from all other years, which were not significantly different from
each other.
Northeastern Naturalist
538
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
Conclusions
Mean tHg concentration was greatest in the 2.5-yr-old needles, less in 1.5-yr-old
needles, and least in the 0.5-yr-old needles. Although the tHg concentrations within
all 3 needle ages declined slightly during 2004–2010, downward linear trends were
not significant. Needle tHg concentrations were significantly lower in the northeastern
portion of the study area (Area 3), located farthest from industrial sources
of tHg, and may represent the regional background levels of tHg for pine needles
in this part of Pennsylvania. In contrast, the needle tHg concentrations in Areas 1,
2, and 4 may represent tHg levels typical of an industrialized region. Austrian Pine
may prove useful when evaluating spatiotemporal patterns of tHg deposition and
accumulation of tHg in northeastern United States and southeastern Canada. Biomonitoring
programs involving conifers should consider needle age when researchers
develop sampling protocols. In addition, because Austrian Pine annually sheds
older needles, conifer litter may contribute annually to the tHg burden within the
soil beneath conifer stands.
Acknowledgments
The authors thank the owners of the Keystone and Conemaugh generating stations for
funding this study.
Literature Cited
Barakso, J.J., and C. Tarnocai. 1970. A mercury-determination method and its use for exploration
in British Columbia. Canadian Mineralogical and Meteorological Bulletin,
April. 5 pp.
Bargagli, R., C. Barghigiani, and B.E. Maserti. 1986. Mercury in the vegetation of the Mt.
Amiata area. Chemosphere 15:1035–1042.
Barghigiani, C., and R. Bauleo. 1992. Mining area environmental mercury assessment using
Abies alba. Bulletin of Environmental Contamination and Toxicology 49:31–36.
Barghigiani, C., T. Ristori, and R. Bauleo. 1991. Pinus as an atmospheric Hg biomonitor.
Environmental Technology 12:1175–1181.
Brown, S.A. 1989. Historic resources study: Cambria iron company. US Department of the
Interior, National Park Service, Washington, DC. 513 pp.
Bushey, J.T., A.G. Nallana, M.R. Montesdeoca, and C.T. Driscoll. 2008. Mercury dynamics
of a northern hardwood canopy. Atmospheric Environment 42:6905–6914.
Davis, D.D., J.R. McClenahen, and R.J. Hutnik. 2001. Deposition of air pollutants in
southwestern Pennsylvania as measured by an epiphytic moss (Dicranum montanum)
on Northern Red Oak. Northeastern Naturalist 8:379–392
Davis, D.D., J.R. McClenahen, and R.J. Hutnik. 2002. Selection of a biomonitor to evaluate
mercury levels in forests of Pennsylvania. Northeastern Natural ist 9:183–192.
Davis, D.D., J.R. McClenahen, and R.J. Hutnik. 2007. Use of the moss Dicranum montanum
to evaluate recent temporal trends of mercury accumulation in oak forests of Pennsylvania.
Northeastern Naturalist 14:27–34.
Ericksen, J., M. Gustin, D. Schorran, D. Johnson, S. Lindberg, and J. Coleman. 2003.
Accumulation of atmospheric mercury in forest foliage. Atmospheric Environment
37:1613–1622.
Fleck, J.A., D.F. Grigal, and E.A. Nater. 1999. Mercury uptake by trees: An observational
experiment. Water, Air, and Soil Pollution 115:513–523.
Northeastern Naturalist Vol. 21, No. 4
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014
539
Grigal, D.F. 2003. Mercury sequestration in forests and peatlands: A review. Journal of
Environmental Quality 32:393–405.
Heyes, A., T.R. Moore, and J.W.M. Rudd. 1998. Mercury and methylmercury in decomposing
vegetation of a pristine and impounded wetland. Journal of Environmental Quality
27:591–599.
Hutnik, R.J., D.D. Davis, and J.R. McClenahen. 1989. Evaluation of vegetation near coalburning
power plants in southwestern Pennsylvania. Part I. Sulfur content of foliage.
Journal of the Air Pollution Control Association 39:1440–1443.
Lindberg, S.E., H. Zhang, G. Southworth, D. Reinhart, P. McCreanor, D. Wallschlager, and
J. Price. 2001. Atmospheric mercury emissions from municipal solid-waste landfills
[abstract]. P. C-28, In Proceedings of the Workshop on the Fate, Transport, and Transformation
of Mercury in Aquatic and Terrestrial Environments, West Palm Beach, FL.
National Risk Management Research Laboratoy, US Enviromental Protection Agency,
Cincinnati, OH. Available online at http://nepis.epa.gov/Adobe/PDF/30004IGW.pdf.
Lynch, J.A., K.S. Horner, and J.W. Grimm. 2001. Mercury deposition in Pennsylvania:
Status report. The Pennsylvania State University, Environmental Resources Institute
Report ER2001-1. University Park, PA. 52 pp.
Maserti, B., and R. Ferrara. 1991. Mercury in plants, soil, and atmosphere near a chloralkali
complex. Water, Air, and Soil Pollution 56:15–20.
McClenahen, J.R., D.D. Davis, and R.J. Hutnik. 1999. Northern Red Oak growth response
to climate and industrial air pollution in western Pennsylvania. Pp. 245–251, In J.W.
Stringer and D.L. Loftis (Eds.). Proceedings of the 12th Central Hardwoods Forest
Conference, Lexington, KY. 1 February–2 March 1999. USDA Forest Service Southern
Research Station Technical Report SRS-24. Asheville, NC. 293 pp.
McClenahen, J.R., D.D. Davis, and R.J. Hutnik. 2007. Macrolichens as biomonitors of air
quality change in western Pennsylvania. Northeastern Naturalist 14:15–26.
McClenahen, J.R., R.E. Showman, R.J. Hutnik, and D.D. Davis. 2012. Temporal changes
in lichen species richness and elemental composition on a Pennsylvania atmospheric
deposition gradient. Evansia 29:67–73.
McClenahen, J.R., R.J. Hutnik, and D.D. Davis. 2013. Spatial and temporal patterns of
mercury bioindicators in Pennsylvania oak forest. Journal of Environmental Quality
42:305–311.
Rasmussen, P.E. 1995. Temporal variation of mercury in vegetation. Water, Air, and Soil
Pollution 80:1039–1042.
Rasmussen, P.E., G. Mierle, and J.O. Nriagu. 1991. The analysis of vegetation for total
mercury. Water, Air, and Soil Pollution 56:379–390.
Rea, A.W., S.E. Lindberg, and G.J. Keeler. 2001. Dry deposition and foliar leaching of
mercury and selected trace elements in deciduous-forest throughfall. Atmospheric Environment
35:3453–3462.
Risch, R.R., J.F. DeWild, D.P. Krabbenhoft, R.K. Kolka, and L. Zhang. 2012. Litterfallmercury
dry deposition in the eastern USA. Environmental Pollut ion 161:284–290.
SAS Institute, Inc. 2008. SAS/STAT Users Guide, Version 9, Second Edition. SAS Institute,
Inc., Cary, NC.
Schroeder, W.H., and J. Munthe. 1998. Atmospheric mercury: An overview. Atmospheric
Environment 32:809–822.
Smith, W.H. 1972. Lead and mercury burden of urban woody plants. Science 176:1237–1238.
Northeastern Naturalist
540
R.J. Hutnik, J.R. McClenahen, R.P. Long, and D.D. Davis
2014 Vol. 21, No. 4
US Department of Agriculture (USDA). 2013. PLANTS Profile, Pinus nigra Arnold (Austrian
Pine). Available online at http://plants.usda.gov/java/profile?symbol=PINI. Accessed
23 April 2014.
US Environmental Protection Agency (USEPA). 1997. Mercury study report to Congress,
Volumes I-V, EPA Office of Air Quality Planning and Standards and the Office of Research
and Development, EPA-452/R-97, 001-005, Washington, DC.
USEPA. 2013. EPA Method 1631- Mercury in water by oxidation, purge, and trap, and
cold vapour atomic fluorescence spectrometry. Available online at http://water.epa.gov/
scitech/methods/cwa/metals/mercury/index.cfm. Accessed 23 April 2014.
