Spatial Genetic and Body-Size Trends in Atlantic Canada Canis latrans (Coyote) Populations
Jason W.B. Power, Nathalie LeBlanc, Søren Bondrup-Nielsen, Mike J. Boudreau, Mike S. O’Brien, and Donald T. Stewart
Northeastern Naturalist, Volume 22, Issue 3 (2015): 598–612
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist
598
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
22001155 NORTHEASTERN NATURALIST 2V2(o3l). :2529,8 N–6o1. 23

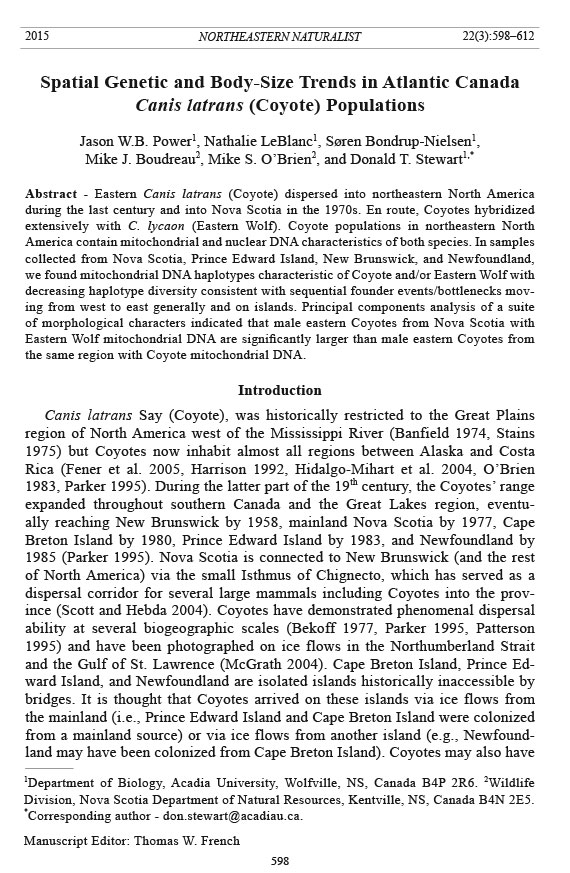

Spatial Genetic and Body-Size Trends in Atlantic Canada
Canis latrans (Coyote) Populations
Jason W.B. Power1, Nathalie LeBlanc1, Søren Bondrup-Nielsen1,
Mike J. Boudreau2, Mike S. O’Brien2, and Donald T. Stewart1,*
Abstract - Eastern Canis latrans (Coyote) dispersed into northeastern North America
during the last century and into Nova Scotia in the 1970s. En route, Coyotes hybridized
extensively with C. lycaon (Eastern Wolf). Coyote populations in northeastern North
America contain mitochondrial and nuclear DNA characteristics of both species. In samples
collected from Nova Scotia, Prince Edward Island, New Brunswick, and Newfoundland,
we found mitochondrial DNA haplotypes characteristic of Coyote and/or Eastern Wolf with
decreasing haplotype diversity consistent with sequential founder events/bottlenecks moving
from west to east generally and on islands. Principal components analysis of a suite
of morphological characters indicated that male eastern Coyotes from Nova Scotia with
Eastern Wolf mitochondrial DNA are significantly larger than male eastern Coyotes from
the same region with Coyote mitochondrial DNA.
Introduction
Canis latrans Say (Coyote), was historically restricted to the Great Plains
region of North America west of the Mississippi River (Banfield 1974, Stains
1975) but Coyotes now inhabit almost all regions between Alaska and Costa
Rica (Fener et al. 2005, Harrison 1992, Hidalgo-Mihart et al. 2004, O’Brien
1983, Parker 1995). During the latter part of the 19th century, the Coyotes’ range
expanded throughout southern Canada and the Great Lakes region, eventually
reaching New Brunswick by 1958, mainland Nova Scotia by 1977, Cape
Breton Island by 1980, Prince Edward Island by 1983, and Newfoundland by
1985 (Parker 1995). Nova Scotia is connected to New Brunswick (and the rest
of North America) via the small Isthmus of Chignecto, which has served as a
dispersal corridor for several large mammals including Coyotes into the province
(Scott and Hebda 2004). Coyotes have demonstrated phenomenal dispersal
ability at several biogeographic scales (Bekoff 1977, Parker 1995, Patterson
1995) and have been photographed on ice flows in the Northumberland Strait
and the Gulf of St. Lawrence (McGrath 2004). Cape Breton Island, Prince Edward
Island, and Newfoundland are isolated islands historically inaccessible by
bridges. It is thought that Coyotes arrived on these islands via ice flows from
the mainland (i.e., Prince Edward Island and Cape Breton Island were colonized
from a mainland source) or via ice flows from another island (e.g., Newfoundland
may have been colonized from Cape Breton Island). Coyotes may also have
1Department of Biology, Acadia University, Wolfville, NS, Canada B4P 2R6. 2Wildlife
Division, Nova Scotia Department of Natural Resources, Kentville, NS, Canada B4N 2E5.
*Corresponding author - don.stewart@acadiau.ca.
Manuscript Editor: Thomas W. French
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
599
colonized Cape Breton Island via the Canso Causeway, which is ~1 km in length
and was constructed in 1955.
Extensive range expansion of Coyotes into eastern North America occurred
after a decrease in the Canis lupus L. (Gray Wolf) population resulting from their
local extirpation by over-harvesting and habitat destruction (Thurber and Peterson
1991). Although the phylogenetic and phylogeographic history of the genus Canis
in North America is complex, it appears that Western Coyotes dispersed east, where
they hybridized extensively with Canis lycaon Schreber, commonly referred to as
the Eastern Wolf (e.g., Monzón et al. 2014, Wheeldon et al. 2010), the Great Lakes
Wolf (e.g., Kays et al. 2010, Koblmuller et al. 2009, vonHoldt et al. 2011), or the
Algonquin Wolf (e.g., Chambers et al. 2012). In this paper, we use the name Eastern
Wolf for this taxon.
Coyote colonization occurred at a particularly fast rate in Ontario, where they
were exposed to Eastern Wolf populations. Their more southerly route through Ohio
has been extensively studied (e.g., Benson et al. 2012, Kays et al. 2010, Koblmuller
et al. 2009, Leonard and Wayne 2008, Schwartz and Vucetich 2009, Wheeldon
and White 2009, Wilson et al. 2009). In contrast to earlier hypotheses that eastern
Coyotes in Ohio did not hybridize with Eastern Wolves or with Gray Wolves,
recent assessment of eastern Coyote genomes by Monzon et al. (2014) indicated
widespread admixture of Eastern Wolf, Gray Wolf, and even Canis lupus familiaris
L. (Domestic Dog). Monzon et al. (2014) have proposed several plausible yet presently
untested hypotheses to account for these patterns of admixture of the nuclear
genomes of these various canid species.
In terms of mitochondrial DNA, there is an asymmetric pattern of matings
among canid species resulting in a discordant pattern of mtDNA introgression
compared to the nuclear genome (Monzon et al. 2014). Eastern Coyote populations
possess primarily western Coyote mitochondrial DNA (mtDNA) with varying
degrees of introgressed Eastern Wolf mtDNA (e.g., Way et al. 2010). Perhaps not
surprisingly, eastern Coyotes are morphologically distinct from their ancestors in
the west. Eastern Coyotes are the largest morphotype within C. latrans (Gompper
2002, Way 2007, Way and Proietto 2005), weighing ~15–20% more than typical
western Coyotes (Blake 2006). Body size in eastern Coyotes may reflect selection
for Eastern Wolf alleles or mtDNA haplotypes that contribute to larger body size,
possibly in response to an increase in predation on larger prey—e.g., Odocoileus
virginianus (Zimmermann) (White-tailed Deer)—compared to the diet of western
Coyotes (Kays et al. 2010, Monzón et al. 2014, Wheeldon et al. 2010). Indeed, Benson
and Patterson (2013) recently demonstrated 4 definitive cases of eastern Coyote
and/or eastern Coyote x Eastern Wolf hybrids killing Alces alces (L.) (Moose).
Although hybridization is a natural evolutionary process, it may also be an indicator
of environmental change over time (e.g., Rutledge et al. 2010). Mitochondrial
DNA, which is inherited through the maternal lineage, can be used to track such
hybridization events (e.g., Nunes et al. 2010). Distinct mtDNA sequences, called
haplotypes, can be used as one genetic marker in the analysis of other traits such
as morphology, behavior, health, etc. For example, Kays et al. (2010) showed that
Northeastern Naturalist
600
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
male eastern Coyotes with Eastern Wolf mtDNA haplotypes exhibited significantly
wider skulls than eastern Coyotes with western Coyote mtDNA haplotypes in
northeastern North America.
With this background in mind, the objectives of this study were to: (1) determine
the diversity and frequency of mtDNA control-region haplotypes for Coyotes in
Atlantic Canada, particularly Cape Breton Island and mainland Nova Scotia and
(2) investigate morphological differences between groups of eastern Coyotes in
Nova Scotia defined by mtDNA haplotype sequences.
Methods
Sample collection and study area
The majority of samples collected and analyzed in this study were from
mainland Nova Scotia (n = 94) and Cape Breton Island (n = 77), Canada. We
obtained samples from fur harvesters in Nova Scotia who took part in a legalized
harvest and voluntary Coyote carcass-collection program. These carcasses were
brought to regional offices of the Nova Scotia Department of Natural Resources
(NSDNR) during the 2010–2013 harvest seasons. We obtained additional tissue
samples for New Brunswick (n = 11), Prince Edward Island (n = 2), and Newfoundland
(n = 14) from the North American Fur Auction depot in Truro, NS,
Canada with collection data recorded from trappers upon pick up. No Canadian
Council of Animal Care protocol review was required for this work because we
collected all samples from specimens that had already been killed for reasons
other than this research program.
We obtained detailed information on sex, geographic location, date, and method
of collection for as many animals as possible. We mapped sampling locations on a
1-km2 grid using the Nova Scotia Atlas (Service Nova Scotia 2006). We collected
a tissue sample for genetic analysis from each carcass and stored carcasses at -20
ºC until shipping them to the NSDNR-Wildlife Division in Kentville, NS, for processing.
For carcasses that had front and back foot pads intact, we measured left
foot length (length from the back edge of the heel pad to the outer tip-toe pad) and
width (distance from the outer edges of outer toe pad); the right foot was measured
in cases where the left foot was missing. We weighed carcasses turned in with intact
pelts with the pelt on before skinning. For each skinned carcass, we weighed and
measured the body length (length from tip of nose to base of tail along the dorsal
midline contour), chest girth (circumference around torso behind shoulders), skull
length (length from the incisors to the tip of sagittal crest), and skull width (distance
from the outer edges of the zygomatic arch). Carcass masses predominately reflected
winter weight based on harvest dates (trapping season). We omitted incomplete
carcasses from weight comparisons. We simmered the skulls in water for ~15 min
to facilitate extraction of the lower jaw and 2 lower canines. We classified Coyotes
as adults if radiographs of canine teeth indicated a pulp cavity–tooth-width ratio
of ≤0.45 as measured ~15 mm from the tip of the root (Knowlton and Whittemore
2001) and by submitting a lower canine to Matson’s Laboratory (Missoula, MT) for
cementum analysis to confirm age (Ballard et al. 1995). We measured lower canine
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
601
total length and maximum width prior to submitting specimens for analysis. We
identified 56 adults in our sample (25 females and 31 males).
Genetic analysis
We extracted DNA from tissue samples from 199 carcasses using a DNeasy
Blood and Tissue Kit (Qiagen, Valencia, CA). For each sample, we amplified and
sequenced a 343–347-base pair (bp) fragment of the mitochondrial DNA (mtDNA)
control region using published primers (AB13279 [Pilgrim et al. 1998], AB13280
[Wilson et al. 2000]). We also sent polymerase chain reaction (PCR) products to the
McGill University and Génome Québec Innovation Centre (Montreal, PQ, Canada)
for sample sequencing. We edited mtDNA sequences to 223–228 bp in length using
Jalview version 2.8 (2012). We employed the Akaike information criterion
in Modeltest (Posada and Crandall 1998) to determine that the HKY substitution
model was the best-fitting model of DNA evolution for these samples. We used this
model to construct a neighbor-joining tree in MEGA5 version 2.2 (Tamura et al.
2011), and assigned haplotypes, denoted as cla28, cla29 and GL20, corresponding
to previously described sequences (Kays et al. 2010).
We assessed genetic diversity by measuring relative polymorphism levels using
nucleotide diversity, haplotypic diversity (π), and θ as implemented in dnaSP 5
(Librado and Rozas 2009). We used Arlequin v. 3.5 (Excoffier and Lischer 2010) to
calculate overall genetic variance within and among populations using an analysis
of molecular variance (AMOVA), as well as to calculate pairwise FST values between
all populations.
Morphological comparisons
We compared body measurements of the 56 adult eastern Coyotes obtained from
mainland Nova Scotia and Cape Breton Island. We determined differences in body
measurements between groups defined by haplotypes using Student’s t-tests and
analysis of variance (ANOVA) as implemented in Excel and the R package aov
(R Development Core Team 2008), respectively, and principal component analysis
(PCA) followed by ANOVA and Tukey’s honest significant differences, as implemented
in the R packages prcomp, aov, and TukeyHSD, respectively. For each
haplogroup and sex combination, we replaced missing data (which comprised 19%
of total male data and 4% of total female data) with the variable mean (e.g., Pigott
2001). We scaled variables to have unit variance.
Results and Discussion
Genetic analyses
The sequences obtained in our study are consistent with previously named
haplotypes (Fig. 1; Kays et al. 2010) and show that eastern Coyote populations in
Atlantic Canada have both western Coyote and Eastern Wolf mtDNA. The Atlantic
Canada population of eastern Coyotes carries 1 of 2 Coyote haplotypes (cla28 or
cla29) or an Eastern Wolf haplotype (GL20) (Fig. 1) consistent with the haplotype
distribution found in northeastern US populations (Kays et al. 2010). The presence
Northeastern Naturalist
602
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
of GL20 is the product of recent hybridization between Coyote and Eastern Wolf
and introgression of Eastern Wolf mtDNA into eastwardly dispersing populations
of eastern Coyotes (Fig. 1).
Several generalizations about mitochondrial diversity in Atlantic Canada eastern
Coyotes can be drawn from our analysis, although in some cases these observations
must be considered preliminary due to small sample size (e.g., n = 2 for Prince
Edward Island). Nucleotide diversity (Table 1) in New Brunswick was comparable
to levels found previously in Ohio populations, while diversity in Nova Scotia was
similar to that of northeast populations (Kays et al. 2010). Diversity was reduced
in Cape Breton samples, and Newfoundland samples had no haplotype variation.
Observed diversity levels east of New Brunswick are consistent with populations
founded by a small number of migrants.
Pairwise FST values revealed significant differences between Newfoundland and
each of the following regions: Cape Breton Island, Nova Scotia, Prince Edward
Island, and New Brunswick, indicating historical bottlenecks and/or restricted
gene-flow between Newfoundland and the southern provinces (Table 2). Similarly,
there is evidence of genetic differentiation between the New Brunswick and the
Cape Breton Island populations (FST = 0.31, P < 0.001). The FST value between
the Nova Scotia and Cape Breton Island populations is lower, though still significantly
different from zero (FST = 0.05, P < 0.05). There is likely some on-going
Figure 1. Mitochondrial haplotype frequencies of eastern Coyotes from Atlantic Canada
(NB, mainland NS, Cape Breton Island, PE, and NL).
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
603
Table 2. Pairwise FST values of Coyote mtDNA CR sequences for 5 locations in Atlantic Canada, calculated in Arlequin, and their associated P-values. FST
values are above the diagonal; P-values are below the diagonal. The total FST value for all samples was 0.275 (P < 0.001). * indicates that the FST value is
significantly different from 0 with the associated P-value.
New Brunswick Nova Scotia Newfoundland Prince Edward Island Cape Breton Island
New Brunswick - 0.09402 0.49083* 0.04661 0.31424*
Nova Scotia 0.06306 ± 0.0237 - 0.51736* -0.06738 0.04661*
Newfoundland 0.00901 ± 0.0091 0.00000 ± 0.0000 - 1 0.75539*
Prince Edward Island 0.39640 ± 0.0528 0.65766 ± 0.0526 0.01802 ± 0.0121 - -0.19644
Cape Breton Island 0.00000 ± 0.0000 0.03604 ± 0.0148 0.00000 ± 0.0000 0.99099 ± 0.0030 -
Table 1. Summary of genetic diversity observed in the total sample and the 5 sampled locations in Atlantic Canada.
Total New Brunswick Nova Scotia Newfoundland Prince Edward Island Cape Breton Island
Sample size 197 10 94 14 2 77
# haplotypes 3 3 3 1 1 2
Haplotype diversity 0.465 0.733 0.480 0 0 0.267
Nucleotide diversity, π (per site) 0.01189 0.02259 0.01231 0 0 0.00661
θ (per site) 0.01189 0.01607 0.00889 0 0 0.00504
Average pairwise number of 2.87683 5.467 2.98 0 0 1.599
nucleotide differences, k
Northeastern Naturalist
604
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
genetic exchange between mainland Nova Scotia and Cape Breton Island facilitated
by the Canso Causeway that connects mainland Nova Scotia to Cape Breton
Island. As a consequence of the causeway, currents through the Strait of Canso are
severely impeded leading to a build-up of ice across the strait in winter. The causeway
has directly or indirectly facilitated the invasion of Cape Breton Island by
several meso-carnivores including Procyon lotor L. (Raccoon), Mephitis mephitis
(Schreber) (Striped Skunk), Lynx rufus (Schreber) (Bobcat ), and Coyote (Scott and
Hebda 2004).
Although the FST value between Nova Scotia and New Brunswick is fairly
large, it is not significantly different from zero (FST 0.09, P = 0.06). Populations in
these provinces likely exchange some genes via the Isthmus of Chignecto, which
is apparently not a significant barrier to Coyote dispersal (Scott and Hebda 2004).
Other population pairs show no statistically significant genetic structure (Table 2).
The particularly small sample size for the Prince Edward Island population makes
it difficult to draw inferences about population structure in that province. The reduced
nucleotide diversity observed in populations located further east, as well as
the haplotypes present, support previous hypotheses proposed for this species; i.e.,
that eastern Coyote populations in these regions were founded by relatively few
individuals who migrated from the southwest and that gene flow i s likely impeded
by water (e.g., Kays et al. 2010, Parker 1995).
New Brunswick samples did not exhibit any of the rare haplotypes that Kays
et al. (2010) detected in their northeastern samples. The absence of rare alleles in
our study is possibly due, in part, to sample size; we analyzed only 11 samples
from New Brunswick, whereas Kays et al. (2010) determined haplotypes for 453
samples from northeastern North America. The contact zone reported by Kays et
al. (2010) contains considerably more rare haplotypes compared to the more northeasterly
samples, suggesting that rare haplotypes were lost as Coyotes dispersed
farther to the east. This loss of genetic diversity is typical during dispersal, and
especially dispersal with limited migration between the new population and the
source population (Boileau et al. 1992). Continued sampling efforts will help to
further elucidate the genetic connectivity between Coyote populations in the northeastern
US and New Brunswick.
The mainland Nova Scotia population of eastern Coyotes has the same 3 haplotypes
as the New Brunswick population, although the frequencies of occurrence of
cla28 and cla29 are quite different. One factor contributing to this discrepancy is
likely a degree of bottlenecking in the establishment of the Nova Scotia population,
which is connected to New Brunswick by the small Isthmus of Chignecto. This
type of sequential bottlenecking has been found previously in feral Mink (Neovision
vision (Schreber) in Poland (Zalewski et al. 2011) and island-colonizing birds
(Clegg et al. 2002). Presumably a small number of individuals initially traveled this
route into mainland Nova Scotia; in particular, it appears that only Coyotes with the
cla28 and GL20 haplotypes colonized this province. The relatively low frequency
of cla29 suggests few Coyotes with this haplotype made it into the province. Interestingly,
individuals with the cla29 haplotype were all collected near the Isthmus of
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
605
Chignecto, in the counties of Colchester, Cumberland, and Pictou, in west-central
Nova Scotia. Therefore, it is possible that the cla29 haplotype has only recently entered
Nova Scotia. Further evidence supporting the slow spread of cla29 into Nova
Scotia is the fact that the Cape Breton Island population only has 2 haplotypes in
our sample of 77 individuals, cla28 and GL20.
The path Coyotes took to get to Newfoundland is not yet understood (McGrath
2004), but it is suspected that they crossed over from the mainland or from Cape
Breton Island on ice flows. Cape Breton Island is the closest likely source of Coyotes
for Newfoundland (~105 km across the Cabot Strait). It is possible, however,
that Coyotes colonized Newfoundland from New Brunswick, Prince Edward Island,
or Quebec. The first known report of Coyotes on Newfoundland was from the
western portion of the province in 1985 (Parker 1995). Only one or a few females
carrying the GL20 haplotype may have made it across on an ice flow possibly from
Cape Breton.
Coyotes also likely dispersed onto Prince Edward Island on ice flows with the
first confirmed record in 1983 (Parker 1995). The Confederation Bridge, which was
completed in 1997, now links New Brunswick to Prince Edward Island. Although
Coyotes have been documented crossing bridges (e.g., the Golden Gate Bridge,
San Francisco, CA; Sacks et al. 2006), it is unlikely that many individuals would
cross the Confederation Bridge given its length (~11 km) and high level of traffic.
Again, the most likely scenario involves crossing on ice flows, limiting the number
of individuals that make the crossing. Perhaps only those carrying cla28 made it to
Prince Edward Island. A larger sample size will be necessary to confirm the absence
of other haplotypes in these areas.
Morphological analyses
We recorded skinned body-weight averages for adult female and male eastern
Coyotes in all of our samples collected through the voluntary Coyote carcasscollection
program. Averages for adult female and male eastern Coyotes were 12.17
kg for females (n = 195) and 14.57 kg for males (n = 230). Using the formula of
Nelson and Lloyd (2005) to convert skinned-carcass mass to non-skinned weight
gives values of 14.95 kg and 17.83 kg for females and males, respectively.
In our univariate analyses, there were no statistically significant differences in
morphological variables between groups of adult male or adult female Coyotes
from Nova Scotia as defined by the Coyote or Eastern Wolf haplotype group when
we analyzed each measurement separately (Tables 3, 4). In contrast, a composite
measure of overall body size based on PCA demonstrated a statistically significant
difference between groups of adult male Coyotes defined by haplotype. Principal
component 1 (PC1) which is generally interpreted as the size axis (e.g., Rising and
Somers 1989), comprised 59% of total variation in males (Fig. 2) and 44% of total
variation in females (Fig. 3). Male eastern Coyotes that possessed GL20 (i.e., the
Eastern Wolf haplotype) were significantly larger than male eastern Coyotes that
possessed western Coyote haplotypes (Tukey’s difference = 3.8 ± 2.9, P = 0.015).
There was no significant difference in body size between groups of females defined
by haplotype (Tukey’s difference = -1.5 ± 3.0, P = 0.285).
Northeastern Naturalist
606
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
Table 4. Adult male morphological characteristics ± 1 SD grouped by mtDNA haplotype (hap). All samples are from Nova Scotia. There were no statistically
significant differences between groups defined by haplotype (i.e., cla28 vs. GL 20).
Skinned Chest Body Tail Front-paw Back-paw Shoulder Canine-tooth Skull
weight girth length length width length width length height length width length width
Hap (kg) (cm) (cm) (cm) (mm) (mm) (mm) (mm) (cm) (mm) (mm) (cm) (cm)
cla28 14.7 ± 2.8 52.8 ± 3.6 87.6 ± 21.1 34.4 ± 9.3 48.5 ± 4.6 62.4 ± 5.6 42.8 ± 6.7 56.8 ± 3.6 53.6 ± 3.7 40.0 ± 2.5 9.5 ± 0.8 21.2 ± 1.6 11.6 ± 1.3
n = 20 n = 20 n =20 n = 20 n = 19 n = 19 n = 20 n = 20 n = 19 n = 18 n = 20 n =19 n = 19
GL20 15.1 ± 2.1 54.4 ± 6.3 95.9 ± 5.9 39.0 ± 3.9 49.0 ± 4.6 63.2 ± 4.9 42.3 ± 1.6 56.9 ± 4.8 53.6 ± 3.6 39.0 ± 3.3 9.4 ± 1.0 21.3 ± 1.4 11.9 ± 0.9
n = 9 n = 10 n = 10 n = 10 n = 9 n = 9 n = 10 n = 10 n = 8 n = 6 n = 8 n = 8 n = 8
Table 3. Adult female morphological characteristics ± 1 SD grouped by mtDNA haplotype . All samples are from Nova Scotia. There were no statistically
significant differences between groups defined by haplotype (i.e., cla28 vs. GL 20).
Skinned Chest Body Tail Front-paw Back-paw Shoulder Canine-tooth Skull
weight girth length length width length width length height length width length width
Hap (kg) (cm) (cm) (cm) (mm) (mm) (mm) (mm) (cm) (mm) (mm) (cm) (cm)
cla28 11.9 ± 1.7 48.7 ± 2.9 89.3 ± 4.4 34.9 ± 2.4 44.3 ± 3.9 59.9 ± 4.9 40.1 ± 4.0 54.9 ± 3.1 50.0 ± 4.7 37.6 ± 1.6 8.8 ± 0.8 20.5 ± 1.1 11.1 ± 0.9
n = 19 n = 19 n = 19 n = 19 n = 17 n = 17 n = 18 n = 18 n = 16 n = 14 n = 17 n = 17 n = 17
GL20 11.5 ± 1.8 47.3 ± 2.3 87.2 ± 2.9 34.0 ± 2.8 43.2 ± 3.4 57.2 ± 4.7 37.7 ± 5.0 51.8 ± 4.4 51.5 ± 1.9 37.0 ± 1.0 8.9 ± 0.47 19.3 ± 1.3 10.1 ± 0.9
n = 5 n = 5 n = 5 n = 5 n = 4 n = 4 n = 5 n = 5 n = 5 n = 3 n = 4 n = 3 n = 3
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
607
The observation that body size was correlated with mitochondrial DNA haplotype
warrants further exploration. As mentioned, eastern Coyotes from the
northeastern US and southeastern Canada have been shown to be fairly well
genetically admixed in terms of nuclear genes from western Coyote (61.73%),
Eastern Wolf (13.58%), Gray Wolf (13.62%), and Domestic Dog (11.07%)
(Monzón et al. 2014). Although we plan to pursue additional nuclear genetic
analysis (sensu Monzón et al. 2014) of our samples to determine if the morphological
differences correlate with degree of Eastern Wolf nuclear background,
it is possible that the mtDNA genome confers an effect on morphology. For example,
Pichaud et al. (2012) recently demonstrated that mtDNA, and not nuclear
background or mito-nuclear interactions, was responsible for metabolic activity
in experimental Drosophila (fruit fly) populations. Zhang et al. (2008) showed
that mitochondrial mutations per se have been implicated in growth rates (and
body size) in Bos taurus L. (Nanyang Cattle). Toews et al. (2013) showed that
Figure 2. First principal component (PC1) values for male Coyotes with 1 of 2 mtDNA
haplotypes, Cla28 or GL20, using 11 morphological measurements and representing 59% of
total variation. PC1 has the following loadings: 0.31 * weight (lbs), 0.30 * chest (cm), 0.34
* body length (cm), 0.31 * tail length (cm), 0.22 * front-paw width (mm), 0.32 * front-paw
length (mm), 0.17 * back-paw width (mm), 0.29 * back-paw length (mm), 0.30 * shoulder
(cm), 0.36 * skull width (cm), 0.36 * skull length (cm). This component can be interpreted
as representing general size differences because all measurements load in the same direction.
Boxes on this plot represent 25th and 75th percentiles, and the line represents the 50th
percentile. Whiskers extend to the highest and lowest values that fall within 1.5 * the interquartile
range. Data beyond the ends of whiskers are outliers represented as points.
Northeastern Naturalist
608
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
patterns of introgression of mtDNA in the Setophaga coronata spp. (L.) (Yellowrumped
Warbler) complex could be explained by selection for mitochondrially
encoded differences in respiration rate and ATP production efficiency. More
generally, da Fonseca et al. (2008) compared 12 mitochondrial protein-coding
genes from 41 mammalian species and found evidence that adaptive evolution
of mitochondrial mutations was associated with metabolic requirements such as
adaptations to the energy available in the diet and the body size of the species.
As summarized by Galtier et al. (2009), there is growing evidence that mtDNA
is not always a simple neutral marker of molecular diversity and it may be an important
driver of functional evolutionary change.
As Kays et al. (2010) and Monzón et al. (2014) have suggested, the recent
range expansion of Coyotes into eastern North America and the concomitant
hybridization with Eastern Wolves presents a fascinating case study in rapid
adaptive evolution; feeding on large prey such as White-tailed Deer and Moose
Figure 3. First principal component (PC1) values for female Coyotes with 1 of 2 mtDNA
haplotypes, Cla28 or GL20, using 11 morphological measurements and representing 44% of
total variation. PC1 has the following loadings: 0.28 * weight (lbs), 0.30 * chest (cm), 0.17
* body length (cm), 0.25 * tail length (cm), 0.34 * front-paw width (mm), 0.39 * front-paw
length (mm), 0.37 * back-paw width (mm), 0.38 * back-paw length (mm), -0.02 * shoulder
(cm), 0.21 * skull width (cm), 0.39 * skull length (cm). This component can be interpreted
as representing general size differences because all measurements load in the same direction.
Boxes on this plot represent 25th and 75th percentiles, and the line represents the 50th
percentile. Whiskers extend to the highest and lowest values that fall within 1.5 times the
inter-quartile range.
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
609
may select for wolf-like traits in eastern Coyotes, leading to larger body size. In
the future, we plan to pursue whether there is localized selection for behavioral
changes in eastern Coyotes in Nova Scotia compared to their western ancestors,
possibly associated with introgression of Eastern Wolf mitochondrial genes and
selection for wolf-like behaviors.
Acknowledgments
We thank the trappers of Nova Scotia, especially J. Camus, and members of the Trappers
Association of Nova Scotia for sample submission. We thank B. Ettinger (Furafee Trading,
Truro, NS), E. Tichenor, G. Bourgeois, P. Sanderson, W. Pitts, C. Englehart, E. Muntz, B.
Galaviz, C. Bossi, S. Nairn, D. Keizer, and F. MacKinnon for providing technical assistance
on various aspects of the project. Funding for this project was provided by the Department
of Natural Resources Wildlife Division, an NSERC Discovery grant to D. Stewart, Acadia
University, and Parks Canada.
Literature Cited
Ballard, W.B., G.M. Matson, and P.R. Krausman. 1995. Comparison of two methods to age
Gray Wolf teeth. Pp. 455–459, In L.N. Carbyn, S.H. Fritts, and D.R. Seip (Eds.). Ecology
and Conservation of Wolves in a Changing World. Canadian Circumpolar Institute,
Occasional Publication No. 35. 642 pp.
Banfield, A.W.F. 1974. The Mammals of Canada. University of Toronto Press, Toronto, ON,
Canada. 438 pp.
Bekoff, M. 1977. Mammalian dispersal and the ontogeny of individual behavioral phenotypes.
American Naturalist 111:715–732.
Benson, J.F., and B.R. Patterson. 2013. Moose (Alces alces) predation by eastern Coyotes
(Canis latrans) and eastern Coyote × Eastern Wolf (Canis latrans × Canis lycaon) hybrids.
Canadian Journal of Zoology 91:837–841.
Benson, J.F., B.R. Patterson, and T.J. Wheeldon. 2012. Spatial genetic and morphologic
structure of wolves and Coyotes in relation to environmental heterogeneity in a Canis
hybrid zone. Molecular Ecology 21:5934–5954.
Blake, J. 2006. Coyotes in insular Newfoundland: Current knowledge and management of
the island’s newest mammalian predator. Department of Environment and Conservation
Wildlife Division, Corner Brook, NL, Canada. 11 pp.
Boileau, M.G., P.D.N Hebert, and S.S. Schwartz. 1992. Non-equilibrium gene-frequency
divergence: Persistent founder effects in natural populations. Journal of Evolutionary
Biology 5:25–39.
Bridger, K.E., E.M. Baggs, and J. Finney-Crawley. 2009. Endoparasites of the Coyote
(Canis latrans), a recent migrant to insular Newfoundland. Journal of Wildlife Diseases
45:1221–1226.
Chambers, S.M., S.R. Fain, B. Fazio, and M. Amaral. 2012. An account of the taxonomy
of North American wolves from morphological and genetic analyses. North American
Fauna 77:1–67.
Clegg, S.M., S.M. Degnan, J. Kikkawa, C. Moritz, A. Estoup, and I.P.F. Owens. 2002. Genetic
consequences of sequential founder events by an island-colonizing bird. Proceedings
of the National Academy of Sciences 99:8127–8132.
da Fonseca, R.R., W.E. Johnson, S.J. O’Brien, M.J. Ramos, and A. Antunes. 2008. The
adaptive evolution of the mammalian mitochondrial genome. BMC Genomics 9:119.
Northeastern Naturalist
610
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
Excoffier, L., and H.E.L. Lischer. 2010. Arlequin suite ver 3.5: A new series of programs
to perform population genetics analyses under Linux and Windows. Molecular Ecology
Resources 10:564–7.
Fener, H.M., J.R. Ginsberg, E.W. Sanderson, and M.E. Gompper. 2005. Chronology of
range expansion of the Coyote, Canis latrans, in New York. The Canadian Field-Naturalist
119:1–5.
Galtier, N., B. Nabholz, S. Glémin, and G.D.D. Hurst. 2009. Mitochondrial DNA as a
marker of molecular diversity: A reappraisal. Molecular Ecology 18:4541–4550.
Gompper, M.E. 2002. The ecology of northeast Coyotes. Wildlife Conservation Society
17:1–52.
Harrison, D.J. 1992. Dispersal characteristics of juvenile Coyotes in Maine. Journal of
Wildlife Management 56:128–138.
Hidalgo-Mihart, M.G., L. Cantu-Salazar, A. Gonzalez-Romero, and C.A. Lopez-Gonzalez.
2004. Historical and present distribution of Coyote (Canis latrans) in Mexico and Central
America. Journal of Biogeography 31:2025–2038.
Kays, R., A. Curtis, and J.J. Kirchman. 2010. Rapid adaptive evolution of northeastern
Coyotes via hybridization with wolves. Biology Letters 6:89–93.
Knowlton, F.F., and S.L. Whittemore. 2001. Pulp cavity–tooth-width ratios from knownage
and wild-caught Coyotes determined by radiography. Wildlife Society Bulletin
29:239–244.
Koblmuller, S., M. Nord, R.K. Wayne, and J.A. Leonard. 2009. Origin and status of the
Great Lakes Wolf. Molecular Ecology 18:2313–2326.
Leonard, J.A., and R.K. Wayne. 2008. Native Great Lakes Wolves were not restored. Biology
Letters 4:95–98.
Librado, P., and J. Rozas. 2009. DnaSP v5: A software for comprehensive analysis of DNA
polymorphism data. Bioinformatics 25:1451–1452.
McGrath, D. 2004. The Newfoundland Coyote. Hutton International Press, St. John’s, NL,
Canada. 91 pp.
Monzón, J., R. Kays, and D.E. Dykhuizen. 2014. Assessment of Coyote–wolf–Dog admixture
using ancestry-informative diagnostic SNPs. Molecular ecology 23:182–197.
Nelson, T.A., and D.M. Lloyd. 2005. Demographics and condition of Coyotes in Illinois.
American Midland Naturalist 153:418–427.
Nunes, M.D.S., P.O. Wengel, M. Kreissl, and C. Schlotterer. 2010. Multiple hybridization
events between Drosophila simulans and Drosophila mauritiana are supported by
mtDNA introgression. Molecular Ecology 19: 4695–4707.
O’Brien, M. 1983. The Coyote: A new mammal, new challenges. Nova Scotia Department
of Natural Resources-Wildlife Division, Kentville, NS, Canada. Available online at
http://www.novascotia.ca/natr/wildlife/conserva/coyotes.asp. Accessed 7 July 2014.
Parker, G.R. 1995. Eastern Coyote: The Story of its Success. Nimbus Publishing, Halifax,
NS, Canada. 254 pp.
Patterson, B.R. 1995. The ecology of the Eastern Coyote in Kejimkujik National Park.
M.Sc. Dissertation. Acadia University, Wolfville, NS, Canada. 238 pp.
Pichaud, N., J.W.O. Ballard, R.M. Tanguay, and P.U. Blier. 2012. Naturally occurring
mitochondrial DNA haplotypes exhibit metabolic differences: Insight into functional
properties of mitochondria. Evolution 66:3189–3197.
Pigott, T.D. 2001. A review of methods for missing data. Educational Research and Valuation
7:353–383.
Northeastern Naturalist Vol. 22, No. 3
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015
611
Pilgrim, K.L., D.K. Boyd, and S.H. Forbes. 1998. Testing for wolf–Coyote hybridization in
the Rocky Mountains using mitochondrial DNA. The Journal of Wildlife Management
62:683–689.
Posada, D., and K.A. Crandall. 1998. Modeltest: Testing the model of DNA substitution.
Bioinformatics 14:817–818.
R Development Core Team (2008). R: A language and environment for statistical computing.
R Foundation for Statistical Computing. Vienna, Austria. Available online at http://
www.R-project.org. Accessed 7 July 2014.
Rising, J.D., and K.M. Somers. 1989. The measurement of overall body size in birds. The
Auk 106:666–674.
Rutledge, L.Y., C.J. Garroway, K.M. Loveless, and B.R. Patterson. 2010. Genetic differentiation
of Eastern Wolves in Algonquin Park despite bridging gene flow between
Coyotes and Gray Wolves. Heredity 105:520–531.
Sacks, B.N., H.B. Ernest, and E.E. Boydston. 2006. San Francisco’s Golden Gate: A bridge
between historically distinct Coyote (Canis latrans) populations? Western North American
Naturalist 66:263–264.
Schwartz, M.K., and J.A. Vucetich. 2009. Molecules and beyond: Assessing the distinctness
of the Great Lakes Wolf. Molecular Ecology 18:2307–2309.
Scott, F.W., and A.J. Hebda. 2004. Annotated list of the mammals of Nova Scotia. Proceedings
of the Nova Scotia Institute of Science 42:189–208.
Service Nova Scotia. 2006. Nova Scotia Atlas. 6th Edition. Formac Publishing Company
Limited, Halifax, NS, Canada. 144 pp.
Stains, H.J. 1975. The distribution and taxonomy of the Canidae. Pp. 3–4, In M.W. Fox
(Ed.). The Wild Canids. Van Nostrand Reinhold, New York, NY. 536 pp.
Tamura, K., D. Peterson, N. Peterson, G. Stecher, M. Nei, and S. Kumar. 2011. MEGA5:
Molecular evolutionary genetics analysis using maximum likelihood, evolutionary
distance, and maximum parsimony methods. Molecular Biology and Evolution
28:2731–2739.
Thurber, J.M., and R.O. Peterson. 1991. Changes in body size associated with range expansion
in the Coyote (Canis latrans). Journal of Mammalogy 72:750–755.
Toews, D.P.L., M. Mandic, J.G. Richards, and D.E. Irwin. 2013. Migration, mitochondria,
and the Yellow-Rumped Warbler. Evolution 68:241–255.
vonHoldt, B.M., J.P. Pollinger, D.A. Earl, J.C. Knowles, A.R. Boyko, H. Parker, E. Geffen,
M. Pilot, W. Jedrzejewski, B. Jedrzejewska, V. Sidorovich, C. Greco, E. Randi, M.
Musiani, R. Kays, C.D. Bustamante, E.A. Ostrander, J. Novembre, and R.K. Wayne.
2011. A genome-wide perspective on the evolutionary history of enigmatic wolf-like
canids. Genome Research 21:1294–1305.
Way, J. 2007. A comparison of body mass of Canis latrans (Coyotes) between eastern and
western North America. Northeastern Naturalist 14:111–124.
Way, J.G., and R.L. Proietto. 2005. Record-size female Coyote, Canis latrans. Canadian
Field-Naturalist. 119:139–140.
Way, J.G., L. Rutledge, T. Wheeldon, and B.N. White. 2010. Genetic characterization of
eastern “Coyotes” in eastern Massachusetts. Noertheastern Naturalist 17:189–204.
Wheeldon, T., and B.N. White. 2009. Genetic analysis of historic western Great Lakes
region wolf samples reveals early Canis lupus/lycaon hybridization. Biology Letters
5:101–104.
Wheeldon, T., B. Patterson, and B. White. 2010. Colonization history and ancestry of northeastern
Coyotes. Biology Letters 6:246–247.
Northeastern Naturalist
612
J.W.B. Power, N. LeBlanc, S. Bondrup-Nielsen, M.J. Boudreau, M.S. O’Brien, and D.T. Stewart
2015 Vol. 22, No. 3
Wilson, P.J., S. Grewal, I.D. Lawford, J.N. Heal, A.G. Granacki, D. Pennock, J.B. Theberge,
M.T. Theberge, D.R. Voigt, W. Waddell, R.E. Chambers, P.C. Paquet, G. Goulet,
D. Cluff, and B.N. White. 2000. DNA profiles of the eastern Canadian Wolf and the
Red Wolf provide evidence for a common evolutionary history independent of the Gray
Wolf. Canadian Journal of Zoology 78:2156–2166.
Wilson, P.J., S.K. Grewal, F.F. Mallory, and B.N. White. 2009. Genetic characterization of
hybrid wolves across Ontario. Journal of Heredity 100:S80–S89.
Zalewski, A., A. Michalska Parda, M. Ratkiewicz, M. Kozakiewicz, M. Bartoszewicz,
and M. Brzeziński. 2011. High mitochondrial DNA diversity of an introduced alien
carnivore: Comparison of feral and ranch American Mink, Neovison vison, in Poland.
Diversity and Distributions 17:757–768.
Zhang, B., H. Chen, L. Hua, C. Zhang, X. Kang, X. Wang, C. Pan, X. Lan, and C. Lei. 2008.
Novel SNPs of the mtDNA ND5 gene and their associations with several growth traits
in the Nanyang cattle breed. Biochemical Genetics 46:362–368.
