The Indirect Impact of Long-Term Overbrowsing on Insects
in the Allegheny National Forest Region of Pennsylvania
Michael J. Chips, Ellen H. Yerger, Arpad Hervanek, Tim Nuttle, Alejandro A. Royo, Jonathan N. Pruitt, Terrence P. McGlynn, Cynthia L. Riggall, and Walter P. Carson
Northeastern Naturalist, Volume 22, Issue 4 (2015): 782–797
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist

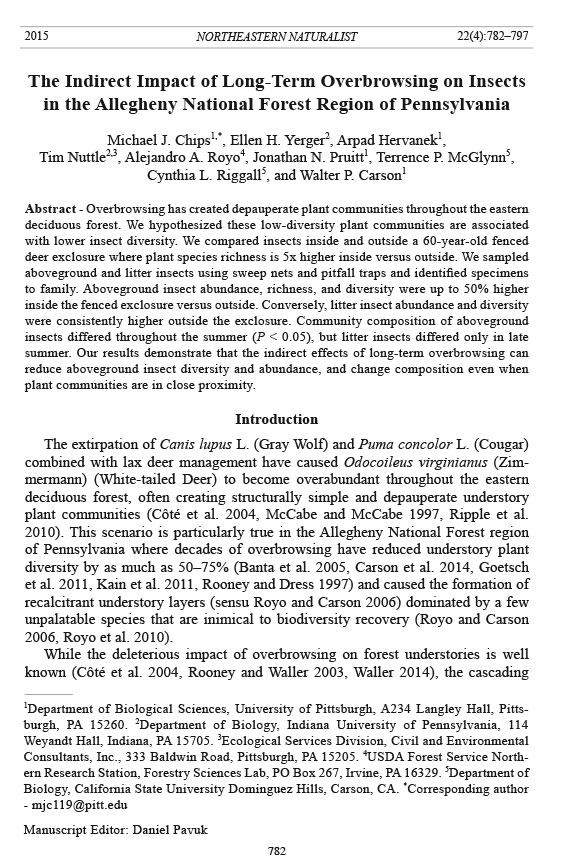

782
M.J. Chips, et al.
22001155 NORTHEASTERN NATURALIST 2V2(o4l). :2728,2 N–7o9. 74
The Indirect Impact of Long-Term Overbrowsing on Insects
in the Allegheny National Forest Region of Pennsylvania
Michael J. Chips1,*, Ellen H. Yerger2, Arpad Hervanek1,
Tim Nuttle2,3, Alejandro A. Royo4, Jonathan N. Pruitt1, Terrence P. McGlynn5,
Cynthia L. Riggall5, and Walter P. Carson1
Abstract - Overbrowsing has created depauperate plant communities throughout the eastern
deciduous forest. We hypothesized these low-diversity plant communities are associated
with lower insect diversity. We compared insects inside and outside a 60-year-old fenced
deer exclosure where plant species richness is 5x higher inside versus outside. We sampled
aboveground and litter insects using sweep nets and pitfall traps and identified specimens
to family. Aboveground insect abundance, richness, and diversity were up to 50% higher
inside the fenced exclosure versus outside. Conversely, litter insect abundance and diversity
were consistently higher outside the exclosure. Community composition of aboveground
insects differed throughout the summer (P < 0.05), but litter insects differed only in late
summer. Our results demonstrate that the indirect effects of long-term overbrowsing can
reduce aboveground insect diversity and abundance, and change composition even when
plant communities are in close proximity.
Introduction
The extirpation of Canis lupus L. (Gray Wolf) and Puma concolor L. (Cougar)
combined with lax deer management have caused Odocoileus virginianus (Zimmermann)
(White-tailed Deer) to become overabundant throughout the eastern
deciduous forest, often creating structurally simple and depauperate understory
plant communities (Côté et al. 2004, McCabe and McCabe 1997, Ripple et al.
2010). This scenario is particularly true in the Allegheny National Forest region
of Pennsylvania where decades of overbrowsing have reduced understory plant
diversity by as much as 50–75% (Banta et al. 2005, Carson et al. 2014, Goetsch
et al. 2011, Kain et al. 2011, Rooney and Dress 1997) and caused the formation of
recalcitrant understory layers (sensu Royo and Carson 2006) dominated by a few
unpalatable species that are inimical to biodiversity recovery (Royo and Carson
2006, Royo et al. 2010).
While the deleterious impact of overbrowsing on forest understories is well
known (Côté et al. 2004, Rooney and Waller 2003, Waller 2014), the cascading
1Department of Biological Sciences, University of Pittsburgh, A234 Langley Hall, Pittsburgh,
PA 15260. 2Department of Biology, Indiana University of Pennsylvania, 114
Weyandt Hall, Indiana, PA 15705. 3Ecological Services Division, Civil and Environmental
Consultants, Inc., 333 Baldwin Road, Pittsburgh, PA 15205. 4USDA Forest Service Northern
Research Station, Forestry Sciences Lab, PO Box 267, Irvine, PA 16329. 5Department of
Biology, California State University Dominguez Hills, Carson, CA. *Corresponding author
- mjc119@pitt.edu
Manuscript Editor: Daniel Pavuk
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
783
effects that browsing has on arthropod communities are less clear. It is predicted
that depauperate understories dominated by browse-tolerant plant species will cascade
up trophic levels to lower the abundance and diversity of arthropod groups
(Hunter and Price 1992, Siemann et al. 1998, Stewart 2001). This cascade may be
driven by losses of both structural complexity and food-resource diversity (Stewart
2001). Alternatively, arthropods may simply track plant abundance and thus be
somewhat buffered from declines in host-plant diversity (Siemann 1998, Siemann
et al. 1998).
To date, studies within the eastern deciduous forest have focused almost entirely
on arthropods in the litter layer and have found that overbrowsing indirectly
decreases arthropod abundance with variable effects on diversity (Bressette et al.
2012, Brousseau et al. 2013, Christopher and Cameron 2012, Greenwald et al. 2008,
Lessard et al. 2012). Oddly, these studies have overlooked aboveground arthropod
communities inhabiting the understory (but see Brousseau et al. 2013) or were
hampered by small sample sizes (e.g., Bressette et al. 2012). Studies within other
forest types in the southwestern United States (Huffman et al. 2009), on islands in
the Pacific Northwest (Allombert et al. 2005), and in forests in Europe (Baines et
al. 1994, Suominen et al. 2003) have all found that overbrowsing causes decreases
in aboveground arthropod richness. If this is a typical response, overbrowsing could
be a serious threat to ecosystem services. Arthropods are principal pollinators, seed
dispersers, predators, decomposers, and herbivores, and account for the majority of
the animal biomass in ecosystems throughout the world (Handel et al. 1981, Wilson
1987, Wise 1993).
Here, we compared arthropod communities within a 60-year-old deer exclosure
to an adjacent reference site in the Allegheny National Forest region of Pennsylvania.
This is the oldest known deer fence in the eastern deciduous forest. The
understory vegetation inside the fenced plot is composed of a diverse layer of
forbs, shrubs, and saplings, while the vegetation directly outside, and in much of
this region, is depauperate, structurally simple, and often dominated by a single,
highly productive fern species, Dennstaedtia punctilobula (Michx.) T. Moore (Hay-
Scented Fern; Carson et al. 2014, Goetsch et al. 2011, Kain et al. 2011). We tested
the hypothesis that long-term deer overbrowsing indirectly decreases the diversity
and richness of insects as well as changes insect community composition.
Field-Site Description
We conducted this study within the Allegheny high plateau region of north-central
Pennsylvania on State Game Lands #30 (McKean County, 41°38'N, 78°19'W),
which is part of the Hemlock–Northern Hardwood Association (Whitney 1990).
Further descriptions of the region’s natural history can be found in Bjorkbom and
Larson (1977) and Hough and Forbes (1943). Deer have overbrowsed this region,
as well as much of Pennsylvania, since the 1930s (Carson et al. 2014, Horsley et al.
2003, Redding 1995).
Northeastern Naturalist
784
M.J. Chips, et al.
2015 Vol. 22, No. 4
Methods
We compared insect communities between a 0.4-ha plot surrounded by a wellmaintained
deer fence (height: 2.1 m, mesh size: 15 cm x 20 cm) versus a nearby
reference site (~75 m x 55 m). The fence was erected in the late 1940s and excludes
White-tailed Deer, but the mesh is likely large enough to allow in smaller vertebrates
such as Marmota monax (L.) (Woodchuck; Chips et al. 2014). The exclosure
and reference site were exactly the same ones used by Goetsch et al. (2011) and
Kain et al. (2011) to evaluate the long-term impact of browsing on the understory
and overstory, respectively (see Stout 1998 for further details). The overstory of
each site was 60–80 years old and characterized in decreasing order of abundance
by Prunus serotina Ehrh. (Black Cherry), Acer saccharum Marshall (Sugar Maple),
Fagus grandifolia Ehrh. (American Beech), Acer rubrum L. (Red Maple), and
Betula spp. (birch) (Kain et al. 2011).
A diverse and abundant group of wildflowers and shrubs characterized the understory
vegetation inside the fenced plot versus the adjacent reference site (percent
plant cover: inside exclosure = 63.42 ± 6.10; reference site = 9.28 ± 1.55, P < 0.05;
mean species richness: inside exclosure = 6.2; reference site = 1.1, P < 0.05; Goetsch
et al. 2011). Many of these wildflowers peak in abundance in May prior to canopy
closure in late spring. A single species, Hay-scented Fern, dominated the reference
site and also dominates understories throughout much of the entire region (Carson et
al. 2014, Goetsch et al. 2011, Hill and Silander 2001, Rooney and Dress 1997, Royo
et al. 2010). Hay-scented Fern is an unpalatable and fairly shade-tolerant species that
peaks in biomass in mid- to late June (Hill and Silander 2001, Horsley and Marquis
1983, Horsley et al. 2003, Rooney and Dress 1997, Royo and Carson 2006).
Insect sampling
We sampled insects on 12 May, 29 June, and 26 August 2011 within the exclosure
and in the unfenced reference site 200 m away of the same size, elevation,
and slope. We sampled litter insects with pitfall traps and aboveground insects
with sweep nets. On each date and throughout each site, we collected 20 sweepnet
and 20 pitfall-trap samples. Sweep nets were made of fine mesh with a hoop
30 cm in diameter with a 1-m handle. We swept the top 10–30 cm of all vegetation
within reach along 10-m transects starting every 10 m with respect to the 75
m edge of the plot and from random locations with respect to the 55 m edge. All
sweep-net transects were at least 3 m from the fence or edge of the reference plot
and at least 10 m from each other. All pitfall traps were placed within random
locations at least 3 m from the fence and at least 10 m away from each other to
minimize edge effects. Pitfall traps were half-liter plastic containers, 8 cm diameter
x 10 cm height, filled with 2 cm of 95% ethanol. We placed the rim of the
pitfall trap flush with the soil surface and collected them after 24 hours (House
and Stinner 1983, Williams 1958). With the help of commonly used identification
guides (Borror and White 1970, BugGuide.net, Marshall 2007), we identified all
insects larger than 5 mm to family. In addition, identifications were verified at the
Carnegie Museum of Natural History.
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
785
Statistical analyses
We used univariate repeated-measures analysis of variance (RM-ANOVA; Von
Ende 2001) with SAS (PROC GLIMMIX, version 9.3.1; SAS Institute, Inc., Cary,
NC) to examine differences in insect abundance, richness, and exponential Shannon
diversity (eH') throughout the spring and summer. We used this diversity index because
it scales Shannon diversity to a comparable measure of species richness (e.g.,
number of species; see Jost 2006, 2007). The month of sampling was the repeated
measure and the treatment was the deer fence. We treated pitfall and sweep-net
sampling techniques as independent measures of arthropod communities and analyzed
them separately. To assess differences in arthropod community composition,
we performed permutational multivariate analysis of variance (PERMANOVA) via
ADONIS using the Vegan Package (R core development team; Anderson 2001).
Our experimental treatment (fenced exclosure) was not replicated and our analyses
were based upon subsamples (pseudoreplicates sensu Hurlburt 1984), thus our results
should be interpreted with appropriate caution (see Oksanen 2001 for a wider
discussion on this issue). Nonetheless, because deer have been excluded for 60+
years, this study is quite unique.
Results
We found that decades of overbrowsing indirectly reduced aboveground insect
abundance ~40%, richness ~45%, and diversity ~50% throughout spring and summer,
but this effect was particularly strong in August (fence x time interaction:
P < 0.001; Fig. 1A, B, C; Table 1). In addition, overbrowsing shifted aboveground
Figure 1. Mean (± S.E.) abundance, family richness, and diversity (eH’) of insects larger than
5 mm collected in the spring and summer of 2011 in the Allegheny National Forest region of
north-central Pennsylvania in sweep nets (A–C) and pitfall traps (D–F) inside a 60-year-old
fenced exclosure and in a nearby reference site.
Northeastern Naturalist
786
M.J. Chips, et al.
2015 Vol. 22, No. 4
insect composition over the entire sampling period, particularly in June (Fig. 2A,
B, C; Table 2). This shift was primarily driven by higher counts of elaterid beetles
in the reference site (19 vs. 6) and more mirid bugs inside of the fenced exclosure
(2 vs. 30) (Appendix 1). In contrast, overbrowsing increased litter insect abundance
by ~85%, richness by ~30%, and diversity by ~30% throughout spring and summer
(Fig. 1D, E, F; Table 1). However, only in August did community composition of
litter insects differ between the 2 sites (Fig. 2D, E, F; Table 2). Specifically, browsing
increased the abundance of carabid beetles, chrysomelid beetles, and litter ants
particularly in August (Appendix 2).
Discussion
Aboveground insects
We found that overbrowsing caused a reduction in the abundance, richness, and
diversity of aboveground insects and also changed the composition of these insect
Table 2. PERMANOVA results to test for compositional differences of insects larger than 5 mm
caught in sweep nets and pitfall traps in the spring and summer of 2011 in a 60-year-old deer fence
and an adjacent reference site in the Allegheny National Forest region in north-central Pennsylvania.
* indicates significant P-values. See Appendices 1 and 2 as well as Figure 2 for a breakdown of insect
orders and families.
Sweep net Pitfall trap
df R2 F P df R2 F P
May 1, 26 0.03 0.65 0.8335 1, 33 0.05 1.66 0.1265
June 1, 36 0.11 4.17 0.0010* 1, 36 0.04 1.40 0.2170
August 1, 34 0.05 1.65 0.0815 1, 31 0.10 3.50 0.0145*
Overall 1, 98 0.03 2.89 0.0005* 1, 102 0.02 1.83 0.1045
Table 1. Mixed-model ANOVA results to test for differences in abundance, family richness, and
diversity (eH’) of insects larger than 5 mm caught in sweep nets and pitfall traps in the spring and
summer of 2011 within a 60-year-old fenced exclosure and a nearby reference site in the Allegheny
National Forest Region in north-central Pennsylvania. * indicates significant P-values. See Figure 1
for all fence x time interactions.
Abundance Richness Diversity (eH’)
df F P df F P df F P
Fence
Sweep Net 1, 114 8.23 0.0049* 1, 114 14.77 0.0002* 1, 114 16.26 0.0001*
Pitfall Trap 1, 114 10.73 0.0014* 1, 114 4.82 0.0301* 1, 114 3.95 0.0492*
Time
Sweep Net 2, 114 5.43 0.0056* 2, 114 7.14 0.0012* 2, 114 7.46 0.0009*
Pitfall Trap 2, 114 6.68 0.0018* 2, 114 0.75 0.4768 2, 114 0.79 0.4564
Fence x time
Sweep Net 2, 114 3.50 0.0334* 2, 114 5.27 0.0065* 2, 114 5.74 0.0042*
Pitfall Trap 2, 114 0.11 0.8965 2, 114 0.21 0.8140 2, 114 0.31 0.7374
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
787
communities. These reductions and changes were likely caused by the depauperate
nature of the understory vegetation that occurred in the reference site versus the
rich understory layer that occurred inside the exclosure. Indeed, the general reduction
of herbivorous hemipteran insects (Miridae) drove much of this decline across
the sampling period (Appendix 1). Our results may apply broadly because overbrowsing
has caused the formation of a depauperate understory plant community
throughout the region (Carson et al. 2014) and elsewhere (Royo and Carson 2006,
Waller 2014). Our findings are consistent with the impact of ungulate browsers
on aboveground insects in lowland rainforests in the Pacific Northwest, European
woodlands, boreal forests, and Ponderosa forests (Allombert et al. 2005, Baines et
al. 1994, Brousseau et al. 2013, Huffman et al. 2009). While results varied throughout
spring and summer (Fig. 1A, B, and C), the overall signal was that long-term
deer overabundance caused a decline in the diversity, richness, and abundance of
aboveground insects and significantly changed arthropod community composition.
Peaks in arthropod abundance and richness later in the season in the reference
site may be attributed to high percent cover of Hay-scented Fern, which
reaches peak frond density in June and July followed by senesce in August (Hill
and Silander 2001). Though we know very little about insect associations with
Hay-scented Fern (Balick et al. 1978), high frond density may create a favorable
habitat for understory insects in June (e.g., Elaterid beetles; Fig. 2B, Appendix 1).
Arthropod abundance is known to track plant abundance rather than plant diversity
Figure 2. Percent relative abundance in the fenced exclosure (Fence) and reference site at
each sampling date in 2011 for both sweep nets in (A) May, (B) June, and (C) August, and
pitfall trap samples for (D) May, (E) June, and (F) August. Aboveground insect communities
were significantly different throughout the summer, but particularly in June and litter
insect communities were significantly different only in August (see Table 2). See Appendices
1 and 2 for the relative abundance of each insect family.
Northeastern Naturalist
788
M.J. Chips, et al.
2015 Vol. 22, No. 4
in other community types, particularly grasslands (Siemann 1998, Siemann et al.
1998), and dense host concentrations cause increases in insect herbivore abundance
(Long et al. 2003, Root 1973).
Litter insects
Overbrowsing increased litter insect richness, abundance, and diversity throughout
the sampling period and led to changes in insect community composition only
in late summer. Increases in the absolute abundance of predatory ground beetles as
well as ants likely drive these changes. Our findings build upon previous studies
in North America and Europe, which documented that the indirect effects of overbrowsing
led to increases in the absolute abundance of predatory ground beetles
(Brousseau et al. 2013, Melis et al. 2006). The mechanism by which browsing increases
the abundance of particular litter insects is unclear, but is likely caused by
increased temperatures and lower humidity in the litter layer because of decreased
plant cover (Stewart 2001). Specifically, browsers likely create environments favorable
to arthropods adapted for high-light, dry environments (Gonzalez-Megias et
al. 2004, Melis et al. 2006, Suominem et al. 2003). In contrast, some studies found
that overbrowsing causes declines in litter arthropod abundance and diversity via an
increase in vulnerability to avian predators and changes in soil nutrients (Bressette
et al. 2012, Wardle et al. 2001).
Conclusions
We found that aboveground insect richness, abundance, and diversity were
higher and insect species composition different inside a >60-year-old deer exclosure
versus a nearby reference site. The sharply contrasting understory plant
communities that occurred in each site likely caused these differences. In contrast,
we found higher abundance, richness and diversity of litter insects in an area
exposed to browsing. Our results, and the results of others, call for large-scale,
well-replicated experiments that evaluate not only the impact of overbrowsing on
arthropod abundance but also how these may subsequently alter entire food webs in
the understory as well as in forest canopies over long time scales. We are aware of
only one White-tailed Deer exclosure of this advanced age; therefore deer refugia
(e.g., tall boulders) could substitute for very old deer exclosures in this approach
(Banta et al. 2005, Chollet et al. 2013, Comisky et al. 2005, Rooney 1997). We suggest
that differences in the arthropod communities could cascade further up the food
chain and impact the abundance and diversity of higher trophic levels, particularly
avian insectivores (e.g., Nuttle et al. 2011).
Acknowledgments
Special thanks to R. Androw, R. Davidson, and J. Rawlins, of the Carnegie Museum of
Natural History for aid in insect identification. N. Brouwer, A. Domic, E. Griffin, J. Hua,
S.C. Pasquini, J. Slyder, and A. Stoler as well as 4 anonymous reviewers provided helpful
comments on the manuscript. Thanks to J. Dzemyan and the Pennsylvania Game Commission
for providing access to the study site, and S. Williamson and the 2011 Forest Ecology
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
789
and Field Techniques in Ecology and Conservation classes at the University of Pittsburgh
Pymatuning Laboratory of Ecology for help with data collection. We apppreciate the support
of the Biology Department and the School of Graduate Studies and Research at the
Indiana University of Pennsylvania.
Literature Cited
Allombert, S., S.A. Stockton, and J.-L. Martin. 2005. A natural experiment on the impact of
overabundant deer on forest invertebrates. Conservation Biology 19:1917–1929.
Anderson, M.J. 2001. A new method for non-parametric multivariate analysis of variance.
Austral Ecology 26:32–46.
Baines, D., R.B. Sage, and M.M. Baines. 1994. The implications of Red Deer grazing to
ground vegetation and invertebrate communities of Scottish native pinewoods. Journal
of Applied Ecology 31:776–783.
Balick, M.J., D.G. Furth, and G.A. Cooper-Driver. 1978. Biochemical and evolutionary
aspects of arthropod predation on ferns. Oecologia 35:55–89.
Banta, J.A., A.A. Royo, C. Kirschbaum, and W.P. Carson. 2005. Plant communities growing
on boulders in the Allegheny National Forest: Evidence for boulders as refugia from deer
and a a bioassay of overbrowsing. Natural Areas Journal 25(2):10–18.
Bjorkbom, J.C., and R.G. Larson. 1977. The Tionesta Scenic and Research Natural Areas.
General Technical Report NE-31. United States Department of Agriculture, Forest Service,
Northeastern Forest Experimental Station, Upper Darby, PA. 24 pp.
Borror, D.J., and R.E. White. 1970. A Field Guide to Insects of America North of Mexico.
Houghton Mifflin Co., New York, NY.
Bressette, J. W., H. Beck, and V. B. Beauchamp. 2012. Beyond the browse line: Complex
cascade effects mediated by White-tailed Deer. Oikos 121:1749–1760.
Brousseau, P.-M., C. Hébert, C. Cloutier, and S.D. Côté. 2013. Short-term effects of reduced
White-tailed Deer density on insect communities in a strongly overbrowsed boreal forest
ecosystem. Biodiversity and Conservation 22:77–92.
Carson, W.P., A.A. Royo and C.J. Peterson. 2014. A pox on our land: A case study of chronic
deer overbrowsing throughout the Allegheny National Forest region in Pennsylvania.
Pp. 400–411, In F.S. Gilliam (Ed.). The Herbaceous Layer in Forests of Eastern North
America, Second Edition. Oxford University Press, New York, NY.
Chips, M.J., M.R. Magliocca, B. Hasson, and W.P. Carson. 2014. Quantifying deer and
turkey leaf-litter disturbances in the eastern deciduous forest: Have nontrophic effects
of consumers been overlooked? Canadian Journal of Forest Research 44:1128–1132.
Chollet, S., C. Baltzinger, L. Ostermann, F. Saint-André, and J.-L. Martin. 2013. Importance
for forest plant communities of refuges protecting from deer browsing. forest
Ecology and Management 289:470–477.
Christopher, C.C., and G.N. Cameron. 2012. Effects of invasive Amur Honeysuckle
(Lonicera maackii) and White-Tailed Deer (Odocoileus virginianus) on litter-dwelling
arthropod communities. American Midland Naturalist 167:256–272.
Comisky, L., A.A. royo, and W.P. Carson. 2005. Deer browsing creates rock refugia gardens
on large boulders in the Allegheny National Forest, Pennsylvania. American Midland
Naturalist 1543(1):201–206.
Côté, S.D., T.P. Rooney, J.-P. Tremblay, C. Dussault, and D.M. Waller. 2004. Ecological
impacts of deer overabundance. Annual Review of Ecology, Evolution, and Systematics
35:113–147.
Northeastern Naturalist
790
M.J. Chips, et al.
2015 Vol. 22, No. 4
Goetsch, C., J. Wigg, A.A. Royo, T.E. Ristau, and W.P. Carson. 2011. Chronic overbrowsing
and biodiversity collapse in a forest understory in Pennsylvania: Results from a 60-yearold
deer exclusion plot. The Journal of the Torrey Botanical Society 138:220–224.
Gonzalez-Megias, A., J.M. Gómez, and F. Sánchez-Pinero. 2004. Effects of ungulates on
epigeal arthropods in Sierra Nevada National Park (southeast Spain). Biodiversity and
Conservation 13:733–752.
Greenwald, K.R., L.J. Petit, and T.A. Waite. 2008. Indirect effects of a keystone herbivore
elevate local animal diversity. Journal of Wildlife Management 72:1318–1321.
Handel, S.N., S.B. Fisch, and G.E. Schatz. 1981. Ants disperse a majority of herbs in
a mesic forest community in New York State. Bulletin of the Torrey Botanical Club
108:430–437.
Hill, J.D., and J.A. Silander. 2001. Distribution and dynamics of two ferns: Dennstaedtia
punctilobula (Dennstaedtiaceae) and Thelypteris noveboracensis (Thelypteridaceae) in
a Northeast mixed hardwoods–hemlock forest. American Journal of Botany 88:894–902.
Horsley, S.B., and D.A. Marquis. 1983. Interference by weeds and deer with Allegheny
hardwood reproduction. Canadian Journal of Forest Research 13:61–69.
Horsley, S.B., S.L. Stout, and D.S. DeCalesta. 2003. White-tailed Deer impact on the vegetation
dynamics of a northern hardwood forest. Ecological Applications 13:98–118.
Hough, A.F., and R.D. Forbes. 1943. The ecology and silvics of forests in the high plateaus
of Pennsylvania. Ecological Monographs 13:299–320.
House, G.J., and B.R. Stinner. 1983. Arthropods in no-tillage soybean agroecosystems:
Community composition and ecosystem interactions. Environmental Management
7:23–28.
Huffman, D.W., D.C. Laughlin, K.M. Pearson, and S. Pandey. 2009. Effects of vertebrate
herbivores and shrub characteristics on arthropod assemblages in a northern Arizona
forest ecosystem. Forest Ecology and Management 258:616–625.
Hunter, M.D., and P.W. Price. 1992. Playing chutes and ladders: Heterogeneity and the
relative roles of bottom-up and top-down forces in natural communities. Ecology
73:724–732.
Hurlbert, S.H. 1984. Pseudoreplication and the design of ecological field experiments.
Ecological Monographs 54:187–211.
Jost, L. 2006. Entropy and diversity. Oikos 113:363–375.
Jost, L. 2007. Partitioning diversity into independent alpha and beta components. Ecology
88:2427–2439.
Kain, M., L. Battaglia, A.A. Royo, and W.P. Carson. 2011. Over-browsing in Pennsylvania
creates a depauperate forest dominated by an understory tree: Results from a 60-yearold
deer exclosure. The Journal of the Torrey Botanical Society 138:322–326.
Lessard, J.-P., W.N. Reynolds, W.A. Bunn, M.A. Genung, M.A. Cregger, E. Felker-Quinn,
M.N. Barrios-Garcia, M.L. Stevenson, R.M. Lawton, C.B. Brown, M. Patrick, J.H.
Rock, M.A. Jenkins, J.K. Bailey, and J.A. Schweitzer. 2012. Equivalence in the strength
of deer herbivory on above- and belowground communities. Basic and Applied Ecology
13:59–66.
Long, Z.T., C.L. Mohler, and W. . Carson. 2003. Extending the resource concentration
hypothesis to plant communities: Effects of litter and herbivores. Ecology 84:652–665.
Marshall, S.A. 2007. Insects: Their Natural History and Diversity with a Photographic
Guide to Insects of Eastern North America. Firefly Books, Richmond Hill, ON, Canada.
McCabe, T.R. and R.E. McCabe. 1997. Recounting white-tails past. Pp. 11–26, In W.J.
McShea, H. Underwood, and J.H. Rappole (Eds.). The Science of Overabundance: Deer
Ecology and Population Management. Smithsonian Institution Press, Washington, DC.
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
791
Melis, C., A. Buset, P.A. Aarrestad, O. Hanssen, E.L. Meisingset, R. Andersen, A. Moksnes,
and E. Røskaft. 2006. Impact of Red Deer, Cervus elaphus, grazing on Bilberry, Vaccinium
myrtillus, and composition of ground beetle (Coleoptera, Carabidae) assemblage.
Biodiversity and Conservation 15:2049–2059.
Nuttle, T., E.H. Yerger, S.H. Stoleson, and T.E. Ristau. 2011. Legacy of top-down herbivore
pressure ricochets back up multiple trophic levels in forest canopies over 30 years.
Ecosphere 2:397–409.
Oksanen, L. 2001. Logic of experiments in ecology: Is pseudoreplication a pseudoissue?
Oikos 94(1): 27–38.
Redding, J. 1995. History of deer population trends and forest cutting on the Allegheny National
Forest. Pp. 214–224, In K.W. Gottschalk and S.C.L. Fosbroke (Eds.). Proceedings
of the 10th Central Hardwood Forest Conference. USDA Forest Service General Technical
Report NE-197. Northeastern Forest Experiment Station, Radnor, PA.
Ripple, W.J., T.P. Rooney, and R.L. Beschta. 2010. Large predators, deer, and trophic cascades
in boreal and temperate ecosystems. Pp. 141–161, In J. Terborgh and J.A. Estes
(Eds.). Trophic Cascades: Predators, Prey, and the Changing Dynamics of Nature, 1st
edition. Island Press, Washington, DC.
Rooney, T.P. 1997. Escaping Herbivory: Refuge effects on the morphology and shoot
demography of the clonal forest herb Maianthemum canadense. Journal of the Torrey
Botanical Society 124:280–285.
Rooney, T.P., and W.J. Dress. 1997. Species loss over sixty-six years in the ground-layer
vegetation of Heart’s Content, an old-growth forest in Pennsylvania, USA. Natural Areas
Journal 17:297–305.
Rooney, T.P., and D.M. Waller. 2003. Direct and indirect effects of White-tailed Deer in
forest ecosystems. Forest Ecology and Management 181:165–176.
Root, R.B. 1973. Organization of a plant-arthropod association in simple and diverse habitats:
The fauna of collards (Brassica oleracea). Ecological Monographs 43:95–124.
Royo, A.A., and W.P. Carson. 2006. On the formation of dense understory layers in forests
worldwide: Consequences and implications for forest dynamics, biodiversity, and succession.
Canadian Journal of Forest Research 36:1345–1362.
Royo, A.A., S.L. Stout, D.S. deCalesta, and T.G. Pierson. 2010. Restoring forest herb communities
through landscape-level deer herd reductions: Is recovery limited by legacy
effects? Biological Conservation 143:2425–2434
Siemann, E. 1998. Experimental tests of effects of plant productivity and diversity on grassland
arthropod diversity. Ecology 79:2057–2070.
Siemann, E., D. Tilman, J. Haarstad, and M. Ritchie. 1998. Experimental tests of the dependence
of arthropod diversity on plant diversity. The American Naturalist 152:738–750.
Stewart, A.J.A. 2001. The impact of deer on lowland woodland invertebrates: A review of
the evidence and priorities for future research. Forestry 74:259–270.
Stout, S.L. 1998. Deer and forest health. Pennsylvania Forests, Spring 1998:14–16
Suominen, O., J. Niemela, P. Martikainen, P. Niemela, and I. Kojola. 2003. Carabidae and
Impact of Reindeer grazing on ground-dwelling Curculionidae assemblages in Lapland.
Ecography 26:503–513.
Von Ende, C.N. 2001. Repeated-measures analysis: Growth and other time-dependant measures.
Pp. 135–157, In S.M. Scheiner and J. Gurevitch (Eds.). Design and Analysis of
Ecological Experiments, Second Edition. Oxford University Press, Oxford, UK.
Waller, D.M. 2014. Effects of deer on forest herb layers. Pp. 369–399, In F.S. Gilliam (Ed.).
The Herbaceous Layer in Forests of Eastern North America, Second Edition. Oxford
University Press, New York, NY.
Northeastern Naturalist
792
M.J. Chips, et al.
2015 Vol. 22, No. 4
Wardle, D.A., G.M. Barker, G.W. Yeates, K.I. Bonner, and A. Ghani. 2001. Introduced
browsing mammals in New Zealand natural forests: Aboveground and belowground
consequences. Ecological Monographs 71:587–614.
Whitney, G.G. 1990. The history and status of the hemlock–hardwood forests of the Allegheny
Plateau. Journal of Ecology 78:443–458.
Williams, G. 1958. Mechanical time-sorting of pitfall captures. Journal of Animal Ecology
27:27–35.
Wilson, E.O. 1987. Little things that run the world (the importance and conservation of
invertebrates). Conservation Biology 1:344–346.
Wise, D.H. 1993. Spiders in Ecological Webs. Cambridge University Press, Cambridge,
UK.
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
793
Appendix 1. Mean relative abundance (± S.E.) and total count of insects larger than 5 mm caught
in sweep nets in the spring and summer of 2011 in a 60-year-old deer fence and adjacent reference
site in the Allegheny National Forest Region in northcentral Pennsylvania. All insects were identified
to family.
Sweep-net samples
Order/family Treatment May June August
Coleoptera
Canthandae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Cerembycidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Chrysomelidae Reference 0.11 (0.08) 0.01 (0.01) 0.00 (0.00)
Fence 0.07 (0.04) 0.01 (0.01) 0.01 (0.01)
Curculionidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Elateridae Reference 0.00 (0.00) 0.23 (0.05) 0.00 (0.00)
Fence 0.02 (0.02) 0.01 (0.04) 0.00 (0.00)
Lucanidae Reference 0.11 (0.08) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Staphylinidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.02 (0.02) 0.01 (0.01) 0.01 (0.01)
Diptera
Anthomyiidae Reference 0.00 (0.00) 0.00 (0.00) 0.11 (0.06)
Fence 0.00 (0.00) 0.01 (0.01) 0.05 (0.02)
Anthomyzidae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Calliphoridae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Chironomidae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Dolichopodidae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.02 (0.02) 0.00 (0.00) 0.05 (0.03)
Drosophilidae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.05 (0.03) 0.00 (0.00) 0.00 (0.00)
Empididae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.05 (0.03) 0.00 (0.00) 0.00 (0.00)
Heleomyzidae Reference 0.06 (0.06) 0.00 (0.00) 0.04 (0.04)
Fence 0.00 (0.00) 0.03 (0.02) 0.02 (0.01)
Lauxaniidae Reference 0.00 (0.00) 0.18 (0.09) 0.11 (0.08)
Fence 0.00 (0.00) 0.05 (0.02) 0.08 (0.03)
Lonchaeidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Micropezidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Muscidae Reference 0.00 (0.00) 0.04 (0.04) 0.04 (0.04)
Fence 0.00 (0.00) 0.04 (0.02) 0.04 (0.01)
Mycetophilidae Reference 0.00 (0.00) 0.01 (0.01) 0.04 (0.04)
Fence 0.00 (0.00) 0.04 (0.02) 0.00 (0.00)
Phoridae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.07 (0.04) 0.00 (0.00) 0.00 (0.00)
Rhagionidae Reference 0.06 (0.06) 0.00 (0.00) 0.00 (0.00)
Fence 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Northeastern Naturalist
794
M.J. Chips, et al.
2015 Vol. 22, No. 4
Sweep-net samples
Order/family Treatment May June August
Simuliidae Reference 0.11 (0.08) 0.00 (0.00) 0.00 (0.00)
Fence 0.05 (0.03) 0.00 (0.00) 0.00 (0.00)
Stratiomyidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Syrphidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.01 (0.01) 0.02 (0.02)
Tachinidae Reference 0.00 (0.00) 0.00 (0.00) 0.04 (0.04)
Fence 0.07 (0.04) 0.00 (0.00) 0.00 (0.00)
Tipulidae Reference 0.00 (0.00) 0.05 (0.03) 0.00 (0.00)
Fence 0.05 (0.03) 0.12 (0.04) 0.01 (0.01)
Hemiptera
Aphididae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Berytidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Cercopidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Cicadellidae Reference 0.11 (0.08) 0.01 (0.01) 0.14 (0.07)
Fence 0.07 (0.04) 0.03 (0.02) 0.09 (0.02)
Membracidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.02 (0.01) 0.04 (0.02)
Miridae Reference 0.00 (0.00) 0.02 (0.02) 0.11 (0.06)
Nabidae Reference 0.00 (0.00) 0.02 (0.02) 0.14 (0.08)
Fence 0.02 (0.02) 0.00 (0.00) 0.16 (0.05)
Pentatomidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.04 (0.01)
Hymenoptera
Braconidae Reference 0.00 (0.00) 0.00 (0.00) 0.04 (0.04)
Fence 0.02 (0.02) 0.01 (0.01) 0.01 (0.01)
Formicidae Reference 0.11 (0.08) 0.00 (0.00) 0.00 (0.00)
Fence 0.10 (0.04) 0.00 (0.00) 0.00 (0.00)
Ichneumonidae Reference 0.00 (0.00) 0.05 (0.02) 0.14 (0.07)
Fence 0.00 (0.00) 0.03 (0.02) 0.09 (0.03)
Pteromalidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Tenthredinidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.05 (0.03) 0.05 (0.04) 0.05 (0.02)
Lepidoptera
Arctiidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Galechiidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Geometridae Reference 0.06 (0.06) 0.06 (0.02) 0.04 (0.04)
Fence 0.02 (0.02) 0.00 (0.00) 0.01 (0.01)
Noctuidae Reference 0.00 (0.00) 0.04 (0.02) 0.00 (0.00)
Fence 0.00 (0.00) 0.02 (0.01) 0.02 (0.01)
Notodontidae Reference 0.00 (0.00) 0.04 (0.02) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.02 (0.02)
Mecoptera
Panorpidae Reference 0.00 (0.00) 0.15 (0.04) 0.00 (0.00)
Fence 0.00 (0.00) 0.18 (0.05) 0.00 (0.00)
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
795
Sweep-net samples
Order/family Treatment May June August
Neuroptera
Hemerobiidae Reference 0.00 (0.00) 0.00 (0.00) 0.04 (0.04)
Fence 0.05 (0.05) 0.00 (0.00) 0.00 (0.00)
Orthoptera
Acrididae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Psocodea
Pseudocaecilidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Total count Reference 18 82 28
Fence 42 106 141
Northeastern Naturalist
796
M.J. Chips, et al.
2015 Vol. 22, No. 4
Appendix 2. Mean relative abundance (± S.E.) and total count of insects larger than 5 mm caught
in pitfall traps in the spring and summer of 2011 in a 60-year-old deer fence and adjacent reference
site in the Allegheny National Forest Region in north-central Pennsylvania. All insects were identified
to family.
Pitfall-trap samples
Order/family Treatment May June Aug
Coleoptera
Anthribidae Reference 0.03 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.03 (0.03) 0.00 (0.00) 0.00 (0.00)
Carabidae Reference 0.17 (0.10) 0.05 (0.02) 0.35 (0.08)
Fence 0.24 (0.07) 0.10 (0.04) 0.11 (0.05)
Chrysomelidae Reference 0.16 (0.05) 0.00 (0.00) 0.05 (0.02)
Fence 0.11 (0.05) 0.00 (0.00) 0.00 (0.00)
Curculionidae Reference 0.00 (0.00) 0.01 (0.01) 0.03 (0.03)
Fence 0.03 (0.03) 0.00 (0.00) 0.00 (0.00)
Elateridae Reference 0.06 (0.05) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Erotylidae Reference 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.05 (0.04) 0.00 (0.00) 0.00 (0.00)
Histeridae Reference 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Lampyridae Reference 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Nitidulidae Reference 0.09 (0.05) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Scarabacidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Silphidae Reference 0.06 (0.04) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Staphylinidae Reference 0.20 (0.07) 0.14 (0.05) 0.01 (0.01)
Fence 0.24 (0.09) 0.15 (0.07) 0.08 (0.04)
Tenebrionidae Reference 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Collembola
Tomoceridae Reference 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Fence 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Diptera
Anisopodidae Reference 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Anthomyiidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.03 (0.03)
Calliphoridae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.08 (0.04)
Lauxaniidae Reference 0.00 (0.00) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Muscidae Reference 0.00 (0.00) 0.01 (0.01) 0.01 (0.01)
Fence 0.00 (0.00) 0.03 (0.02) 0.03 (0.03)
Nematocera Reference 0.02 (0.02) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Tipulidae Reference 0.00 (0.00) 0.06 (0.03) 0.01 (0.01)
Fence 0.00 (0.00) 0.12 (0.05) 0.00 (0.00)
Northeastern Naturalist Vol. 22, No. 4
M.J. Chips, et al.
2015
797
Pitfall-trap samples
Order/family Treatment May June Aug
Hemiptera
Cicadellidae Reference 0.02 (0.02) 0.01 (0.01) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Pentatomidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.03 (0.03) 0.00 (0.00) 0.00 (0.00)
Hymenoptera
Formicidae Reference 0.13 (0.05) 0.69 (0.18) 0.48 (0.10)
Fence 0.29 (0.11) 0.59 (0.2) 0.59 (0.15)
Lepidoptera
Geometridae Reference 0.00 (0.00) 0.02 (0.02) 0.01 (0.01)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Noctuidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.05 (0.04)
Mecoptera
Panorpidae Reference 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Fence 0.00 (0.00) 0.00 (0.00) 0.03 (0.03)
Orthoptera
Gryllaeridae Reference 0.00 (0.00) 0.00 (0.00) 0.01 (0.01)
Fence 0.00 (0.00) 0.00 (0.00) 0.00 (0.00)
Total count Reference 64 116 75
Fence 38 68 37
