Northeastern Naturalist
392
T. Bookout and G.L. Bruland
22001199 NORTHEASTERN NATURALIST 2V6(o2l). :2369,2 N–4o0. 92

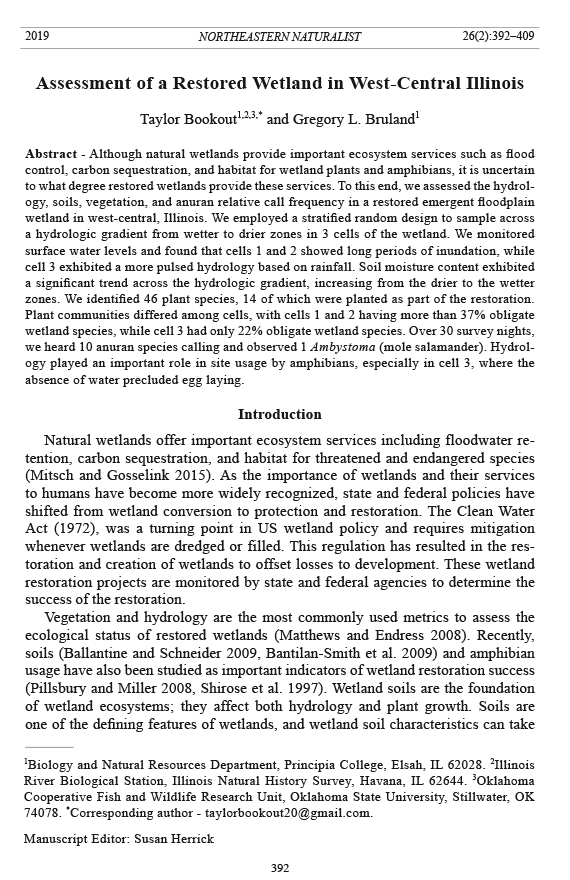

Assessment of a Restored Wetland in West-Central Illinois
Taylor Bookout1,2,3,* and Gregory L. Bruland1
Abstract - Although natural wetlands provide important ecosystem services such as flood
control, carbon sequestration, and habitat for wetland plants and amphibians, it is uncertain
to what degree restored wetlands provide these services. To this end, we assessed the hydrology,
soils, vegetation, and anuran relative call frequency in a restored emergent floodplain
wetland in west-central, Illinois. We employed a stratified random design to sample across
a hydrologic gradient from wetter to drier zones in 3 cells of the wetland. We monitored
surface water levels and found that cells 1 and 2 showed long periods of inundation, while
cell 3 exhibited a more pulsed hydrology based on rainfall. Soil moisture content exhibited
a significant trend across the hydrologic gradient, increasing from the drier to the wetter
zones. We identified 46 plant species, 14 of which were planted as part of the restoration.
Plant communities differed among cells, with cells 1 and 2 having more than 37% obligate
wetland species, while cell 3 had only 22% obligate wetland species. Over 30 survey nights,
we heard 10 anuran species calling and observed 1 Ambystoma (mole salamander). Hydrology
played an important role in site usage by amphibians, especially in cell 3, where the
absence of water precluded egg laying.
Introduction
Natural wetlands offer important ecosystem services including floodwater retention,
carbon sequestration, and habitat for threatened and endangered species
(Mitsch and Gosselink 2015). As the importance of wetlands and their services
to humans have become more widely recognized, state and federal policies have
shifted from wetland conversion to protection and restoration. The Clean Water
Act (1972), was a turning point in US wetland policy and requires mitigation
whenever wetlands are dredged or filled. This regulation has resulted in the restoration
and creation of wetlands to offset losses to development. These wetland
restoration projects are monitored by state and federal agencies to determine the
success of the restoration.
Vegetation and hydrology are the most commonly used metrics to assess the
ecological status of restored wetlands (Matthews and Endress 2008). Recently,
soils (Ballantine and Schneider 2009, Bantilan-Smith et al. 2009) and amphibian
usage have also been studied as important indicators of wetland restoration success
(Pillsbury and Miller 2008, Shirose et al. 1997). Wetland soils are the foundation
of wetland ecosystems; they affect both hydrology and plant growth. Soils are
one of the defining features of wetlands, and wetland soil characteristics can take
1Biology and Natural Resources Department, Principia College, Elsah, IL 62028. 2Illinois
River Biological Station, Illinois Natural History Survey, Havana, IL 62644. 3Oklahoma
Cooperative Fish and Wildlife Research Unit, Oklahoma State University, Stillwater, OK
74078. *Corresponding author - taylorbookout20@gmail.com.
Manuscript Editor: Susan Herrick
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
393
decades to centuries to develop (Ballantine and Schneider 2009). Wetland soils are
differentiated from upland soils by their long periods of saturation during the growing
season. The degree of saturation regulates the accumulation of organic matter
in the soil, as anaerobic conditions in submerged soils impede the decomposition
of organic material (Ballantine and Schneider 2009).
Wetland plants are the main primary producers in wetland ecosystems and
they have adapted to live in saturated soils. Hydrology plays an important role in
defining species composition, with greater saturation favoring obligate wetland
species and lower saturation, allowing the establishment of more facultative and
upland species. Restored wetlands progress from supporting more facultative annual
plant species in early successional stages to more clonal perennials as the
restoration progresses (van der Valk 1981). Plant species richness also generally
increases, though Matthews et al. (2009) suggested that richness may not be the
best metric to assess the success of wetland restoration sites, and that species
composition may be more informative. Limiting factors on floristic community
development include propagule availability, nutrient input, and hydrology (Matthews
and Endress 2010, Matthews et al. 2005). If a site has been farmed for a
long period of time (such as the site of this study), has been cut off from historic
propagule sources, or has had the topsoil removed, wetland plant species recolonization
can be slow if they are not planted as part of the restoration (Seabloom
and van der Valk 2003, Steven et al. 2010). Although soil removal can decrease
native seed stock, Hausman et al. (2007) found that removal of the upper 10 cm
of soil during restoration could improve community quality as facultative propagules
were removed and seeds of obligate wetland species buried deeper in the
seedbank could reestablish. A common threat to restored wetlands in the Midwest
is nutrient input, especially of nitrogen from agricultural runoff, which favors the
growth and establishment of non-native plants that prefer disturbed areas with
high levels of nutrient availability (Matthews et al. 2009).
Plants in both natural and restored wetlands provide important habitat to animals
that live in and around wetlands, especially amphibians. Amphibians rely on
wetlands as breeding sites and can be good indicators of a wetland’s health (Porej
and Hetherington 2005). Urbanization and agricultural development have destroyed
and fragmented natural amphibian habitat (Pillsbury and Miller 2008).
Wetland restoration efforts have begun to increase amphibian habitat, but little is
known about the factors that promote colonization of restored wetlands. Proximity
to undisturbed upland habitat and amphibian source populations are positively
correlated with rates of amphibian colonization, while fragmentation associated
with urban development is negatively correlated with amphibian colonization
(Knutson et al. 1999, Lehtinen and Galatowitsch 2001). Hydroperiod, bank slope,
and the cover and composition of vegetation are also important factors related to
amphibian use of wetlands, especially in early stages of restored wetland development
(Porej and Hetherington 2005, Shulse et al. 2012). Different combinations
of the factors listed above favor different species by offering longer hydroperiods,
warmer areas, or protection, respectively.
Northeastern Naturalist
394
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
The objective of our study was to assess the ecological status of a restored wetland
through the following: (1) comparing the water levels of 3 cells in the restored
wetland designed to have different water depths and flood durations; (2) determining
trends in soil development among the 3 cells (wetter, intermediate, drier) and across
the main hydrologic gradient present within cells; (3) surveying vegetation to determine
differences in community composition among the cells; and (4) monitoring
relative call frequency to determine amphibian use of the wetland in spring 2016. We
hypothesized that, while trends in soil moisture would be observed across the hydrologic
gradient, trends in properties such as soil bulk density or organic matter would
not be observed across the hydrologic gradient in only the second growing season
since restoration. We also hypothesized that plant community composition would be
different in the wetter and drier zones within cells, with more obligate species present
in the wetter zones. Finally, if wetland hydrology and vegetation were reestablished,
we predicted that amphibian species would be present at the site.
Methods
Site description
The study site is located along the lower reach of Piasa Creek in Jersey County,
IL. The floodplain adjacent to the creek was farmed continuously for at least 100 y
until fall 2013, when the land was acquired by the Great Rivers Land Trust (GRLT).
The wetland was restored as mitigation for construction of the new south loading
area for America’s Central Port near Granite City, IL, just south of the confluence of
the Mississippi River and the Chain of Rocks Canal. Initial surveys in summer 2009
and spring 2010 showed that several depressions with saturated soils existed within
the farm field and that the water table was very shallow across the site. Construction
of emergent wetland cells and other site improvements, such as the removal of tile
drains and invasive plants, began in fall 2013 and concluded in fall 2014. Emergent
plants and woody seedlings were planted in spring 2015. A series of 6 emergent
wetland cells (~3.34 ha total) were constructed along the depressional area of the
floodplain. Three of the cells were designed to be shallow, intermediate buffers
between the 3 pool-like cells that were studied. We did not include the 3 intermediate
cells as they were dry most of the year except when the entire site was flooded.
Cell 1 had the highest elevation with a large shallow basin that held water through
most of the growing season. The middle cell (C2) was the largest, with the deepest
water bordering a shallow flat that was heavily vegetated. The final cell (C3) was
15 m from the creek and was a shallow depression with a riprap-lined spillway that
drained into the stream when water was greater than 30 cm deep.
Field sampling
We mapped wetter, intermediate, and drier zones in each of 3 of the cells in the
restored wetland based on elevation, hydrology, visual survey of vegetation, and
standing water, if present (Fig. 1). We used GPS data imported into ArcGIS (Version
10.3; Esri, Redlands, CA) to map these zones. We established 6 random sampling
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
395
points in each zone (wetter, intermediate, drier) of each cell (1, 2, 3) for a total of
54 samples. We employed the Sampling Design Tool (Version 1.0, NOAA/NOS/
NCCOS/CCMA/Biogeography Branch, Silver Spring, MD) to generate random
points with a minimum 10 m separation (Fig. 1). We exported the coordinates of
the sampling points to a GPS for location at the site. We placed a numbered wooden
stake at each location to facilitate soil and vegetation sampling. We also placed a
staff gauge (height = 1.2 m) in the deepest area of each cell. We recorded maximum
water depth in each cell every 2 d in the spring of 2016 (13 March–4 May) and then
weekly from 11 May to 17 August. We obtained daily precipitation data from the
Weather Underground station at Portage Des Sioux, MO (www.wunderground.com;
accessed 1 March 2017), ~6 km from the wetland.
Soil
We took soil cores ~15 cm from the marker stake, outside the area that was used
for the plant survey. We collected the 272-cm3 cores from the upper 15 cm of the
soil profile in plastic sleeves and kept the samples in a cooler until they could be
processed in the lab. We collected the majority of the cores (42) on the afternoon
of 15 April and the last 12 on 16 April (all in the wetter zone so soil moisture was
consistent). We placed the cores in pre-weighed aluminum foil boats and weighed
them wet and again after they had been dried at 105 °C for at least 24 h. We calculated
soil moisture content (SMC) and bulk density (BD) using the wet and dry
masses (Bruland and Richardson 2005). We used loss on ignition (LOI) to estimate
soil organic matter (SOM) by heating 3–5-g subsamples of the dried soils to 450 °C
Figure 1. Site location and site map showing zones delineated in ArcGIS with 54 stratified
random sample points.
Northeastern Naturalist
396
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
for 4 h and weighing the pre- and post-ignited soils with an analytical balance to
the nearest 0.0001 g (Bruland and Richardson 2005).
Vegetation
We sampled 1-m2 quadrats in the wetter, intermediate, and drier zones within each
cell (n = 54) at the sampling points described previously. We placed the quadrat
frame with the edge centered on the south side of each stake. We conducted the
plant survey at the peak of the growing season from 17 to 19 August. We visually
assessed percent cover of all species present in each plot using a modified
Daubenmire scale (Daubenmire 1959, Matthews and Endress 2010). When multiple
vegetation strata were present in the sampling plots, total cover was typically
>100%. We categorized plant species by wetland indicator status as obligate wetland
(OBL), facultative wetland (FACW), facultative (FAC), facultative upland
(FACU), or upland plants (UPL) (USDA NRCS 2018; Table 1). We determined coefficients
of conservatism (CoC) for each plant species based on Taft et al. (1997),
with lower values indicating species found at weedy, disturbed sites and higher
values indicating species intolerant of habitat degradation (Table 1; Matthews et al.
2009). A CoC value of 0 indicates a non-native species (Taft et al. 1997). We calculated
the mean CoC for the site based on all species for which CoC values were
available. We also calculated the floristic quality index (FQI) with the formula FQI
= site mean CoC x S, where S = species richness for the site.
Amphibians
We conducted frog call surveys (FCS) at dusk within 30 min of sunset in each of
the 3 cells every other day starting 13 March and continuing through 10 May. During
the summer, we conducted FCS weekly until 17 August. The survey followed
the methodology described in Crouch and Paton (2011). Briefly, we observed calls
for 3–5 min and quantified relative call frequency (RCF) and intensity using a 4-tier
system as follows: (1) no individuals calling (score = 0); (2) calling individuals,
but no overlapping (score = 1); (3) some overlap of calls, but still able to discern
individual calls (score = 2); and (4) full chorus with full overlap of calls (score = 3).
We used Amphibiaweb (https://amphibiaweb.org) for amphibian species identification.
We also recorded soil temperature at 5-cm depth, general weather conditions
(i.e., cloudy, clear, raining, etc.), time, and surface water depth when we collected
the RCF data.
Statistical analyses
We made visual assessments of data normality in Excel (Version 2016, Microsoft,
Seattle, WA) and conducted normality tests in SPSS (IBM SPSS Statistics
software, Version 19, IBM, New York, NY). We analyzed soil and vegetation data
(i.e., species richness, wetland indicator status, and total cover) with 2-way analysis
of variance (ANOVA) in SPSS. We ran a principal components analysis (PCA)
using PCOrd (Version 6, MjM Software, Gleneden Beach, OR) to investigate multivariate
patterns in the vegetation data and to identify the strongest explanatory
variables of those patterns (McCune and Grace 2002). We followed the conventions
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
397
of multivariate analyses (McCune and Grace 2002) and removed from the PCA
plant species that only occurred in 1 plot. We also conducted an indicator species
analysis (ISA) in PCOrd on vegetative data stratified by both hydrologic zone and
cell. We assessed associations among soil and vegetative parameters using Pearson
and Spearman correlation and associations among RCF and environmental variables
with linear regression in SPSS.
Results
Hydrology
Cell 1 (C1) and cell 2 (C2) had surface water at the beginning of data collection
on 13 March (Fig. 2). These cells slowly lost water until 31 March, when
input from a rain event filled all the cells to their maximum (Fig. 2). Precipitation
occured repeatedly during April and May. A rain event of 1.85 cm occurred on
26 May before a dry period with only a few centimeters of precipitation until 30
June. Cells 1 and 2 maintained a relatively stable water level until 4 June when
they began to dry. Both C1 and C2 were completely dry by 25 June. The dry period
was followed by a large rain event of 5.99 cm on 3 July, that filled the cells,
which held water until 19 August when monitoring ended. The larger July rain
event was followed by several smaller events of 4.6 cm on 19 July, 1.75 cm on
25 July, 2.51 cm on 12 August, and 1.83 cm on 17 August (Fig. 3). Smaller rain
events of 1.5 cm and less occurred throughout July and August.
Cell 3 (C3) had a different hydroperiod—there was no surface water for 53%
of the study period. This cell’s water level pulsed with large rain events, generally
drying in 9–11 d if no other rain events occurred (Fig. 2). Cell 3 reached a maximum
Figure 2. Standing water depths of the 3 wetland cells (C1, C2, and C3) in the restored wetland.
The water levels of C1 and C2 followed a simler pattern while C3 pulsed with rainfall
inputs before drying.
Northeastern Naturalist
398
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
depth of 0.5 m on 31 March and 25 July, with smaller pulses of 0.35 m on 12 April
and 0.29 m on both 2 May and 9 July (Fig. 2).
Soil
Mean SMC was 20.5% across all sampling locations and varied from 17.2%
to 24.2%. Across cells, mean SMC values were significantly higher in C1
(21.4%) than in C2 (19.9%) or C3 (20.3%) (Fig. 4). Cells 2 and 3 were not significantly
different from each other (Fig. 4). Mean SMC generally increased
from the drier to wetter zones; drier and wetter zones were significantly different,
whereas th intermediate zone overlapped with both the wetter and drier
zones (Fig. 5). Mean BD was 1.29 g cm-3, varied from 1.07 g cm-3 to 1.49 g cm-
3, and was not significantly different among either cells or zones. Mean SOM
was 2.69%, varied from 1.41% to 6.31%, and showed no significant differences
across cells or hydrologic zones.
Vegetation
Of the 34 species planted as part of the initial restoration, we observed 16 (47%)
in the vegetative sampling at the end of the second growing season (Table 1).
Across the 54 plots sampled, we identified 34 of 46 observed plant species to the
species level. The most common species were grasses such as Echinochloa spp.
(barnyard grasses; 25 plots), Setaria spp. (foxtail grasses; 19 plots), and Digitaria
spp. (crabgrasses; 18 plots). We observed 10 species that only occurred in 1 plot
including Nymphaea odorata (Fragrant Water-lily), Penthorum sedoides (Ditch
Stonecrop), Potamogeton illinoensis (Illinois Waterweed), Potamogeton pusillus
(Baby Pondweed), and Rumex crispus (Curly Dock). We were unable to identify 7
Figure 3. Daily rain totals recorded in Portage Des Sioux at the Weather Underground
weather station from 23 May–1 September 2016.
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
399
forb species, 2 grass species, and 2 sedge species. Of the identified species, 41.2%
(14) were OBL, 26.5% (9) were FACU, 17.6% (6) were FACW, 11.8% (4) were
FAC, and 2.9% (1) were UPL (Table 1).
The overall mean CoC for the site was 3.1. Twelve individual species had CoCs
≤4, while 7 species had CoCs >4 (CoCs could not be determined for all species;
Table 1). Species observed with high CoCs (>5) included Fragrant Water-lily (CoC
= 6), the 2 Potamogeton species (CoC = 7), Sagittaria graminea (Grass-leaved Arrowhead;
CoC = 7), and Eleocharis palustris (Great Spikerush; CoC = 8) (Table 1).
The FQI for the site was 20.7.
Figure 4. (A) Mean (± 1 standard error [SE]) soil moisture content (SMC) across the 3 wetland
cells. Bars with different letters are significantly different. SMC in C1 was significantly
higher than SMC in C2 and C3. (B) Mean (± 1 SE) SMC across the 3 hydrologic zones. Bars
with different letters are significantly different. SMC was significantly higher in the wetter
zone than the drier zone. The intermediate zone was not significantly dif ferent from either.
Northeastern Naturalist
400
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
Table 1. Characteristics of vegetative species planted at the study site and observed in the 2nd growing
season since restoration. The table lists scientific name, common name, initial planting status (1
if used in the initial planting, 0 if not), presence during the second growing season (1 = yes, 0 = no),
wetland indicator status (OBL, FACW, FAC, FACU, UPL; USDA NRCS [2018]), and coefficient of
conservatism (CoC; Taft et al. 1997) for each species. Some species (denoted with asterisks [*] in CoC
column) observed in this study that were only identified to the genus level do not have a CoC reported
in Taft et al. (1997). [Table continued on following page.].
Presence Wetland
Initially 2nd indicator
Scientific name Common name planted season status CoC
Acer spp. Maple 0 1 FAC *
Acorus calamus L. Flag Root 1 1 OBL 4
Alisma subcordatum Raf. American Water-plantain 1 0 OBL 2
Ambrosia spp. Ragweed 0 1 FACU *
Amsonia tabernaemontana Walter Blue Star 1 0 FACW 6
Asclepias incarnata L. Swamp Milkweed 1 0 OBL 4
Bacopa rotundifolia (Michx.) Wettst. Water Hyssop 1 1 OBL 5
Bidens aristosa (Michx.) Britton Swamp Marigold 1 1 FACW 1
Bidens frondosa L. Common Beggar’s Tick 1 0 FACW 1
Boltonia decurrens Illinois False Aster 1 1 FACW 4
(Torr. & A. Gray) Alph. Wood
Carex comosa Boott Bristly Sedge 1 0 OBL 6
Carex cristatella Britton Crested Oval Sedge 1 0 FACW 3
Carex grayi Carey Common Bur Sedge 1 0 FACW 6
Carex praegracilis W. Boott Expressway Sedge 1 1 FACW *
Carex vulpinoidea Michx. Brown Fox Sedge 1 0 FACW 3
Cephalanthus occidentalis L. Buttonbush 1 0 OBL 4
Chamaecrista fasciculata (Michx.) Partridge Pea 1 1 FACU 0
Greene
Chelone obliqua speciosa Pennell & Pink Turtlehead 1 0 OBL 8
Wherry
Conyza canadensis (L.) Cronquist Horseweed 0 1 FACU 0
Cyperus strigosus L. Long-caled Nut Sedge 0 1 FACW 0
Digitaria spp. Crabgrass 0 1 FACU *
Echinochloa spp. Barnyard Grass 0 1 FACW 0
Echinodorus berteroi (Spreng.) Fassett Lance-leaved Burhead 1 0 OBL 6
Eleocharis obtusa (Willd.) Schult. Blunt Spikerush 1 1 OBL 2
Eleocharis palustris (L.) Roem. & . Great Spikerush 1 1 OBL 8
Schult
Eleocharis parvula (Roem. & Schult.) Dwarf Spikerush 1 1 OBL 0
Link ex Bluff, Nees & Schauer
Eryngium yuccifolium Michx. Rattlesnake Master 1 0 FAC 7
Humulus japonicus Siebold & Zucc. Japanese Hops 0 1 FACU 0
Nuphar lutea advena (Aiton) Kartesz Spatterdock 1 0 OBL 6
& Gandhi
Nymphaea odorata Aiton Fragrant Water-lily 1 1 OBL 6
Oxalis spp. Wood Sorrel 0 1 FACU *
Peltandra virginica (L.) Schott Arrow Arum 1 0 OBL 8
Penthorum sedoides L. Ditch Stonecrop 1 1 OBL 2
Phyla lanceolata (Michx.) Greene Fog Fruit 1 0 OBL 1
Polygonum cespitosum Blume Creeping Smartweed 0 1 FAC 0
Polygonum hydropiperoides Michx. Wild Water-pepper 0 1 OBL 4
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
401
Cell 1 and C2 had a species richness of 24 species, while C3 had a richness of
18 species. The plant community of C1 was composed of 37.5% (9) OBL, 29.2%
(7) FACU, 20.8 (5) FACW, and 12.5% (3) FAC. C2 had 50.0% (12) OBL species,
29.2% (7) FACU, 16.7% (4), FACW, and 4.2% (1) FAC. C3 had 33.3% (6) FACU,
33.3% (6) FACW, 22.2% (4) OBL, 5.6% (1) FAC, and 5.6% (1) UPL.
In the PCA of the relative cover of 28 recurring species, axis 1 accounted for
31.5%, axis 2 accounted for 17.9% , and axis 3 accounted for 10.2% of the variance,
respectively (Fig. 5). Axis 1 covered a gradient from obligate wetland species on
the left to upland species on the right of the biplot (Fig. 5). Axis 2 contained mostly
facultative wetland species. Plots from the wetter zone loaded mostly on the left
side of the biplot with obligate species, drier plots grouped around the upland species,
and intermediate plots were scattered between the 2, with a grouping around
facultative species in axis 2 (Fig. 5).
Indicator species analysis identified various significant indicator species across
the wetland (Table 2). For example, Bacopa rotundifolia (Water Hyssop) was a significant
indicator of the wetter zone (P = 0.001) and was only found in the wetter
zone (Table 2). Cyperus strigosus (Long-scaled Nut Sedge), which occurred mainly
in the intermediate zone and was rare in the drier zones, was the strongest indicator
of the intermediate zone (P = 0.01; Table 2). The invasive Humulus japonicus
(Japanese Hops) was an indicator of the drier zone (P = 0.01); Table 2) and was
found only in this zone.
Amphibians
We observed 1 salamander species: Ambystoma texanum Matthes (Smallmouth
Salamander). We also identified 10 species of frogs and toads during the 30 call
Table 1, continued.
Presence Wetland
Initially 2nd indicator
Scientific name Common name planted season status CoC
Polygonum pensylvanicum L. Pinkweed 0 1 FACW 1
Polygonum spp. Smartweed 0 1 FACW *
Pontederia cordata L. Pickerelweed 1 0 OBL 8
Potamogeton illinoensis Morong Illinois Pondweed 1 1 OBL 7
Potamogeton pusillus L. Baby Pondweed 1 1 OBL 7
Rotala ramosior (L.) Koehne Wheelwort 0 1 OBL 4
Rumex crispus L. Curly Dock 0 1 FAC 0
Sagittaria graminea Michx. Grass-Leaved Arrowhead 1 1 OBL 7
Sagittaria latifolia Willd. Common Arrowhead 1 1 OBL 4
Setaria spp. Foxtail 0 1 FACU *
Sium suave Water Parsnip 1 0 OBL 5
Solidago spp. Goldenrod 0 1 FACU *
Sparganium eurycarpum Engelm. Common Bur-reed 1 1 OBL 5
Thalia dealbata Fraser ex Roscoe Powdery Thalia 1 0 OBL 5
Tridens flavus (L.) Hitchc. Common Purpletop 0 1 UPL 1
Trifolium spp. Clover 0 1 FACU *
Typha spp. Cattail 0 1 OBL *
Northeastern Naturalist
402
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
Figure 5. A principal components analysis biplot of the vegetation data from the restored
wetland. Axis 1 accounted for 31.5% variance, Axis 2 = 17.9% of variance, and Axis 3 accounted
for 10.2% of variance (total = 59.6%) of variance in vegetation cover data. These
3 axes were significant according to the broken-stick eigen-value test. The dot and dash ellipse
on the left shows the location of the wetter plots in ordination space. The dashed line
on the right surrounds the drier plots in the plot area.
Table 2. Results of the indicator species analysis of the vegetation cover data across hydrologic zones.
Mean IV and SD as compared to randomized groups of plants. Species in the table were significant
indicators of a zone at a P = 0.05.
Observed indicator
Species Zone value (IV) Mean IV SD P-value
Bacopa rotundifolia Wetter 38.9 10.8 4.53 0.001
Cyperus strigosus Intermediate 22.9 10.8 4.53 0.010
Humulus japonicus Drier 27.8 8.8 4.26 0.010
Rotala ramosior Wetter 26.4 13.0 4.64 0.030
Solidago spp. Wetter 22.2 8.2 3.94 0.030
Typha spp. Wetter 33.3 9.8 4.42 0.003
surveys: Acris crepitans Baird (Northern Cricket Frog), Anaxyrus americanus
(Holbrook) (American Toad), Anaxyrus fowleri (Hinkley) (Fowler’s Toad), Hyla
versicolor LeConte (Grey Treefrog), Pseudacris crucifer (Wied-Neuwied) (Spring
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
403
Peeper), Pseudacris illinoensis Smith (Illinois Chorus Frog), Pseudacris trisariata
Wied-Neuwied (Western Chorus Frog), Rana catesbeiana (Shaw) (American
Bullfrog), Rana clamitans (Latreille) (Green Frog), and Rana sphenocephala
(Cope) (Southern Leopard Frog). The dominant calling species shifted from the
Spring Peeper in the early spring to Northern Cricket Frog later in the sampling
period. Relative CF data for each cell over time showed that cells with surface
water had similar RCF on the same night. We observed a strong linear relationship
between soil temperature and RCF for C1 with an R2 of 0.63. Cell 3 had periods of
no recorded calls when the cell had no surface water (Figs. 2, 6). The strong relationship
of RCF to water depth was fit with a linear regression and had an R2 = 0.79
reinforcing the importance of hydrology on the presence of amphibians.
Discussion
Hydrology
Hydrology is important in wetland development, separating uplands from
aquatic ecosystems, and is a key factor in wetland delineation (Mitsch and Gosselink
2015). Hydrology affects soil development, plant community composition,
and amphibian usage of wetlands. The successful restoration of wetland hydrology
results in appropriate habitat for wetland biota. The diverse cell designs of the
studied wetland provided a wide range of habitat and variability within the site.
For example, cells 1 and 2 provided more deep-water habitat for water-sensitive
plants and amphibians, while also having shallow areas that dried and allowed
facultative wetland species to establish. Cell 3 held less surface water, limiting
the species composition to more facultative wetland species that did not require
surface water for long periods. This cell had a more ephemeral nature than C1
and C2, drained at a greater rate, and spent more than half of the growing season
Figure 6. C1 and C2 had similer RCF at the same times while C3 had many period with no
calls due to a lack of water. When water was present in C3, RCF spiked before the cell dried.
Northeastern Naturalist
404
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
without surface water. There are 3 possible explanations for this pattern: (1) C3
has the lowest elevation, and water from this cell readily drains into the adjacent
creek; (2) coarser-textured soils may be present closer to the stream and are more
prominent in C3; or (3) there may be a relic drain tile in C3 that is facilitating accelerated
drainage of this area. Further soil analysis could determine if the soil
texture is indeed coarser than other parts of the wetland, thus allowing faster
drainage. Also, the spillway out of the wetland could be raised to hold water at a
greater depth.
Soil
Soils are an important component of wetland ecosystems, retaining water, providing
a growth medium for plants, and habitat for a variety of other biota. SMC
trends supported our hypothesis that we would observe differences in soil moisture
across the hydrologic gradient, with significantly higher SMC values in the wetter
zones and lower values in the drier zones. As expected, BD and SOM did not exhibit
any significantly different values across the zones as soils were still developing in
the second growing season after wetland restoration. Soil development can take
long periods of time, and many restoration projects take at least 15 y before any significant
changes are observed (Ballantine and Schneider 2009). Removal of topsoil
and earthmoving may have mixed soils both vertically and horizontally at the site,
and such newly formed soil profiles would require more time to develop wetland
characteristics (Bantilan-Smith et al. 2009).
Vegetation
Vegetation is important in wetlands as habitat and is a primary component of the
nutrient cycle. Plants provide food for insects, birds, and juvenile amphibians while
adding organic matter to the soil. During the spring, we observed large flocks of
ducks at the wetland and noted Spizella pusilla (Wilson) (Field Sparrow) among the
vegetation at the site throughout the summer. Wetland plants also provide habitat
for Agelaius phoeniceus (L.) (Red-wing Blackbird), which we observed nesting in
the small Typha spp. (cattails) stand in C1, and frogs and toads used the vegetation
during mating activities. Shulse et al. (2012) found that vegetation was an important
factor in the colonization of recently constructed wetlands by amphibians, providing
cover and a substrate to attach egg masses.
Hydrological stability is important in plant community development, affecting
both community composition and growth (Matthews et al. 2009). The high number
of OBL species we observed (41.2%) suggests that the wetland is developing
well within a majority of the cells. This percentage is comparable to planted restored
wetlands in Indiana that had ~50% OBL species (Hopple and Craft 2013).
In the study site, C1 and C2 showed more stable hydrology and lacked surface
water for only a week during the growing season (Fig. 2). Both C1 and C2 supported
more OBL wetland species than C3. Cell 2 had the deepest water levels
(Fig. 3) and contained the largest number of OBL species (12), while C3 had the
fewest OBL species (4) and was dry on 53% of the observation days. Cell 3 also
had the highest proportion of FACW and FACU species, with each composing
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
405
33.3% (6) of the 18 species identified in C3. The dominance of facultative species
is likely the result of the more episodic hydrological cycle present in C3 (Fig. 2)
and the demands that periodic flooding place on the plant community. In terms
of the vegetative hypothesis, it appeared that there was greater variability among
the 3 cells driven by the differential hydrology, rather than within cells across the
main hydrologic gradients.
The effect of hydrology on community composition was clear in the indicator
species analysis. Water Hyssop is an OBL species that was an indicator of the wetter
zone and was only found in this zone. It was found primarily (71%) in C2 which
had the most extensive wetter zone and only once in C1 and C3. Long-scaled Nutsedge,
a FACW plant, was the strongest indicator of the intermediate zone, and was
found in the intermediate and drier zones. It occurred mostly in C1 (71%), which
had the largest area of intermediate zone of the sampled cells (Fig. 1). The invasive
FACU Japanese Hops was an indicator of the drier zone and was found only in this
zone (Table 2). The clear differentiation of these species is important in understanding
site development and shows that a hydrologic gradient can establish quickly,
with a profound effect on the community composition of the wetland. The second
vegetative hypothesis (plant community composition will be different across zones,
with more obligate species present in the wetter zones) was partially supported by
the results of the indicator species analysis.
The intensive planting of desired species early in the restoration has helped C1
and C2 develop a community more representative of a later successional wetland,
as more clonal perennials like Water Hyssop were established than early annuals in
the wetter zones. Cell 3, with its drier hydrology, was dominated by annuals (i.e.,
Polygonum spp. [smartweeds]) and early colonizers as the planted wetland species
struggled to compete with facultative species that can better survive the fluctuations
in hydrology.
We observed less than half (47%) of the planted species in the second growing
season, though some might have been present at the site, but did not appear in our
randomly placed quadrats. Alternatively, some of the more sensitive species may
not have survived the first 2 years following restoration. Even so, the mean CoC
for the study site of 3.1 was comparable to, if not slightly higher than, mean CoCs
reported for restored (2.9) and natural wetlands (3.4) in Indiana (Hopple and
Craft 2013), as well as mean CoCs for restored (2.2) and natural wetlands (2.3) in
Illinois (Matthews et al. 2009). The FQI for the site (20.7) was also comparable
to, if not slightly higher than the FQI range for natural and restored wetlands in
Indiana (12–21) and mean FQI values for restored (20.7) and natural wetlands in
Illinois (12.5) (Matthews et al. 2009). The high plant species richness of this site
(46 species) is promising and was on par or higher than species richness values
reported in the literature from other restored wetlands. For example, DeBerry and
Perry (2004) found 38 species in a restored wetland in Virginia after its second
growing season. Likewise, Hopple and Craft (2013) identified a mean of 34 species
in restored floodplain wetlands in Indiana with species composition similar
to that at our study site.
Northeastern Naturalist
406
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
Amphibians
The presence and abundance of amphibians in a restored wetland is an indicator
of the ecological success of that restoration. Amphibians rely on pools and
ponds for the development of their young and adjacent upland habitats in which
to forage (Todd et al. 2009). The presence of 11 amphibian species in the restored
wetland supported our 3rd hypothesis—if wetland hydrology and vegetation were
reestablished, we predicted that amphibian species would be present at the site. This
result was notable, as an average of only 3.6 amphibian species per site was found
in restored wetlands studied in Michigan by Lehtinen and Galatowitsch (2001).
Porej and Hetherington (2005) found an average of 4.2 species per site in restored
emergent wetlands in Ohio that were an average of 2 y old. A previous study of
amphibians in smaller natural wetlands on the nearby Principia College campus
showed that frog species richness in these sites was 5–6 species (Klehm 2016),
although the restored wetland in our study was larger, located in a floodplain, and
less isolated than the natural wetlands in that study. We also observed at the restored
wetland many of the same species found in the nearby isolated natural wetlands
(Klehm 2016). The proximity to Piasa Creek and the presence of an established
pond nearby may have accelerated the development of the diverse amphibian community
in such a short period of time.
Waterbodies need to have surface water present for several months to ensure that
tadpoles have time to metamorphose. Of the 3 cells, C1 and C2 offered the most
stable hydroperiod and had the highest total call frequency (Figs. 2 and 6). Both
cells held water for 104 consecutive days from the beginning of the study period,
long enough to allow many of the tadpoles to metamorphose (Semlitsch et al. 2000,
Wilbur 1977). Cell 3 had episodic flooding followed by long periods of drying. This
unstable hydroperiod attracted some species for short periods of time, but no eggs
or tadpoles survived the dry periods.
Frogs and toads responded positively to soil temperature, with higher call frequency
associated with warmer temperatures. Amphibians are poikilothermic and
their activity is limited by cooler temperatures. The most limiting factor on frog
calls was the presence or absence of water seen in C3. When C3 had water, it had
similar RCF to the other cells during the same period, but we heard no calls when
water was absent (Fig. 6), demonstrating the importance of the hydroperiod on
amphibian usage of a wetland. It is important to note that not all amphibians rely
on pools and ponds. For example, while all the amphibian species observed in this
study use open water areas, there are likely various species of salamanders in the
general vicintiy that do not use open water at all.
Conclusions
The overall development of the restored wetland in its second growing season
was promising because of the establishment of a diverse and species-rich (46
species) wetland plant community, extensive use by a surprisingly diverse (11 species)
community of amphibians, and signs of wetland soil development across the
site. All of the cells had surface water more than 25% of the growing season, which
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
407
classifies them as wetlands according to the US Army Corps of Engineers Wetlands
Delineation Manual (1987) guidelines. Although hydric soil properties are not
strongly visible yet, there are some small-scale trends when viewed spatially. The
high richness of the wetland plant community and the ratio of obligate to facultative
wetland species is promising for a young wetland restoration site. In broader terms,
our results suggest that the extra cost and effort of establishing cells with different
depths, and subsequently hydroperiods, in a restored wetland resulted in a more
diverse vegetative community than if all cells had the same depths or if no wetland
cells had been established. More diverse vegetative communities in restored wetlands
can lead to greater diversity of bird, anuran, and other wildlife species. The
diverse amphibian community and the presence of the Illinois Chorus Frog should
be confirmed with a more extensive amphibian study. If Illinois Chorus Frogs persist,
this site could become an important breeding site for this threatened species if it
is managed properly.
Cell 3 is of some interest because it has a more periodic hydroperiod resulting in
fewer OBL wetland plants and lower use by amphibians. While this variability adds
to the diversity of the site, the establishment of more upland and facultative upland
species in C3 may allow them to outcompete wetland species. The dominant coverage
of smartweeds in C3 is also concerning because some of them are non-native,
though they are early colonizers and may be replaced if the hydrology changes and
more wetland species are established. Given these observations, it appears that C3
is on a different trajectory of successional development than the other cells. The
hydrology of C3 may be shifted by slightly raising the outlet so more water is retained
or by removing any relict tile drains. This finding also raises larger questions
about successional trajectories within restored wetlands and what to do when some
areas within a site appear to be trending in a more terrestrial than wetland direction.
Further research observing the progression of this wetland and the development of
the soils and biotic communities is needed to better assess the future success of the
wetland design.
Acknowledgments
We thank Principia College for financial support for this study and Great Rivers Land
Trust for access to the study wetland. We also acknowledge 2 anonymous reviewers and the
associate editor for their constructive comments and feedback on the manuscript.
Literature Cited
Ballantine, K., and R. Schneider. 2009. Fifty-five years of soil development in restored
freshwater depressional wetlands. Ecological Applications 19:1467–1480.
Bantilan-Smith, M., G.L. Bruland, R.A. MacKenzie, A.R. Henry, and C.R. Ryder. 2009. A
comparison of the vegetation and soils of natural, restored, and created coastal lowland
wetlands in Hawai‘i. Wetlands 29:1023–1035. DOI:10.1672/08-127.1.
Bruland, G.L., C.J. Richardson. 2005. Hydrologic, edaphic, and vegetative responses to microtopographic
reestablishment in a restored wetland. Restoration Ecology 13:515–523.
Northeastern Naturalist
408
T. Bookout and G.L. Bruland
2019 Vol. 26, No. 2
Crouch, W.B., III, and P.W.C. Paton. 2002. Assessing the use of call surveys to monitor
breeding anurans in Rhode Island. Journal of Herpetology. 36(2):185–192.
DOI:10.2307/1565990.
Daubenmire, R. 1959. A canopy-coverage method of vegetational analysis. Northwest Science
33:43–64.
DeBerry, D.A., and J.E. Perry. 2004. Primary succession in a created freshwater wetland.
Castanea 69:185–193.
Hausman, C.E., L.H. Fraser, M.W. Kershner, and F.A. de Szalay. 2007. Plant community
establishment in a restored wetland: Effects of soil removal. Applied Vegetation Science
10:383–390.
Hopple, A., and C. Craft. 2013. Managed disturbance enhances biodiversity of restored
wetlands in the agricultural Midwest. Ecological Engineering 61:505–510.
Klehm, C. 2016. Amphibian breeding habitat use at Principia College. Unpublished Senior
Thesis. Principia College, Elsah, IL.
Knutson, M.G., J.R. Sauer, D.A. Olsen, M.J. Mossman, L.M. Hemesath, and M.J. Lannoo.
1999. Effects of landscape composition and wetland fragmentation on frog and toad
abundance and species richness in Iowa and Wisconsin, USA. Conservation Biology
13:1437–1446.
Lehtinen, R.M., and S.M. Galatowitsch. 2001. Colonization of restored wetlands by amphibians
in Minnesota. American Midland Naturalist 145:388–396.
Matthews, J., and A. Endress. 2008. Performance criteria, compliance success, and vegetation
development in compensatory mitigation wetlands. Environmental Management
41:130–141.
Matthews, J.W., and A.G. Endress. 2010. Rate of succession in restored wetlands and the
role of site context. Applied Vegetation Science 13:346–355.
Matthews, J.W., P.A. Tessene, S.M. Wiesbrook, and B.W. Zercher. 2005. Effect of area and
isolation on species richness and indices of floristic quality in Illinois, USA wetlands.
Wetlands 25:607–615.
Matthews, J.W., A.L. Peralta, A. Soni, P. Baldwin, A.D. Kent, and A.G. Endress. 2009.
Local and landscape correlates of non-native species invasion in restored wetlands.
Ecography 32:1031–1039.
McCune, B., and J.B. Grace. 2002. Analysis of ecological communities. Journal of Experimental
Marine Biology and Ecology 289:303–305.
Mitsch, W.J., and J.G. Gosselink. 2015. Wetlands, 5th Edition. Wiley, Hoboken, NJ. 456 pp.
Pillsbury, F.C., and J.R. Miller. 2008. Habitat and landscape characteristics underlying
anuran community structure along an urban–rural gradient. Ecological Applications
18:1107–1118.
Porej, D., and T.E. Hetherington. 2005. Designing wetlands for amphibians: The importance
of predatory fish and shallow littoral zones in structuring of amphibian communities.
Wetlands and Ecological Management 13(4):445–455.
Seabloom, E.W., and A.G. van der Valk. 2003. Plant diversity, composition, and invasion
of restored and natural prairie pothole wetlands: Implications for restoration. Wetlands
23:1–12.
Semlitsch, R.D., C.M. Bridges, and A.M. Welch. 2000. Genetic variation and a fitness
tradeoff in the tolerance of Gray Treefrog (Hyla versicolor) tadpoles to the insecticide
carbaryl. Oecologia 125:179–185.
Shirose, L.J., C.A. Bishop, D.M. Green, C.J. MacDonald, R.J. Brooks, and N.J. Helferty.
1997. Validation tests of an amphibian call count survey technique in Ontario, Canada.
Herpetologica 53:312–320.
Northeastern Naturalist Vol. 26, No. 2
T. Bookout and G.L. Bruland
2019
409
Shulse, C.D., R.D. Semlitsch, K.M. Trauth, and J.E. Gardner. 2012. Testing wetland features
to increase amphibian reproductive success and species richness for mitigation and
restoration. Ecological Applications 22:1675–1688.
Steven, D.D., R.R. Sharitz, and C.D. Barton. 2010. Ecological outcomes and evaluation
of success in passively restored southeastern depressional wetlands. Wetlands
30:1129–1140.
Taft, J.B., G.S. Wilhelm, D.M. Ladd, and L.A. Masters. 1997. Floristic quality assessment
for vegetation in Illinois, a method for assessing vegetation integrity. Erigenia 15:3–95.
Todd, B.D., T.M. Luhring, B.B. Rothermel, and J.W. Gibbons. 2009. Effects of forest removal
on amphibian migrations: Implications for habitat and landscape connectivity.
Journal of Applied Ecology 46:554–561.
US Army Corps of Engineers Wetlands Delineation Manual. 1987. Environmental Laboratory
Report Number Y-87-1. US Army Engineer Waterways Experiment Station, Vicksburg,
MS.
USDA Natural Resources Conservation Service (USDA NRCS). 2018. Plants Database.
Available online at https://plants.sc.egov.usda.gov/java/. Accessed 17 May 2018.
van der Valk, A.G. 1981. Succession in wetlands: A Gleasonian approach. Ecology
62:688–696.
Wilbur, H.M. 1977. Density-dependent aspects of growth and metamorphosis in Bufo
americanus. Ecology 58:196–200.
