An Assessment of the Geographic Distribution and Status of
a Rare Dragonfly, Rhionaeschna mutata, at the Northwestern
Edge of its Range
Emily Gaenzle Schilling, Ron Lawrenz, and Holly Kundel
Northeastern Naturalist, Volume 26, Issue 3 (2019): 523–536
Full-text pdf (Accessible only to subscribers. To subscribe click here.)
Access Journal Content
Open access browsing of table of contents and abstract pages. Full text pdfs available for download for subscribers.
Current Issue: Vol. 30 (3)
Check out NENA's latest Monograph:
Monograph 22
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
523

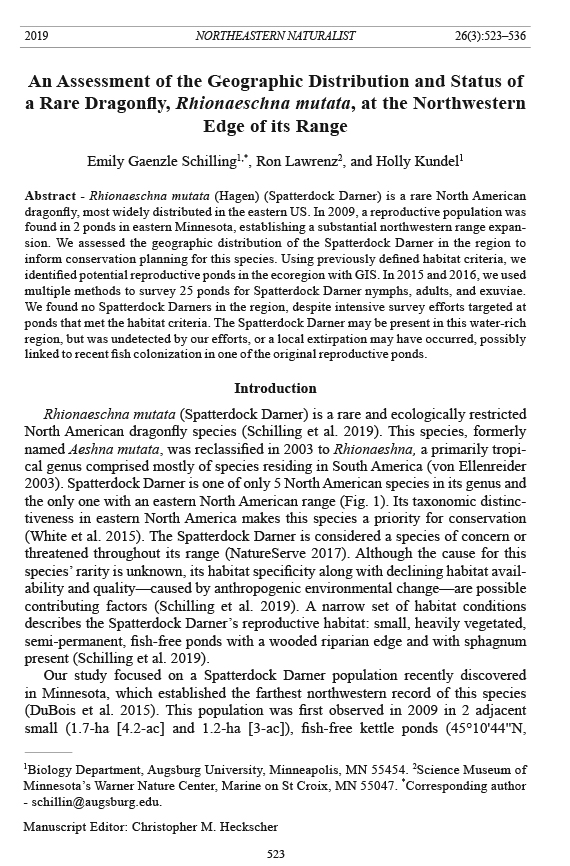

2019 NORTHEASTERN NATURALIST 26(3):523–536
An Assessment of the Geographic Distribution and Status of
a Rare Dragonfly, Rhionaeschna mutata, at the Northwestern
Edge of its Range
Emily Gaenzle Schilling1,*, Ron Lawrenz2, and Holly Kundel1
Abstract - Rhionaeschna mutata (Hagen) (Spatterdock Darner) is a rare North American
dragonfly, most widely distributed in the eastern US. In 2009, a reproductive population was
found in 2 ponds in eastern Minnesota, establishing a substantial northwestern range expansion.
We assessed the geographic distribution of the Spatterdock Darner in the region to
inform conservation planning for this species. Using previously defined habitat criteria, we
identified potential reproductive ponds in the ecoregion with GIS. In 2015 and 2016, we used
multiple methods to survey 25 ponds for Spatterdock Darner nymphs, adults, and exuviae.
We found no Spatterdock Darners in the region, despite intensive survey efforts targeted at
ponds that met the habitat criteria. The Spatterdock Darner may be present in this water-rich
region, but was undetected by our efforts, or a local extirpation may have occurred, possibly
linked to recent fish colonization in one of the original reproductive ponds.
Introduction
Rhionaeschna mutata (Spatterdock Darner) is a rare and ecologically restricted
North American dragonfly species (Schilling et al. 2019). This species, formerly
named Aeshna mutata, was reclassified in 2003 to Rhionaeshna, a primarily tropical
genus comprised mostly of species residing in South America (von Ellenreider
2003). Spatterdock Darner is one of only 5 North American species in its genus and
the only one with an eastern North American range (Fig. 1). Its taxonomic distinctiveness
in eastern North America makes this species a priority for conservation
(White et al. 2015). The Spatterdock Darner is considered a species of concern or
threatened throughout its range (NatureServe 2017). Although the cause for this
species’ rarity is unknown, its habitat specificity along with declining habitat availability
and quality—caused by anthropogenic environmental change—are possible
contributing factors (Schilling et al. 2019). A narrow set of habitat conditions
describes the Spatterdock Darner’s reproductive habitat: small, heavily vegetated,
semi-permanent, fish-free ponds with a wooded riparian edge and with sphagnum
present (Schilling et al. 2019).
Our study focused on a Spatterdock Darner population recently discovered
in Minnesota, which established the farthest northwestern record of this species
(DuBois et al. 2015). This population was first observed in 2009 in 2 adjacent
small (1.7-ha [4.2-ac] and 1.2-ha [3-ac]), fish-free kettle ponds (45°10'44"N,
1Biology Department, Augsburg University, Minneapolis, MN 55454. 2Science Museum of
Minnesota’s Warner Nature Center, Marine on St Croix, MN 55047. *Corresponding author
- schillin@augsburg.edu.
Manuscript Editor: Christopher M. Heckscher
Northeastern Naturalist
524
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
92°50'21"W) in a forested region of the St. Croix River valley (St. Paul–Baldwin
Plains and Moraines ecoregion; MN-DNR 2017). The closest known population
is ~360 km southeast in the Southeastern Wisconsin Till Plains ecoregion (Fig. 1;
Omernik et al. 2000). When first observed in Minnesota, a reproductive population
was detected in the 2 kettle ponds with the collection of 21 aquatic nymphs (Dubois
et al. 2015). Several adults were also observed flying at the 2 ponds that same year
(DuBois et al. 2015). Adults, nymphs, and exuviae were captured and observed at
these sites over the following 5 years, indicating a viable breeding population for
several seasons (DuBois et al. 2015). In 2014, the year preceding our study, depressed
numbers of the Spatterdock Darner were collected from these sites. Thus,
we initiated this study with the goal of informing state-level conservation planning
for this rare and imperiled species. The objectives of our study were to: (1) identify
potential Spatterdock Darner reproductive ponds in the St. Paul–Baldwin Plains
and Moraines ecoregion in Minnesota, and (2) assess the distribution of this species
in Minnesota by surveying a subset of ponds for the presence of Spatterdock Darner
nymphs, adults, and evidence of emergence.
Materials and Methods
Field-study region and study-pond selection
Our study region is water-rich, with aquatic habitats comprising more than
11.5% of the landcover within the ecoregion (Fig. 2; MN-DNR 2006). In particular,
this region of Minnesota is densely populated with kettle ponds confined in basins
Figure 1. Current known distribution of Rhionaeschna mutata (Spatterdock Darner) in the
northeast based on records (gray circles) submitted to Odonata Central database (Abbott
2018). Map indicates the location of our study population () and the closest known reproductive
population (▲) 360 km southeast (map from www .odonatacentral.org).
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
525
created by receding glaciers 10,000 y ago. Topographically low in comparison to
other areas in the state, the St. Paul–Baldwin Plains and Moraines ecoregion is
dominated by a large moraine and areas of outwash from the Superior lobe (MNDNR
2017). As a result, the drainage network is poorly developed throughout most
of the region, which has prevented fish colonization of kettle ponds until recently,
as humans have increasingly disrupted natural barriers to fish movement (Rahel
2007, Schilling et al. 2009). The 2 ponds where the Spatterdock Darner was first
documented in Minnesota fit this paradigm.
We used previously identified reproductive habitat criteria as a guide for selecting
potential breeding ponds in our study region as study sites (Schilling et
al. 2019). We aimed to select small, heavily vegetated, semi-permanent, fish-free
ponds with a wooded riparian edge and sphagnum present. We remotely assessed
some of these criteria (Table 1) with a geographic information system (ArcGIS for
Desktop version 10.3; ESRI Inc., Redlands, CA). We used the National Wetland Inventory
(NWI) polygon coverage for east-central Minnesota (Macleod et al. 2013)
overlaid with the Ecological Classification System in Minnesota coverage (MNDNR
2017) to locate ponds in the same ecoregion (St. Paul–Baldwin Plains and
Moraines) as the original reproductive sites. We selected all waterbodies within this
ecoregion that are hydrogeomorphically categorized as terrene ponds (palustrine
unconsolidated bottom or aquatic bed wetlands completely surrounded by uplands).
Figure 2. Map of ponds surveyed in Minnesota for Rhionaeschna mutata (Spatterdock
Darner) in 2015/2016 (figure also shows surrounding waterbodies) .
Northeastern Naturalist
526
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
The reason for narrowing our selection to terrene ponds is that they lack inflowing
and outflowing streams and are thus isolated from the surface hydrology network
(Macleod, et al. 2013). Hydrological isolation is useful as a proxy for fish-free, as
hydrologically isolated ponds lack natural routes of colonization by fish (Magnuson
et al. 1998, Nolby et al. 2015, Schilling et al. 2008). All waterbodies within
this hydrogeomorphic category are small <10.12 ha (25 ac) and semi-permanent.
The National Wetlands Inventory describes these ponds as, “Code G: Water covers
the substrate throughout the year except in years of extreme drought, or Code F:
Surface water persists throughout the growing season in most years. When surface
water is absent, the water table is usually at or very near the land surface.” (US
Fish and Wildlife Service 2018). To identify ponds with a wooded riparian edge,
we created a 100-m buffer around all selected ponds and overlaid the Minnesota
Landcover Classification System coverage (MN-DNR 2015). We then selected waterbodies
with >50% of their buffer classified as “forest”.
We visited a subset of the remotely assessed ponds (n = 25; Fig. 2) within a 3-km
radius of the original reproductive sites to ground-truth for Spatterdock Darner
reproductive habitat (Table 1). We assessed fish presence/absence using minnowseines
(0.91 m x 6.10 m [3 ft x 20 ft] net with 0.32-cm [1/8-in] mesh; Fig. 3) and
baited minnow traps set overnight in each study pond. We determined the maximum
depth of ponds with a distinct littoral zone by boat using a hand-held depth meter.
We visually assessed “boggy” conditions by searching the shoreline perimeter for
the presence of sphagnum and measuring pH (1 date/pond with a handheld YSI
Professional Plus multiparameter water-quality meter; Hach, Loveland, CO). We
also visually assessed aquatic vegetation cover and type in each pond. We surveyed
for Spatterdock Darner presence at all ponds that met reproductive habitat criteria,
as described below.
Dragonfly surveys
We conducted 2 years of field surveys (2015 and 2016) to assess the presence of
Spatterdock Darner adults and nymphs in our study ponds. The Spatterdock Darner
is the earliest emerging darner species in northeastern North America, with a flight
period of late May through July; other darners have a mid-late summer flight period
Table 1. Number (and percentage) of study ponds in the St. Croix River Valley, MN exhibiting characteristics
of breeding habitat for Rhionaeschna mutata (Spatterdock Darner). An asterisk (*) denotes
characteristics that were remotely assessed and ground-truthed.
Number (and percentage) of study ponds ( n = 25)
Habitat characteristics exhibiting characteristic
Nuphar spp. (yellow waterlilies) 13 (52%)
Heavily vegetated 25 (100%)
Boggy (sphagnum/peat) 10 (40%)
Wooded riparian edge* 25 (100%)
Fishless* 14 (56%)
Shallow/small* 25 (100%)
Semi-permanent* 25 (100%)
Nymphaea spp. (white waterlilies) 11 (44%)
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
527
(Beatty and Beatty 1969, New York Natural Heritage Program 2017, Oldham 2007).
Therefore, we began our collection period in mid-May and continued through June
to target the F-0 and F-1 (nearly mature) nymphs and emerging tenerals. We used the
methods described below to survey dragonflies at least once per study pond during
this period. We selected a subset of 9 ponds (including the 2 original reproductive
ponds) to be sampled more frequently (2–8 times/pond) in both spring and late fall
(to target large overwintering nymphs) over the 2-y study period.
We employed various sampling methods to target all dragonfly life stages, with
an emphasis on collecting nymphs and exuviae. Nymph and exuviae collections
are essential for identifying successful dragonfly reproductive habitat. Adults are
vagile and their presence near a waterbody may not indicate viable reproductive
behavior (Raebel et al. 2010). Exuviae collections are particularly effective for
verifying successful development within a certain waterbody, as source–sink dynamics
may affect reproductive success (Foster and Soluk 2004, Raebel et al. 2010,
Sigutova et al. 2015). We sampled nymphs in the littoral zone of each pond using
3 types of equipment chosen to increase sampling surface area to maximize catchper-
unit effort: large dipnets (40.64 cm x 33.02 cm [16 in x 13 in] net with 0.48-cm
[3/16-in] mesh [www.frabill.com #3529]), nylon minnow seines (0.91 m x 6.10 m
[3ft x 20 ft] net with 0.32-cm [1/8-in] mesh), and sweep frames (0.91 m x 0.91 m
[3 ft x 3 ft] wood frame, 0.32-cm [1/8-in] mesh hardware cloth]). On each sampling
Figure 3. Our minnow-seine sweep
sampling technique in one of the 2 small, fishless, kettle
ponds where a breeding population of Rhionaeschna mutata (Spatterdock Darner) was first
detected in Minnesota.
Northeastern Naturalist
528
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
date, we conducted 5 composite (3 passes each) dipnet sweeps, 2–
3 minnow-seine
sweeps, and ~10 frame sweeps per pond. We collected exuviae by visually searching
shoreline vegetation for ~1 observer h/sampling date/pond and preserved for
later identification representative specimens of all collected dragonfly species. We
were particularly interested in locating ponds that supported Aeshna tuberculifera
(Walker) (Black-tipped Darner), because this species has reproductive habitat
characteristics similar to those of the Spatterdock Darner (low pH, vegetated ponds
with boggy fringe in forested regions; Nikula et al. 2003, Paulson 2011, Pollard
and Berrill 1992) and others have documented the co-occurrence of these 2 species
(Mochon 2015, Schiffer and White 2014). We used binoculars to observe dragonfly
adults on the wing. Its brilliant blue eyes make the Spatterdock Darner distinguishable
from other darners in the region, except for Rhionaeschna multicolor (Hagen)
(Blue-eyed Darner), which is the only congeneric found in Minnesota (Fig. 4; Mead
2017). The flight period of Blue-eyed Darner and Spatterdock Darner do not closely
overlap, so the 2 are unlikely to be confused (DuBois 2018).
Results and Discussion
Based on remotely assessable criteria (Table 1), we identified 562 ponds as
candidates for supporting reproductive Spatterdock Darner populations in the St.
Figure 4. The brilliant blue eyes of Rhionaeschna mutata (Spatterdock Darner) are a key
identifying characteristic, making it distinguishable from other darners in the study region.
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
529
Paul–Baldwin Plains and Moraines ecological subsection of Minnesota. The 25
ponds that we selected for ground-truthing exhibited multiple Spatterdock Darner
reproductive habitat criteria (Table 1). Study pond size varied from 0.16 ha to 6.68
ha and pH spanned from 5.07 to 7.97 (average = 6.40); the majority (72%) of ponds
had a pH < 7.00, and thus were slightly acidic. Maximum depth ranged from 0.76 m
to 2.74 m. Fish surveys revealed that 8 ponds supported fish populations, although
all of these waterbodies were likely historically fish-free, because they lacked natural
routes of fish colonization.
We collected no Spatterdock Darners in our study ponds during our 2-y sampling
period, including the 2 original reproductive ponds, despite employing
intensive collection methods targeting all life-stages at ponds that demonstrated
suitable habitat characteristics for Spatterdock Darner. First observed in 2009, the
last observation of this species in Minnesota occurred in 2014, the summer prior
to initiation of the current study (Dubois et al 2015). Other darner species that we
collected in our study ponds include: Aeshna canadensis (Walker) (Canada Darner;
n = 12 ponds), Black-tipped Darner (n = 11 ponds), and Anax junius (Drury)
(Green Darner; n = 9 ponds). We propose 2 hypotheses for why we collected no
Spatterdock Darners during our study period: (1) the appearance/disappearance of
the species in the region was a localized immigration/extinction event, explained
by source–sink dynamics, and (2) Spatterdock Darners are still present in the region
and have gone undetected by our survey efforts. These 2 hypotheses are not mutually
exclusive.
Localized immigration/extinction event
The disappearance of Spatterdock Darners from the original breeding ponds in
Minnesota is indicative of this species’ transience, a characteristic which has been
documented throughout its range (Schilling et al. 2019). The transience of this
species aligns with the findings of Van Allen et al. (2017) that dragonfly communities
in fish-free ponds show higher levels of species turnover than in ponds where
fish are top predators (Van Allen et al. 2017). The abundance of Dragonfly species
in fish-free ponds can fluctuate an order of magnitude from year to year (Schiffer
and White 2014; E. Schilling and R. Lawrenz, pers. observ.). It is possible that if
this population cycle is particularly extreme in a given year, numbers can become
so depleted that the species in question goes locally extinct, unless it is supported
by populations occupying nearby ponds across the landscape. While few studies
have documented persistent Spatterdock Darner populations, Shiffer and White
(2014) observed this species as a regular resident species over a 50-y study of a
semi-permanent, “typically” fishless pond in Pennsylvania. Even with this resident
population, fluctuations in abundance varied greatly with water levels, periodically
requiring recolonization from other source populations. It is possible that the
Spatterdock Darner population originally discovered in Minnesota may have been
moving through the region, using the ponds to stage dispersal into new habitats.
After persisting in the ponds for a few years, the population then experienced a
“bad” year, and without nearby source populations for recolonization, went extinct
Northeastern Naturalist
530
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
in the region. Our hypothesis that the appearance/disappearance of this species in
our study ponds was a stochastic and localized event is supported by the fact that
Spatterdock Darners were not collected in any of our study ponds, all of which were
located within close proximity to, and provided similar habitat characteristics to,
the original reproductive ponds.
The apparent rapid local extirpation of Spatterdock Darners from the original reproductive
sites in Minnesota was possibly influenced by the recent introduction of
fish into 1 of the ponds. The 2 ponds where Spatterdock Darners were initially discovered
in Minnesota are isolated kettle ponds, both of which were fish-free at the
time of the initial dragonfly surveys in 2009. We also conducted a paleolimnological
investigation to assess historical fish absence in these ponds. Using the subfossil
remains of Chaoborus americanus (Johannsen), a dipteran with a larval stage that
typcially resides in the pelagic zone in fishlesss lakes, in pond sediments as an indicator
of historical fish absence (Schilling et al. 2008), we ascertained that both of
these waterbodies likely were historically fish-free (E.G. Schilling, unpubl. data).
In 2012, however, 3 years after Spatterdock Darners were first discovered in the
ponds, R. Lawrenz observed that Culaea inconstans (Kirtland) (Brook Stickleback)
fish from an unknown origin had colonized 1 of the 2 ponds. A rusted minnowtrap
was discovered on the shoreline of the pond, indicating that the fish may have
been introduced illegally (the pond is located on property protected by the Manitou
Fund). It is not uncommon for bait-bucket releases of these fish into waters where
they are not native (US Geological Survey 2018). Although Brook Stickleback are
native to Minnesota watersheds, it is unlikely that these fish naturally colonized this
hydrologically isolated kettle pond.
Prior to 2012, this pond exhibited all of the identified Spatterdock Darner reproductive
habitat criteria except presence of sphagnum, indicating that it was a
suitable reproductive site. The riparian edge of the second reproductive pond is less
wooded (less than 50% of its perimeter is forested), making it potentially less suitable. The
decline in numbers (DuBois et al. 2015) and eventual absence of Spatterdock Darners
in both ponds in 2015 and 2016 indicates that a local extirpation occurred, which
may be linked to the arrival of fish. Others have demonstrated that fish ponds act
as ecological traps for dragonflies (Sigutova et al. 2015), and it is well documented
that fish predation directly impacts larval odonates, with some species more vulnerable
than others (Crowder and Cooper 1982, Johansson and Brodin 2003, Johnson
and Crowley 1980, McPeek 1998, Morin 1984a, Pierce et al. 1985, Schilling et al.
2009, Torben et al. 2010). In addition to direct effects of predation on dragonfly
nymphs, fish may compete with Spatterdock Darners for common prey, thus altering
food-web dynamics (Morin 1984b). Specifically, Brook Stickleback have been
demonstrated to reduce predaceous invertebrate biomass by both direct competition
for similar prey items and also by preying on early life-stages of predaceous invertebrates
(Hornung and Foote 2006, Wieker et al. 2016).
The population decline in the more suitable reproductive pond may have resulted
in a corresponding loss in the adjacent pond due to source–sink dynamics (Pulliam
1988). Dragonflies are more likely to experience local extinctions in low-quality
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
531
habitats than in those of higher quality (Suhonen et al. 2010). Habitat specialists,
such as the Spatterdock Darner, are more sensitive to changes in environmental conditions,
e.g., changes in water quality or community structure through fish stocking,
and thus, are more prone to local extinction (Korkeamäki and Suhonen 2002). In
our study system, the shift in ecological condition due to the colonization of fish
may have led to a cascading effect for the neighboring pond, ultimately resulting in
a local extirpation of this species.
Imperfect detection
It is possible that Spatterdock Darners are still present in this water-rich region
but have gone undetected by our survey efforts. Our ability to detect Spatterdock
Darners in our study ponds may have been impeded by under-sampling, both in
terms of the number of ponds surveyed and our within-pond sampling effort. We
surveyed a small number of the hundreds of potential reproductive sites identified
by our GIS analysis. Expanded survey efforts may indeed reveal other ponds in the
region that support the species. Our study was designed to maximize detection of
Spatterdock Darner (e.g., using multiple collection methods targeting all life-stages
and timing our nymph collections to maximize the likelihood of detecting the largest
nymph stadia). However, within ponds, patchy distribution of nymphs may
result in under-detection if the “right” location in an individual pond is not sampled.
Similarly, it is possible that Spatterdock Darner exuviae were undetected by our
shoreline visual searches. Several studies have documented Odonata emergence
several meters off the ground on trees (Bennett and Mill 1992, Corbet 1999, Tennessen
1979, Worthen 2010). The preference of Spatterdock Darners to breed in ponds
with wooded uplands may indicate a preference for woody emergence-supports
(Fig. 5). We examined downed woody debris for exuviae, but did not search above
our sight-line; therefore, they may have gone undetected by our survey efforts. Finally,
our method for detecting “suitable ponds” in our study region may have been
too coarse to accurately select ponds that are likely to support reproductive Spatterdock
Darner populations. The habitat criteria used for detecting potential breeding
ponds were developed by Schilling et al. (2019) using the best available information
on this species. Due to the paucity of records on breeding populations, these
criteria were developed, in part, using adult records, and thus were not restricted
to reproductive records alone. The inclusion of adult records when characterizing
Odonata breeding habitat criteria may prevent discernment of more idiosyncratic
requirements (Patten et al. 2015). This data gap highlights the need for future research
focusing specifically on emergence to detect successful breeding populations
and associated habitat conditions (Raebel et al. 2010).
Implications for conservation
Many Odonata species that are considered threatened or rare have limited dispersal
and colonization abilities due to either morphological constraints on their
movement and/or their reliance on specific habitat conditions (Thompson et al.
2003). Darner dragonflies, such as the Spatterdock Darner, are large-bodied and
strong flyers; therefore, their dispersal is unlikely to be morphologically constrained.
Northeastern Naturalist
532
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
In addition to our study population, several other new records at the northern edge
of this species’ range (collected at similar latitudes to our study population) have
been documented over the past 2 decades (Schilling et al. 2019). These new records
may be an indicator of the dispersal abilities of this species, and also that it may be
shifting the northern edge of its range in response to climate warming. Studies have
demonstrated northward range-shifts amongst dragonflies as an adaptive response
to climate change (Hickling et al. 2005, Ott 2001). Dragonflies, in general, have
demonstrated that they may be well-suited to climate warming, as indicated by their
long history in the fossil record relative to other orders and their proven ability to
disperse into temperate and subarctic habitats from their tropical origins (Hassall
2008). However, the recent colonization and local extirpation of the Spatterdock
Darner in our study ponds indicates that dispersal ability of rare Odonata alone may
not ensure their persistence in the face of climate change. Ultimately, the availability
of suitable reproductive habitat will dictate whether the Spatterdock Darner
will persist in ponds in more northern regions. Our GIS analysis indicates that the
St. Paul–Baldwin Plains and Moraines ecoregion is not only water-rich, but also includes
a potentially high number of waterbodies that could support this species. The
presence of the Black-tipped Darner, a species with similar habitat requirements, in
many of our study ponds suggests that these habitats may indeed be suitable. However,
local extirpation of Spatterdock Darner following the introduction of fish into
Figure 5. Rhionaeschna mutata (Spatterdock Darner) exuvia found on the underside of a
downed tree branch, when the species was first detected in Minne sota in 2009.
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
533
1 of the original reproductive ponds in Minnesota is a case in point that this species’
habitat is vulnerable to anthropogenic stressors beyond warming climate. Effective
conservation of this species will require consideration of multiple anthropogenic
activities that threaten its ability to persist. The rarity of the Spatterdock Darner in
our study region in Minnesota supports the conclusions of White et al. (2015) that
the primary responsibility for the global conservation of this species falls within
more eastern states where this species is more widespread.
Acknowledgments
We thank the Augsburg University Undergraduate Research and Graduate Opportunities
program, including several student researchers who assisted in the field work for this
project, especially Elise Linna, Jubilee Prosser, Meghan Springborn, Lucy Bukowski,
Taylor Mattice, and Colin Skerrett. Funding was provided by Augsburg University. We acknowledge
the staff of the Science Museum of Minnesota’s Warner Nature Center for their
logistical support. We are grateful to the numerous private landowners in the St. Croix River
Valley who allowed us access to ponds on their properties.
Literature Cited
Abbott, J.C. 2006–2018. OdonataCentral: An online resource for the distribution and identification
of Odonata. Available online at http://www.odonatacentral.org. Accessed 20
December 2018.
Beatty, G.H., and A.F. Beatty. 1969. Evolution and speciation in the subgenus Schizuraeschna,
with observations on Aeshna (Schizuraeschna) mutata Hagen (Odonata). Proceedings
of the Pennsylvania Academy of Science. 43:147–152.
Bennett, S., and P.J. Mill. 1992. Larval development and emergence in Pyrrhosoma nymphula
(Sulzer) (Zygoptera: Coenagrionidae). Odonotologica 22:133–145 .
Corbet, P.S. 1999. Dragonflies: Behavior and Ecology of Odonata. Cumstock Publishing
Associates, Ithaca, NY. 829 pp.
Crowder, L.B., and W.E. Cooper. 1982. Habitat structural complexity and the interactions
between Bluegills, Lepomis macrochirus, and their prey. Ecology 63:1802–1813.
DuBois, R., R. Lawrenz, R. Johnson, W. Smith, R. Chrouser, and D. Jackson. 2015. First
records for Rhionaeschna multicolor (Blue–eyed Darner) and R. mutata (Spatterdock
Darner) in Minnesota and Wisconsin, and their overlapping ranges in these states. Argia
27:32–35.
Foster, S.E., and D.A. Soluk. 2004. Evaluating exuvia collection as a management tool for
the federally endangered Hine’s Emerald Dragonfly, Somatochlora hineana Williamson
(Odonata: Cordulidae). Biological Conservation 118:15–20.
Hassall, C. 2008. The effects of environmental warming on Odonata: A review. International
Journal of Odonatology 11:131–153.
Hickling, R., D.B. Roy, J.K. Hill, and C.D. Thomas. 2005. A northward shift of range margins
in British Odonata. Global Change Biology 1 1:502–506.
Hornung, J.P., and A.L. Foote. 2006. Aquatic invertebrate responses to fish presence and
vegetation complexity in western boreal wetlands with implications for waterbird productivity.
Wetlands 26:1–12.
Johansson, F., and T. Brodin. 2003. Effects of fish predators and abiotic factors on dragonfly
community structure. Journal of Freshwater Ecology 18:415–423.
Northeastern Naturalist
534
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
Johnson, D.M., and P.H. Crowley. 1980. Habitat and seasonal segregation among coexisting
odonate larvae. Odonatologica 9:297–308.
Korkeamäki, E., and J. Suhonen. 2002. Distribution and habitat specialization of species
affect local extinction in dragonfly (Odonata) populations. Ecogra phy 25:459–465.
Macleod, R.D., R.S. Paige, and A.J Smith. 2013. Updating the national wetland inventory
in East-Central Minnesota. Minnesota Department of Natural Resources, St. Paul, MN.
69 pp.
Magnuson, J.J., W.M. Tonn, A. Banerjee, J. Toivonen, O. Sanchez, and M. Rask. 1998.
Isolation vs. extinction in the assembly of fishes in small northern lakes. Ecology
79:2941–2956.
McPeek, M.A. 1998. The consequences of changing the top predator in a food web: A comparative
experimental approach. Ecological Monographs 68:1–23.
Mead, K. 2017. Dragonflies of the North Woods (3rd Edition). Kollath and Stensaas Publishing,
Duluth, MN. 271 pp.
Minnesota Department of Natural Resources (MN-DNR). 2006. St. Paul–Baldwin Plains
and Moraines subsection profile—Tomorrow’s habitat for the wild and rare: An action
plan for Minnesota wildlife, Comprehensive wildlife conservation strategy. Division of
Ecological Services, St. Paul, MN.
MN-DNR. 2015. Minnesota landcover classification system. St. Pau l, MN.
MN-DNR. 2017. Ecological classification system. Available online at http://www.dnr.state.
mn.us/ecs/index.html. Accessed 28 June 2017.
Mochon, A. 2015. Les libellules du lac des Atocas au parc national du Mont–Saint–Bruno:
Découverte d'une population de l'aeschne des nénuphars au Québec. Le Naturaliste
Canadien. 139:20–34.
Morin, P.J. 1984a. The impact of fish exclusion on the abundance and species composition
of larval odonates: Results of short-term experiments in a North Carolina farm pond.
Ecology 65:53–60.
Morin, P.J. 1984b. Odonate guild composition: Experiments with colonization history and
fish predation. Ecology 65:866–1873.
Natureserve. 2017. NatureServe Explorer: An online encyclopedia of life. Version 7.0. NatureServe,
Arlington, VA. Available online at http://explorer.natureserve.org. Accessed
20 December 2018.
New York Natural Heritage Program. 2017. Conservation guide: Spatterdock Darner
(Rhionaeschna mutata). Available online at http://www.acris.nynhp.org/guide.
php?id=8214&part=6. Accessed 20 December 2018.
Nikula, B., J.L. Loose, and M.R. Burne. 2003. A Field Guide to the Dragonflies and Damselflies
of Massachusetts. Massachusetts Division of Fisheries and Wildlife, Natural
Heritage and Endangered Species Program, Westborough, MA. 197 pp.
Nolby, L.E., K.D. Zimmer, M.A. Hanson, and B.R. Herwig. 2015. Is the island biogeography
model a poor predictor of biodiversity patterns in shallow lakes? Freshwater Biology
60:70–880.
Oldham, M.J. 2007. Spatterdock Darner (Rhionaeschna mutata) in Ontario. Ontario Odonata
7:12–17.
Omernik, J.M., S.S. Chapman, R.A. Lillie, and R.T. Dumke. 2000. Ecoregions of Wisconsin.
Transactions of the Wisconsin Academy of Sciences, Arts, and Letters. 88:77–103.
Ott, J. 2001. Expansion of Mediterranean Odonata in Germany and Europe: Consequences
of climatic changes. Pp. 89–111, In G.-R. Walther, C.A. Burga, and P.J. Edwards (Eds.).
“Fingerprints” of Climate Change: Adapted Behavior and Shifting Species’ Ranges.
Kluwer Academic/Plenum Publishers, New York, NY. 329 pp.
Northeastern Naturalist Vol. 26, No. 3
E.G. Schilling, R. Lawrenz, and H. Kundel
2019
535
Patten, M.A., J.T. Bried, and B.D. Smith-Patten. 2015. Survey data matter: Predicted niche
of adult vs. breeding Odonata. Freshwater Science 34:1 114–1122.
Paulson, D.R. 2011. Dragonflies and Damselflies of the East. Princeton University Press,
Princeton, NJ. 544 pp.
Pierce, C.L., P.H. Crowley, and D.M. Johnson. 1985. Behavior and ecological interactions
of larval Odonata. Ecology 66:1504–1512.
Pollard, J.B., and M. Berrill. 1992. The distribution of dragonfly nymphs across a pH gradient
in south-central Ontario lakes. Canadian Journal of Zoology 70:878–885.
Pulliam, H.R. 1988. Sources, sinks, and population regulation. The American Naturalist
132:652–661.
Raebel, E.M., T. Merckx, P. Riordan, D.W. Macdonald, and D.J. Thompson. 2010. The
dragonfly delusion: Why it is essential to sample exuviae to avoid biased surveys. Journal
of Insect Conservation 14:523–533.
Rahel, F.J. 2007. Biogeographic barriers, connectivity, and homogenization of freshwater
faunas: It’s a small world after all. Freshwater Biology 52:696–710.
Schilling, E.G., C.S. Loftin, K.E. DeGoosh, A.D. Huryn, and K.E. Webster. 2008. Predicting
the locations of naturally fishless lakes. Freshwater Biolog y 53:1021–1035.
Schilling, E.G., C.S. Loftin, and A.D. Huryn. 2009. Effects of introduced fish on macroinvertebrate
communities in historically fishless headwater and kettle lakes. Biological
Conservation 142:3030–3038.
Schilling, E.G., R. Lawrenz, and H. Kundel. 2019. A review of the reproductive habitat
preferences and conservation challenges of a rare, transient, and ecologically restricted
darner dragonfly: Rhionaeschna mutata. International Journal of Odonatology 22:1–9.
DOI:10.1080/13887890.2018.1554513.
Shiffer, C.N., and H.B. White. 2014. Dragonfly and damselfly colonization and recolonization
of a large, semi-permanent Pennsylvania Pond. Northeastern Naturalist 21:630–651.
Sigutova, H., M. Sigut, and A. Dolny. 2015. Intensive fish ponds as ecological traps for
dragonflies: An imminent threat to the endangered species Sympetrum depressiusculum
(Odonata: Libellulidae). Journal of Insect Conservation 19:961– 974.
Suhonen, J., M. Hilli-Lukkarinen, E. Korkeamäki, M. Kukuitunen, J. Kullas, J. Penttinen,
and J. Salmela. 2010. Local extinction of dragonfly and damselfly populations in lowand
high-quality habitat patches. Conservation Biology 24:1148–1153.
Tennessen, K.J. 1979. Distance traveled by transforming nymphs of Tetragoneuria at
Marion County Lake, Alabama, United States (Anisoptera: Corduliidae). Odonotologica
1:63–64.
Thompson, D.J., J.R. Rouquette, and B.V. Purse. 2003. Ecology of the Southern Damselfly,
Coenagrion mercuriale. Conserving Nature 2000 Rivers Ecology Series Number 8. Life
in UK Rivers, English Nature, Peterborough, UK. 22 pp.
Torben, W., S. Goran, and F. Suhling. 2010. Does one community shape the other? Dragonflies
and fish in Swedish Lakes. Insect Conservation and Diversit y 3:124–133.
US Fish and Wildlife Service. 2018. National Wetlands Inventory wetland classification
codes. Available online at https://www.fws.gov/wetlands/Data/Wetland-Codes.html.
Accessed 20 December 2018.
US Geological Survey (USGS). 2018 Nonindigenous aquatic species: Culaea inconstans.
Available online at https://nas.er.usgs.gov/queries/factsheet.aspx?SpeciesID=701. Accessed
20 December 2018.
Van Allen, B.G., N.L. Rasmussen, C.J. Dibble, P.A. Clay, and V.H.W. Rudolf. 2017. Top
predators determine how biodiversity is partitioned across time and space. Ecology Letters
20:1004–1013.
Northeastern Naturalist
536
E.G. Schilling, R. Lawrenz, and H. Kundel
2019 Vol. 26, No. 3
von Ellenrieder, N. 2003. A synopsis of the Neotropical species of “Aesna” Fabricius:
The genus Rhionaeschna Förster (Odonata: Aeshnidae). Tijdschrift voor Entomologie
146:67–207.
Wieker, J.E., C.M. Schoonover, R.K. Gaines, A. Jones, C. Mattes, K. Moses, J. Perry, K.
Prior, S. Smith, B. Swilling, M. Rule, and J. Joyner -Matos. 2016. Effects of introduced
Brook Stickleback (Culaea inconstans) on benthic macroinvertebrate communities in
the nearshore area of lentic systems in Turnbull National Wildlife Refuge, Washington.
Northwest Science. 90:278–289.
White, E.L., P.D. Hunt, M.D. Schlesinger, J.D. Corser, and P.G. deMaynadier. 2015. Prioritizing
Odonata for conservation action in the northeastern USA. Freshwater Science
34:1079–1093.
Worthen, W.B. 2010. Emergence-site selection by the dragonfly Epitheca spinosa (Hagen).
Southeastern Naturalist 9:251–258.
