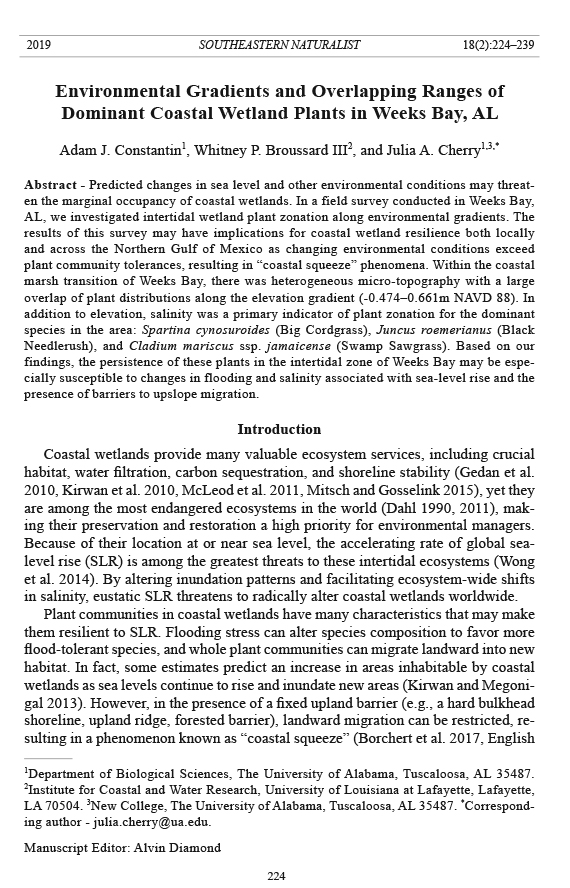

2019 SOUTHEASTERN NATURALIST 18(2):224–239
Environmental Gradients and Overlapping Ranges of
Dominant Coastal Wetland Plants in Weeks Bay, AL
Adam J. Constantin1, Whitney P. Broussard III2, and Julia A. Cherry1,3,*
Abstract - Predicted changes in sea level and other environmental conditions may threaten
the marginal occupancy of coastal wetlands. In a field survey conducted in Weeks Bay,
AL, we investigated intertidal wetland plant zonation along environmental gradients. The
results of this survey may have implications for coastal wetland resilience both locally
and across the Northern Gulf of Mexico as changing environmental conditions exceed
plant community tolerances, resulting in “coastal squeeze” phenomena. Within the coastal
marsh transition of Weeks Bay, there was heterogeneous micro-topography with a large
overlap of plant distributions along the elevation gradient (-0.474–0.661m NAVD 88). In
addition to elevation, salinity was a primary indicator of plant zonation for the dominant
species in the area: Spartina cynosuroides (Big Cordgrass), Juncus roemerianus (Black
Needlerush), and Cladium mariscus ssp. jamaicense (Swamp Sawgrass). Based on our
findings, the persistence of these plants in the intertidal zone of Weeks Bay may be especially
susceptible to changes in flooding and salinity associated with sea-level rise and the
presence of barriers to upslope migration.
Introduction
Coastal wetlands provide many valuable ecosystem services, including crucial
habitat, water filtration, carbon sequestration, and shoreline stability (Gedan et al.
2010, Kirwan et al. 2010, McLeod et al. 2011, Mitsch and Gosselink 2015), yet they
are among the most endangered ecosystems in the world (Dahl 1990, 2011), making
their preservation and restoration a high priority for environmental managers.
Because of their location at or near sea level, the accelerating rate of global sealevel
rise (SLR) is among the greatest threats to these intertidal ecosystems (Wong
et al. 2014). By altering inundation patterns and facilitating ecosystem-wide shifts
in salinity, eustatic SLR threatens to radically alter coastal wetlands worldwide.
Plant communities in coastal wetlands have many characteristics that may make
them resilient to SLR. Flooding stress can alter species composition to favor more
flood-tolerant species, and whole plant communities can migrate landward into new
habitat. In fact, some estimates predict an increase in areas inhabitable by coastal
wetlands as sea levels continue to rise and inundate new areas (Kirwan and Megonigal
2013). However, in the presence of a fixed upland barrier (e.g., a hard bulkhead
shoreline, upland ridge, forested barrier), landward migration can be restricted, resulting
in a phenomenon known as “coastal squeeze” (Borchert et al. 2017, English
1Department of Biological Sciences, The University of Alabama, Tuscaloosa, AL 35487.
2Institute for Coastal and Water Research, University of Louisiana at Lafayette, Lafayette,
LA 70504. 3New College, The University of Alabama, Tuscaloosa, AL 35487. *Corresponding
author - julia.cherry@ua.edu.
Manuscript Editor: Alvin Diamond
Southeastern Naturalist
225
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Nature 1992, Pethick 1993). With SLR and pervasive anthropogenic development
on or near the coast (Vitousek et al. 1997), this coastal squeeze phenomenon is
being observed worldwide, and as such, is a topic of particular interest to environmental
managers in highly developed/developing coastal regions (Enwright et al.
2016, Kirwan and Megonigal 2013).
Coastal wetlands often exhibit conspicuous plant zonation patterns (Chapman
1974, Nixon 1982) that are driven by changes in hydro-edaphic conditions along an
elevation gradient from the sea to upland environments (Earle and Kershaw 1989,
Nixon, 1982, Zedler 1977). Ultimately, species’ distributions are determined by
their physiological tolerances to changes in flooding and salinity occurring within
the coastal transition (Brewer and Grace 1990, Chapman 1974, Cooper 1982,
Earle and Kershaw 1989, La Peyre et al. 2001, Odum 1988). Plant zonation along
environmental gradients also arises in response to trade-offs between competitive
ability and stress tolerance; i.e., as stress declines, interspecific competition
increases and has a greater influence on community structure (Grime 1977, 1979).
Therefore, an increase in environmental stress along a coastal transition may favor
more stress-tolerant species, potentially limiting species richness or plant diversity
and reducing ecosystem resilience (Diaz and Cabido 2001, Elmqvist et al. 2003,
Peterson et al. 1998, Stagg and Mendelssohn 2011). In the face of rapidly changing
environmental conditions associated with SLR, changes in species’ distributions
and subsequent impairment of wetland ecosystem resilience is an increasingly relevant
topic for researchers and environmental managers.
There are numerous ongoing efforts to model and predict the response of coastal
ecosystems to SLR projections, each providing different strengths and weaknesses
for managers tasked with conserving coastal habitats (McLeod et al. 2010). Some
of these models utilize calculations of marsh loss/conversion based on general plant
community categories across broad stress-tolerance ranges and do not incorporate
important species-specific biological feedbacks to elevation maintenance, which
can result in overestimates of total wetland loss in response to SLR (Kirwan and
Guntenspergen 2009). To address these concerns, models are increasingly being
refined to incorporate plant-mediated feedbacks to surface elevation (e.g., Hydro-
MEM, in Alizad et al. 2016; WARMER, in Takekawa et al. 2013). Thus, surveying
and monitoring plant species distributions along environmental stress gradients
can provide high-resolution, site-specific data to inform models, thereby allowing
managers to assess relative SLR impacts within specific habitats and to develop effective
management strategies.
To explore the environmental drivers of plant species zonation in a coastal wetland,
we surveyed marsh plant dominance along elevation and salinity gradients in
intertidal marsh habitat within the Weeks Bay National Estuarine Research Reserve
(NERR), AL. Located in the most rapidly growing county (Baldwin County) in Alabama,
the Weeks Bay estuary represents an important conservation area because of
its relatively high upriver migration potential in response to rising seas (Enwright et
al. 2016). Yet, coastal wetlands in the Bay occupy an already narrow transition and
are therefore susceptible to changes in environmental conditions associated with
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
226
SLR and coastal squeeze. We provide information on local plant zonation in the
Weeks Bay complex, which can inform future environmental management efforts
in Mobile Bay and along the northern Gulf Coast.
Field-site Description
Weeks Bay is a part of the Bon Secour sub-estuary on the southeast corner of
Mobile Bay in Baldwin County, AL. It covers 26.41 km2 and is fed primarily by 2
sources—the Magnolia River to the east and Fish River to the north—with nearly
three quarters of the freshwater inflow coming from the Fish River (NERR 2008).
The Weeks Bay Estuary is microtidal, with a tidal range of 0.3–0.5 m (NERR
2008). The focus of this study was on a narrow band of intertidal marshes near
the mouth of the Fish River on the west side of the bay. In much of the vegetated
marsh, we observed the presence of a slight, yet steep increase in elevation (~30
cm in most areas). This escarpment land feature, or berm, is common in intertidal
marshes along the northern Gulf of Mexico (Fig. 1). The survey area also
included 3 main vegetative zones typical of northern Gulf Coast marshes that are
dominated by Cladium mariscus ssp. jamaicense (Swamp Sawgrass) in freshwater
and higher elevation areas, Juncus roemerianus (Black Needlerush) in the
brackish to intermediate salinity and elevation zone, and Spartina alterniflora
(Smooth Cordgrass) in the high salinity and low-elevation fringe/shoreline marsh.
Other key species in these areas include Spartina cynosuroides (Big Cordgrass),
Spartina patens (Salt Meadow Cordgrass), Sagittaria lancifolia (Bulltongue),
Symphyotrichum subulatum (Salt Marsh Aster), and Distichlis spicata (Saltgrass)
(A.J. Constantin, pers. observ.; NERR 2008) reflecting local elevation and salinity
conditions.
Methods
We conducted vegetation and elevation surveys in July 2014 along transects
running perpendicular to the shoreline in an intertidal marsh at Weeks Bay (Fig. 1).
We chose the specific survey area based on accessibility and the presence of representative,
contiguous marsh. The Weeks Bay NERR walkway and observation
deck allowed access to and from the survey site. We created a field map for reference
during surveys that included approximate transect locations. To create parallel
transects that were approximately perpendicular to the shoreline, we established a
350° bearing from the southwest piling of the observation deck as the initial reference
transect from which we based all other transect lines. Initially, we took survey
points every 20 m along 9 transects, with a 40-m interval between transects (Fig. 1).
We took this approach to ensure that our survey would capture a representative
profile of the emergent marsh within the area of interest. After this initial survey,
we sampled 4 intermediate transects at a 10-m frequency (Fig. 1) to ensure that we
fully recorded plant species zones.
We measured elevation and percent cover of marsh plants at each sampling
point along all transects. To measure elevation, we used a GPS real-time kinetic
Southeastern Naturalist
227
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
(RTK) solution in which a Trimble Geo7x witha Zephyr2 antenna acquired corrections
from the Alabama Department of Transportation (ALDOT) Continuously
Operating Reference Stations (CORS) network. This approach provided real-time,
auto-corrected elevation readings for each survey point. We tested the GPS RTK at
an elevation benchmark near the sampling area, from which we determined that we
could consistently acquire a less than 3-cm vertical accuracy within 180 epochs (GPS-coordinate
readings). We recorded elevation readings using the NAVD88 datum based
on Geoid12A. Dauphin Island was the closest tide station with available NAVD88
data relative to local mean sea level (MSL), which showed that local MSL was +1.8
cm NAVD88. We then employed a transformation coefficient of -1.8 cm to convert
NAVD88 elevation to relative MSL.
We visually determined percent cover of vascular plant species using a 1-m2
quadrat at each sampling point, for a total of 101 cover readings throughout the
sampling area. We recorded percent cover of live standing aboveground biomass
by a single observer over a 4-day sampling period. To estimate cover, we randomly
placed the sampling quadrat within 1 m of the RTK device while elevation was being
recorded, and recorded the proportion of marsh surface covered by the aerial
parts of the plants emerging from within the plot (Brower et al. 1990). We recorded
unvegetated, exposed groundcover as “bare”. We also recorded additional plant
Figure 1. Sampling locations for surveys of percent cover of plant species, elevation readings,
and subsequent salinity measurements along transects established within Weeks Bay
NERR, AL. Each white circle represents a survey point. The location of the berm is denoted
by the sharp transition to a lighter shade of gray along the shoreline.
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
228
species that were not in the quadrat but were observed within ~3 m of the sampling
location; these observations were not included in the analysis. We collected and
pressed unknown plants for later identification with Godfrey and Wooten (1979,
1981) and the USDA Plants database (plants.usda.gov) or Larry Allain at the USGS
National Wetland and Aquatic Research Center in Lafayette, LA.
We plotted plant survey data by elevation and distance from shoreline. We calculated
distance from shoreline in ESRI ArcMap (ArcGIS 10.3.1, ESRI, Redlands,
CA) using a created vector shoreline shapefile and a NAD83/UTM zone16N (North
American Datum of 1983/Universal Transverse Mercator) projected coordinate
system. Plotting plant data by elevation and distance from shoreline provided
spatial representations of marsh plant species’ distributions along vertical and
horizontal planes. Elevation generally increased from shore to inland, but with
micro-topographic variations that resulted in a lack of clear delineations between
plant zones by elevation.
Following preliminary examination of relationships between elevation and
plant cover, we sampled porewater salinity in early October 2014 along the same
transects as the surveys of elevation and percent cover to determine if observed
zonation patterns corresponded to relative differences in salinity among plots. We
used a sipper tube inserted vertically into the soil to a depth of 15 cm to collect
samples of at least 40 mL of porewater, from which salinity (psu) was subsequently
determined in the lab using a YSI conductivity meter (YSI 3100, YSI Inc., Yellow
Springs, OH). We followed established transects as closely as possible and took
samples at a 10-m frequency and recorded GPS points for all new sample sites. We
imported GPS points and associated salinity values into ArcMap as a point shapefile.
Although the points from the salinity survey did not match the timing or exact
locations of the prior plant surveys, they captured relative differences in salinity
along transects and were collected generally no more than 5 m from original survey
locations. To determine soil salinity at sites we surveyd for elevation and percent
cover, we used an inverse distance-weighted (IDW) interpolation to create a 2D
surface model of salinity. Salinity values were then sampled from the resulting
raster using the previous survey points. Each survey point then had an associated
value for species percent cover, elevation, salinity, and distance from shoreline.
We examined how environmental conditions (elevation, salinity, distance from
shoreline) related to each other and to species percent cover using separate correlation
analyses for the 3 dominant species: Swamp Sawgrass, Black Needlerush,
and Big Cordgrass. We included data from all 101 survey points across the full
ranges of elevation, salinity, and distance from shoreline to examine correlations
with percent cover and to detect general patterns of species distributions within
the coastal transition. We also examined correlations between species using data
from all 101 survey points to elucidate relationships of cohabitation between species.
Data for all correlations violated the normality assumption for parametric
tests, necessitating the use of non-parametric Spearman’s rho correlations. We
conducted all analyses in JMP v10.0 (SAS Institute, Cary, NC) and tested at the α
= 0.05 level.
Southeastern Naturalist
229
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Results
In the surveyed vegetated marsh, elevation varied from -0.474 m to +0.661 m
(NAVD 88), with the lowest elevation occurring along the shoreline (Table 1,
Fig. 2). Inland of the subtidal area, there was an ~0.3-m increase in elevation,
marking the berm which ran parallel to the shore (Figs. 1, 2). Inland of the berm,
elevation varied between 0.2 m and 0.6 m, generally increasing with increasing
distance from shoreline (ρ = 0.47, P < 0.0001); there was heterogeneous microtopography
throughout the coastal transition (Fig. 2).
We observed a total of 18 vascular plant species in the study area (Table 1). We
identified 3 dominant plant species from the 14 transects: Big Cordgrass (17.9% of
observations), Black Needlerush (12.3%), and Swamp Sawgrass (12.3%) (Table 1).
Combined, the 3 species contributed to 42.5% of the total observations across 101
survey plots, with the other 15 species collectively comprising 53%, and none making
up more than 8.8% cover.
Of the dominant plant species, Big Cordgrass had the second largest elevation
span (-0.066 to +0.636 m), with higher percent cover in areas along and near
the berm (Table 1; Figs. 2, 3). Its cover throughout the coastal transition was not
significantly related to elevation (ρ = 0.32, P = 0.75; Fig. 3a), although it did occupy
elevations up to 0.05 m higher than Black Needlerush. Big Cordgrass cover
increased with increasing salinity (ρ = 0.29, P = 0.003; Fig. 3b) and declined with
increasing distance from shoreline (ρ = -0.45, P < 0.0001; Fig. 3c).
Black Needlerush had the largest elevation span (-0.228 to +0.586 m), with
higher percent cover in lower elevation, saltier areas nearer the shore (Table 1,
Figs. 2–4). Generally, its distribution throughout the coastal transition declined
Figure 2. Change in elevation with increasing distance from shoreline and corresponding
distributions of dominant marsh plant species by elevation and distance from shoreline.
Big Cordgrass, Black Needlerush, and Swamp Sawgrass distributions are illustrated by
the shaded boxes, with the vertical extent of each box indicating elevation ranges and the
horizontal extent of each box indicating the range in distance from shoreline. Each point on
the elevation line signifies a survey point, conveying the heterogeneous micro-topography
of the coastal transition in the survey area.
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
230
Table 1. Plant species identified during surveys of marsh transects listed in order of frequency (n) in which they were observed out of 101 total plots. Range
(min/max), mean, and median of elevation (m), salinity (psu), and distance from shoreline (m) are provided for observed plant species. % = percent of total
observed. Elevation is relative to MSL. [Table continued on following page.]
Elevation (m) Salinity (psu) Distance to shoreline (m)
Scientific name Common name n % Min Max Mean Median Min Max Mean Median Min Max Mean Median
Spartina cynosuroides Big Cordgrass 55 17.9 -0.07 0.64 0.43 0.44 1.04 12.18 6.68 6.55 1.39 92.79 35.25 35.49
(L.) Roth
Juncus roemerianus Black Needlerush 38 12.3 -0.23 0.59 0.34 0.38 1.04 13.82 6.68 6.47 0.82 105.27 45.33 44.01
Scheele
Cladium mariscus (L.) Swamp Sawgrass 38 12.3 0.33 0.59 0.47 0.47 1.67 7.33 4.34 3.88 18.26 156.92 89.47 86.54
Pohl ssp. jamaicense.
(Crantz) Kük
Spartina patens (Aiton) Saltmeadow 27 8.8 0.19 0.59 0.47 0.49 2.66 8.59 6.23 6.53 8.73 87.73 43.28 39.65
Muhl. Cordgrass
Sagittaria lancifolia L. Bulltongue 25 8.1 0.25 0.64 0.46 0.47 1.04 7.91 3.40 2.86 4.15 156.92 70.04 74.67
Arrowhead
Distichlis spicata (L.) Saltgrass 22 7.1 0.29 0.59 0.46 0.47 2.66 13.82 7.07 6.95 16.72 74.05 41.86 40.41
Greene
Schoenoplectus robustus Sturdy Bulrush 21 6.8 0.29 0.61 0.47 0.48 1.26 10.24 5.91 6.00 8.27 92.79 43.19 39.69
(Pursh) M.T. Strong
Kosteletzyka virginica (L.) Virginia Saltmarsh 16 5.2 0.42 0.59 0.50 0.51 1.04 7.25 4.11 3.80 63.17 156.92 100.60 96.41
C. Presl Mallow
Eleocharus rostellata Beaked Spikerush 13 4.2 0.30 0.61 0.47 0.47 1.26 7.59 4.09 3.67 19.07 99.83 63.62 70.28
(Torr.) Torr.
Southeastern Naturalist
231
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Table 1, continued.
Elevation range (m) Salinity (psu) Distance to shoreline (m)
Scientific name Common name n % Min Max Mean Median Min Max Mean Median Min Max Mean Median
Osmunda regalis L. Royal Fern 10 3.2 0.36 0.53 0.45 0.45 1.70 4.86 3.64 3.64 70.28 156.92 111.16 111.13
Ipomoea sagittata Poir. Saltmarsh Morning 9 2.9 0.36 0.59 0.47 0.47 2.86 6.89 5.22 5.39 28.28 118.59 72.07 67.88
Glory
Zizaniopsis miliacea Giant Cutgrass 7 2.3 0.41 0.66 0.54 0.52 1.20 7.38 3.98 3.73 46.13 97.35 64.10 55.65
(Michx.) Döll and Asch.
Spartina alterniflora Smooth Cordgrass 5 1.6 -0.47 0.51 -0.15 -0.33 6.09 6.89 6.43 6.34 0.09 77.84 16.59 1.27
Loisel.
Baccharus halimifolia L. Eastern Baccharis 2 0.6 0.43 0.48 0.46 0.46 3.16 6.85 5.00 5.00 80.99 89.10 85.04 85.04
Typha domingensis Pers. Southern Cattail 2 0.6 0.49 0.52 0.51 0.50 6.00 6.53 6.47 6.53 57.28 87.73 67.78 58.32
Hypericum hypericoides St. Andrew’s Cross 2 0.6 0.43 0.44 0.44 0.44 3.16 4.45 4.45 4.45 89.10 105.27 105.27 105.27
(L.) Crantz
Iva frutescens L. Jesuit’s Bark 1 0.3 0.49 0.49 0.49 0.49 7.12 7.12 7.09 7.09 60.67 60.67 67.36 67.36
Magnolia virginiana L. Sweetbay 1 0.3 0.43 0.43 0.43 0.43 3.16 3.16 3.16 3.16 89.10 89.10 89.10 89.10
Bare land 14 4.5 -0.47 0.57 0.13 0.25 2.00 9.10 5.41 6.00 0.09 105.27 34.87 14.22
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
232
with increasing elevation (ρ = -0.45, P < 0.0001; Fig. 3d), increased with increasing
salinity (ρ = 0.33, P = 0.0008; Fig. 3e), and declined with distance from shoreline
(ρ = -0.20, P = 0.04; Fig. 3f).
Swamp Sawgrass occupied the smallest elevation range (0.330–+0.586 m), with
greater cover at higher elevations further inland (Table 1; Figs. 2, 3). Swamp Sawgrass
percent cover increased with increasing elevation (ρ = 0.20, P =0.04; Fig. 3g),
decreased with increasing salinity (ρ = -0.41, P < 0.0001; Fig. 3h), and increased
with distance from shoreline (ρ = 0.76, P < 0.0001; Fig. 3i).
Of the dominant species, Big Cordgrass and Swamp Sawgrass were spatially segregated,
with Swamp Sawgrass cover increasing as Big Cordgrass cover decreased
(ρ = -0.61, P < 0.0001; Table 2). Although Big Cordgrass and Black Needlerush
occupied similar elevation and salinity ranges (Table 1), Black Needlerush cover
tended to increase as Big Cordgrass cover decreased, although this relationship was
not significant (ρ = -0.18, P = 0.75; Table 2). Similarly, Black Needlerush cover
tended to increase as Swamp Sawgrass cover decreased; this relationship was not
quite significant (ρ = -0.17, P = 0.08; Table 2).
Figure 3. Scatterplots of environmental conditions (elevation, salinity, and distance from
shoreline) by the percent cover of dominant plant species: (a–c) Big cordgrass, (d–f) Black
Needlerush, and (g–i) Swamp Sawgrass. Spearman’s rho (ρ) values signify the nature (positive
or negative) and strength of correlations. A positive/negative value indicates a positive/
negative correlation for a respective relationship between the plant species and environmental
condition. P-value indicates significance at the α = 0.05 level. Significant relationships
are indicated by an asterisk (*).
Southeastern Naturalist
233
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Discussion
Our findings suggest that wetland plant species zonation in Weeks Bay corresponded
to changes in inundation and salinity that varied across the coastal
transition. Although elevation ranges differed for the 3 dominant plant species, their
ranges overlapped, especially between Black Needlerush and Big Cordgrass, and as
such, zonation could not be defined by elevation (i.e., inundation) alone. When we
also examined salinity, clear segregation between Swamp Sawgrass and the other
2 dominant species was apparent; there was a tendency for Black Needlerush to
dominate when salinity was higher (>9 psu). Thus, salinity combined with elevation
Table 2. Spearman’s rho correlation analysis between dominant plant species (Big Cordgrass, Black
Needlerush, and Swamp Sawgrass). Spearman’s rho values signify the nature (positive or negative)
and strength of correlations and P-value indicates significance at the α = 0.05 level. A positive value
indicates cohabitation and a negative value indicate a lack of cohabitation. Significant values are
indicated by an asterisk (*).
Big Cordgrass Black Needlerush Swamp Sawgrass
ρ P ρ P ρ P
Big Cordgrass -0.18 0.75 -0.61 less than 0.0001*
Black Needlerush -0.18 0.75 -0.17 0.08
Swamp Sawgrass -0.61 < 0.0001* -0.17 0.08
Figure 4. Spatial distribution of Big Cordgrass, Black Needlerush, and Swamp Sawgrass.
Larger circles indicate higher percent cover at a sampling site and light-to-dark gradient
indicates increasing porewater salinity based on field samples.
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
234
provides a possible explanation for relative spatial distributions of the dominant
species along the elevation gradient in this Weeks Bay marsh.
The observed influence of salinity as a driver of coastal-marsh plant zonation is
consistent with the current paradigm in which salinity is viewed as a key indicator
of vegetation and habitat classification (Adams 1963, Chapman 1974, Odum 1988,
Pennings et al. 2005, Visser et al. 2002). In a study of temporal changes in vegetation
in a tidal freshwater marsh, Perry and Hershner (1999) documented an increase
in the abundance of Big Cordgrass with increasing saltwater influence. Black
Needlerush, which can occupy zones with dissimilar environmental conditions
(Touchette et al. 2009), has a more ubiquitous presence throughout Weeks Bay. It
is also common in marshes along the south Atlantic and northern Gulf of Mexico
coasts where it dominates 20.7% and 7.3% of marshes, respectively (Eleuterius
1976). Further, interactions of plant community dominance between Big Cordgrass
and Black Needlerush in response to salinity are well documented (Higinbotham
et al. 2004, Pennings et al. 2005, Touchette et al. 2009, White and Alber 2009).
Hackney et al. (1996) found that Black Needlerush occupied higher-salinity areas
than Big Cordgrass (average salinities 17 psu and 13 psu, respectively), a pattern
that we observed in the Weeks Bay marsh as well. While we found the 2 species to
occupy similar salinity ranges in general, Black Needlerush was found more at the
sites with the very highest salinity values.
Given that zonation was linked to salinity, the effects of projected SLR on the
Weeks Bay marsh and other similar ecosystems may be more tied to its effects
on salinity than inundation. Under projected conditions of global climate change,
changes in precipitation patterns in the Weeks Bay watershed could alter freshwater
delivery and salinity in these marshes (Wong et al. 2014). Higher salinities would
likely favor Black Needlerush and may result in a sharper salinity gradient along
the coastal transition, while lower salinities could favor Swamp Sawgrass. Based
on the spatial salinity profile in the survey area, sea-level rise could reduce salinity,
rather than increase it, by flushing out salts that have accumulated behind the berm.
The area of highest observed salinity (and highest Black Needlerush dominance)
was on the landward side of this berm. Field observations indicated that this situation
may be a result of evaporation and subsequent salt accumulation, resulting in
higher salinity than that of the Bay water (Schroeder et al. 1992). In the event of
higher sea levels, tidal flushing could lower salinities in this area by flushing these
salts, thus, favoring Big Cordgrass.
The already marginal coastal marshes in Weeks Bay may also be under threat
of coastal squeeze (Borchert et al. 2017). As the dominant species in the upland
marsh zone, Swamp Sawgrass is limited by salinity and forested wetland habitat
on its seaward and landward extents, respectively. The salinity tolerances of
Black Needlerush and Big Cordgrass are much higher than that of Swamp Sawgrass;
thus, the possibility of elevated salinity from SLR may restrict its habitable
zone as Black Needlerush and Big Cordgrass migrate inland. On the landward
extreme, the forested wetlands that border the Swamp Sawgrass zone have been
expanding into coastal marsh habitat (Constantin 2015), which further reduces
Southeastern Naturalist
235
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
the inhabitable coastal transition and may limit the capacity of marsh transgression
upland. In the presence of these barriers, upriver migration may be necessary
for these intertidal, saline ecosystems to persist in the face of rising seas. In Alabama,
landward migration of tidal marshes on protected land is estimated to be
possible on 45% of the area, and thus, the Weeks Bay NERR represents an important
conservation target and potential migration corridor (Enwright et al. 2016).
Consequently, it is critical that environmental management strategies integrate
landward migration corridors to facilitate natural mechanisms of ecosystem resilience
by increasing ecosystem connectivity.
Prescribed burning of marshes may be one mechanism by which upland forest
barriers to marsh migration are reduced. Fire can promote a more natural forest-towetland
ecotone (Knickerbocker et al. 2009, Poulter et al. 2009), in which marsh–
forest transitions are facilitated in response to changing environmental conditions.
Ecosystems exposed to fire events have been shown to be more spatially fluid in
response to changing environmental conditions and display more distinct ecotone
boundaries than those in which fire is absent (Boughton et al. 2006, Smith et al.
2013). The first prescribed burn on record for the Weeks Bay marsh was not until
2008 (S. Phipps, Weeks Bay NERR, AL, pers. comm.), and it is possible that future
fire management strategies will reduce recent forest encroachment (Constantin
2015) and promote marsh migration in response to rising sea level. The continued
practice of prescribed burns, along with monitoring of changes in salinity and the
location of the marsh–forest ecotone, are vital to gain insight to the future distribution
of species along this coastal transition.
In addition to SLR and forest expansion, human activities that alter coastal
habitat could affect coastal wetland resilience. For instance, the vulnerability of
unvegetated and human-altered shorelines to erosional loss is a well-documented
occurrence worldwide (Gedan et al. 2010). Hard shoreline structures, such as bulkheads
that are intended to stabilize shoreline, can exacerbate erosion by focusing
tidal action on a small area of land resulting in “vertical erosion”. They can also
act as a physical barrier preventing landward migration of plant species in response
to changing environmental conditions. These bulkhead shorelines are common in
areas of urban and residential development to protect property from wave damage.
In Weeks Bay, the majority of shoreline erosion is concentrated in areas with bulkhead
structures or unvegetated sediment (Constantin 2015, Douglass and Pickel
1999, Jones et al. 2009), making the narrow zone of intertidal marsh an important
resource for the area.
Although the findings of this study support the prevailing paradigm that intertidal
marsh species’ distributions arise in response to changes in both elevation and
salinity (Battaglia et al. 2012, Pennings et al. 2005)—factors that will likely change
with SLR—they also demonstrate high levels of overlap among plant species along
an elevation gradient. Models of SLR impacts that are based on general, coarsely
grouped categories of vegetation do not capture this finer-scale heterogeneity, and
thus, may miss important species-specific, biological feedbacks to elevation. Further,
upslope barriers to species migration, coupled with seaward stresses associated with
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
236
hardened shorelines and erosion, may reduce the ability of Weeks Bay marshes to
respond to SLR in the future. To facilitate sustainable coastal development practices
and minimize coastal squeeze, it may be necessary to utilize prescribed burns to manage
upland barriers, limit the presence of bulkheads or other hardened structures, and
promote natural mechanisms of ecosystem resilience to SLR. In so doing, environmental
managers may be able to enhance marsh transgression and reduce erosional
land loss, thereby promoting a more resilient coastal landscape in Weeks Bay, AL,
and similar marshes along the northern Gulf of Mexico.
Acknowledgments
We thank Jonathan Benstead and Just Cebrian for feedback during the development of
the project. A special thanks to Dale Steve Nevitt and Sara Martin for help in the field. We
are grateful to Larry Allain for aid in plant identification, Michael Kendrick for assistance
with data analysis, and Scott Phipps and Eric Brunden at the Weeks Bay NERR for support
during the duration of these projects. Comments from two anonymous reviewers greatly
improved the quality of this manuscript. Funding for this and related projects was provided
by The University of Alabama and Grant NA09NOS4190153 from the NOAA NERRS Science
Collaborative.
Literature Cited
Adams, D.A. 1963. Factors influencing vascular plant zonation in North Carolina salt
marshes. Ecology 44:445–456.
Alizad, K., S.C. Hagen, J.T. Morris, P. Bacopoulos, M.V. Bilskie, J.F. Weishampel, and S.C.
Medeiros. 2016. A coupled, two-dimensional hydrodynamic-marsh model with biological
feedback. Ecological Modeling 327:29–43.
Battaglia, L.L., M.S. Woodrey, M.S. Peterson, K.S. Dillon, and J.M. Visser. 2012. Wetlands
of the Northern Gulf Coast. Pp. 75–88, In D.P. Batzer, and A.H. Baldwin (Eds.). Wetland
Habitats of North America: Ecology and Conservation Concerns. University of California
Press, Berkeley, CA. 408 pp.
Borchert, S.M., M.J. Osland, N.M. Enwright, and K.T. Griffith. 2017. Coastal wetland
adaptation to sea level rise: Quantifying potential for landward migration and coastal
squeeze. Journal of Applied Ecology 55:2876–2887.
Boughton, E.A., P.F. Quintana-Ascencio, E.S. Menges, and R.K. Boughton. 2006. Association
of ecotones with relative elevation and fire in an upland Florida landscape. Journal
of Vegetation Science 17:361–368.
Brewer, J.S., and J.B Grace. 1990. Plant community structure in an oligohaline tidal marsh.
Vegetatio 962:93–107.
Brower, J.E., H. Zar, and C.N. von Ende. 1990. Field and Laboratory Methods for General
Ecology. McGraw-Hill, Boston, MA. 288 pp.
Chapman, V.J. 1974. Salt marshes and salt deserts of the world. Pp. 3–19, In R.J. Reimold
and W.H. Queen (Eds.). Ecology of Halophytes. Academic Press, New York,
NY. 620 pp.
Constantin, A.J. 2015. Land-cover change and wetland plant zonation in Weeks Bay, Alabama.
M.Sc. Thesis. The University of Alabama, Tuscaloosa, AL. 68 pp.
Cooper, A. 1982. The effects of salinity and waterlogging on the growth and cation uptake
of salt marsh plants. New Phytologist 90:263–275.
Southeastern Naturalist
237
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Dahl, T.E. 1990. Wetlands losses in the United States, 1780s to1980s. US Department of the
Interior, Fish and Wildlife Service, Washington, DC. 112 pp.
Dahl, T.E. 2011. Status and trends of wetlands in the conterminous United States, 2004 to
2009. US Department of the Interior, Fish and Wildlife Service, Washington, DC. 108 pp.
Dı́az, S., and M. Cabido. 2001. Vive la difference: Plant functional diversity matters to
ecosystem processes. Trends in Ecology and Evolution 16:646–655.
Douglass, S.L., and B.H. Pickel. 1999. The tide doesn't go out anymore: The effect of bulkheads
on urban bay shorelines. Shore and Beach 67:19–25.
Earle, J.C., and K.A. Kershaw. 1989. Vegetation patterns in James Bay coastal marshes.
III. Salinity and elevation as factors influencing plant zonations. Canadian Journal of
Botany 67:2967–2974.
Eleuterius, L.N. 1976. The distribution of Juncus roemerianus in the salt marshes of North
America. Chesapeake Science 17:289.
Elmqvist, T., C. Folke, M. Nyström, G. Peterson, J. Bengtsson, B. Walker, and J. Norberg.
2003. Response diversity, ecosystem change, and resilience. Frontiers in Ecology and
the Environment 9:488–494.
English Nature. 1992. Coastal Zone Conservation: English Nature’s Rationale, Objectives
and Practical Recommendations. English Nature, Peterborough, UK.
Enwright, N.M., K.T. Griffith, and M.J. Osland. 2016. Barriers to and opportunities for
landward migration of coastal wetlands with sea-level rise. Frontiers in Ecology and
Environment14:307–316.
Gedan, K.B., and M.D. Bertness. 2010. How will warming affect the salt marsh foundation
species Spartina patens and its ecological role? Oecologia 164:479–487.
Godfrey, R.K., and J.W. Wooten. 1979. Aquatic and Wetland Plants of the Southeastern
United States: Monocotyledons. University of Georgia Press, Athens, GA. 728 pp.
Godfrey, R.K., and J.W. Wooten. 1981. Aquatic Plants of the Southeastern United States:
Dicotyledons. University of Georgia Press, Athens, GA. 944 pp.
Grime, J.P. 1977. Evidence for the existence of three primary strategies in plants and its
relevance to ecological and evolutionary theory. American Naturalist 111:1169–1194.
Grime, J.P. 1979. Competition and the struggle for existence. Pp. 123–139, In R.M. Anderson,
B.D. Turner, and L.R. Taylor (Eds.). Population dynamics. Blackwell Scientific,
Oxford, UK. 434 pp.
Hackney, C.T., S. Brady, L. Stemmy, M. Boris, C. Dennis, T. Hancock, and E. Barbee. 1996.
Does intertidal vegetation indicate specific soil and hydrologic conditions? Wetlands
16:89–94.
Higinbotham, C.B., M. Alber, and A.G. Chalmers. 2004. Analysis of tidal marsh vegetation
patterns in two Georgia estuaries using aerial photography and GIS. Estuaries27:
670–683.
Jones, S.C., D.K. Tidwell, and S.B. Darby. 2009. Comprehensive shoreline mapping, Baldwin
and Mobile counties, Alabama: Phase I. Open File Report 0921. Alabama Geological
Survey, Tuscaloosa, AL. 38 pp.
Kirwan, M.L., and G.R. Guntenspergen. 2009. Accelerated sea-level rise: A response to
Craft et al. Frontiers in Ecology and the Environment 7:126–127.
Kirwan, M.L., and J.P. Megonigal. 2013. Tidal wetland stability in the face of human impacts
and sea-level rise. Nature 504:53–60.
Kirwan, M.L., G.R. Guntenspergen, A. D’Alpaos, J.T. Morris, S.M. Mudd, and S. Temmerman
2010. Limits on the adaptability of coastal marshes to rising sea level. Geophysical
Research Letters 37:L23401.
Southeastern Naturalist
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
238
Knickerbocker, C.M., S. Leitholf, E.L. Stephens, D.J. Keellings, H. Laird, C.J.R. Anderson,
and P.F. Quintana-Ascencio. 2009. Tree encroachment of a Sawgrass (Cladium
jamaicense) marsh within an increasingly urbanized ecosystem. Natural Areas Journal
29:15–26.
La Peyre, M.K.G., J.B. Grace, E. Hahn, and I.A. Mendelssohn. 2001. The importance of
competition in regulating plant species abundance along a salinity gradient. Ecology
82:62–69.
McLeod, E., B. Poulter, J. Hinkel, E. Reyes, and R. Salm. 2010. Sea-level–rise impact models
and environmental conservation: A review of models and their applications. Ocean
and Coastal Management 53:507–517.
McLeod, E., G.L. Chmura, S. Bouillon, R. Salm, M. Björk, C.M. Duarte, C.E. Lovelock,
W.H. Schlesinger, and B.R. Silliman. 2011. A blueprint for blue carbon: Toward an
improved understanding of the role of vegetated coastal habitats in sequestering CO2.
Frontiers in Ecology and the Environment 9:552–560.
Mitsch, W. J., and J.G. Gosselink. 2015. Wetlands. John Wiley and Sons, Inc., Hoboken,
NJ. 736 pp.
National Estuarine Research Reserve System (NERRS). 2008. Weeks Bay, AL. Available
online at http://nerrs.noaa.gov/Reserve.aspx?ResID=WKB. Accessed 1 February 2014.
Nixon, S.W. 1982. The ecology of New England high salt marshes: A community profile.
Number FWS/OBS–81/55. National Coastal Ecosystems Team, Washington, DC. Graduate
School of Oceanography, Rhode Island University, Kingston, RI.
Odum, W.E. 1988. Comparative ecology of tidal freshwater and salt marshes. Annual Review
of Ecology and Systematics 19:147–176.
Pennings, S.C., M.B. Grant, and M.D. Bertness. 2005. Plant zonation in low-latitude salt
marshes: Disentangling the roles of flooding, salinity, and competition. Journal of Ecology
93:159–167.
Perry, J.E., and C.H. Hershner. 1999. Temporal changes in the vegetation pattern in a tidal
freshwater marsh. Wetlands 19:90–99.
Peterson, G., C.R. Allen, and C.S. Holling. 1998. Ecological resilience, biodiversity, and
scale. Ecosystems 1:6–18.
Pethick, J. 1993. Shoreline adjustments and coastal management: Physical and biological
processes under accelerated sea-level rise. Geographical Journal 159:162–168.
Poulter, B., S.S. Qian, and N.L. Christensen. 2009. Determinants of coastal treeline and the
role of abiotic and biotic interactions. Plant Ecology 202:55–66.
Schroeder, W.W., S.P. Dinnel, and W.J. Wiseman. 1992. Salinity structure of a shallow,
tributary estuary. Pp. 155–171, In D. Prandle (Ed.). Dynamics and Exchanges in Estuaries
and the Coastal Zone. American Geophysical Union, Washington, DC. 650 pp.
Smith, T.J., III, A.M. Foster, G. Tiling-Range, and J.W. Jones. 2013. Dynamics of mangrove–
marsh ecotones in subtropical coastal wetlands: Fire, sea-level rise, and water
levels. Fire Ecology 9:66–77.
Stagg, C.L., and I.A. Mendelssohn. 2011. Controls on resilience and stability in a sedimentsubsidized
salt marsh. Ecological Applications 21:1731–1744.
Takekawa, J.Y., K.M. Thorne, K.J. Buffington, K.A. Spragens, K.M. Drexler, J.Z. Schoellhamer,
C.T. Overton, and M.L. Casazza. 2013. Final report for sea-level response modeling
for San Francisco Bay estuary tidal marshes. US Geological Survey Open File
Report 2012–1081. Sacramento, CA. 161 pp.
Touchette, B.W., G.A. Smith, K.L. Rhodes, and M. Poole. 2009. Tolerance and avoidance:
Two contrasting physiological responses to salt stress in mature marsh halophytes
Juncus roemerianus Scheele and Spartina alterniflora Loisel. Journal of Experimental
Marine Biology and Ecology 380:106–112.
Southeastern Naturalist
239
A.J. Constantin, W.P. Broussard III, and J.A. Cherry
2019 Vol. 18, No. 2
Visser, J.M., C.E. Sasser, R.H. Chabreck, and R.G. Linscombe. 2002. The impact of a severe
drought on the vegetation of a subtropical estuary. Estuaries 25:1184–1195.
Vitousek, P.M., H.A. Mooney, J. Lubchenco, and J.M. Melillo. 1997. Human domination of
Earth’s ecosystems. Science 277:494–499.
White, S.N., and M. Alber. 2009. Drought-associated shifts in Spartina alterniflora and S.
cynosuroides in the Altamaha River estuary.Wetlands 29:215–224.
Wong, P.P., I.J. Losada, J.-P. Gattuso, J. Hinkel, A. Khattabi, K.L. McInnes, Y. Saito, and
A. Sallenger. 2014. Coastal systems and low-lying areas. Pp. 361–409, In C.B. Field,
V.R. Barros, D.J. Dokken, K.J. Mach, M.D. Mastrandrea, T.E. Bilir, M. Chatterjee, K.L.
Ebi, Y.O. Estrada, R.C. Genova, B. Girma, E.S. Kissel, A.N. Levy, S. MacCracken, P.R.
Mastrandrea, and L.L.White (Eds.). Climate Change 2014: Impacts, Adaptation, and
Vulnerability. Part A: Global and Sectoral Aspects. Contribution of Working Group II to
the Fifth Assessment Report of the Intergovernmental Panel on Climate Change Cambridge
University Press, Cambridge, UK and New York, NY. 1140 pp.
Zedler, J.B. 1977. Salt marsh community structure in the Tijuana Estuary, California. Estuarine
and Coastal Marine Science 5:39–53.
